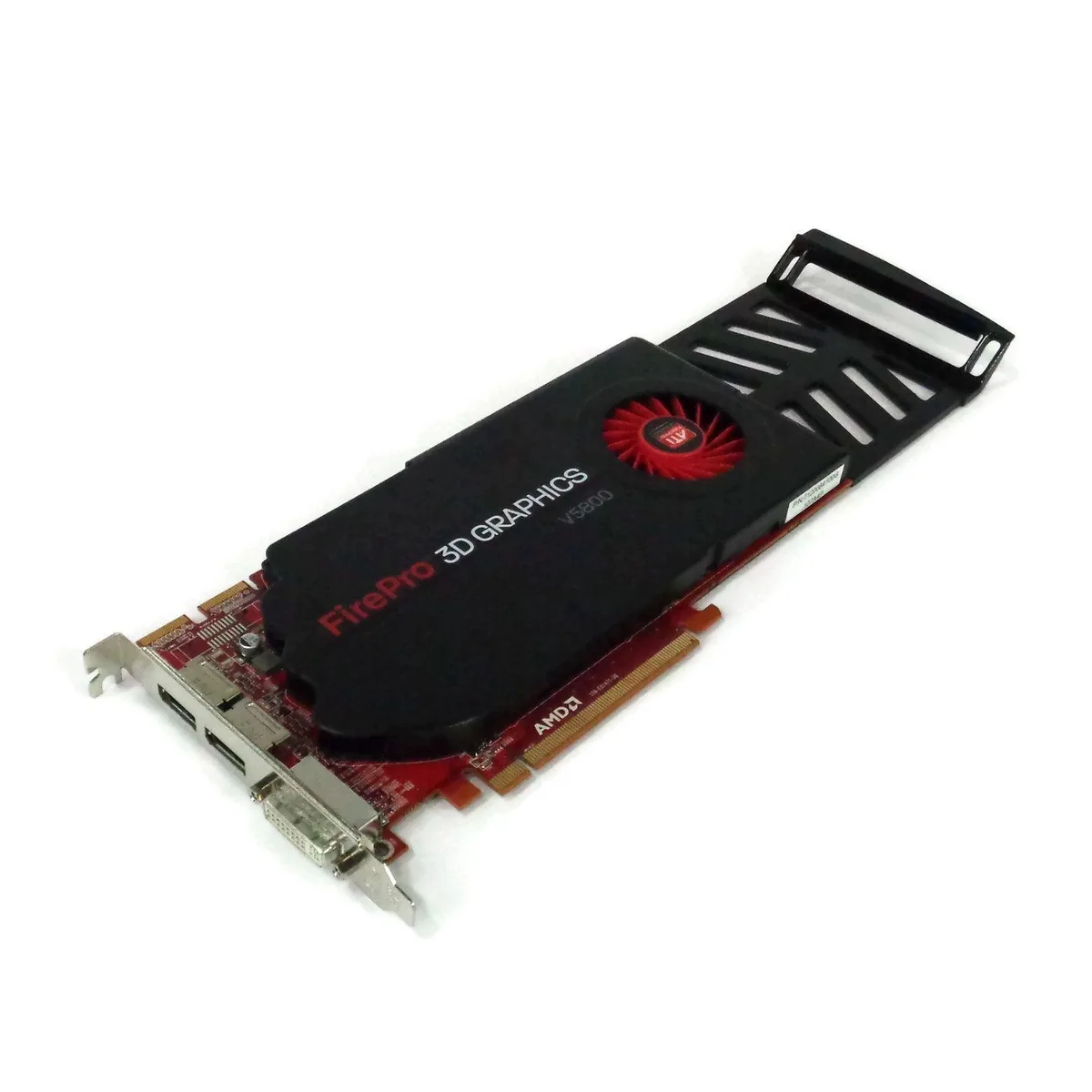

Full-height single-slot graphics card with rear bracket, two DisplayPort and one DVI port

ATI

ATI V5800 1GB GDDR5 128-bit workstation graphics card

SKU CH-22AB-TMX0F MPN V5800

Workstation graphics card with 1GB GDDR5 memory, 128-bit interface, and two DisplayPort plus one DVI output

  • InterfacePCI Express 2.1 x16
  • Chipset ManufacturerATI
  • Memory Size1GB
  • Memory Interface128-bit
  • Memory TypeGDDR5
  • DirectXDirectX 11
  • 1GB GDDR5 memory drives professional 3D workloads
  • 128-bit interface feeds the GPU for smooth viewport performance
  • PCI Express 2.1 x16 slot fits standard workstation boards
  • 75W power draw keeps thermal load low in compact cases

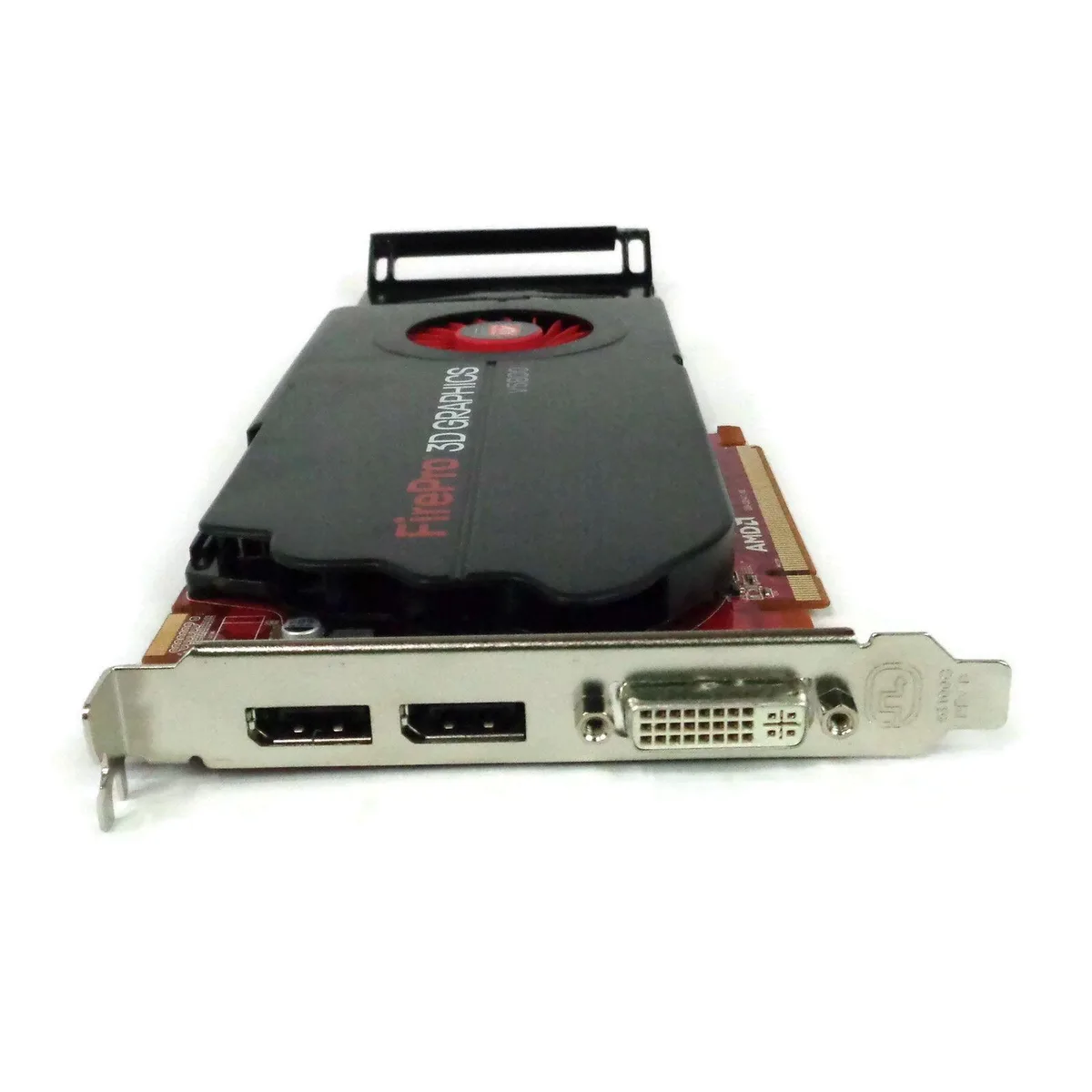

  • Three simultaneous displays via two DisplayPort and one DVI

Workstation GPU for professional visualisation

The ATI FirePro V5800 is a workstation graphics card built for professional 2D and 3D visualisation tasks. It delivers certified driver stability for ISV applications in design, engineering and content creation workflows. The single-slot, full-height form factor fits standard workstation chassis without occupying adjacent expansion slots.

PCI Express 2.1 x16 bandwidth and display limits

The card connects through a PCI Express 2.1 x16 interface, which caps theoretical throughput at the 2.1 generation speed. Three simultaneous displays are supported at a maximum digital resolution of 2560 x 1600 across two DisplayPort and one DVI output. This interface and output combination defines the practical display ceiling for multi-monitor setups.

1GB 128-bit GDDR5 frame buffer capacity

The 1GB GDDR5 memory on a 128-bit bus determines the texture and geometry capacity available to the TeraScale 2 architecture. Workloads requiring larger frame buffers or higher memory bandwidth will exceed this limit. Buyers needing more video memory for complex models or higher-resolution assets should consider cards with larger memory configurations.

Highlights

  • 1GB GDDR5 memory drives professional 3D workloads
  • 128-bit interface feeds the GPU for smooth viewport performance
  • PCI Express 2.1 x16 slot fits standard workstation boards
  • 75W power draw keeps thermal load low in compact cases
  • Three simultaneous displays via two DisplayPort and one DVI

Specifications

BrandAMD
SeriesFirePro
Model641329912102
InterfacePCI Express 2.1 x16
Chipset ManufacturerATI
Memory Size1GB
Memory Interface128-bit
Memory TypeGDDR5
DirectXDirectX 11
OpenGLOpenGL 4.1
DisplayPort2
DVI1

Questions about this item

Should I choose the 1GB model for my workstation?

The card ships with 1GB of GDDR5 memory on a 128-bit bus, suitable for entry-level CAD and 3D modelling workloads.

What does the 75W TGP mean for my system build?

A 75W total graphics power draw lets the card run from the PCI Express slot alone, so no extra power connectors are required.

How does the PCI Express 2.1 x16 interface affect performance?

The PCIe 2.1 x16 link provides up to 8 GB/s bandwidth, which matches the throughput the TeraScale 2 GPU can use.
