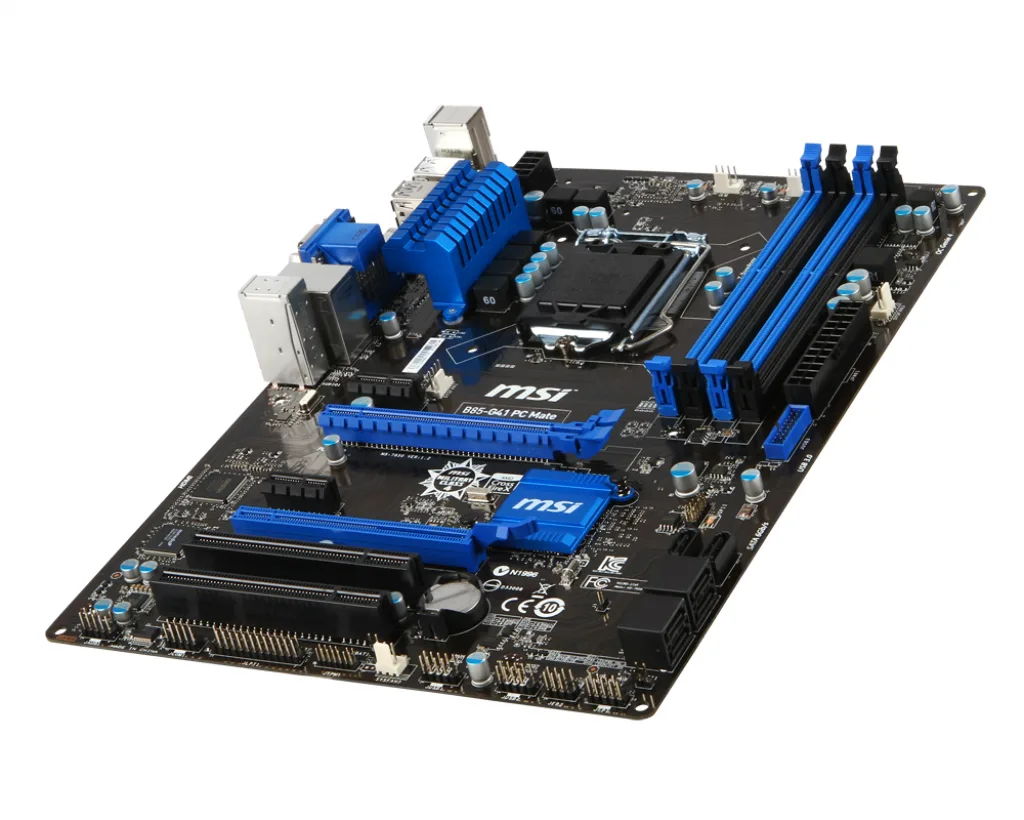

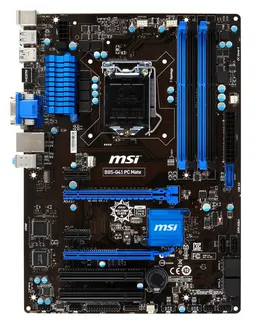

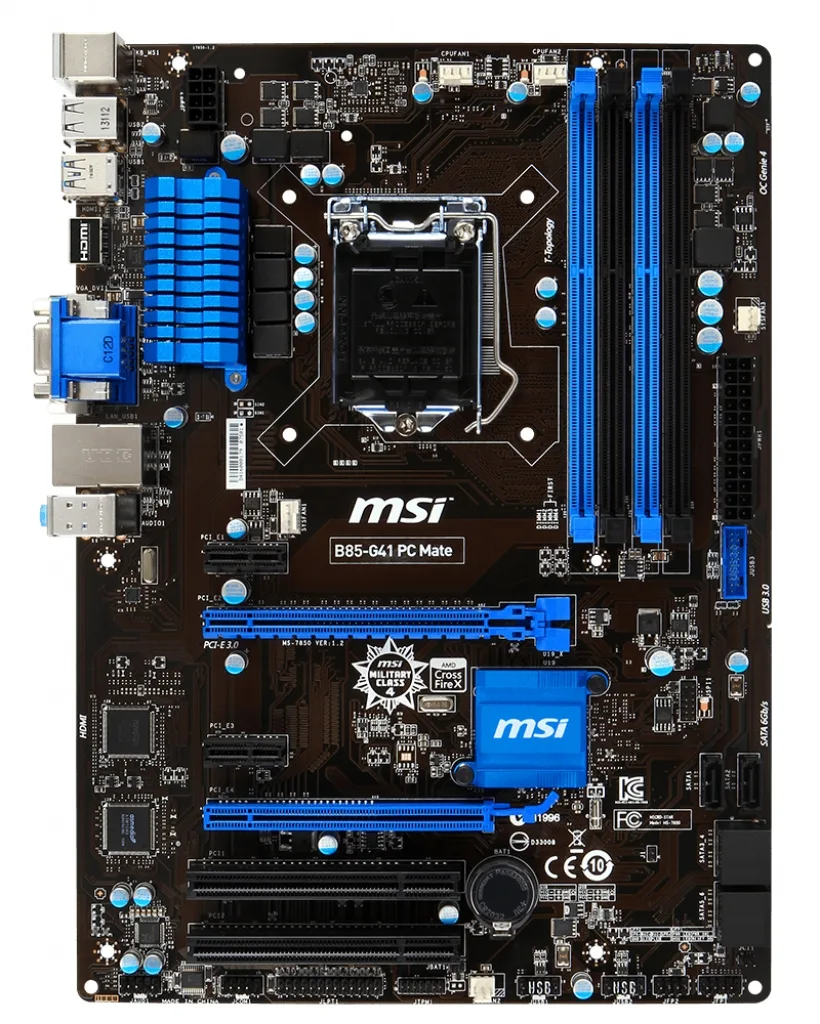

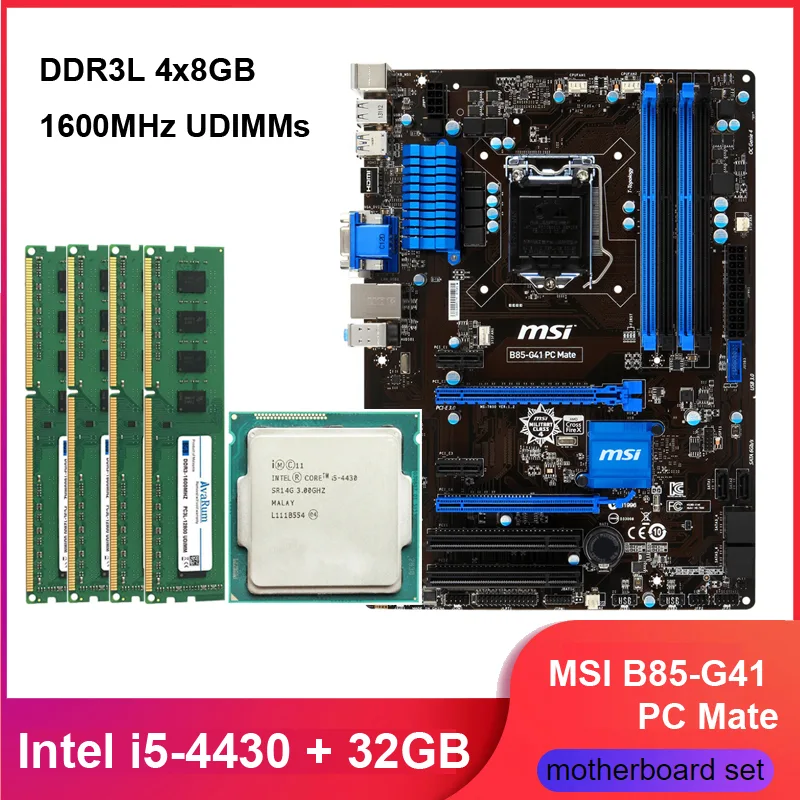

MSI B85-G41 PC Mate motherboard with i5-4430 CPU and four DDR3L memory modules

Avarum

Avarum B85-G41 PC Mate i5-4430 32GB DDR3L embedded solution

SKU CH-KBVS-VDGR5

Pre-assembled LGA 1150 platform with Core i5-4430, 32 GB DDR3L 1600 MHz and B85 chipset motherboard

  • Combo TypeMotherboard / CPU / Memory Combo
  • MotherboardMSI B85-G41 PC Mate
  • CPUIntel Core i5-4430
  • With CoolerNo
  • MemoryAvarum DDR3 8GB 1600MHz UDIMM * 4pcs
  • CPU Socket TypeLGA 1150
  • Ready-to-run embedded platform with pre-installed i5-4430
  • 32 GB DDR3L 1600 MHz memory kit included
  • Dual-channel DDR3 architecture scales to 32 GB maximum
  • Six SATA ports (two 3 Gb/s, four 6 Gb/s) for storage arrays
  • PCIe 3.0 x16 plus two PCIe x1 and two PCI slots

Combo contents and target builder

This set bundles an MSI B85-G41 PC Mate motherboard, an Intel Core i5-4430 processor and four 8 GB Avarum DDR3L 1600 MHz modules for a total of 32 GB. It suits builders who want a ready-matched LGA 1150 platform with the memory already populated. The board delivers one PCIe 3.0 x16 slot, two PCIe x1 slots and two legacy PCI slots for expansion cards. Six SATA ports (two 3 Gb/s, four 6 Gb/s) provide drive connectivity.

Installation notes and common issues

The motherboard and CPU are factory-stock units that may show light surface marks but have not been used or repaired; no cooler is included for either component. You must supply a compatible LGA 1150 cooler before powering on. Install the four 240-pin DDR3L UDIMMs in matched pairs to activate dual-channel mode. The board ships without original packaging in a plain box, so inspect the CPU socket pins and memory slots carefully on arrival.

Pre-order compatibility checks

Verify that your chassis accepts a standard ATX board and has mounting points for the chosen LGA 1150 cooler. Confirm that your power supply carries a 24-pin ATX connector plus a 4-pin CPU power plug. Ensure any graphics card you plan to use fits the single PCIe 3.0 x16 slot and that your drives use SATA interfaces. The onboard Realtek ALC887 audio and 8111G gigabit LAN require no extra hardware.

Highlights

  • Ready-to-run embedded platform with pre-installed i5-4430
  • 32 GB DDR3L 1600 MHz memory kit included
  • Dual-channel DDR3 architecture scales to 32 GB maximum
  • Six SATA ports (two 3 Gb/s, four 6 Gb/s) for storage arrays
  • PCIe 3.0 x16 plus two PCIe x1 and two PCI slots

Specifications

BrandMSI
ModelB85-G41 PC Mate
Combo TypeMotherboard / CPU / Memory Combo
MotherboardMSI B85-G41 PC Mate
CPUIntel Core i5-4430
With CoolerNo
MemoryAvarum DDR3 8GB 1600MHz UDIMM * 4pcs
CPU Socket TypeLGA 1150
CPU Type4th-generation Core i3,i5,i7,Pentium,Celeron(LGA1150)
Number of Memory Slots4×240pin
Memory StandardDDR3 1066/1333/1600
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express x161 x PCI Express 3.0 x16
PCI Express x12 x PCI Express x1
PCI Slots2 x PCI Slots
SATA2 x SATA 3Gb/s, 4 x SATA 6Gb/s
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
LAN ChipsetRealtek 8111G
LAN Speed10/100/1000Mbps
PS/22
Video PortsD-Sub + DVI
HDMI1 x HDMI
USB 1.1/2.04 x USB 2.0
USB 3.02 x USB 3.0
Audio Ports3 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other Connectors1 x ATX 24-Pin power connector1 x 8-pin ATX 12V power connectorCPU x 2 / System x 3 FAN connectors1 x Clear CMOS jumper1 x Serial port connector1 x TPM Module connector1 x Parallel Port connector1 x Front Panel Audio connector1 x Front Panel connector1 x Chassis Intrusion connector
Form FactorATX
Dimensions (W x L)12" x 8.66"

Questions about this item

How can I confirm the i5-4430 and 32 GB DDR3L are running correctly after assembly?

Enter the BIOS to verify the CPU is detected as an Intel Core i5-4430 and that all four 8 GB DDR3L 1600 MHz modules show 32 GB total in dual-channel mode.

What components are included and what must I source separately for this combo?

The set supplies the MSI B85-G41 PC Mate motherboard, an Intel Core i5-4430 processor and four Avarum 8 GB DDR3L 1600 MHz UDIMMs; you will need to add a CPU cooler, storage drives, a power supply, a case and an operating system.

Which memory configuration should I choose for this board?

The kit already provides the maximum supported 32 GB using four 8 GB DDR3L 1600 MHz 1.35 V modules, filling all four 240-pin slots for dual-channel operation.
