Black ATX motherboard with silver CPU socket, four black memory modules installed, rear I/O panel showing video and USB ports

Avarum

Avarum Embedded Solution Z87-K Xeon E3-1230V3 32GB DDR3L 1600MHz

SKU CH-B5T1-CDKEV

Ready-to-run LGA 1150 platform with Xeon E3-1230V3, 32 GB DDR3L 1600 MHz and ATX motherboard

  • Combo TypeMotherboard / CPU / Memory Combo
  • MotherboardASUS Z87-K
  • CPUIntel Xeon E3-1230V3
  • With Coolerno
  • MemoryAvarum DDR3 8GB 1600MHz UDIMM * 4
  • ColorBlack
  • Ready-to-install Xeon E3-1230V3 combo with ASUS Z87-K board
  • 32GB DDR3L 1600MHz memory kit fills all four slots
  • Dual-channel DDR3 architecture supports up to 32GB total
  • Gigabit LAN plus USB 3.0 and HDMI on rear I/O
  • ATX form factor fits standard chassis with 12" x 8.2" dimensions

Ready-to-run LGA 1150 platform

This combo delivers an ASUS Z87-K motherboard, an Intel Xeon E3-1230V3 processor and four Avarum DDR3L 8 GB modules for a total of 32 GB at 1600 MHz. It arrives as a matched set so builders can assemble a complete platform without sourcing parts separately. The board uses the Intel Z87 chipset in a standard ATX layout measuring 12 by 8.2 inches.

32 GB DDR3L 1600 MHz memory kit

The four included UDIMMs fill every slot on the board and hit the maximum 32 GB capacity supported by the Z87-K. Each module runs at the native 1600 MHz standard with DDR3L voltage, so no manual tuning is required to reach the rated speed. This configuration leaves no free DIMM slots for future expansion.

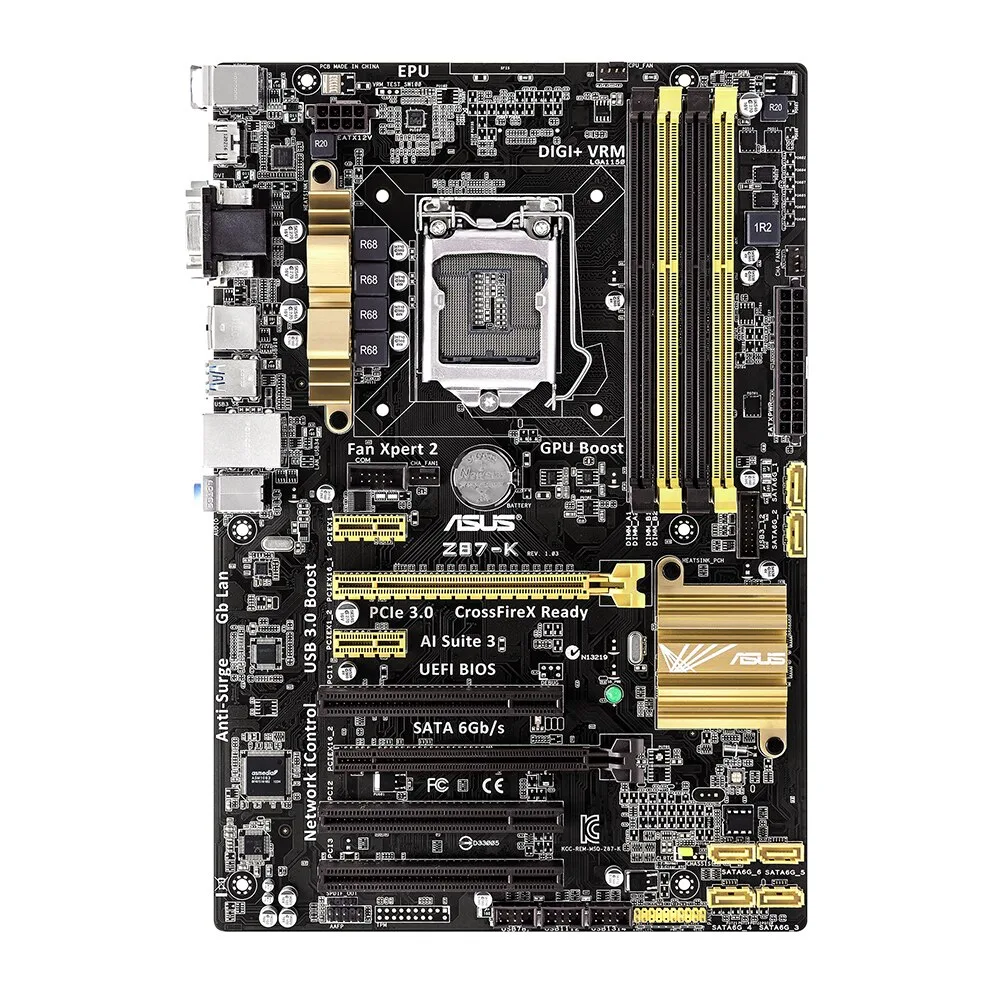

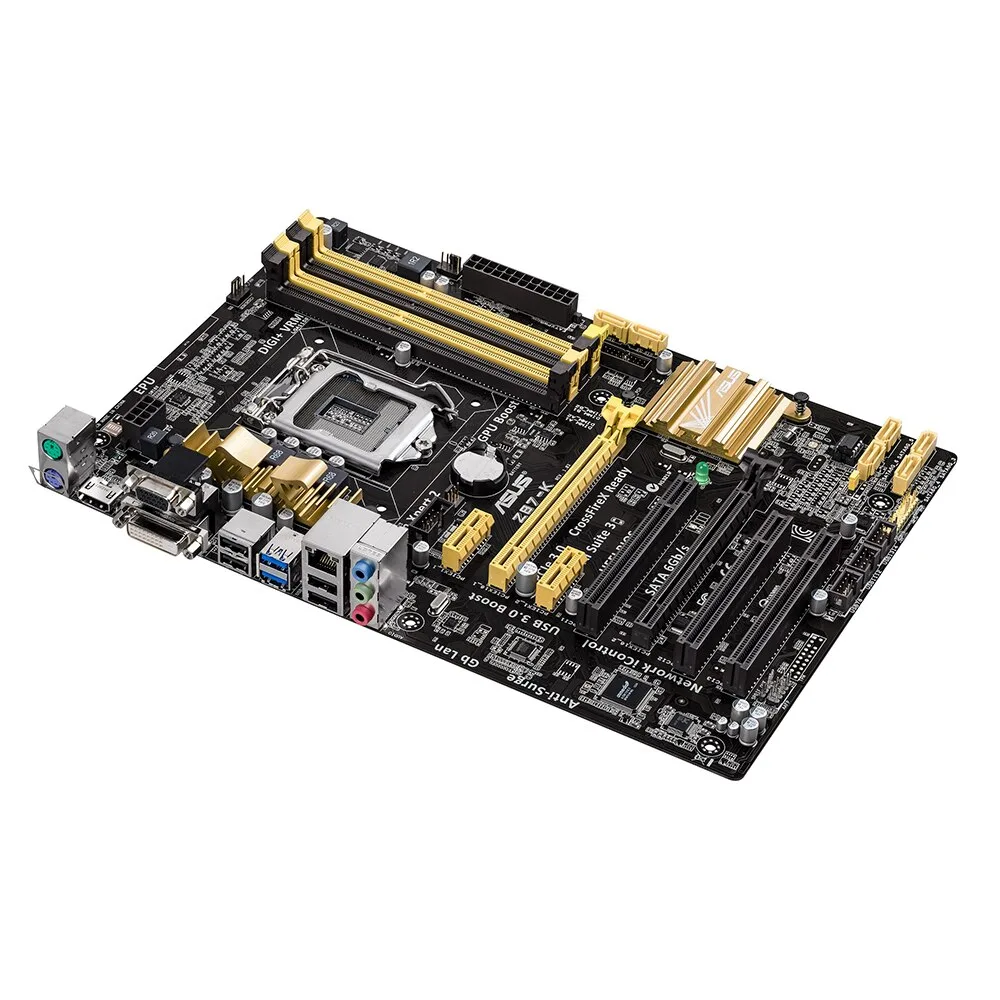

ATX board with dual-channel memory and basic I/O

The motherboard provides one PCI Express 3.0 x16 slot, one PCI Express 2.0 x4 slot, two PCI Express x1 slots and three legacy PCI slots for add-in cards. Rear I/O includes two USB 3.0 ports, four USB 2.0 ports, HDMI, DVI, D-Sub, PS/2 and three audio jacks. Gigabit LAN handles wired networking. Buyers who need integrated Wi-Fi, additional M.2 storage or a CPU cooler must supply those separately.

Highlights

  • Ready-to-install Xeon E3-1230V3 combo with ASUS Z87-K board
  • 32GB DDR3L 1600MHz memory kit fills all four slots
  • Dual-channel DDR3 architecture supports up to 32GB total
  • Gigabit LAN plus USB 3.0 and HDMI on rear I/O
  • ATX form factor fits standard chassis with 12" x 8.2" dimensions

Specifications

BrandASUS
ModelZ87-K
Combo TypeMotherboard / CPU / Memory Combo
MotherboardASUS Z87-K
CPUIntel Xeon E3-1230V3
With Coolerno
MemoryAvarum DDR3 8GB 1600MHz UDIMM * 4
ColorBlack
CPU Socket TypeLGA 1150
CPU Type4th-Generation Core i7/Core i5/Core i3/Pentium/Celeron (LGA1150)
Supported CPU TechnologiesTurbo Boost Technology 2.0
Number of Memory Slots4x240pin
Memory StandardDDR3 1600
Maximum Memory Supported32GB
Channel SupportedDual Channel
LAN Speed10/100/1000Mbps
Form FactorATX
Dimensions (W x L)12"x 8.2"

Questions about this item

How does the Xeon E3-1230V3 perform in a real build with this motherboard and memory?

The quad-core Xeon E3-1230V3 runs at its rated speeds on the Z87-K chipset, paired with 32GB of DDR3L 1600MHz memory across four slots in dual-channel mode for full bandwidth.

What does the LGA 1150 socket and Z87 chipset limit for CPU upgrades and PCIe lanes?

The LGA 1150 socket only accepts 4th-generation Intel CPUs, and the Z87 chipset provides one PCI Express 3.0 x16 slot plus one x4 slot and two x1 slots for expansion cards.

Will the ATX board dimensions of 12 by 8.2 inches fit my case and align with standard mounting holes?

Yes, the 12-inch by 8.2-inch ATX form factor matches standard ATX case mounting points and I/O shield cut-outs for a normal desktop chassis.
