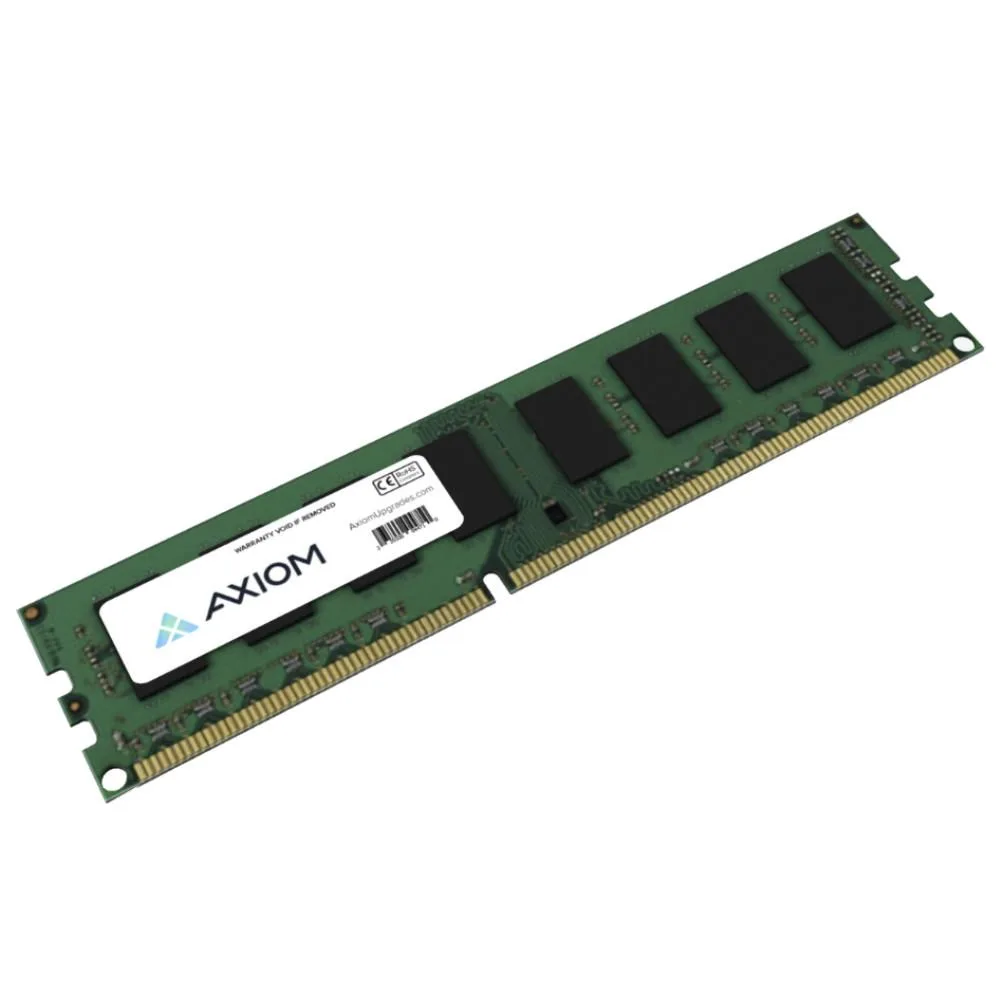

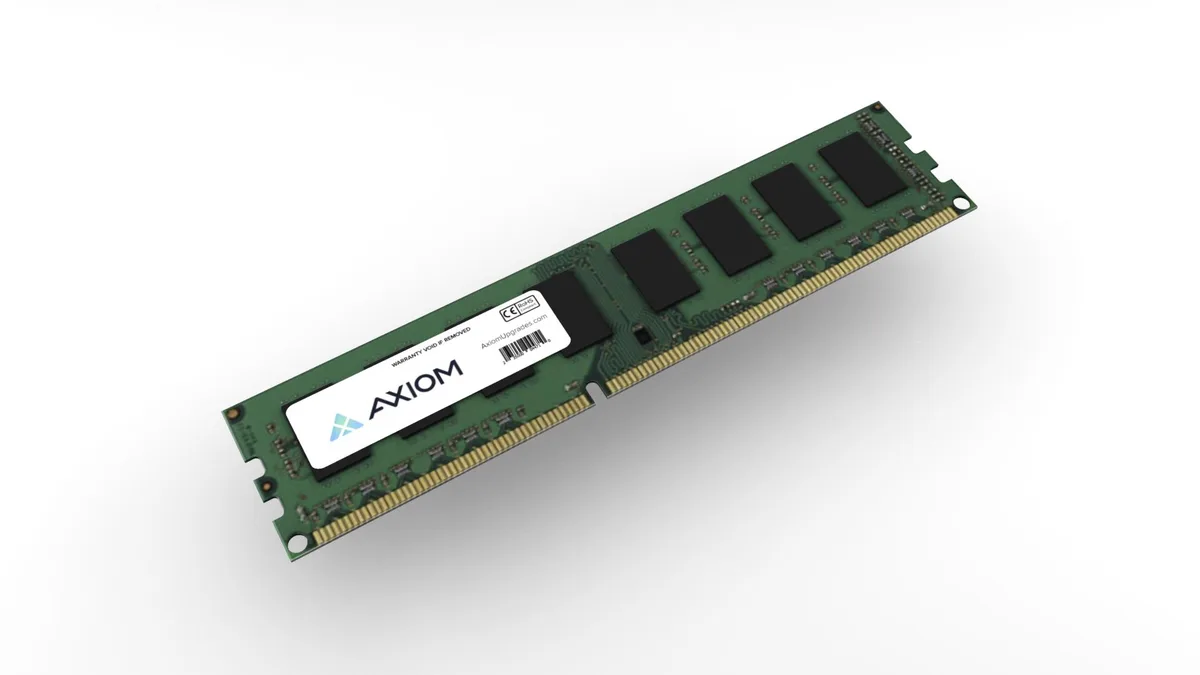

Green 240-pin DDR3 server memory module with black chips

Axiom

Axiom AXG50393293/1 32GB ECC DDR3 1333 Server RAM

SKU CH-395M-QB06R MPN AXG50393293/1

32 GB ECC DDR3 1333 LRDIMM runs at 1.35 V for lower power and up to 35 % more bandwidth than standard RDIMMs

  • Capacity32GB
  • Type240-Pin DDR3 SDRAM
  • SpeedDDR3 1333 (PC3 10600)
  • Voltage1.35V
  • ECCYes
  • 32GB capacity supports large server workloads
  • ECC protects data integrity in critical applications
  • DDR3 1333 (PC3 10600) matches compatible system specs
  • 35V low voltage reduces power consumption
  • 240-pin LRDIMM design enables higher density per channel

32 GB LRDIMM for DDR3 servers

This module is a 240-pin DDR3 load-reduced DIMM rated at 1333 MT/s (PC3 10600) with ECC. It targets administrators who need to maximise memory capacity on platforms that accept LRDIMM technology.

Sustained bandwidth and power profile

Axiom states the LRDIMM design can deliver up to a 35% bandwidth increase over standard RDIMMs while operating at 1.35 V instead of the traditional 1.5 V. The lower voltage reduces power draw during continuous server workloads.

Platform requirements before ordering

Verify that your server motherboard and processor explicitly support DDR3 LRDIMMs at 1333 MT/s and 1.35 V. Systems limited to standard RDIMMs or a different DDR generation will not accept this module.

Highlights

  • 32GB capacity supports large server workloads
  • ECC protects data integrity in critical applications
  • DDR3 1333 (PC3 10600) matches compatible system specs
  • 35V low voltage reduces power consumption
  • 240-pin LRDIMM design enables higher density per channel

Specifications

BrandAxiom
ModelAXG50393293/1
Capacity32GB
Type240-Pin DDR3 SDRAM
SpeedDDR3 1333 (PC3 10600)
Voltage1.35V
ECCYes
Shipping weight0.09 kg
Package size152 × 76 × 25 mm

Questions about this item

How much heat and power does the 1.35V LRDIMM draw when the server runs all day?

The module operates at 1.35V, lower than the 1.5V used by standard DDR3 RDIMMs, reducing overall power consumption in the data centre environment.

What server slot and memory type must the system already have for this 240-pin DDR3 LRDIMM to work?

The motherboard needs a 240-pin DDR3 slot that supports load-reduced DIMMs and ECC functionality at 1333 MT/s.

Will this LRDIMM run alongside older standard RDIMMs already installed in the server?

LRDIMMs and standard RDIMMs use different buffering; mixing them on the same channel is not supported, so the older modules would need to be replaced.
