AZZA
AZZA CSAZ-501B TIARA ATX Mid-Tower PC Case
ATX mid-tower case with tempered glass panel, four included 120 mm ARGB fans, and support for up to ten 120 mm fans for high-airflow builds
- TypeATX Mid Tower
- ColorBlack/White
- Motherboard CompatibilityATX(Back-connect supported) ?Micro ATX?ITX
- Side PanelSide panel: Tempered Glass
- External 5.25" Drive Bays0
- Internal 3.5" Drive Bays2
- Supports up to ten 120 mm fans for maximum airflow
- Four pre-installed 120 mm ARGB PWM fans included
- Fits graphics cards up to 400 mm length and CPU coolers up to 170 mm height
- Tempered-glass side panel shows the build with addressable RGB lighting
- Top I/O provides two USB 3.0, USB-C and combo audio
Mid-tower case for ATX builds

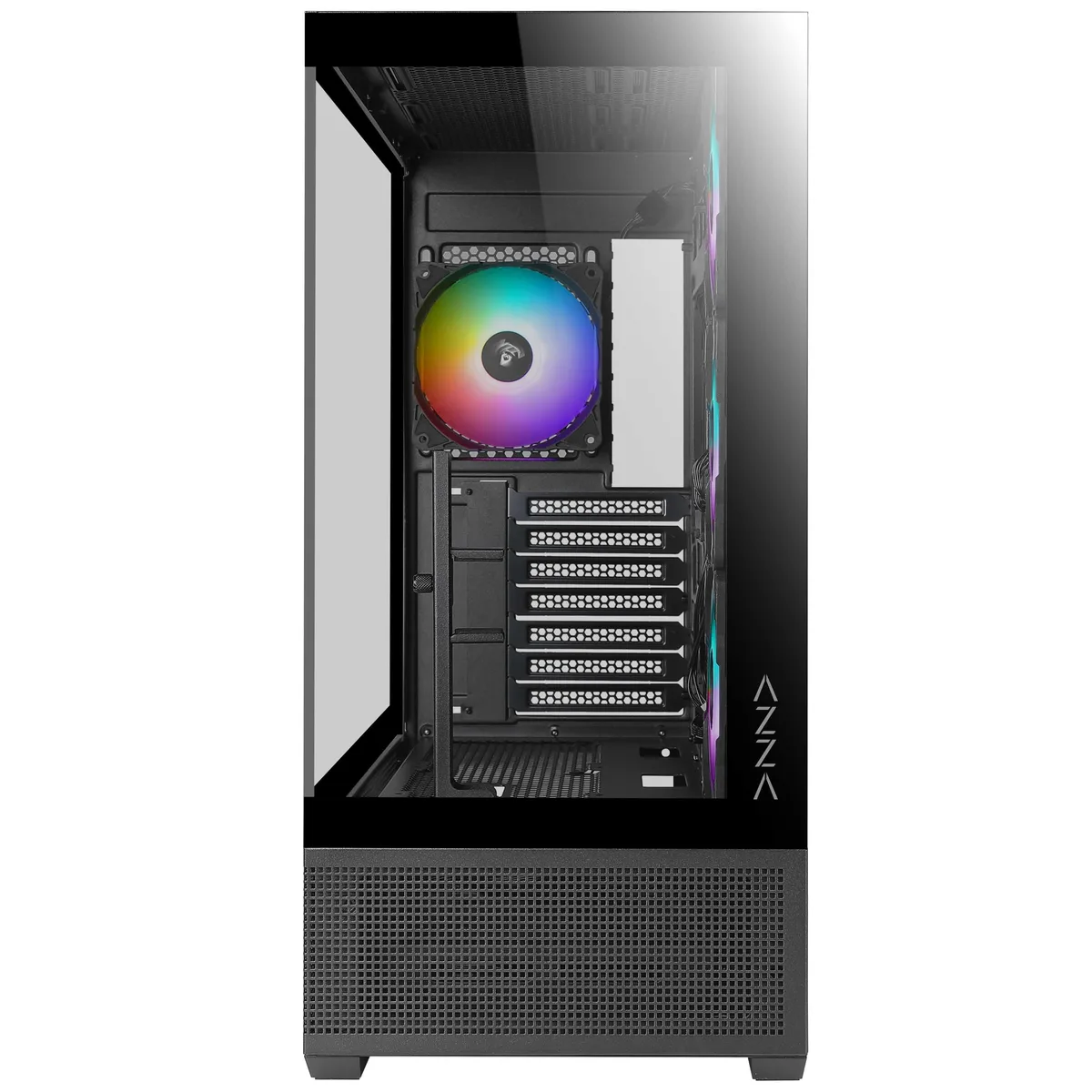

The AZZA CSAZ-501B Tiara is an ATX mid-tower chassis with a tempered glass side panel. It supports ATX, Micro-ATX and ITX motherboards, including back-connect designs. Four 120 mm ARGB PWM fans are included, and the case can hold up to ten 120 mm fans in total. Builders who want extensive air cooling and a showcase window will find the layout practical.
Upgrade from cramped cases with limited airflow
The Tiara replaces enclosures that restrict graphics card length or CPU cooler height. It accepts GPUs up to 400 mm long and 155 mm wide, while CPU coolers up to 170 mm tall fit comfortably. The jump is worth it when a previous chassis forced component compromises or lacked dedicated top and bottom fan mounts for radiator or direct GPU cooling.
Straightforward assembly with standard screw points

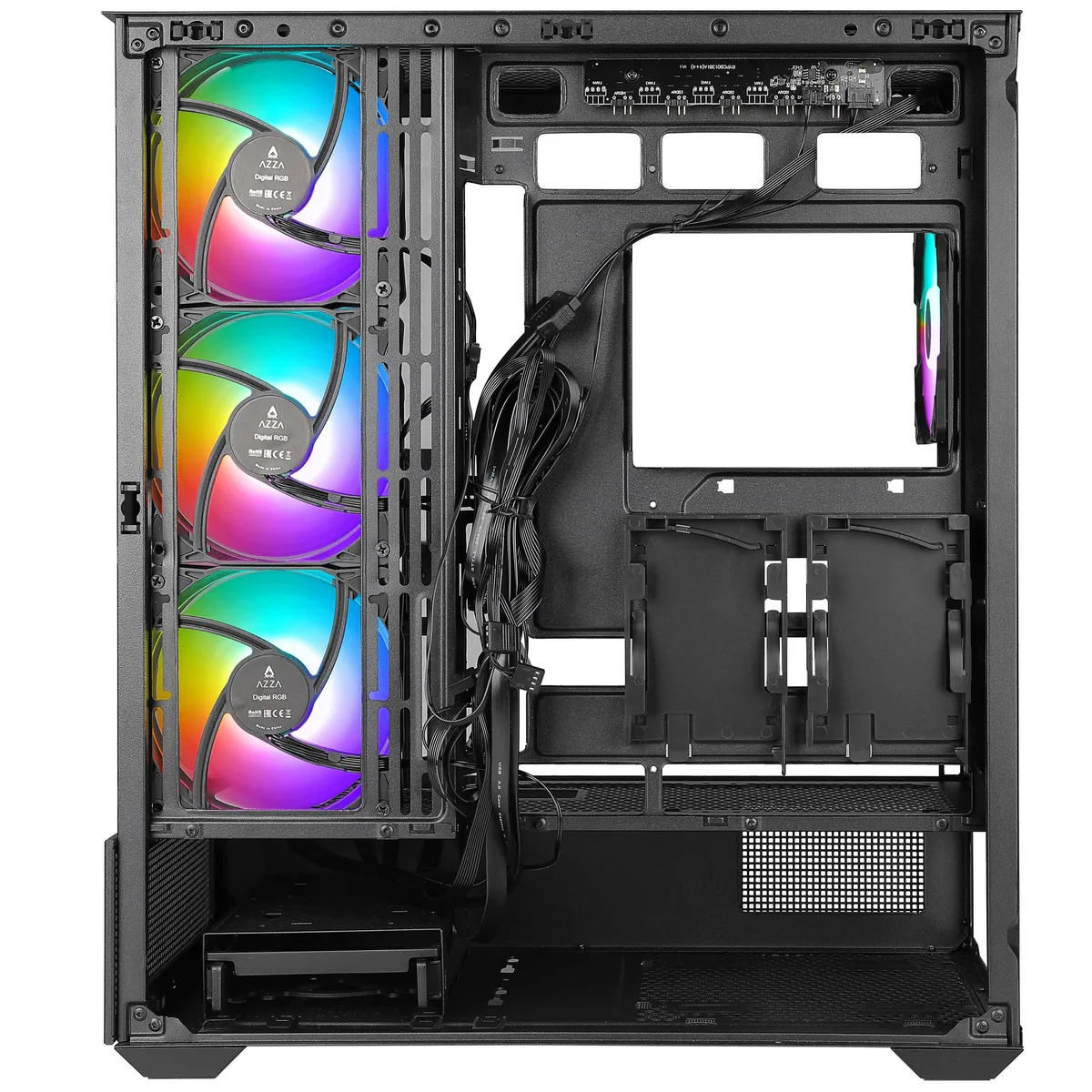

Motherboard standoffs match ATX, Micro-ATX and ITX patterns, and the PSU shroud includes removable brackets for the three bottom fan mounts. The front panel bundles power, LED control, combo audio, two USB 3.0 ports and one USB Type-C connector. Cable routing channels run behind the motherboard tray. Builders must verify their motherboard header layout for the ARGB PWM control board and the front-panel Type-C connection.
Highlights
- Supports up to ten 120 mm fans for maximum airflow
- Four pre-installed 120 mm ARGB PWM fans included
- Fits graphics cards up to 400 mm length and CPU coolers up to 170 mm height
- Tempered-glass side panel shows the build with addressable RGB lighting
- Top I/O provides two USB 3.0, USB-C and combo audio
Specifications
| Type | ATX Mid Tower |
|---|---|
| Color | Black/White |
| Motherboard Compatibility | ATX(Back-connect supported) ?Micro ATX?ITX |
| Side Panel | Side panel: Tempered Glass |
| External 5.25" Drive Bays | 0 |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 4 |
| Expansion Slots | 7 |
| Front Ports | Power button, LED button, Combo HD Audio, USB 3.0 x 2,Type C x1 |
| Fan Options | 3x120mm on the mb side (3x120mm LFO-5612DR ARGB&PWM Fan included) 3x120mm or 2x140mm fan ports on the top 1x120mm fan port in the rear (1x120mm LFO-5612D ARGB&PWM Fan included) 3 x 120 mm fan ports on the PSU shroud |
| Max GPU Length | Up to 400 mm,Wide<155mm |
| Max CPU Cooler Height | 170 mm |
| Dimensions | 482x225x420mm / 19x8.9x16.5 inches |
| Weight | 6.38Kg /14lbs |
Questions about this item
What motherboard sizes fit the CSAZ-501B Tiara and does it support back-connect ATX?
The case accepts ATX, Micro ATX and ITX boards; ATX back-connect motherboards are supported.
How do I connect the four included ARGB fans so they respond to the top-panel LED button?
Plug each fan into the onboard ARGB&PWM control board, then use the top-panel LED button or motherboard software to change modes.
Which dust filters will I need to clean and how many are there?
Filters sit on the bottom panel and top panel; remove and rinse them periodically to maintain airflow.
