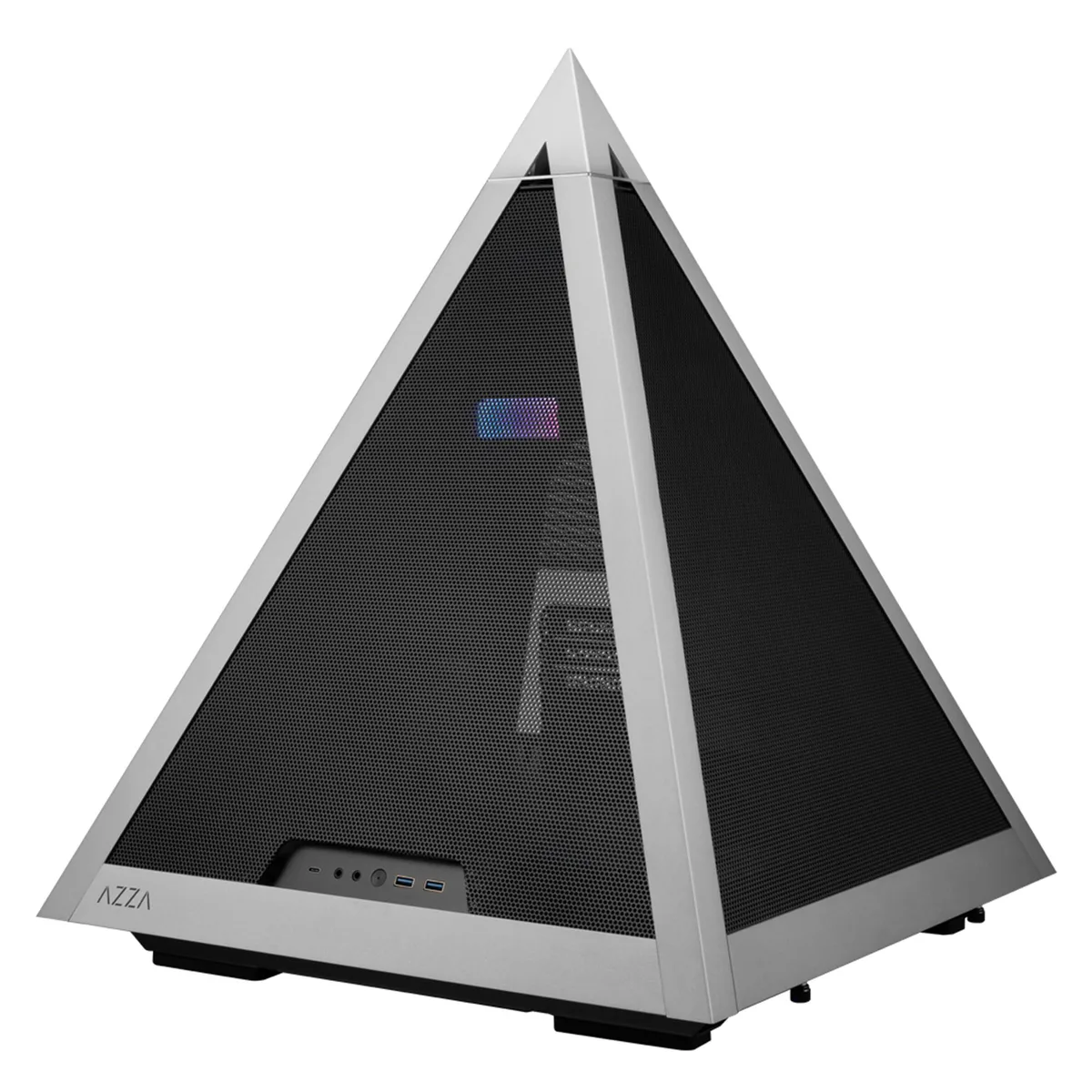

Black and silver aluminium-frame full-tower case with four metal mesh panels and a detachable top cover

AZZA

AZZA PYRAMID 804M Mesh E-ATX Full Tower PC case

SKU CH-0XS5-Z95HP

A full-tower E-ATX chassis with four metal mesh panels, a horizontal motherboard layout, a detachable aluminum cover and an included 120 mm ARGB fan

  • TypeE-ATX Full Tower Case
  • ColorBlack / Silver
  • Case MaterialAluminum / Steel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Side Panelwith Side Window

Options PYRAMID 804M

  • Horizontal E-ATX layout supports 305 × 280 mm boards
  • Detachable aluminum cover gives 360-degree component access
  • Four full metal mesh panels maximise airflow through every side
  • Elevated base enables convective cooling with room for 360 mm radiator
  • 330 mm GPU clearance and 95 mm CPU cooler height

Pyramid airflow chassis

The AZZA PYRAMID 804M is an E-ATX full-tower case built around a horizontal motherboard layout and four full-metal mesh panels. It targets builders who want maximum natural convection and a striking geometric silhouette for high-end air or liquid-cooled systems. The detachable aluminum cover gives 360-degree component access without tools.

Sustained thermal behaviour

An elevated base draws cool air upward through five 120 mm intake positions while a single 120 mm ARGB exhaust fan expels heat through the top. The mesh skins conduct ambient warmth outward, so temperatures stay stable during long rendering or gaming sessions rather than climbing after the first few minutes. A 360 mm radiator can be fitted for additional capacity.

Installation practicality

The horizontal GPU bracket holds cards up to 330 mm and uses three expansion slots, while CPU coolers are limited to 95 mm height. Power supplies up to 200 mm mount at the bottom beneath the drive cage, which holds one 3.5 inch and two 2.5 inch drives. The lie-down graphics orientation can block access to motherboard headers, so cable routing should be planned before the GPU is secured.

Highlights

  • Horizontal E-ATX layout supports 305 × 280 mm boards
  • Detachable aluminum cover gives 360-degree component access
  • Four full metal mesh panels maximise airflow through every side
  • Elevated base enables convective cooling with room for 360 mm radiator
  • 330 mm GPU clearance and 95 mm CPU cooler height

Specifications

BrandAZZA
ModelPYRAMID 804M
Part NumberCSAZ-804M
TypeE-ATX Full Tower Case
ColorBlack / Silver
Case MaterialAluminum / Steel
With Power SupplyNo
Power Supply MountedBottom
Side Panelwith Side Window
Dust FiltersYes
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Expansion Slots3
120mm Fans6
Max GPU Length330 mm
Max CPU Cooler Height95 mm
Max PSU Length200 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud or hot does the 120 mm Hurricane III ARGB exhaust fan get when the system runs all day?

The included 120 mm Hurricane III ARGB fan is PWM controlled, so speed and noise scale with thermal load; the open metal mesh panels and elevated base promote natural convection that helps keep internal temperatures down during extended use.

Which motherboard form factors and GPU lengths does the horizontal layout support without extra brackets?

The horizontal tray accepts E-ATX boards up to 305 x 280 mm, plus ATX, micro-ATX and mini-ITX; the lie-down GPU bracket fits cards up to 330 mm long using three expansion slots.

Will a standard ATX power supply longer than 200 mm fit in the bottom mount?

The bottom PSU chamber is limited to 200 mm depth, so only ATX units at or below that length will install without modification.
