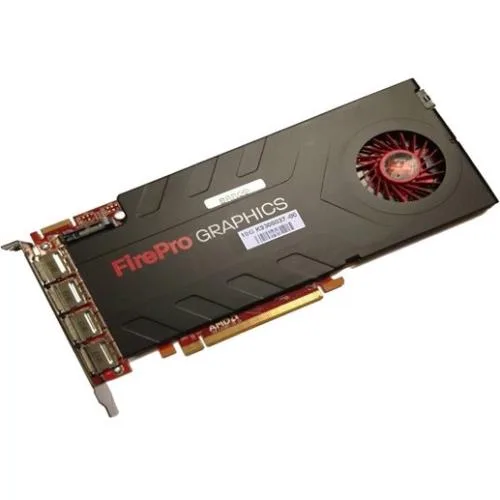

Barco MXRT-7500 single-slot graphics card with DisplayPort outputs

Barco

Barco MXRT-7500 4GB GDDR5 PCIe 3.0 x16 workstation graphics card

SKU CH-TVV2-FVNEX

Drives up to four DisplayPort monitors with 4 GB GDDR5 memory over a PCIe 3.0 x16 single-slot card

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerAMD
  • Memory Size4GB
  • Memory TypeGDDR5
  • OpenGLOpenGL
  • DisplayPortYes

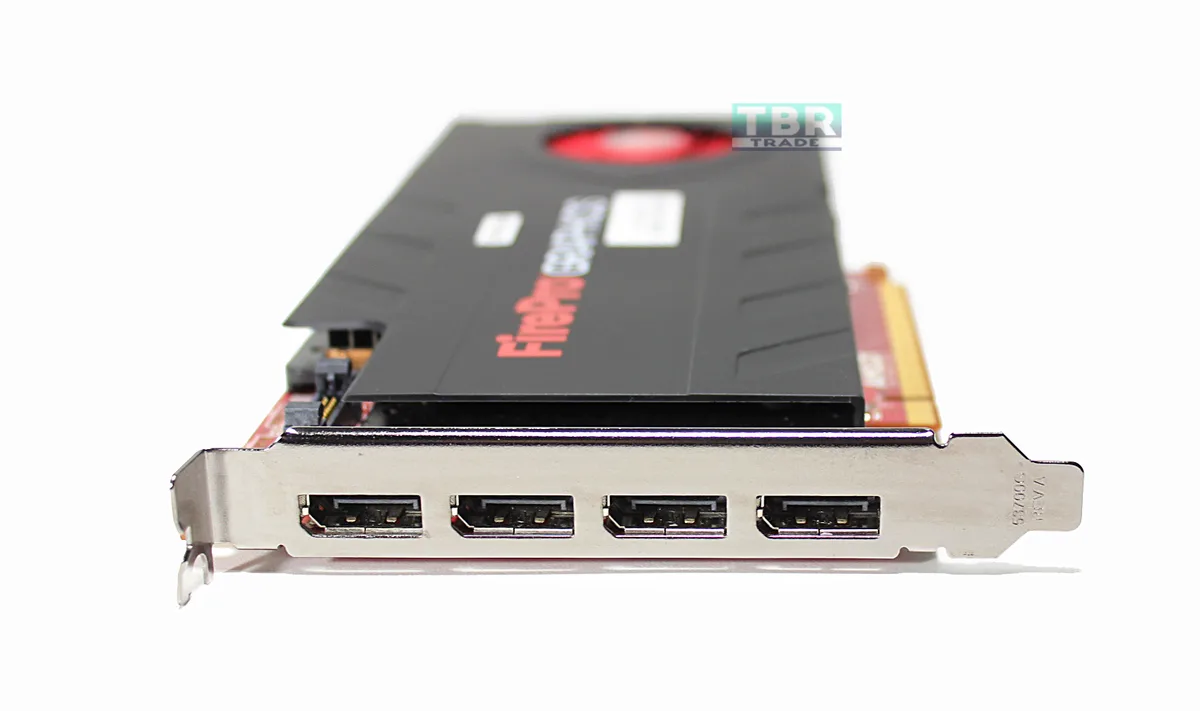

  • Drives four full-resolution displays via DisplayPort 1.2
  • 4 GB GDDR5 memory handles large medical datasets
  • PCIe 3.0 x16 Gen3 enables ultra-fast data transfers
  • AMD FirePro 3D chipset powers high-end 3D visualisation
  • Conference Clone View software simplifies multi-screen projection setups

Medical imaging controller

The Barco MXRT-7500 is a single-slot PCIe 3.0 x16 workstation graphics card built around AMD FirePro 3D technology. It targets radiology and clinical review stations that require four independent DisplayPort outputs from one board. The 4 GB GDDR5 frame buffer supports large medical datasets and multi-monitor layouts without adding a second card.

Sustained dataset throughput

PCIe Gen 3.0 x16 and DisplayPort 1.2 combine to move large volumetric studies continuously rather than in short bursts. The architecture keeps latency low during extended reading sessions, so scrolling through 3D volumes remains fluid when the GPU is fully utilised. Driver support for DirectX, OpenGL and OpenCL ensures the compute path stays saturated across typical clinical applications.

Four-head DisplayPort capacity

One card drives up to four full-resolution displays, making it the right part when a workstation must power a quad-monitor diagnostic array from a single slot. Buyers who need more than four heads or a different video interface will need a different solution.

Highlights

  • Drives four full-resolution displays via DisplayPort 1.2
  • 4 GB GDDR5 memory handles large medical datasets
  • PCIe 3.0 x16 Gen3 enables ultra-fast data transfers
  • AMD FirePro 3D chipset powers high-end 3D visualisation
  • Conference Clone View software simplifies multi-screen projection setups

Specifications

BrandBarco
InterfacePCI Express 3.0 x16
Chipset ManufacturerAMD
Memory Size4GB
Memory TypeGDDR5
OpenGLOpenGL
DisplayPortYes
Form FactorPlug-in Card

Questions about this item

Does the MXRT-7500 run quietly and stay cool during all-day medical imaging workloads?

The single-slot card uses AMD FirePro 3D technology and GDDR5 memory, drawing power through the PCI Express 3.0 x16 slot without an extra power connector, which keeps heat and noise low in typical workstation chassis.

What must my workstation already have so the MXRT-7500 will function?

A free PCI Express 3.0 x16 slot, a DisplayPort 1.2 cable for each monitor (up to four), and Microsoft Windows 7 or a newer supported OS with DirectX, OpenGL and OpenCL drivers installed.

Will the MXRT-7500 work alongside an older PCIe 2.0 card I want to keep?

Yes — the board is backward-compatible with PCIe 2.0 slots, though it will operate at Gen 2 speeds; the MXRT-7500 still drives four DisplayPort 1.2 displays while the legacy card handles its own outputs.
