Black modular ATX 3.1 power supply with 120mm fan and PCIe 5.1 connector

be quiet!

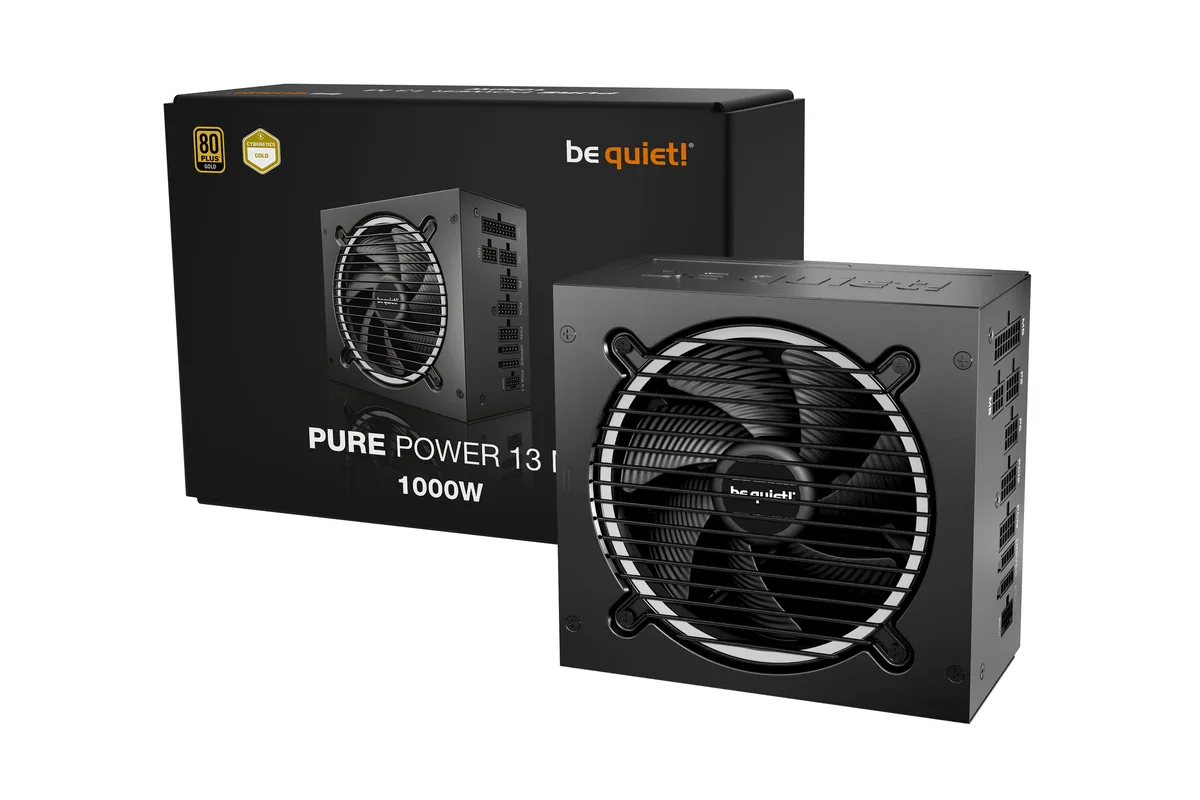

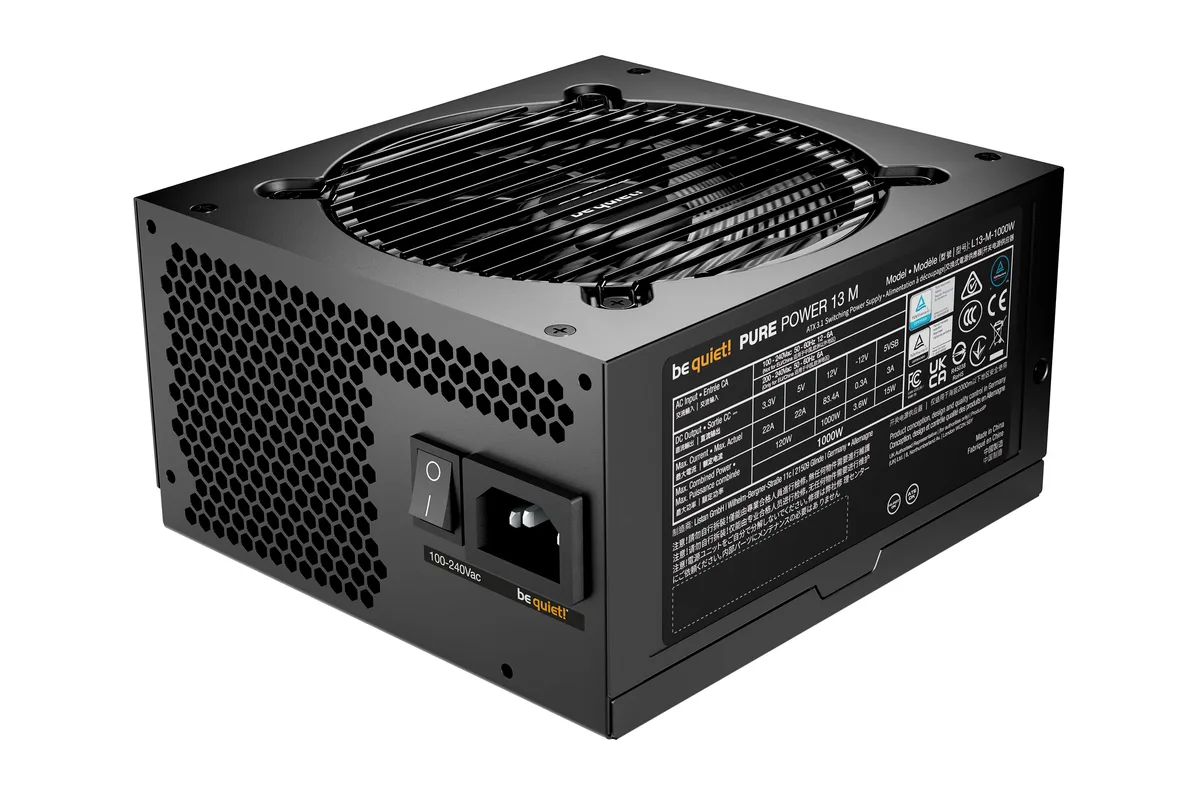

be quiet! Pure Power 13 M 1000W ATX 3.1 power supply BP028US

SKU CH-MHYC-18XPT MPN BP028US

ATX 3.1 compliant 1000W unit with 80 PLUS Gold efficiency up to 94.4%, semi-passive 120mm fan and PCIe 5.1 12V-2x6 600W plus four 6+2 connectors

  • ColorBlack
  • Typetemperature-controlled quality fan
  • Maximum Power1000 W
  • Fans1 x 120 mm
  • PFCActive
  • Energy-Efficient80 PLUS GOLD Certified

Type Pure Power 13 1000W Gold

  • 80 PLUS Gold efficiency up to 94.4 percent reduces power draw and heat
  • ATX 3.1 compliance with PCIe 5.1 support future-proofs high-end GPU builds
  • Semi-passive 120 mm fan stays silent until cooling is needed
  • Single 12 V rail delivers stable power to overclocked components
  • One 12V-2x6 600 W plus four 6+2 connectors feed demanding graphics cards

Power supply for PCIe 5.1 builds

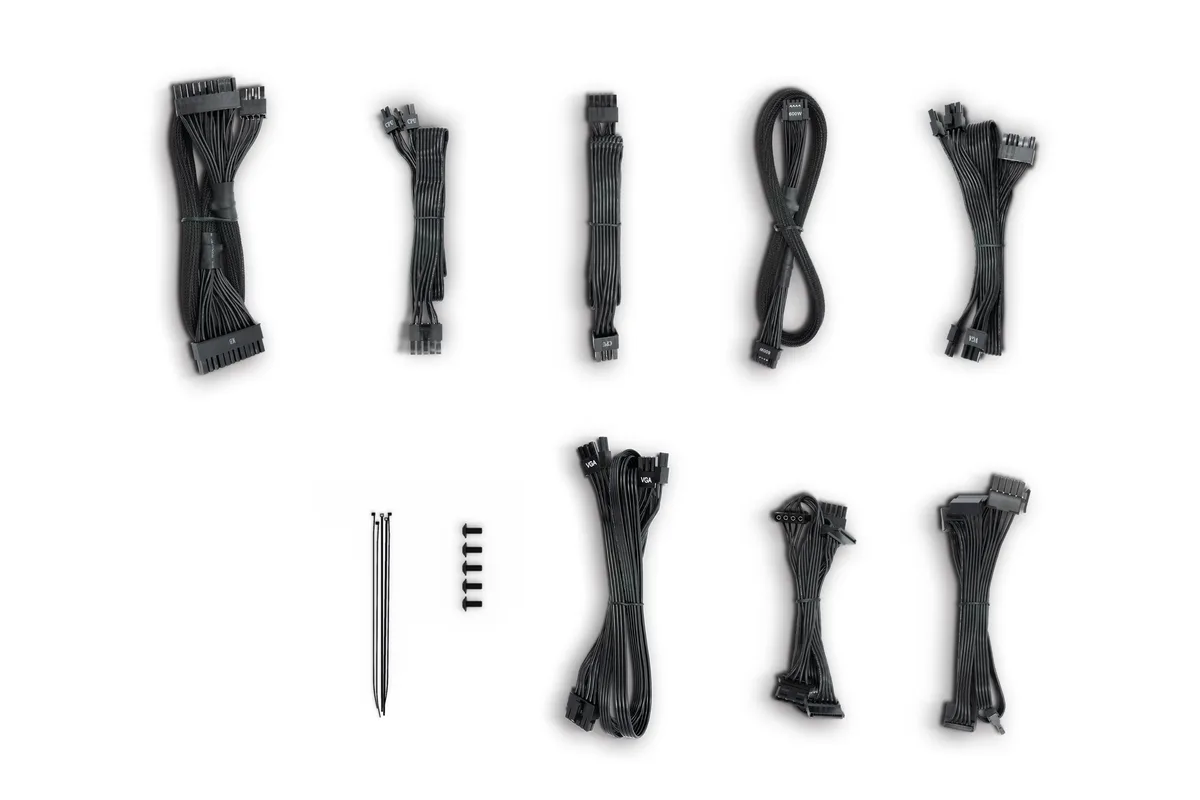

The be quiet! Pure Power 13 M 1000W is an ATX 3.1 compliant unit rated at 1000 W with 80 PLUS Gold efficiency up to 94.4 percent. It uses a single 12 V rail, LLC technology and a semi-passive 120 mm fan for quiet operation. Fully modular cables keep the interior tidy.

Suits high-end GPU systems; not for multi-GPU rigs

This unit fits builds that need one PCIe 5.1 12V-2x6 connector rated for 600 W plus four 6+2 pin connectors for overclocked graphics cards. It also provides six SATA and two PATA plugs for drives. Builders planning multiple flagship GPUs or workstations requiring more PCIe power leads should look elsewhere.

Deciding spec: one PCIe 5.1 12V-2x6 600W connector

The presence of a single native 12V-2x6 connector delivering up to 600 W determines compatibility with the latest graphics cards. If the target GPU demands that connector, this supply meets the requirement; if the build needs two such connectors, it does not.

Highlights

  • 80 PLUS Gold efficiency up to 94.4 percent reduces power draw and heat
  • ATX 3.1 compliance with PCIe 5.1 support future-proofs high-end GPU builds
  • Semi-passive 120 mm fan stays silent until cooling is needed
  • Single 12 V rail delivers stable power to overclocked components
  • One 12V-2x6 600 W plus four 6+2 connectors feed demanding graphics cards

Specifications

Brandbe quiet
ModelBP028US
Part NumberBP028US
ColorBlack
Typetemperature-controlled quality fan
Maximum Power1000 W
Fans1 x 120 mm
PFCActive
Energy-Efficient80 PLUS GOLD Certified
Connectors2 x PATA / 6 x SATA
Shipping weight3.15 kg
Package size292 × 203 × 102 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 1000W maximum power mean for a real build?

The 1000W rating means the unit can deliver up to 1000 watts continuously to all components combined, supporting high-end CPUs and a power-hungry GPU without hitting its limit.

What does ATX 3.1 and PCIe 5.1 support cap in practice?

ATX 3.1 compliance and PCIe 5.1 support let the PSU handle the new 12V-2x6 connector rated for 600W, so a single modern graphics card can draw its full power through one cable.

What does the 120mm fan and semi-passive design need to fit in my case?

The 120mm fan sits in a standard ATX power-supply housing, so any case with a regular ATX PSU bay and enough clearance for the modular cable plugs will accommodate it.
