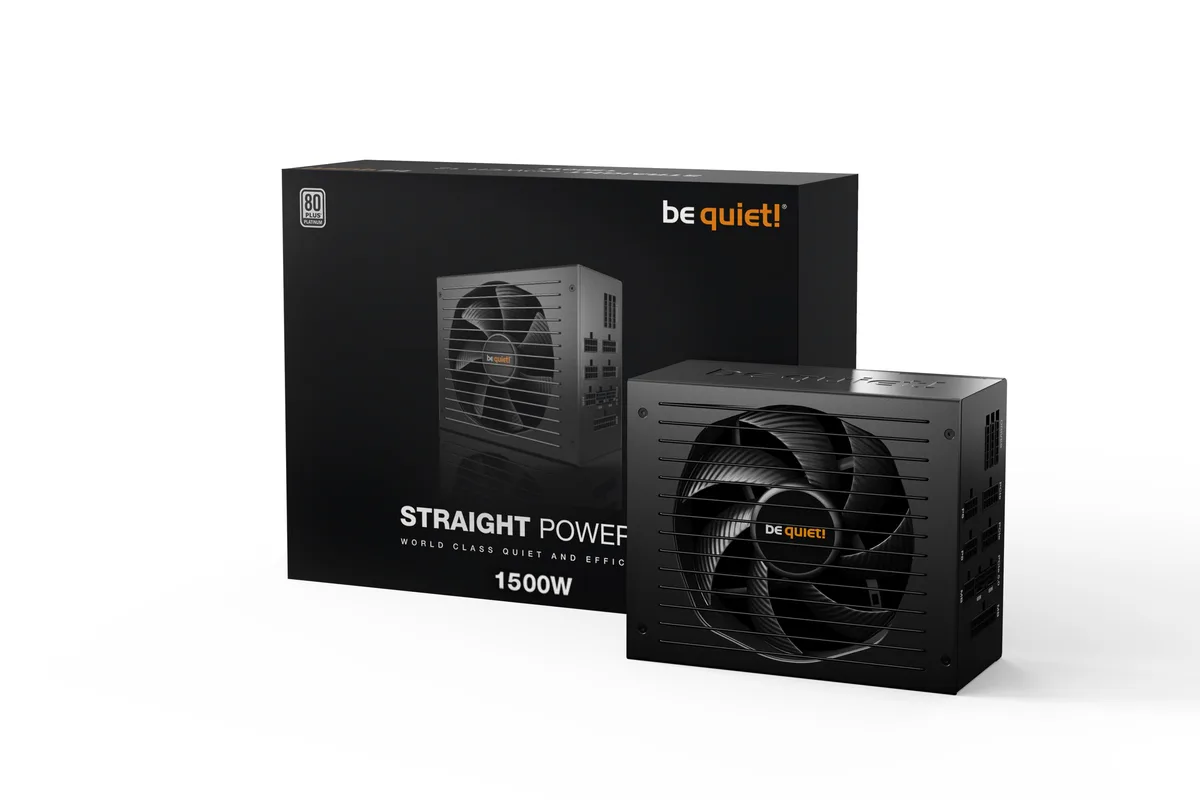

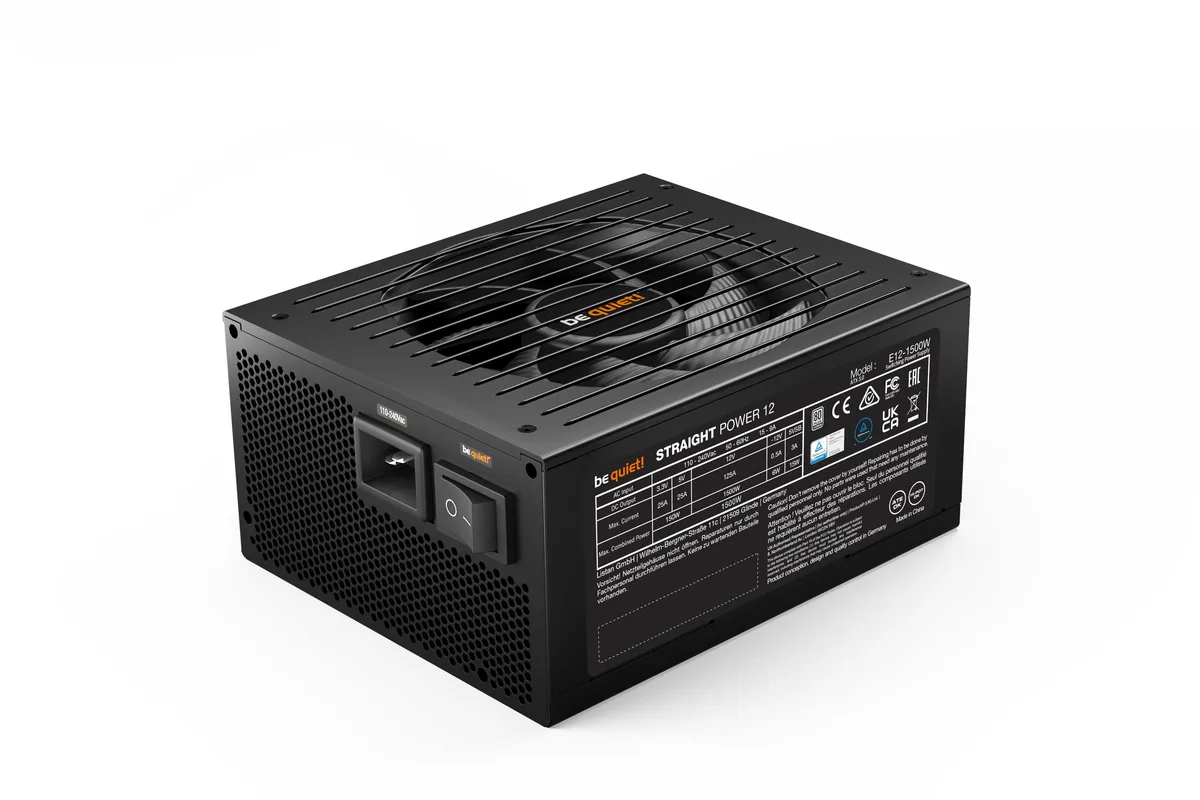

be quiet! Straight Power 12 1500W ATX 3.0 power supply BN518
Fully modular ATX 3.0 unit delivers 1500 W with 80 PLUS Platinum efficiency and a virtually inaudible 135 mm fan
- ColorBlack
- TypeATX 3.0 Compatible
- Maximum Power1500 W
- Fans1 x 135 mm
- Fan LEDNo
- PFCActive
- 80 PLUS Platinum efficiency up to 93.9% reduces energy waste
- ATX 3.0 design with PCIe 5.0 support powers modern graphics cards
- Single 12 V rail delivers 1500 W continuous power for heavy loads
- Silent Wings 135 mm fan runs virtually inaudible during operation
- Japanese 105 °C capacitors provide long-term stability and reliability
ATX 3.0 1500W platinum power supply

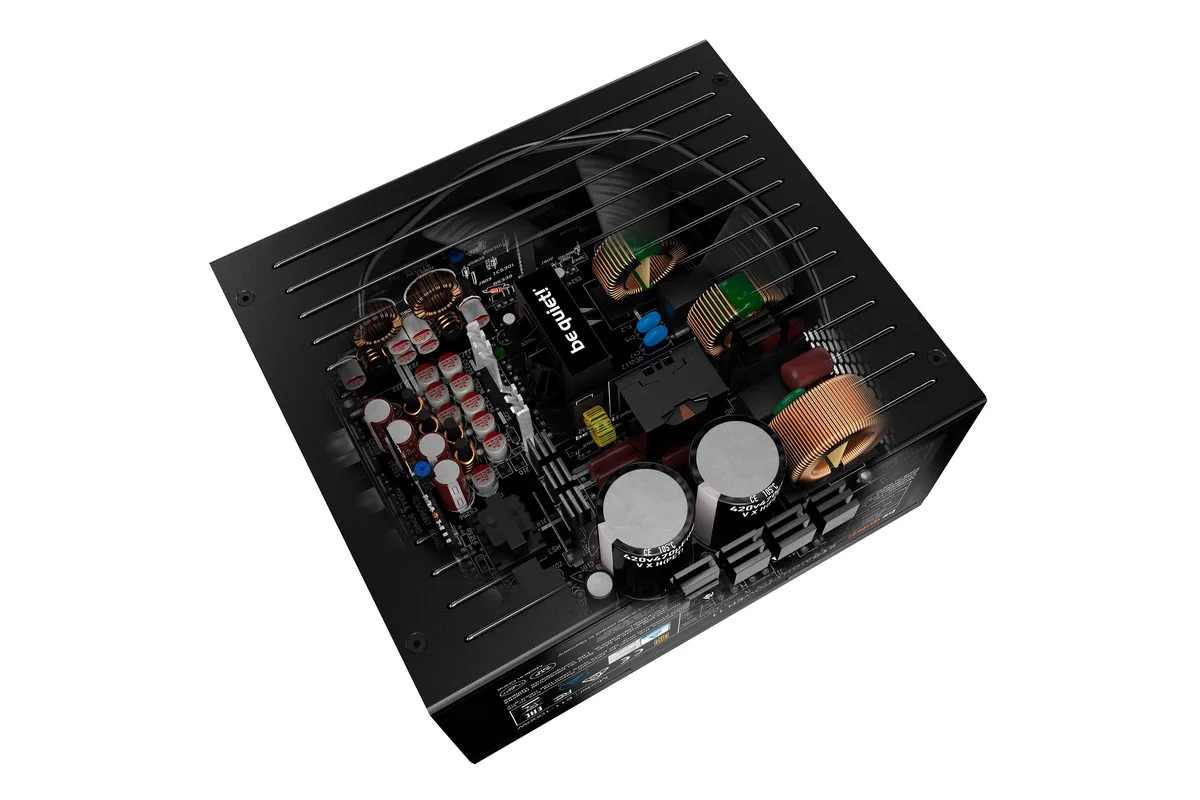

The be quiet! Straight Power 12 BN518 is a fully modular ATX 3.0 power supply rated at 1500 W. It carries 80 PLUS Platinum certification with up to 93.9 % efficiency. A single 12 V rail delivers the full output for high-end desktop systems. Japanese 105 °C capacitors and full bridge LLC topology provide stable power delivery.
PCIe 5.0 and 6+2 pin connector limits

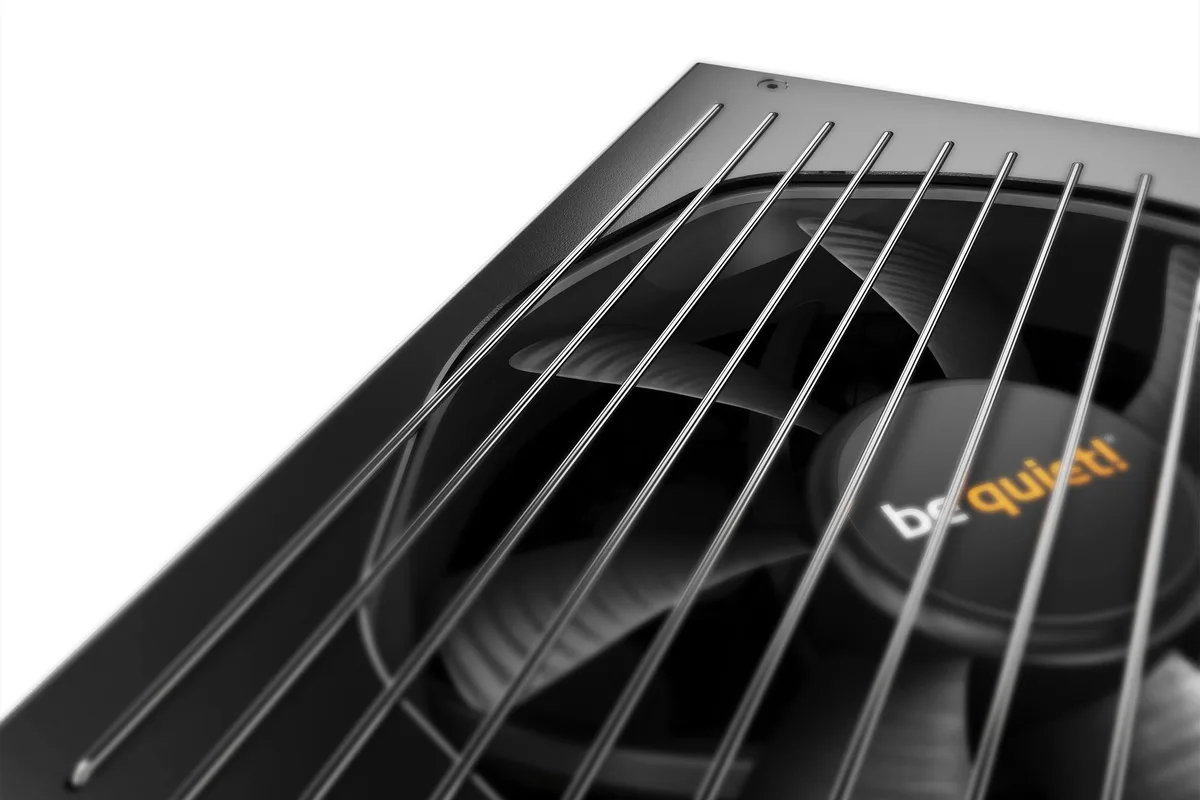

The unit includes four PCIe 6+2 pin connectors for graphics cards. ATX 3.0 compliance allows the PSU to handle massive power excursions up to double its rated power for short periods. The 135 mm Silent Wings fan with funnel-shaped opening maintains high airflow at very low noise levels. Active PFC and full protection circuits guard against over voltage and overload conditions.
Single 12V rail with 1500 W continuous power

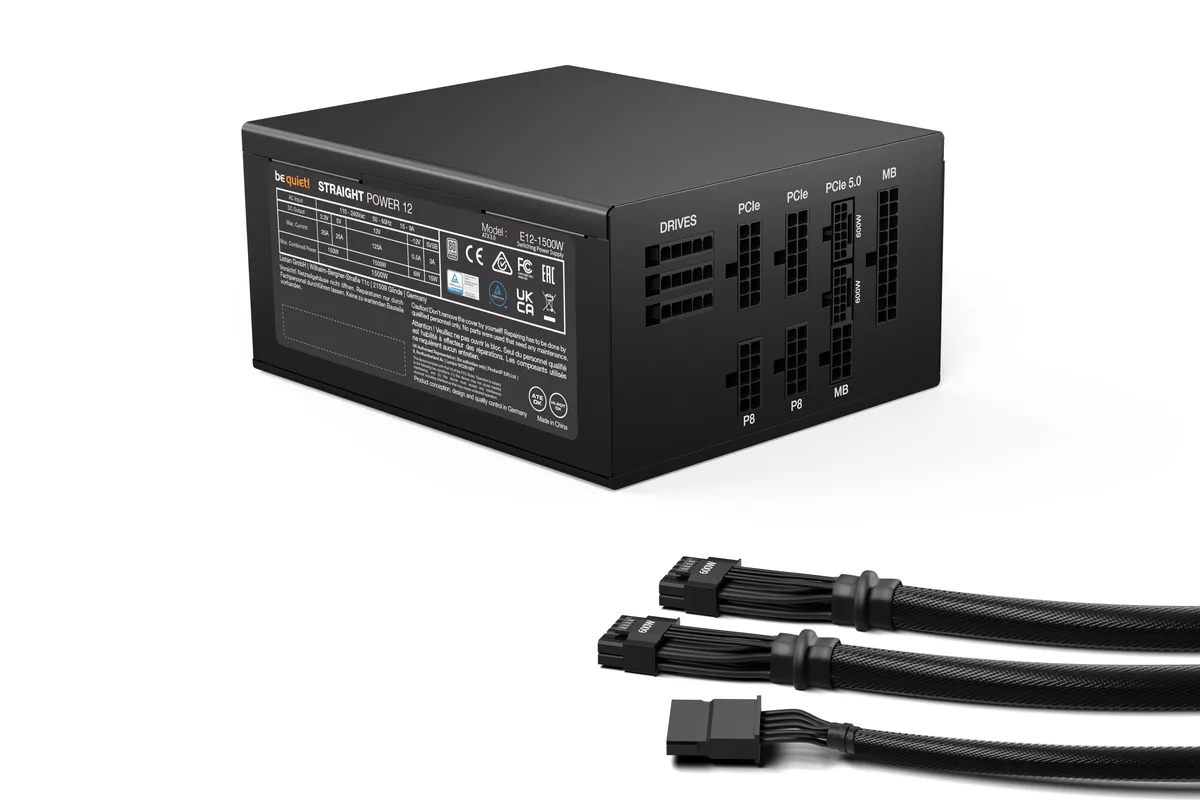

One massive 12 V rail supplies the entire 1500 W without multi-rail restrictions. This makes the PSU suitable for configurations that draw extreme transient loads from a single GPU. The 160 mm depth fits standard ATX cases. Nine SATA power connectors and a 20+4 pin main connector complete the cable set.
Highlights
- 80 PLUS Platinum efficiency up to 93.9% reduces energy waste
- ATX 3.0 design with PCIe 5.0 support powers modern graphics cards
- Single 12 V rail delivers 1500 W continuous power for heavy loads
- Silent Wings 135 mm fan runs virtually inaudible during operation
- Japanese 105 °C capacitors provide long-term stability and reliability
Specifications
| Brand | be quiet! |
|---|---|
| Series | Straight Power |
| Model | 1500 w |
| Color | Black |
| Type | ATX 3.0 Compatible |
| Maximum Power | 1500 W |
| Fans | 1 x 135 mm |
| Fan LED | No |
| PFC | Active |
| Main Connector | 20+4Pin |
| PCI-Express Connector | 4x 6+2 pin |
| SATA Power Connector | 9 |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Dimensions | 160 x 150 x 86 mm |
| Weight | 3.47kg |
| +3.3V Max. Current | 25A |
| +5V Max. Current | 25A |
| +12V1 Max. Current | 100 |
| -12V Max. Current | .3 |
| +5VSB Max. Current | 3 |
| Fans Total Quantity | 1 |
| Top Fans Size | 135mm |
| Shipping weight | 4.26 kg |
| Package size | 328 × 248 × 108 mm |
Questions about this item
Should I choose this 1500W Platinum model or a lower-wattage unit?
Pick the 1500W unit only if your build can draw near that level; the single 12V rail delivers the full 1500W continuously and the Platinum rating keeps efficiency up to 93.9% at typical loads.
What does the 1500W rating mean once the PSU is installed in my PC?
It means the unit can supply 1500W continuously on one massive 12V rail, with Japanese 105°C capacitors and full bridge LLC topology keeping voltage stable during heavy GPU and CPU loads.
How does the ATX 3.0 interface affect what I can connect?
The ATX 3.0 design includes native 12VHPWR support for PCIe 5.0 graphics cards while still providing four 6+2 pin PCIe connectors and nine SATA connectors for drives and peripherals.
