BGears

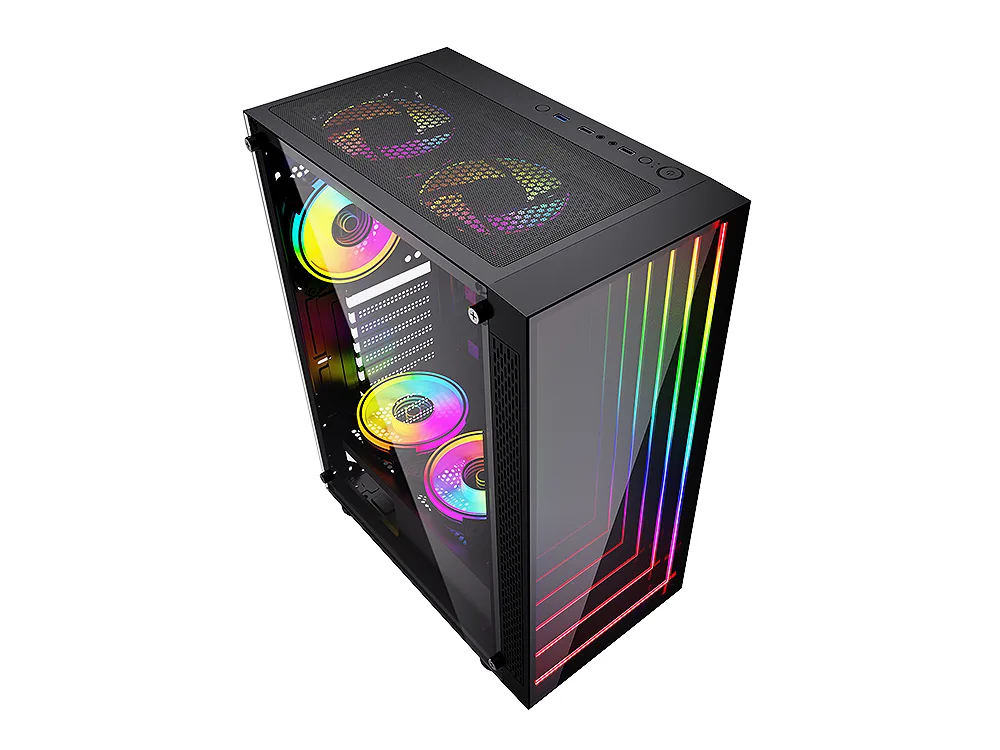

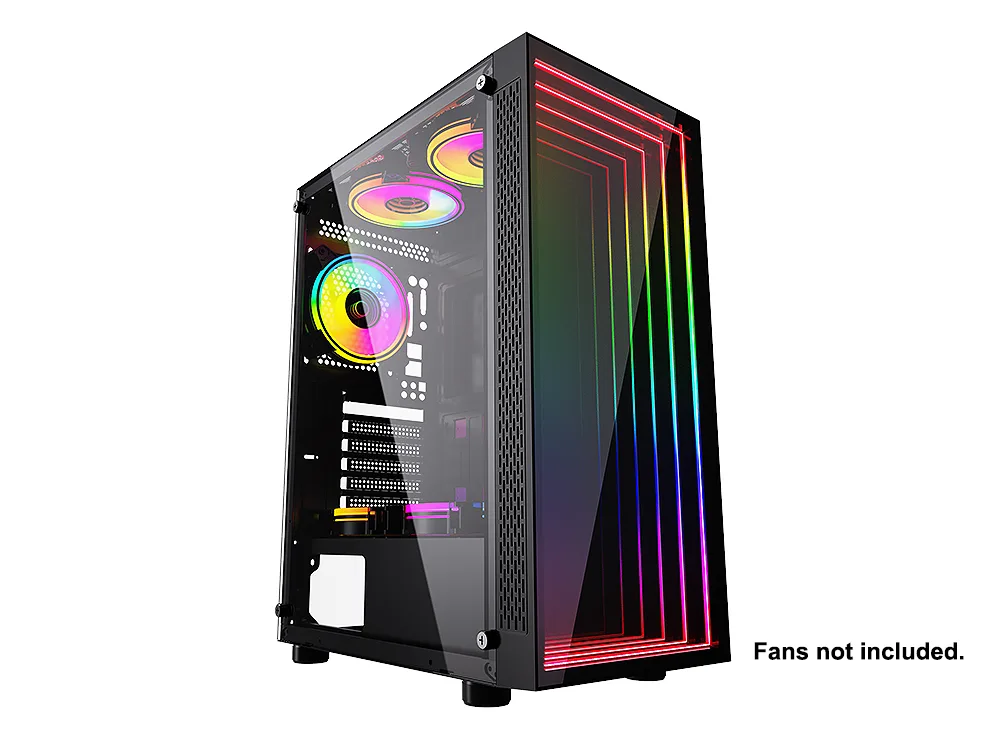

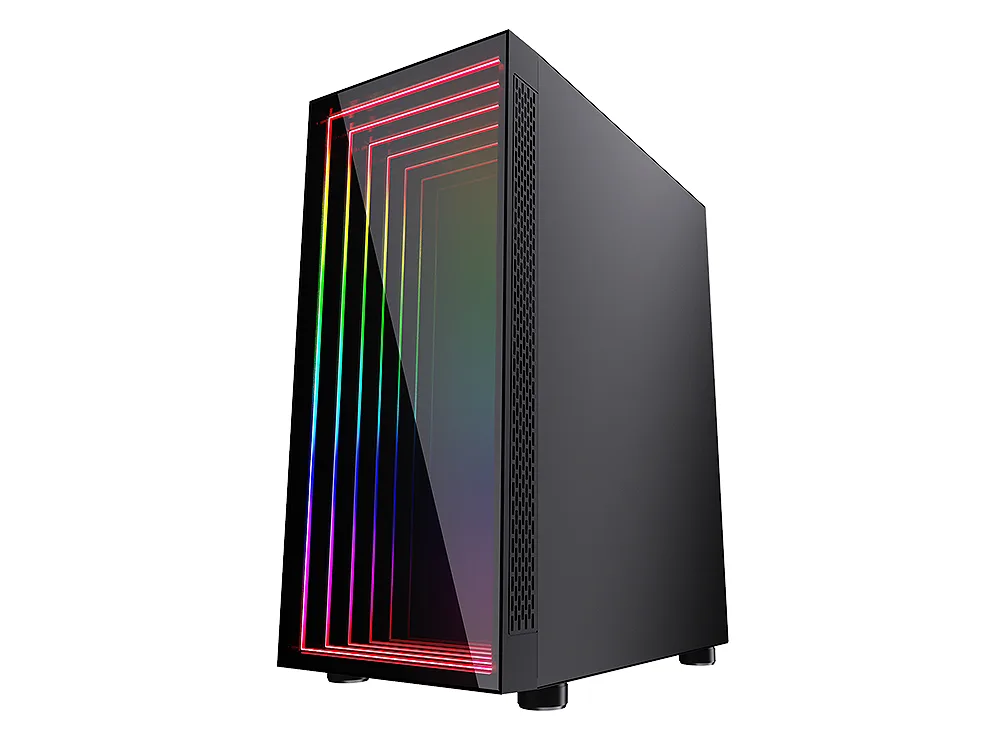

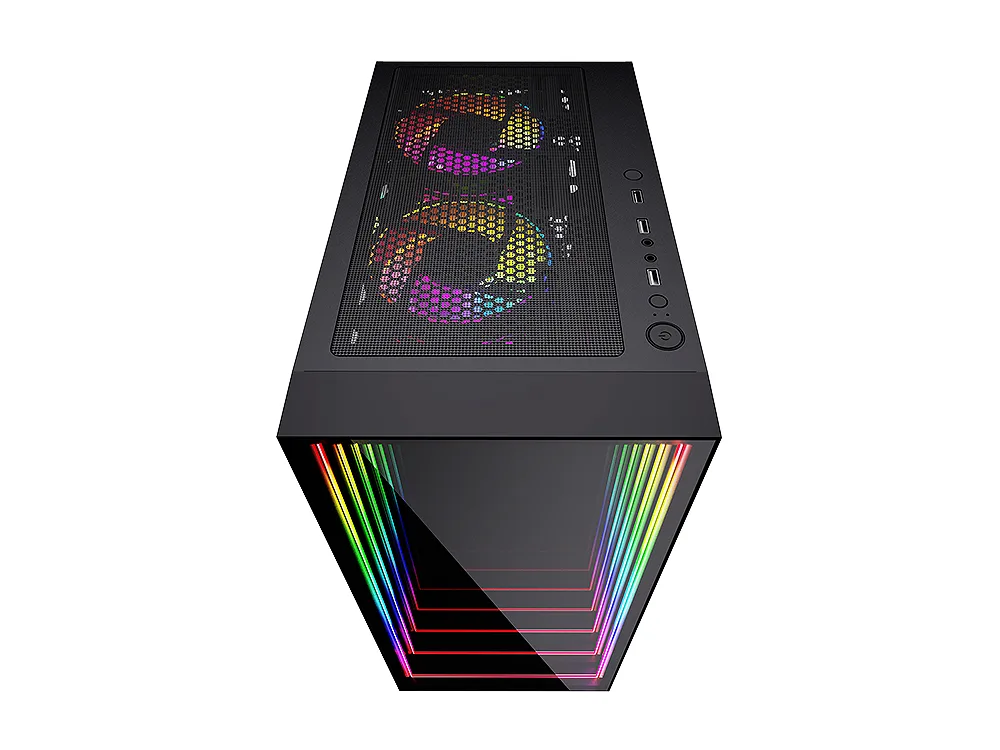

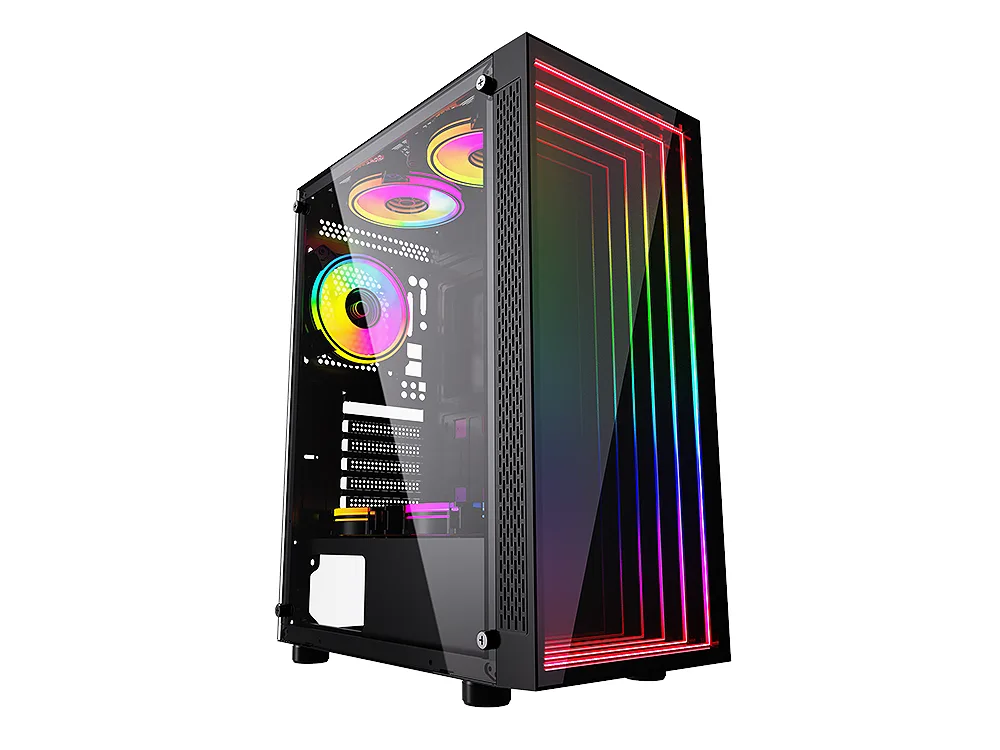

BGears B-Optillusion Mid Tower ATX Glass Mirror LED Black PC Case
Mid-tower ATX case with glass mirror front panel, LED lighting, and support for 360 mm front radiators
- TypeMid Tower ATX
- ColorBlack
- Case MaterialGlass
- Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
- Side Panelwith Side Window
- Dust FiltersTop
- Supports E-ATX, ATX, Micro-ATX and Mini-ITX motherboards
- Front panel blends glass, mirror and LED lighting for a distinctive look
- Top-mounted dust filters help keep the interior clean
- Room for a 360 mm front radiator and 280 mm top radiator
- Seven expansion slots and 300 mm GPU clearance for high-end builds
Optical-Illusion Front Panel
The B-Optillusion is a mid-tower ATX chassis that fits E-ATX, ATX, Micro-ATX and Mini-ITX boards. Its front combines ABS, glass and a mirror surface with integrated mirror LEDs controlled by a dedicated button. The left side panel is tinted tempered glass secured with four screws, while the right panel is steel. A top-mounted dust filter helps keep internals clean.
Cooling Capacity and Clearances
Seven expansion slots give room for long graphics cards up to 300 mm. The front accepts three 120 mm or three 140 mm fans and radiators up to 360 mm, the top takes two 120 mm or two 140 mm fans and radiators up to 280 mm, and the rear supports one 120 mm fan and a 120 mm radiator. CPU coolers up to 160 mm and power supplies up to 180 mm fit without interference.
Storage Layout and Front I/O
Inside there is one 3.5-inch bay and two 2.5-inch bays for drives. The front panel provides one USB 3.0 port, two USB 2.0 ports and two audio jacks for daily connectivity. Overall dimensions are 212 mm wide, 380 mm deep and 480 mm high, with an internal depth of 330 mm and height of 470 mm. Chassis thickness is 0.5 mm with a black interior finish.
Highlights
- Supports E-ATX, ATX, Micro-ATX and Mini-ITX motherboards
- Front panel blends glass, mirror and LED lighting for a distinctive look
- Top-mounted dust filters help keep the interior clean
- Room for a 360 mm front radiator and 280 mm top radiator
- Seven expansion slots and 300 mm GPU clearance for high-end builds
Specifications
| Brand | Bgears |
|---|---|
| Series | B-Optillusion |
| Model | Mid Tower ATX |
| Part Number | B-Optillusion |
| Type | Mid Tower ATX |
| Color | Black |
| Case Material | Glass |
| Motherboard Compatibility | ATX / E-ATX / Micro ATX / Mini ITX |
| Side Panel | with Side Window |
| Dust Filters | Top |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 2 |
| Expansion Slots | 7 |
| Front Ports | 1 x USB 3.0, 2 x USB 2.0, 2 x Audio |
| Fan Options | Front - 3 x 120mm / Front - 3 x 140mm / Rear - 1 x 120mm / Top - 2 x 120mm / Top - 2 x 140mm |
| Radiator Options | Front - Up to 360mm / Rear - Up to 120mm / Top - Up to 280mm |
| Max GPU Length | 300 mm |
| Max CPU Cooler Height | 160 mm |
| Max PSU Length | 180 mm |
| Shipping weight | 6.53 kg |
| Package size | 533 × 439 × 262 mm |
Questions about this item
How do I mount the motherboard and which standoff step is often missed?
Align the board with the pre-installed ATX standoffs, add extras for E-ATX or Micro-ATX holes, then secure every hole; the step most builders skip is fitting the additional standoffs before placing the board.
Which filters need cleaning and how often should I check them?
Only the top magnetic dust filter is fitted; remove and rinse it every few months or when visible dust builds up to keep airflow steady.
What is the longest graphics card that will fit without hitting the front fans?
The case accepts GPUs up to 300 mm; longer cards would contact the front 120 mm or 140 mm fan mounts.
