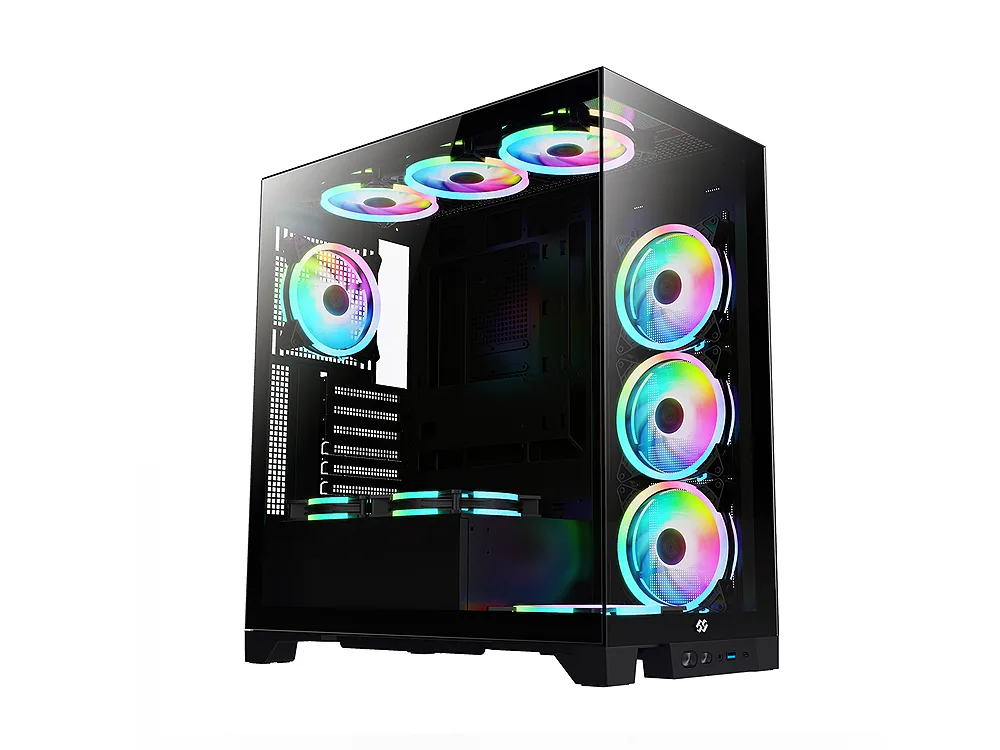

Black mid-tower case with continuous tempered glass front and side panels

BGears

BGears b-Pellucid ATX Black Mid Tower PC Case

SKU CH-AC3V-VE3BF

A compact ATX mid-tower with tempered-glass front and side panels that fits GPUs up to 420 mm, CPU coolers up to 185 mm and radiators up to 360 mm

  • TypeATX Mid Tower
  • ColorBlack
  • With Power SupplyNo
  • Motherboard CompatibilityATX / Micro ATX / Mini ITX
  • Dust FiltersBottom Drawer Like Dust Filter
  • Internal 3.5" Drive Bays3
  • Crystal-clear view from front to side with infinity tempered glass design
  • Room for up to 10 fans delivering massive airflow and ARGB lighting showcase
  • Supports graphics cards up to 420 mm long and CPU coolers up to 185 mm tall
  • Front USB 3.0 Type-C and USB 3.0 ports for fast peripheral access
  • Removable magnetic drawer-style dust filters on top and bottom for easy cleaning

ATX Mid Tower for Showcase Builds

The BGears b-Pellucid ATX is a black mid tower case designed for ATX, Micro ATX and Mini ITX motherboards. Its infinity tempered glass design extends from the front to the side panel for a crystal clear view of internal components. Builders who want a panoramic window to display ARGB lighting will appreciate the layout.

Steel Frame with Magnetic Dust Filters

The case supports up to 10 fans across front, top, bottom and rear positions using 120mm or 140mm sizes. Radiator mounts allow up to 360mm units at the front and top plus a 140mm rear radiator. A drawer like dust filter sits at the bottom while a magnetic filter covers the top for easy cleaning.

Upgrade from Closed or Smaller Chassis

This chassis replaces cases that limit GPU length or radiator options. It fits graphics cards up to 420mm, though a front 240mm or 360mm radiator reduces that to 280mm. CPU coolers up to 185mm and power supplies up to 200mm depth are supported. Builders needing more than three 3.5in or 2.5in drive bays should look elsewhere.

Highlights

  • Crystal-clear view from front to side with infinity tempered glass design
  • Room for up to 10 fans delivering massive airflow and ARGB lighting showcase
  • Supports graphics cards up to 420 mm long and CPU coolers up to 185 mm tall
  • Front USB 3.0 Type-C and USB 3.0 ports for fast peripheral access
  • Removable magnetic drawer-style dust filters on top and bottom for easy cleaning

Specifications

BrandBgears
Seriesb-Pellucid
Modelb-Pellucid ATX
TypeATX Mid Tower
ColorBlack
With Power SupplyNo
Motherboard CompatibilityATX / Micro ATX / Mini ITX
Dust FiltersBottom Drawer Like Dust Filter
Internal 3.5" Drive Bays3
Internal 2.5" Drive Bays3
Expansion Slots7
Front Ports1 x USB 3.0, 1 x USB 3.0 Type-C, 1 x Audio
Fan OptionsBottom - 1 x 120mm / Bottom - 1 x 140mm / Front - 3 x 120mm / Rear - 1 x 120mm / Rear - 1 x 140mm / Top - 2 x 140mm / Top - 3 x 120mm
Radiator OptionsFront - Up to 360mm / Rear - Up to 140mm / Top - Up to 360mm
Max GPU LengthMax. 420mm (If M/B Front is installed with 240/360mm
Water Cooling, Max VGA is 280mm)
Max CPU Cooler Height185 mm
Max PSU Length200 mm
Dimensions245(W) x 434(D) x 473(H)mm
Shipping weight8.89 kg
Package size541 × 508 × 310 mm

Questions about this item

Does the front USB 3.0 Type-C port run at 3.0 speeds or faster?

The front panel includes one USB 3.0 Type-C and one USB 3.0 Type-A port, both operating at 3.0 speeds.

What clearance does the case allow for a graphics card and a top-mounted 360 mm radiator together?

Maximum GPU length is 420 mm, but it drops to 280 mm when a 240 mm or 360 mm radiator is installed in the front. Top radiator support goes up to 360 mm without affecting GPU length.

How do you clean the bottom dust filter without removing the power supply?

The bottom filter slides out like a drawer, so you can pull it out, wash it, and slide it back in while the PSU stays mounted.
