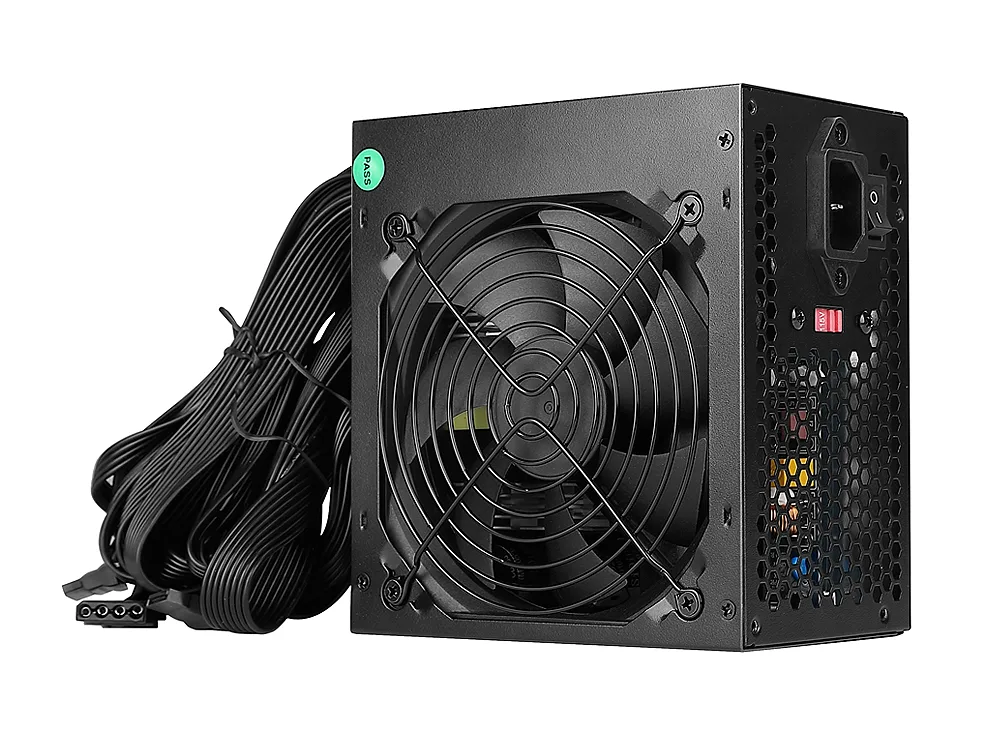

Black ATX power supply with non-modular cables and 120 mm fan

BGears

BGears b-Vigor 700W 700 W ATX non-modular power supply

SKU CH-TZXK-TRJ6B MPN b-Vigor 700W

ATX 700 W non-modular unit with single +12 V rail, four 6+2-pin PCIe connectors, six SATA connectors and a 120 mm fan in a 150 mm chassis

  • ColorBlack
  • TypeATX
  • Maximum Power700 W
  • Fans1 x 120 mm
  • Main Connector20+4Pin
  • +12V RailsSingle
  • 700 W output powers demanding builds
  • single +12 V rail simplifies GPU delivery
  • four PCIe 6+2 pin connectors support multi-GPU setups
  • 120 mm smart fan balances cooling and noise
  • full-range 115 V to 230 V input works worldwide

700 W ATX non-modular power supply

The BGears b-Vigor 700W delivers 700 W from a single +12 V rail in a standard ATX form factor. It targets system builders who need a fixed-cable unit for a mid-range desktop or workstation. The 150 mm depth fits most mainstream cases. Buyers who want fully modular cabling or higher wattage headroom should look elsewhere.

Single +12 V rail with four 6+2-pin PCIe connectors

The unit uses a single +12 V rail design rated for the full 700 W output. Four 6+2-pin PCIe connectors support dual high-end graphics cards or a single card with multiple power inputs. Six SATA power connectors and two 4-pin peripheral plugs cover drives and accessories. Efficiency is stated as equivalent to over 80+ at 20, 50 and 100 percent load across 115 to 230 V AC input.

Fixed black ribbon cables and 120 mm smart fan

All cables are permanently attached black ribbon types, so cable routing must be planned before installation. The 120 mm smart fan adjusts speed based on load and temperature. Protection features include over-power and short-circuit safeguards. A 3-prong AC power cord is included. CE and RoHS compliance is declared.

Highlights

  • 700 W output powers demanding builds
  • single +12 V rail simplifies GPU delivery
  • four PCIe 6+2 pin connectors support multi-GPU setups
  • 120 mm smart fan balances cooling and noise
  • full-range 115 V to 230 V input works worldwide

Specifications

BrandBgears
Modelb-Vigor700W
ColorBlack
TypeATX
Maximum Power700 W
Fans1 x 120 mm
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector6
Max PSU Length150 mm
ModularNon-Modular
Connectors1 x 24 pin (20+4) ATX / 2 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe / 6 x SATA
Features700W ATX Power Supply
High Performance all Black Ribbon Cables and Connector
Worldwide Compatible with Full Range AC Voltage 115V to 230V
Equivalent to Over 80+ Efficiency at 20%, 50% or 100% loading for 115V to 230V AC Input.
High Performance 120mm Smart Fan for Ultimate Performance
Over Power Protection
Short Circuit Protection
CE and RoHS
USA 3-Prong AC Power Cord included.
Shipping weight1.81 kg
Package size254 × 254 × 152 mm

Questions about this item

What does the 700 W rating mean for a built PC?

It means the unit can deliver up to 700 W of total DC power across its rails, enough for a mid-range CPU and a single high-end graphics card under full load.

What does the single +12 V rail design cap in practice?

All 12 V components share one 700 W pool, so the combined draw of CPU, GPU and drives cannot exceed the unit's total rating.

Will the 150 mm length fit my case?

The power supply is 150 mm long, so it fits any ATX chassis that clears at least that depth from the mounting face.
