Green ATX motherboard with six white PCIe x1 slots and black components

Biostar

Biostar TB250-BTC Intel motherboard

SKU CH-G95D-ZKDPN

LGA 1151 ATX board with six PCIe slots, six SATA ports and DDR4 2400 support, built for multi-GPU cryptocurrency mining

  • CPU Socket TypeLGA 1151
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • Supported CPU Technologies* Not Compatible with Intel 8th Gen CPUs
  • ChipsetIntel B250
  • Onboard Video ChipsetBy CPU modelSupports DX12Supports HDCP
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 7th-gen Intel Core processors on LGA 1151 socket
  • Six PCI-E 3.0 x1 slots for multi-GPU mining rigs
  • DDR4 memory up to 2400 MHz with two 288-pin slots
  • M.2 Key M connector for SATA or PCIe storage drives
  • Gigabit LAN and 8-channel Realtek ALC887 audio on board

Mining board with twelve PCIe slots

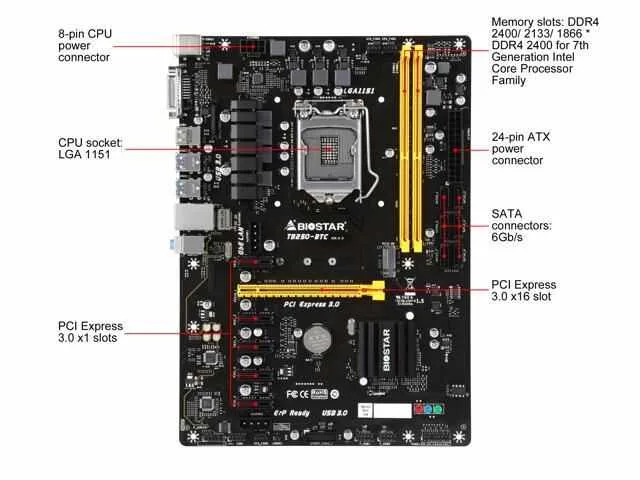

The Biostar TB250-BTC is an ATX motherboard built around the Intel B250 chipset for LGA 1151 processors. It accepts Core i7, i5, i3, Pentium and Celeron CPUs up to the 7th generation. The layout provides one full-length PCI Express 3.0 x16 slot plus five PCI Express 3.0 x1 slots, giving twelve total expansion connections for mining-focused builds.

Two DDR4 slots and six SATA ports

Memory support covers DDR4 2400, 2133 and 1866 speeds across two 288-pin slots, with 2400 MT/s available only on 7th generation CPUs. Six SATA 6Gb/s ports and a single M.2 Key M connector for 2242, 2260 or 2280 drives handle storage. The board does not support 8th generation Intel processors, limiting upgrade headroom.

Basic rear I/O and BIOS tweak for mining

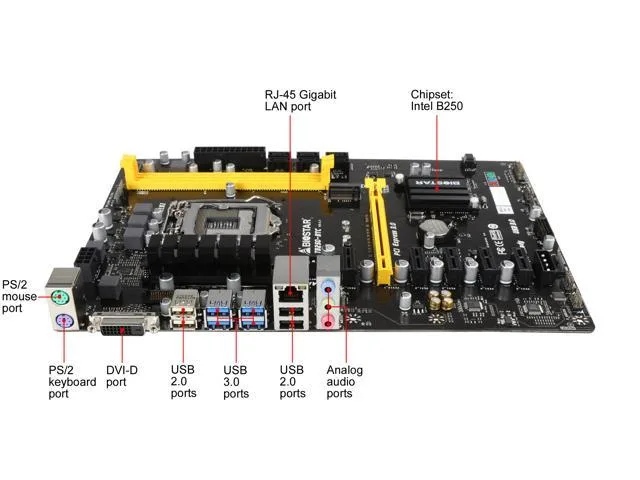

Rear connectivity includes two PS/2 ports, four USB 2.0 ports, four USB 3.0 ports and a DVI-D output up to 1920 x 1200 at 60 Hz. Realtek ALC887 provides eight-channel audio and Realtek RTL8111H delivers 1 Gbps Ethernet. The BIOS allows switching the x1 slots to PCIe 1.0 mode to improve stability when all twelve slots are populated.

Highlights

  • Supports 7th-gen Intel Core processors on LGA 1151 socket
  • Six PCI-E 3.0 x1 slots for multi-GPU mining rigs
  • DDR4 memory up to 2400 MHz with two 288-pin slots
  • M.2 Key M connector for SATA or PCIe storage drives
  • Gigabit LAN and 8-channel Realtek ALC887 audio on board

Specifications

BrandBIOSTAR
ModelTB250-BTC
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies* Not Compatible with Intel 8th Gen CPUs
ChipsetIntel B250
Onboard Video ChipsetBy CPU modelSupports DX12Supports HDCP
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2400/ 2133/ 1866* DDR4 2400 for 7th Generation Intel Core Processor Family
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x15 x PCI-E x1 3.0 Slot (using for bitcoin mining, it is suggested to change to PCI-E 1.0 via BIOS)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCIe Storage
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps
Back I/O Ports2 x PS/2 / 4 x USB 2.0/1.1 / 4 x USB 3.0
PS/21 x PS/2 Mouse1 x PS/2 Keyboard
Video Ports1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
RJ451 x RJ45
USB 3.04 x USB 3.0
USB 1.1/2.02 x USB 2.0 Port2 x USB 2.0 Port (only 5V power, up to 1.5A)
Audio Ports3 x Audio Connector
Onboard USB1 x USB 3.0 Header2 x USB 2.0 Header
Other Connectors1 x SATA Power Connector (for rear USB power enhancement)1 x Front Audio Header1 x Front Panel Header1 x CPU Fan Header2 x System Fan Header1 x Serial Header2 x PCI-E 12V 4-Pin Connector (Must be installed when using for bitcoin mining.)
Form FactorATX
Dimensions (W x L)11.6" x 8.3"
FeaturesH/W MONITORING:CPU / System Temperature MonitoringCPU / System Fan MonitoringSmart / Manual CPU Fan ControlSystem Voltage MonitoringOS SUPPORT:Support Windows 10 (x64) for Intel 7th Generation Processor* Support Windows 7 / 8.1 (x64) / 10 (x64) for Intel 6th Generation ProcessorBUNDLE SOFTWARE:BullGuardSmart Speed LAN (Windows 7/ 8.1 only)Intel Rapid Storage TechnologyFEATURES:Supports 100% Solid capacitorSupports Charger BoosterSupports BIOS Online Update
Package ContentsACCESSORIES:2 x SATA Cable1 x I/O Shield1 x DVD Driver1 x User Manual

Questions about this item

Will my existing DDR4 2133 MHz modules work with the TB250-BTC board?

Yes, the board supports DDR4 2133 alongside 2400 and 1866 speeds across its two 288-pin slots.

How can I verify the five PCIe x1 3.0 slots are running at 1.0 speed for mining stability?

Enter the BIOS and change the PCIe x1 slot setting to 1.0; the board will then report the reduced link speed on POST.

Does the box include riser cables for the five PCIe x1 slots or must I buy them separately?

Riser cables are not included; only the motherboard, I/O shield, SATA cables and driver disc are in the box.
