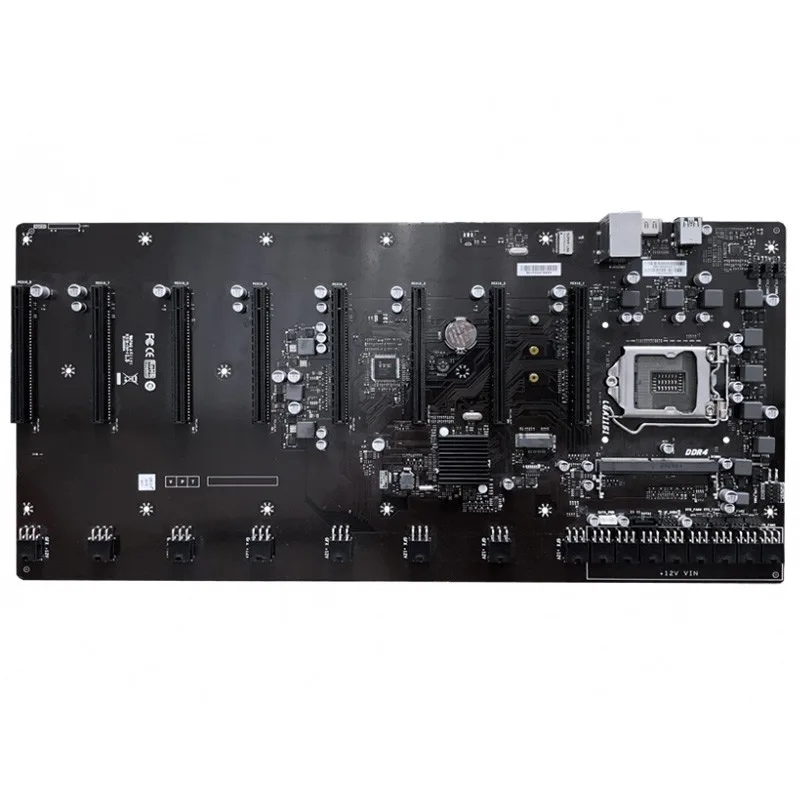

Green mining motherboard with eight PCIe slots and HDMI port

Biostar

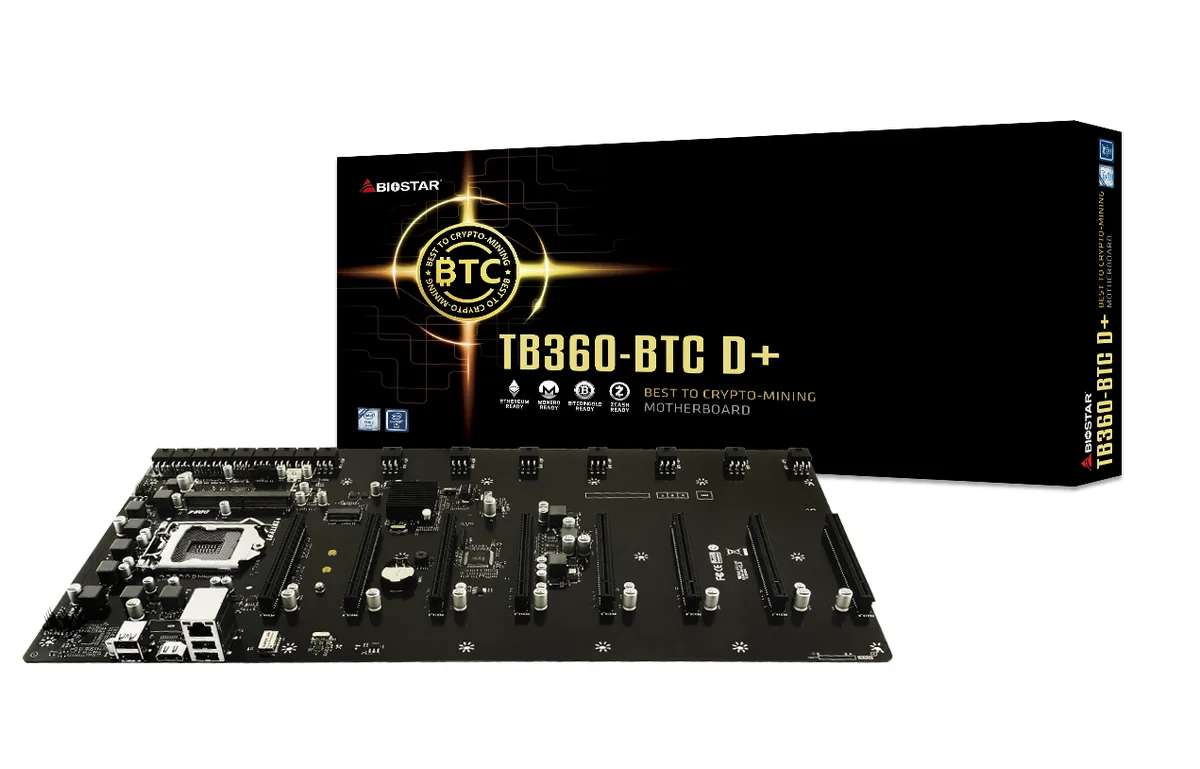

Biostar TB360-BTC D+ LGA 1151 mining hardware

SKU CH-QDRH-RJBJH MPN TB360-BTC

Supports eight GPUs and 8th- or 9th-gen Intel CPUs on an Intel B360 chipset with one DDR4 SO-DIMM slot up to 16 GB

  • CPU Socket TypeLGA 1151 (300 Series)
  • Supports up to eight graphics cards via PCIe x16 slots
  • Accepts 8th and 9th generation Intel Core processors on LGA 1151 socket
  • Single DDR4 SO-DIMM slot handles up to 16 GB at 2666 MT/s
  • M.2 M-key and SATA III connectors give flexible solid-state storage options
  • Realtek RTL8111H controller provides gigabit Ethernet for stable pool connections

Mining motherboard with eight GPU slots

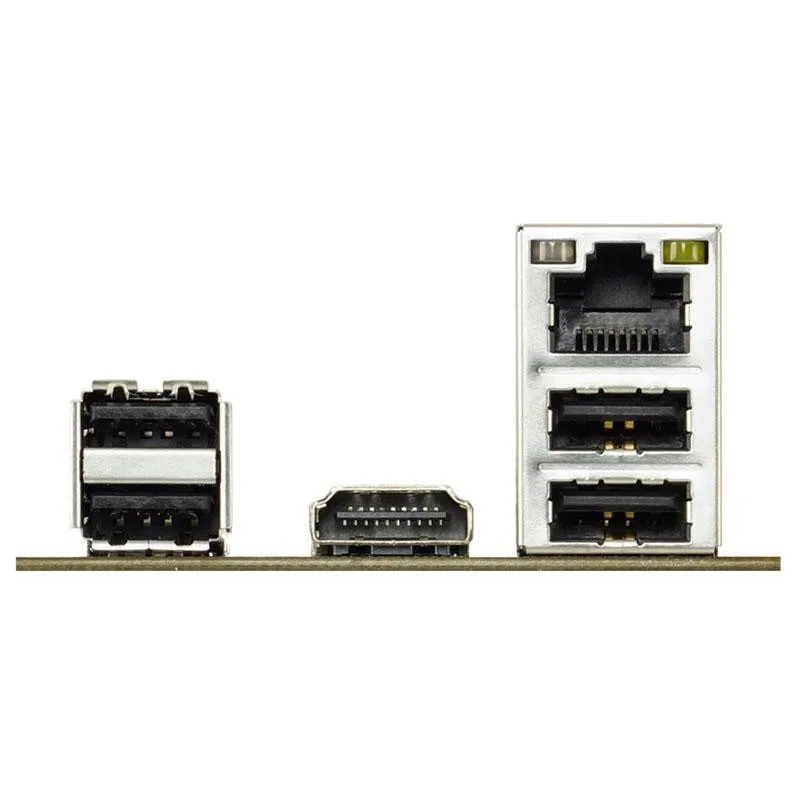

The Biostar TB360-BTC D+ is a LGA 1151 board built for cryptocurrency mining rigs. It accepts 8th and 9th generation Intel Core, Pentium and Celeron processors. A single DDR4 SO-DIMM slot supports memory speeds of 2133, 2400 or 2666 up to 16 GB capacity. Integrated graphics output is provided through an HDMI port driven by the CPU.

PCIe x16 electrical limit for all eight slots

Eight physical PCIe x16 slots are available for graphics cards. The B360 chipset and CPU lane budget mean each slot operates at reduced electrical width when fully populated. One M.2 M-key connector and one SATA III 6 Gb/s port handle storage. The Realtek RTL8111H controller provides a single 10/100/1000 Mb/s LAN connection. Six USB 2.0 ports are split between rear I/O and internal headers.

Seven system fan headers and dedicated SATA power

Seven system fan connectors plus a CPU fan header allow active airflow management across densely packed cards. A dedicated SATA power connector on the board supplements rear USB power delivery. Standard front-panel, clear-CMOS and hardware monitoring headers simplify daily operation and troubleshooting in a mining chassis.

Highlights

  • Supports up to eight graphics cards via PCIe x16 slots
  • Accepts 8th and 9th generation Intel Core processors on LGA 1151 socket
  • Single DDR4 SO-DIMM slot handles up to 16 GB at 2666 MT/s
  • M.2 M-key and SATA III connectors give flexible solid-state storage options
  • Realtek RTL8111H controller provides gigabit Ethernet for stable pool connections

Specifications

BrandBIOSTAR
SeriesTB360-BTC D+
CPU Socket TypeLGA 1151 (300 Series)

Questions about this item

Which memory capacity should I choose for the single DDR4 SO-DIMM slot?

The board has one DDR4 SO-DIMM slot supporting 2133, 2400 or 2666 MT/s up to 16 GB. Pick the highest speed your CPU supports and the capacity your mining OS needs.

What does the 8× PCIe x16 slot count mean once the board is in a mining rig?

All eight slots are electrically x1, so each GPU runs at PCIe 3.0 x1 bandwidth; this is standard for high-density mining and does not limit hash rate for current algorithms.

How fast is the M.2 M-key connector in practice?

The M.2 M-key connector runs at 16 Gb/s and accepts both PCIe and SATA SSDs, giving up to roughly 2 GB/s throughput for PCIe drives and 6 Gb/s for SATA drives.
