Green rectangular motherboard with seventeen white PCI-E slots along the edge, silver M.2 slot, blue HDMI port, black RAM sockets

Biostar

Biostar TB360-BTC Expert 2.0 Intel motherboard 17x PCI-E 3.0

SKU CH-XJ9E-3ZTTJ

LGA 1151 board with 17 PCI-E 3.0 slots for 8th and 9th Gen Intel CPUs up to 95 W, dual-channel DDR4 to 2666 MHz, 32 GB max, M.2 SATA and HDMI output

  • Supports 17 PCI-E 3.0 slots for dense multi-GPU builds
  • Runs 9th and 8th Gen Intel Core CPUs on LGA 1151 socket
  • Dual-channel DDR4 up to 32 GB across two DIMMs
  • M.2 SATA connector plus four SATA III ports for storage flexibility
  • Realtek RTL8111H gigabit LAN with surge protection built in

Biostar TB360-BTC Expert 2.0 mining board

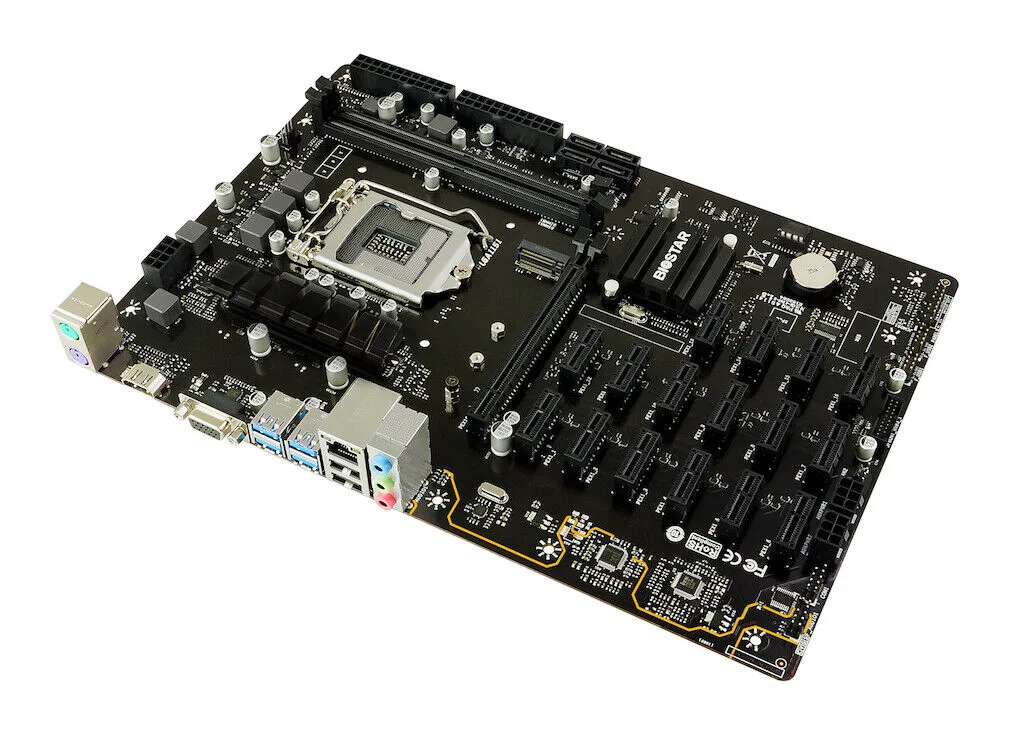

The Biostar TB360-BTC Expert 2.0 is an LGA 1151 motherboard built around the Intel H370 chipset. It accepts 8th and 9th Generation Intel Core i3, i5, i7 and i9 processors up to a 95W TDP. The board provides seventeen PCIe 3.0 slots for multi-GPU configurations and supports dual-channel DDR4 memory up to 32 GB.

Check CPU power and memory speed before ordering

Verify that your chosen processor is an LGA 1151 model from the 8th or 9th Generation with a TDP of 95 W or lower. Ensure your DDR4 modules run at 1866, 2133, 2400 or 2666 MHz and do not exceed 16 GB per DIMM. Confirm your power supply delivers enough 12 V current for the CPU and all installed graphics cards.

Fits open-air rigs with many GPUs

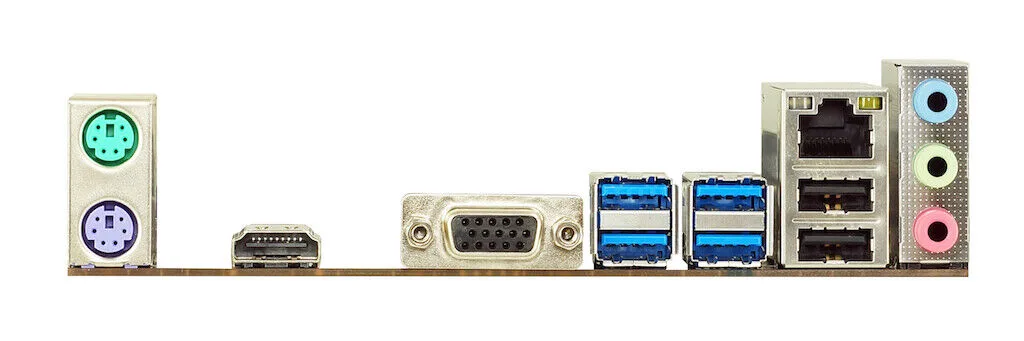

The seventeen PCIe 3.0 slots let you populate multiple graphics cards without needing extra riser boards. A single M.2 M-key connector accepts SATA SSDs at 6 Gb/s, while four SATA III ports handle additional storage. HDMI output uses the processor integrated graphics, and the Realtek RTL8111H controller provides gigabit LAN with surge protection.

Highlights

  • Supports 17 PCI-E 3.0 slots for dense multi-GPU builds
  • Runs 9th and 8th Gen Intel Core CPUs on LGA 1151 socket
  • Dual-channel DDR4 up to 32 GB across two DIMMs
  • M.2 SATA connector plus four SATA III ports for storage flexibility
  • Realtek RTL8111H gigabit LAN with surge protection built in

Specifications

No published specifications for this item yet.

Questions about this item

Does the TB360-BTC Expert 2.0 come with a CPU, RAM or M.2 drive, or must they be purchased separately?

The board is sold alone; you must supply an LGA 1151 processor (up to 95 W TDP), up to 32 GB of DDR4 across the two DIMM slots, and any SATA M.2 SSD for the M key slot.

Which DDR4 speed should I choose for the two slots — 1866, 2133, 2400 or 2666 MT/s?

All four speeds are supported; pick the highest speed your budget allows (2666 MT/s) for maximum bandwidth, but slower modules will run at their rated frequency without issue.

What does the 17 x PCI-E 3.0 slot count mean for a mining or multi-GPU build?

It provides seventeen physical x1 connectors fed by the H370 chipset and CPU lanes, allowing up to seventeen single-slot cards simultaneously; each link runs at PCI-E 3.0 x1 bandwidth.
