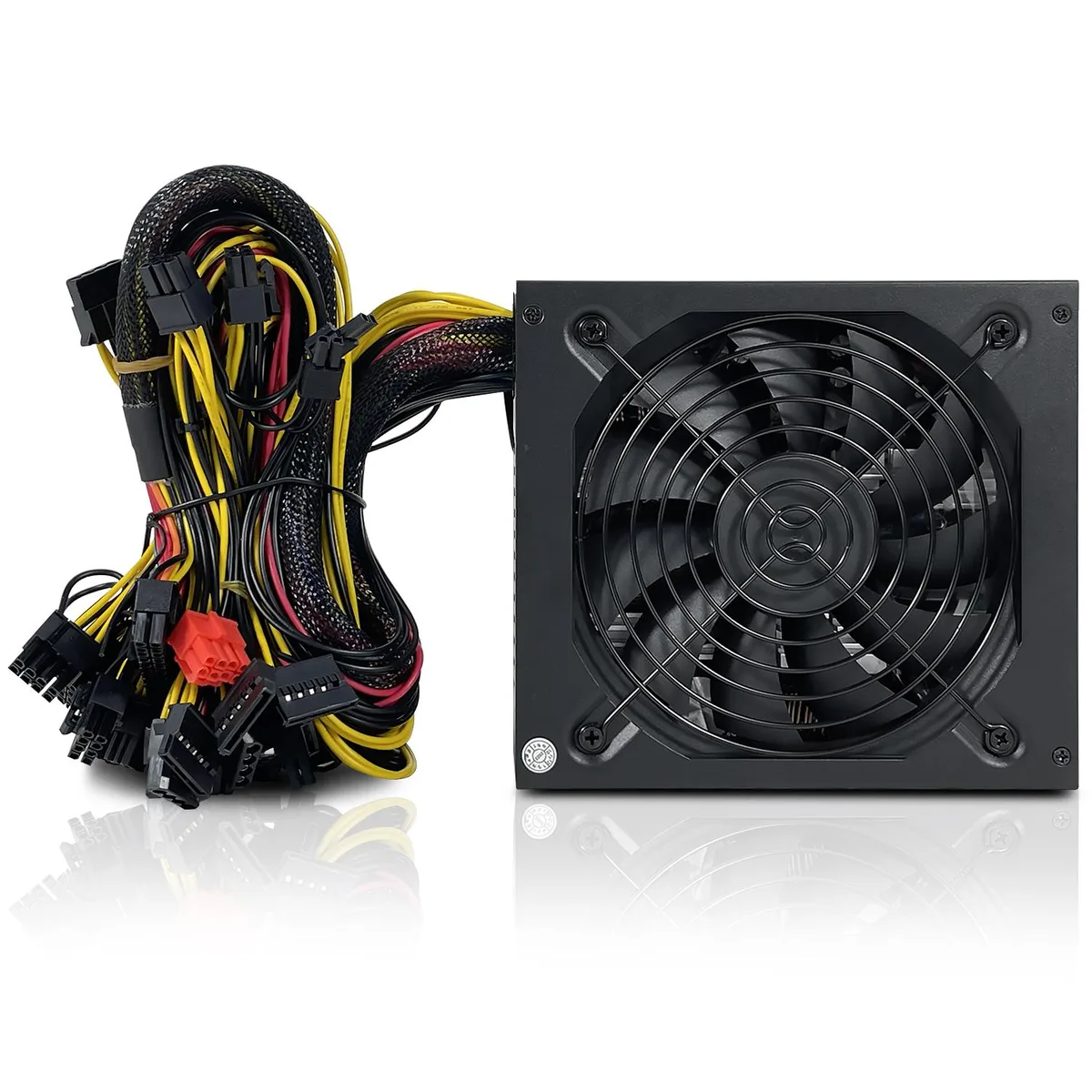

Black ATX power supply unit with matte metal case and large cooling fan visible

biteo

biteo BT2000W 2000 W power supply

SKU CH-K7XG-K5EHC MPN BT2000W

A 2000 W ATX power supply with active PFC, 16 PCIe 6+2-pin connectors and 8 SATA connectors supports up to 8 GPUs for mining or server use

  • ColorBlack
  • TypeATX
  • Maximum Power2000 W
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle
  • Delivers 2000 W peak power for multi-GPU mining rigs
  • Active PFC accepts 100-240 V input with 80-90 % conversion efficiency
  • Sixteen 6+2-pin PCIe connectors support up to eight graphics cards
  • Single +12 V rail design provides stable output under heavy load
  • Over-voltage, overload and high-temperature protections safeguard components

2000 W mining power supply

The biteo BT2000W delivers a peak output of 2000 W on a single +12 V rail and is built for mining rigs or servers that run up to eight graphics cards. It accepts 100-240 V input through an active PFC circuit that reaches 80-90 % conversion efficiency. The unit carries 80 Plus series branding and includes full protection against over-voltage, overload, short circuit and high temperature.

Installation notes

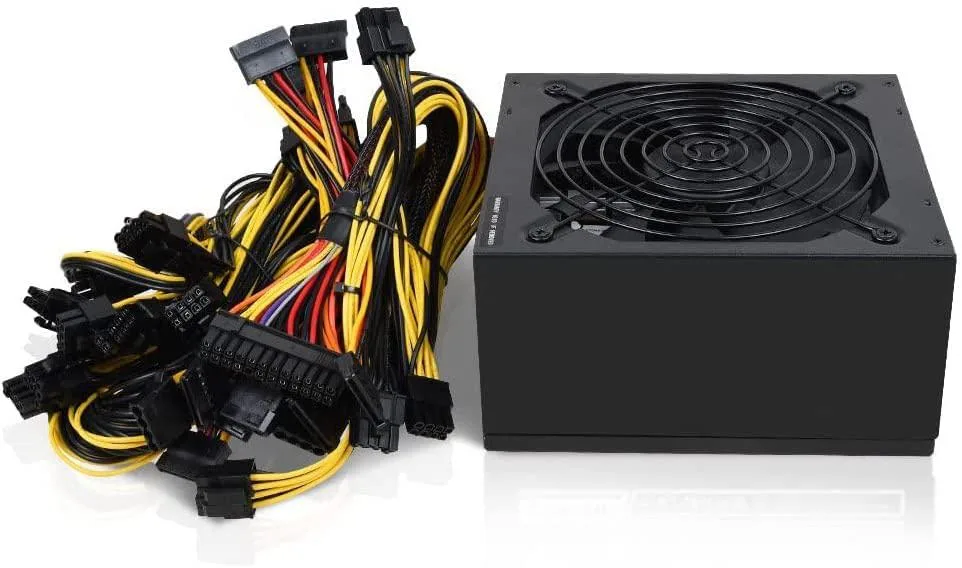

The power supply uses a fixed cable set with a 20+4 pin ATX connector, one 4+4 pin CPU connector, sixteen 6+2 pin PCIe connectors, eight SATA connectors and five IDE connectors. Because it is non-modular, all cables must be routed even if unused, so plan cable management space in a 165 mm deep chassis. A common issue is forgetting to seat the 20+4 pin motherboard connector first; the unit will not start without that link.

Pre-order checklist

Verify that your case can accommodate a 165 mm long ATX unit and that airflow can reach the large cooling fan. Confirm the mains supply in your region falls within the 100-240 V range and that a suitable IEC power cord is available, as one is not included. Ensure the motherboard and each graphics card match the provided 20+4 pin, 4+4 pin and 6+2 pin interfaces.

Highlights

  • Delivers 2000 W peak power for multi-GPU mining rigs
  • Active PFC accepts 100-240 V input with 80-90 % conversion efficiency
  • Sixteen 6+2-pin PCIe connectors support up to eight graphics cards
  • Single +12 V rail design provides stable output under heavy load
  • Over-voltage, overload and high-temperature protections safeguard components

Specifications

Brandbiteo
Series80 Plus
ColorBlack
TypeATX
Maximum Power2000 W
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector16 x 6+2-Pin
SATA Power Connector8
SLICertified
CrossFireCertified

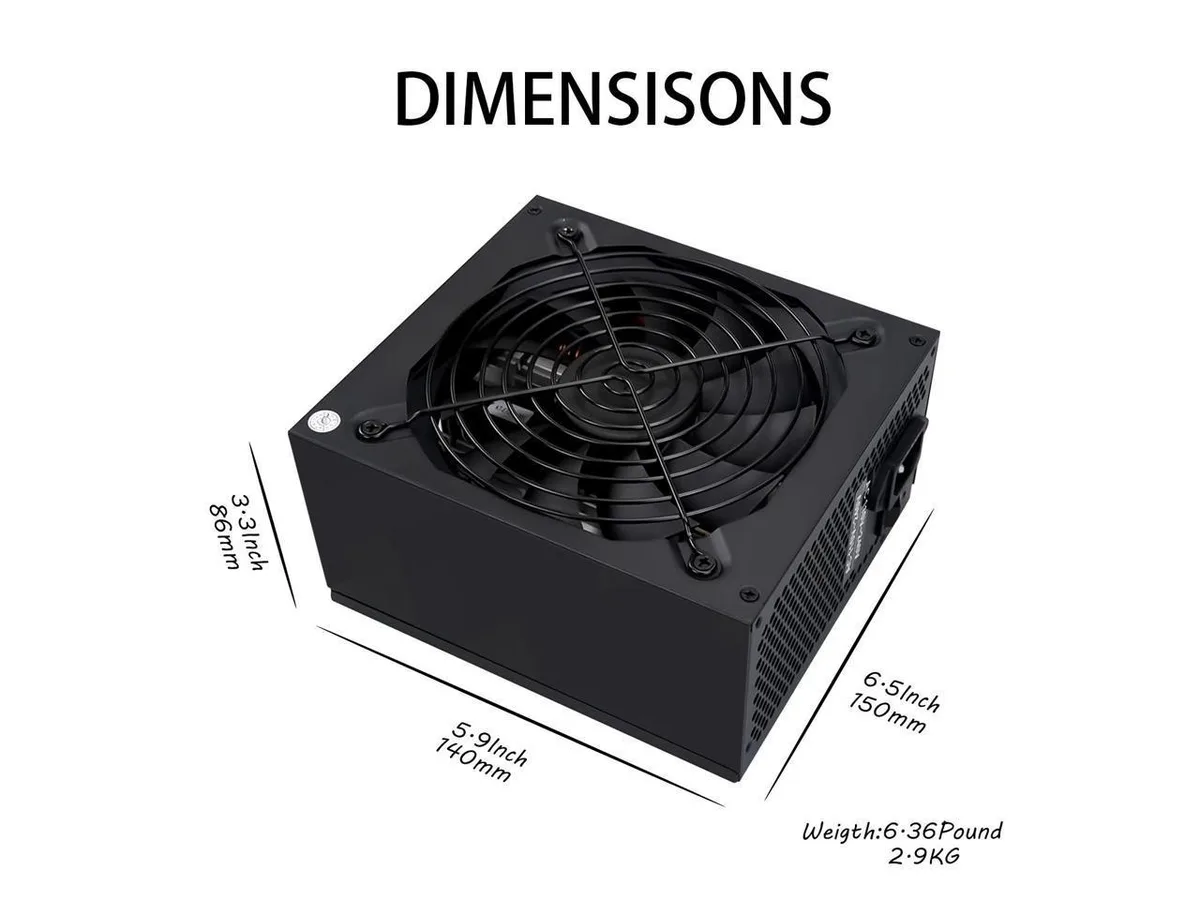

Max PSU Length165 mm
ModularNo
Efficiency> 85%
Energy-EfficientWEEE
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Connectors1 x 24 pin (20+4) ATX
FeaturesIndependent 5V/12V/3.3V feedback

Questions about this item

How can I confirm the BT2000W is running correctly after I connect it?

The unit powers on when the 20+4 pin ATX connector is attached to the motherboard and a mains cable is plugged in; the large fan will spin and the single +12 V rail delivers stable voltage to all connected components.

What comes in the box and which cables must I source myself?

The package includes the power supply only; a mains power cable is not included and must be purchased separately.

Which capacity should I choose for a mining rig with eight GPUs?

The BT2000W is rated at 2000 W peak and 1800 W continuous, providing sixteen 6+2 pin PCIe connectors to support up to eight graphics cards.
