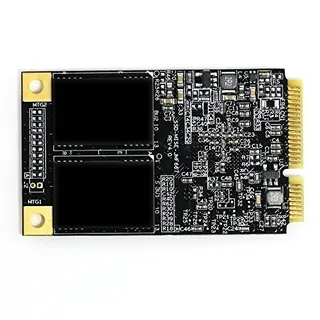

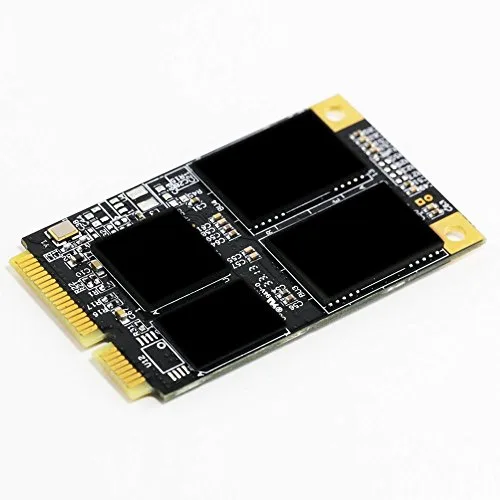

Green circuit board mSATA SSD 50.8mm by 29.85mm by 4.85mm weighing 10g

BIWIN STORAGE TECHNOLOGY LIMITED

BIWIN STORAGE TECHNOLOGY LIMITED 128GB MLC mSATA internal SSD

SKU CH-WP1K-2CEJR

A 128GB MLC mSATA internal SSD with SATA III 6Gb/s interface, DRAM cache, and 0°C to +70°C operating range

  • Device TypeInternal Solid State Drive (SSD)
  • Form FactormSATA
  • Capacity128GB
  • Memory ComponentsMLC
  • InterfaceSATA III
  • Operating Temperature0°C to +70°C

Options 128GB

  • MLC NAND delivers reliable endurance for everyday workloads
  • SATA III 6Gb/s interface enables fast sequential transfers
  • Low power consumption extends notebook battery life
  • Compact mSATA form factor fits space-constrained laptops and embedded systems
  • SMART and TRIM support maintains consistent performance over time

128 GB mSATA drive for legacy upgrades

This BIWIN internal SSD uses the mSATA form factor and a SATA III 6 Gb/s interface to add solid-state storage to older laptops or embedded boards. It is aimed at users who need a drop-in replacement for a mechanical drive in systems that predate M.2 slots.

MLC NAND with DRAM cache in a slim module

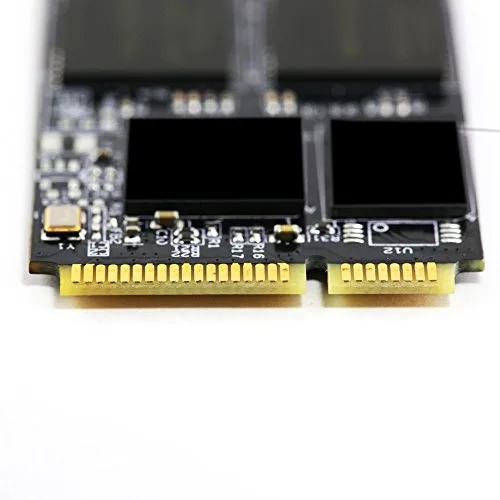

The drive packs MLC flash and a super DRAM cache into a 50.8 mm by 29.85 mm by 4.85 mm board weighing 10 g. A standard mSATA edge connector provides both power and data, so installation requires only an available slot and no extra cabling.

SATA III throughput and temperature envelope

Sequential transfers are bounded by the SATA III 6 Gb/s link rather than the NAND itself. The controller supports SMART monitoring and TRIM to maintain write performance over time. Operating range spans 0 °C to 70 °C while storage tolerance reaches -40 °C to 85 °C.

Highlights

  • MLC NAND delivers reliable endurance for everyday workloads
  • SATA III 6Gb/s interface enables fast sequential transfers
  • Low power consumption extends notebook battery life
  • Compact mSATA form factor fits space-constrained laptops and embedded systems
  • SMART and TRIM support maintains consistent performance over time

Specifications

BrandBIWIN
Device TypeInternal Solid State Drive (SSD)
Form FactormSATA
Capacity128GB
Memory ComponentsMLC
InterfaceSATA III
Operating Temperature0°C to +70°C
Storage Temperature-40°C to +85°C
Height50.8mm
Width29.85mm
Depth4.85mm
Weight=10 g

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this mSATA SSD fit in my laptop's mSATA slot?

The drive measures 50.8mm long, 29.85mm wide and 4.85mm thick, matching the standard mSATA form factor. Verify your device has a full-size mSATA connector and clearance for the 4.85mm height.

Is my motherboard's SATA port compatible with this drive?

The SSD uses the SATA III interface running at 6Gb/s and is electrically compatible with any SATA revision. It will operate at the speed supported by your port.

What operating temperature range can this drive handle?

The drive is rated for 0°C to 70°C during operation and -40°C to 85°C in storage, suiting typical laptop and desktop environments.
