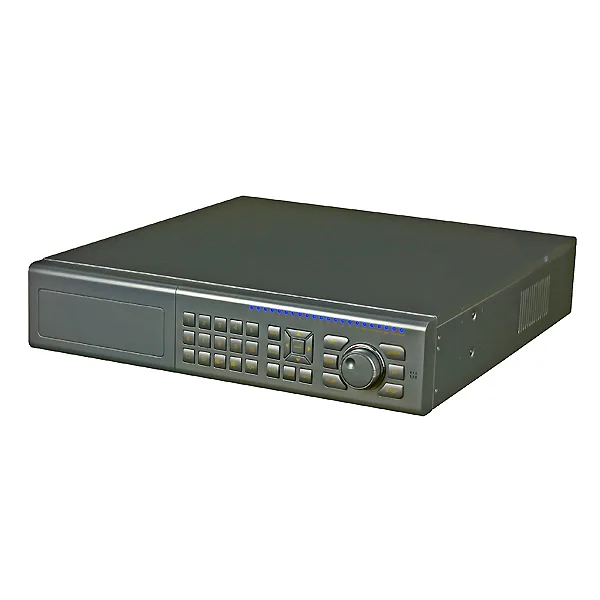

Black 2U rackmount DVR with front panel controls and rear BNC, HDMI, VGA, RJ45 ports

Bluecctv

Bluecctv BL-TD2524HDC-6TB 24CH 960H DVR 6TB

SKU CH-MBPS-64E0P

A 24 channel standalone DVR records 960H resolution at 720FPS with H.264 compression and HDMI 1920x1080 output

  • TypeStandalone DVR
  • Camera inputs24CH
  • Video Input24CH
  • Audio Input1 x RCA
  • Resolution Recording960H 720FPS
  • Recording Frame RateReal Time
  • 24-channel real-time 960H recording captures every detail at full frame rate
  • H.264 compression keeps footage clear while reducing storage needs
  • Eight SATA bays support up to 16 TB for weeks of continuous recording
  • HDMI output at 1920×1080 delivers sharp monitoring on any display
  • Gigabit Ethernet enables remote viewing and backup over the network

24-Channel 960H DVR System

The Bluecctv BL-TD2524HDC-6TB is a standalone digital video recorder designed for installations that need twenty-four analogue camera inputs. It records every channel at 960H resolution in real time using H.264 compression. A pre-installed 6 TB drive provides immediate storage, while eight SATA ports allow expansion up to 16 TB for longer retention.

HDMI 1080P Output and Backup Options

The unit delivers a 1920x1080 display signal through HDMI alongside VGA and BNC outputs, letting operators view live or recorded footage on modern monitors. Pentaplex operation handles preview, recording, playback, backup and remote access simultaneously. Footage can be exported via USB, network or an optional DVD-RW drive without interrupting the recording schedule.

Gigabit Network Port and Rack-Mount Chassis

A single RJ45 port running at 1000 Mbps connects the recorder to the LAN for remote viewing through a web browser or CMS software. Dual-stream encoding separates the high-quality recording stream from the adjustable network stream, preserving evidence quality while fitting available bandwidth. The standard 2U chassis fits directly into a server rack, simplifying integration alongside other network equipment.

Highlights

  • 24-channel real-time 960H recording captures every detail at full frame rate
  • H.264 compression keeps footage clear while reducing storage needs
  • Eight SATA bays support up to 16 TB for weeks of continuous recording
  • HDMI output at 1920×1080 delivers sharp monitoring on any display
  • Gigabit Ethernet enables remote viewing and backup over the network

Specifications

BrandBluecctv
SeriesEnterprise
ModelBL-TD2524HDC-6TB
TypeStandalone DVR
Camera inputs24CH
Video Input24CH
Audio Input1 x RCA
Resolution Recording960H 720FPS
Recording Frame RateReal Time
Recording Modemanual/timer/motion/sensor
Recording CompressionH.264 Level
Video Output1 x BNC, 1 x VGA, 1 x HDMI
Audio Output1 x RCA
Resolution DisplayMI 1920x1080 output
Display Frame Rate720FPS
Storage Capacity8 x SATA,up to 16TB
Backup DeviceDVDRW ( Optional ), USB
Network ConnectionRJ45 Giga ethernet (1,000Mbps)
Network ProtocolTCP/IP, UDP, DHCP, DNS, PPPOE, DDNS,Email
Features960H Real Time Recording
Operating SystemEmbedded Linux
Power SupplyAC 100V - 240V
System RequirementCamera , Wires , Monitor or TV
Remote ControlYes
Bundled Camera NumberNone
Weight8 KG

Questions about this item

How many hard drives can the 8 SATA bays hold and what is the maximum total capacity?

The unit provides eight SATA ports supporting up to 16TB of combined storage for continuous recording.

Does the 1000Mbps network port or the H.264 encoding become the bottleneck during 24-channel 960H real-time capture?

The gigabit Ethernet link handles the dual-stream output while H.264 compression keeps each 960H stream within the available bandwidth.

What noise and heat should I expect when the DVR runs 24/7 with all bays populated?

The 2U chassis uses forced-air cooling; expect a low, constant fan hum and warm exhaust air during continuous operation.
