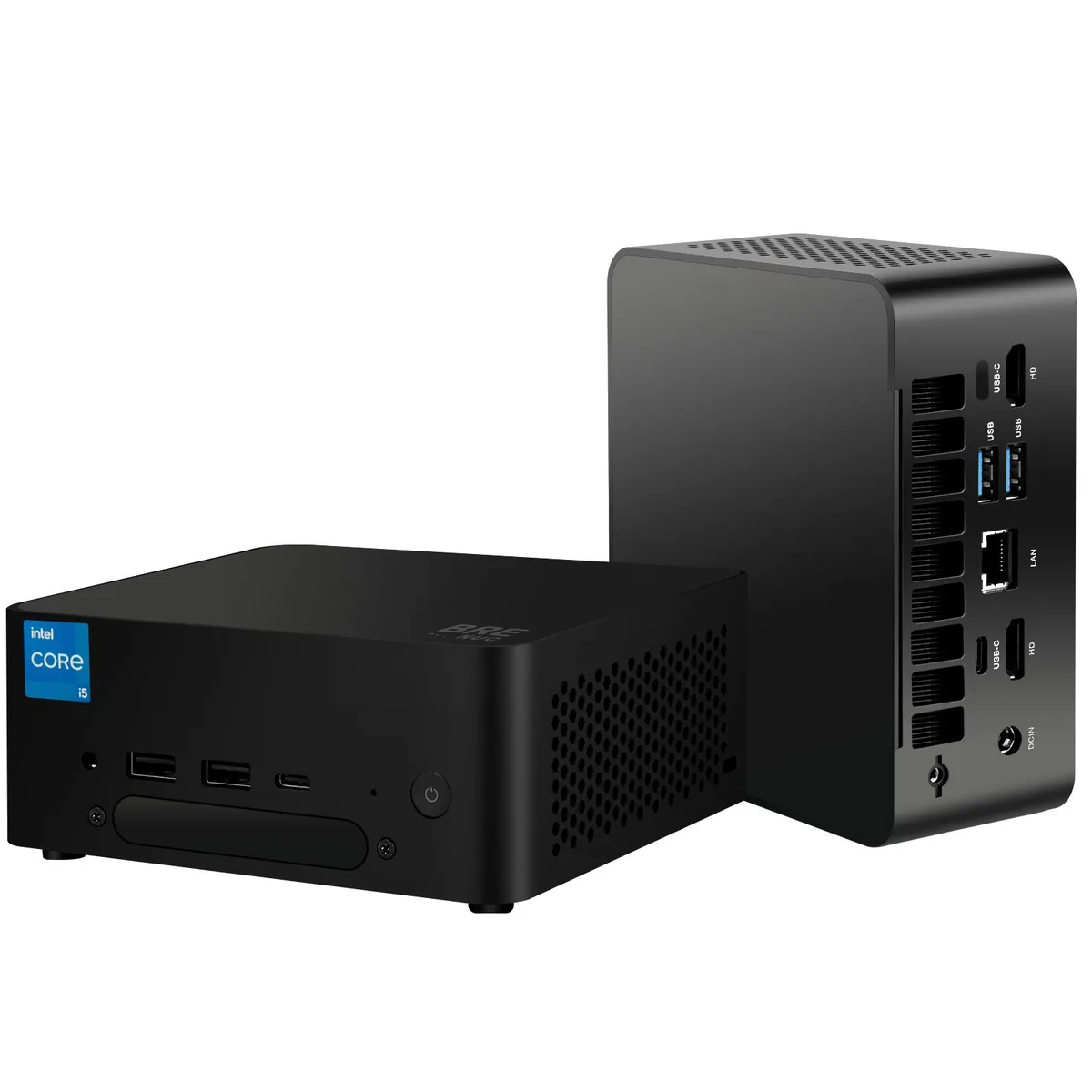

Small black rectangular barebone mini PC with front ports visible

BRENUC

BRENUC i5-13500H barebone mini PC

SKU CH-75WW-1XEAB MPN i5-13500H

A compact 136 x 123 x 55 mm barebone with an Intel Core i5-13500H up to 4.7 GHz, Intel Iris Xe graphics, dual-channel DDR5 5200 support to 96 GB, 2.5 Gbps LAN, WiFi 6, Bluetooth 5.2.

  • CPU TypeIntel Core i5-13500H
  • Memory slot2 x 288Pin DIMM
  • Memory Type SupportedDDR5 5200
  • Max Memory Supported96GB
  • Dual Channel Memory SupportedYes
  • Discrete Graphic CardIntel Iris Xe Graphics
  • Compact 136 x 123 x 55 mm footprint fits tight spaces
  • Intel Core i5-13500H reaches 4.7 GHz for responsive multitasking
  • Dual-channel DDR5 5200 supports up to 96 GB memory
  • Intel 2.5 GbE LAN plus Wi-Fi 6 and Bluetooth 5.2 for fast networking
  • Two HDMI 2.0 and multiple USB 3.2 ports drive four displays

Compact barebone for custom builds

The BRENUC BREB i5-13500H barebone mini PC measures 136x123x55mm and arrives without memory or storage. It targets builders who want a tiny desktop foundation for office work, media playback or light content creation using their own DDR5 modules and PCIe 4.0 SSD. Buyers needing discrete graphics expansion or more than two memory slots should look elsewhere.

Thermals and power in daily use

The Intel Core i5-13500H processor runs up to 4.7GHz inside the compact chassis with integrated Intel Iris Xe graphics. No fan specifications or noise figures are supplied by the manufacturer. Power draw will vary with the memory and storage chosen by the builder.

Connectivity and mounting practicalities

Dual HDMI 2.0 outputs support up to four displays alongside front USB 3.2 Gen2 Type-A, Type-C, 3.5mm audio and rear USB 3.2 Gen2, USB 2.0 and Type-C ports. Wired networking uses an Intel i226V 2.5Gbps LAN controller with Wi-Fi 6 and Bluetooth 5.2 wireless. Two 288-pin DIMM slots accept up to 96GB of DDR5 5200 memory in dual-channel mode.

Highlights

  • Compact 136 x 123 x 55 mm footprint fits tight spaces
  • Intel Core i5-13500H reaches 4.7 GHz for responsive multitasking
  • Dual-channel DDR5 5200 supports up to 96 GB memory
  • Intel 2.5 GbE LAN plus Wi-Fi 6 and Bluetooth 5.2 for fast networking
  • Two HDMI 2.0 and multiple USB 3.2 ports drive four displays

Specifications

BrandBRENUC
SeriesBREB
Modeli5-13500H
CPU TypeIntel Core i5-13500H
Memory slot2 x 288Pin DIMM
Memory Type SupportedDDR5 5200
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Discrete Graphic CardIntel Iris Xe Graphics
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6
BluetoothBluetooth 5.2
Front USB2 x USB 3.2Gen2 (10Gbps ) Type-A
1 x USB 3.2 Gen2 (10Gbps ) Type-C
Front Audio Ports3.5mm Audio Jack
HDMI2 x HDMI 2.0
Rear USB1 x Type-C
1 x USB 3.2 Gen2(10Gbps) Type-A
1 x USB 2.0 Type-A
RJ451 x 2.5Gb RJ45
Input19V/6.32A
Power Supply120W
Dimensions136mm*123mm*55mm
PackagingIndividual retail box packaging

Questions about this item

How do I install RAM in the BRENUC i5-13500H barebone, and what step is often missed?

Insert two DDR5 5200 modules into the 288-pin DIMM slots to enable dual-channel mode; the step often missed is populating both slots for maximum bandwidth.

What maintenance or replacement will the BRENUC i5-13500H barebone need later?

You may need to add a PCIe 4.0 SSD and DDR5 memory later, as the barebone ships without storage or RAM; the CMOS battery on the motherboard may also require replacement after several years.

What limit appears first on the BRENUC i5-13500H barebone under sustained load?

The 136 x 123 x 55 mm chassis limits thermal dissipation, so the Intel Core i5-13500H will hit its thermal throttle point before the 2.5 Gbps LAN or WiFi 6 connections saturate.
