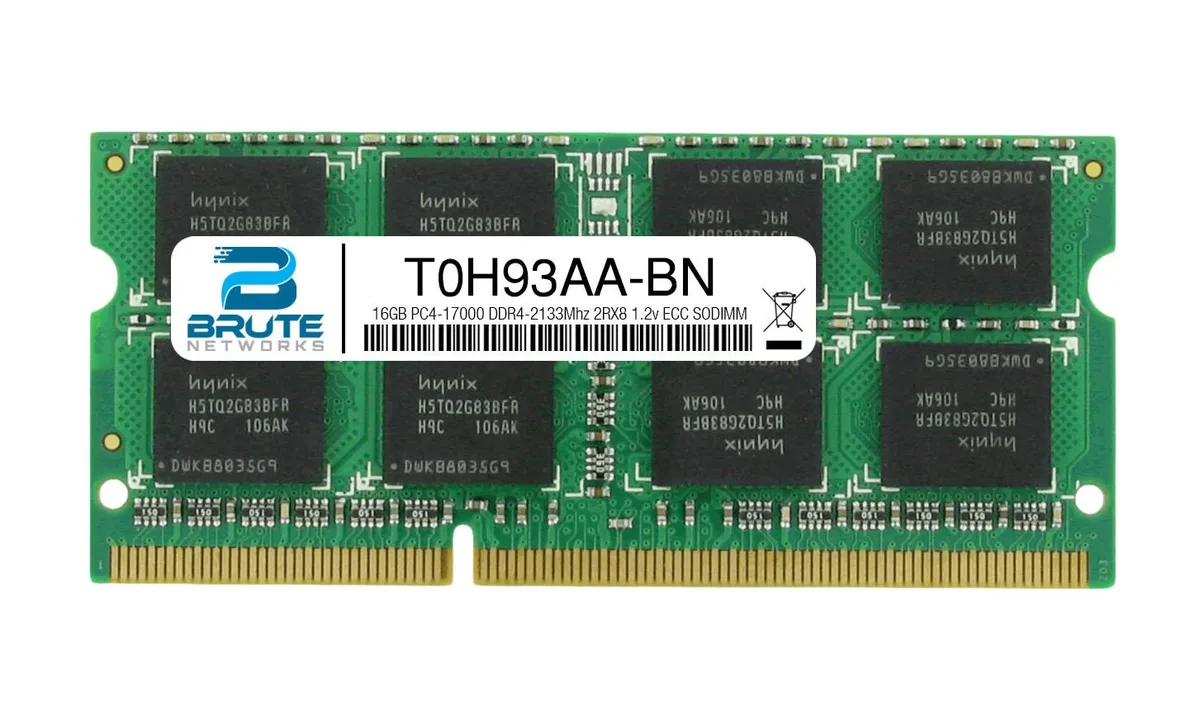

Green circuit board SODIMM module with black memory chips and gold edge connectors

Brute Networks

Brute Networks 16GB DDR4-2133 ECC SODIMM 2Rx8 1.2v PC4-17000 CL15

SKU CH-7PYV-9DN7Q

16 GB DDR4-2133 ECC SODIMM with CL15 latency and 1.2 V operation for compatible HP servers

  • Capacity16GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2133 (PC4 17000)
  • CAS LatencyCL15
  • Voltage1.20V
  • ECCYes
  • 16GB capacity expands server memory headroom
  • DDR4-2133 speed delivers 17000 MT/s bandwidth
  • ECC protection corrects single-bit errors automatically
  • 2Rx8 dual-rank organisation increases density per slot
  • 20V operation reduces power draw per module

16GB DDR4-2133 ECC SODIMM for HP servers

This 16GB DDR4-2133 ECC SODIMM is built for HP servers and workstations that require registered error correction. It runs at PC4-17000 speed with CL15 latency and 1.20V operation. The module uses a 2Rx8 rank configuration on a 288-pin interface. It is validated as a direct replacement for HP part T0H93AA.

Suits HP platforms needing ECC SODIMM upgrades

It suits administrators upgrading compatible HP systems where ECC SODIMM memory is specified. Buyers whose hardware accepts only UDIMM or RDIMM form factors cannot use this module. Systems limited to lower maximum capacities per slot should verify support before purchase. Platforms requiring registered or load-reduced DIMMs will not accept this unregistered design.

PC4-17000 speed rating decides fit

The single specification that decides compatibility is the PC4-17000 (DDR4-2133) speed rating. The motherboard and memory controller must support this exact data rate for stable operation. Slots wired for a different DDR generation or speed will not work with this module. Matching the rated speed to the platform specification is the essential check.

Highlights

  • 16GB capacity expands server memory headroom
  • DDR4-2133 speed delivers 17000 MT/s bandwidth
  • ECC protection corrects single-bit errors automatically
  • 2Rx8 dual-rank organisation increases density per slot
  • 20V operation reduces power draw per module

Specifications

BrandHP
Capacity16GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2133 (PC4 17000)
CAS LatencyCL15
Voltage1.20V
ECCYes
Buffered/RegisteredUnregistered
Rank2Rx8
ChipsetMajor Brand Chipset

Questions about this item

Does the 2Rx8 dual-rank organisation limit how many 16 GB modules I can install in a single channel?

Dual-rank 2Rx8 modules count as two logical ranks per DIMM; most server boards allow up to eight ranks per channel, so you can usually populate two of these 16 GB sticks per channel before hitting the rank limit.

What power draw and heat should I expect when the SODIMM runs continuously at 1.20 V?

At the rated 1.20 V the module draws only a few watts, producing minimal heat that is easily handled by normal chassis airflow; no active cooling on the memory itself is required.

Which slot type must my system provide for this 288-pin DDR4 ECC SODIMM to work?

The module requires a DDR4 288-pin SODIMM socket that supports ECC unregistered memory; verify your platform’s memory list before purchase.
