Green circuit board with black memory chips and gold edge connectors

Brute Networks

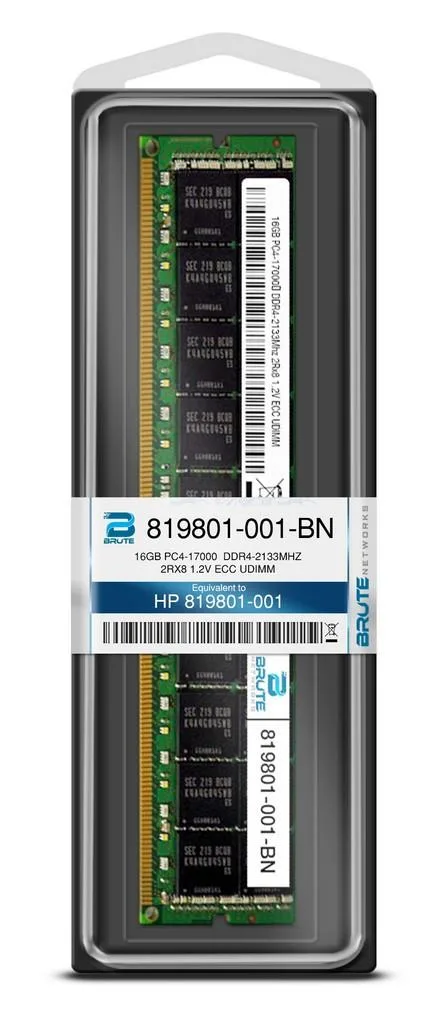

Brute Networks 16GB DDR4-2133 ECC UDIMM 2Rx8 CL15 1.20V HP 819801-001 Compatible server RAM

SKU CH-VSTA-QVSJH

16 GB DDR4-2133 ECC UDIMM with CL15 latency and 1.20 V operation for HP 819801-001 compatible servers

  • Capacity16GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2133 (PC4 17000)
  • CAS LatencyCL15
  • Voltage1.20V
  • ECCYes
  • 16 GB capacity expands server memory headroom
  • DDR4-2133 speed delivers 17000 MT/s data rate
  • ECC protection detects and corrects single-bit errors
  • 2Rx8 dual-rank organisation increases memory density
  • 20 V low voltage reduces power consumption

16 GB DDR4-2133 ECC UDIMM for HP servers

This 16 GB DDR4-2133 ECC UDIMM is built for HP ProLiant systems that require PC4-17000 registered-free memory. It suits administrators who need to expand capacity in existing 288-pin DDR4 slots without changing platform voltage or registered buffering.

2Rx8 unbuffered layout with major-brand chips

The module uses a 2Rx8 organisation on unbuffered DDR4 circuitry sourced from Samsung, SK Hynix or Micron. Its standard 1.20 V operation and 288-pin edge connector mean it drops into the same DIMM sockets as the original HP 819801-001 part, keeping installation routine and preserving the server’s factory warranty.

CL15 latency at 1.20 V with ECC protection

Running at DDR4-2133 CL15, the stick delivers error-correcting code coverage while drawing only 1.20 V under normal load. The low-voltage JEDEC profile keeps power draw modest and thermals predictable in densely populated memory channels, so fan speeds and acoustic output remain unchanged during typical server workloads.

Highlights

  • 16 GB capacity expands server memory headroom
  • DDR4-2133 speed delivers 17000 MT/s data rate
  • ECC protection detects and corrects single-bit errors
  • 2Rx8 dual-rank organisation increases memory density
  • 20 V low voltage reduces power consumption

Specifications

BrandHP
Capacity16GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2133 (PC4 17000)
CAS LatencyCL15
Voltage1.20V
ECCYes
Buffered/RegisteredUnregistered
Rank2Rx8
ChipsetMajor Brand Chipset

Questions about this item

What DDR4 speed and peak bandwidth does this 16GB ECC UDIMM run at?

It operates at DDR4-2133 with a PC4-17000 rating, delivering up to 17 GB/s theoretical bandwidth.

What physical slot and pin count does this module require on the motherboard?

It uses a standard 288-pin DDR4 UDIMM slot; the board must accept unregistered ECC DIMMs.

How do I install this stick, and what common mistake should I avoid?

Align the notch with the key, press firmly until both retention clips click, and ensure the motherboard supports unregistered ECC memory.
