Green circuit board with black memory chips and gold contacts

Brute Networks

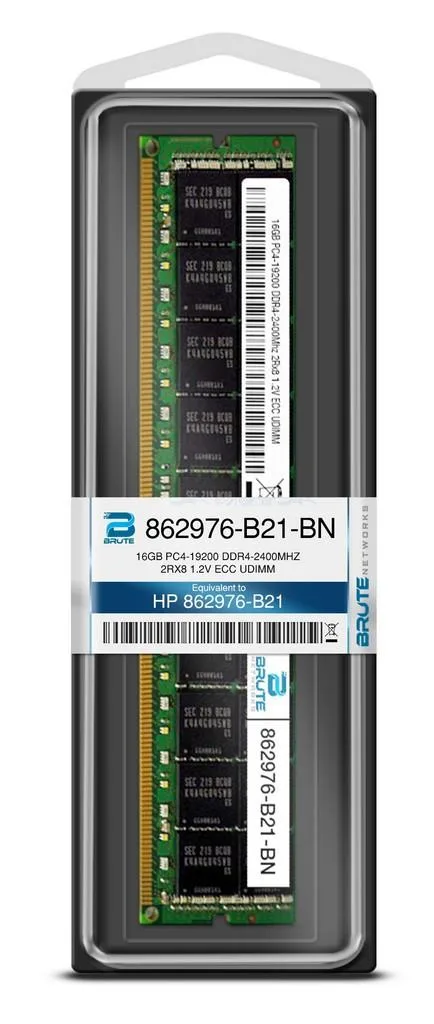

Brute Networks 16GB DDR4-2400 ECC UDIMM 2Rx8 CL15 1.2V 862976-B21

SKU CH-WGEM-KRKX9

16 GB DDR4-2400 ECC UDIMM with CL15 latency, 2Rx8 organisation and 1.2 V operation for compatible servers

  • Capacity16GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL15
  • Voltage1.20V
  • ECCYes
  • 16GB DDR4 capacity expands server memory headroom
  • ECC protection detects and corrects single-bit data errors
  • 2400MHz speed with CL15 latency delivers responsive throughput
  • 2V operation reduces power draw per module
  • 2Rx8 dual-rank layout increases memory density per slot

HP Compatible 16GB DDR4-2400 ECC UDIMM

This HP compatible module delivers 16GB of DDR4-2400 ECC unregistered memory. It operates at 1.2V with a CAS latency of CL15 and uses a 2Rx8 rank configuration on a 288-pin UDIMM form factor. The part is equivalent to HP 862976-B21 and built with major brand components.

Suits servers needing HP qualified ECC UDIMMs

Administrators upgrading HP ProLiant or compatible platforms that require unbuffered ECC memory at the PC4-19200 speed grade can use this module. Systems that require registered RDIMMs, load-reduced DIMMs, non-ECC memory, or a different pin count cannot accept this part.

The PC4-19200 DDR4-2400 speed grade

This module runs at 2400 MT/s with a CL15 latency at 1.2V. If the platform demands a higher or lower JEDEC speed grade, registered buffering, or a different voltage, this DIMM will not be compatible.

Highlights

  • 16GB DDR4 capacity expands server memory headroom
  • ECC protection detects and corrects single-bit data errors
  • 2400MHz speed with CL15 latency delivers responsive throughput
  • 2V operation reduces power draw per module
  • 2Rx8 dual-rank layout increases memory density per slot

Specifications

BrandHP
Capacity16GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL15
Voltage1.20V
ECCYes
Buffered/RegisteredUnregistered
Rank2Rx8
ChipsetMajor Brand Chipset

Questions about this item

My board takes 288-pin DDR4 UDIMMs — is that what this module uses?

Yes, this is a 288-pin DDR4 UDIMM running at 1.20V with ECC, so it fits standard DDR4 UDIMM slots that support ECC memory.

If I add this 2400MHz stick to a server that already has slower DDR4 modules, what speed will the system run at?

The memory controller will clock all installed modules down to the lowest common speed, so this 2400MHz module will run at whatever frequency your existing DDR4 memory operates at.

After installing the module, how can I confirm the server sees the full 16GB and that ECC is active?

Check the BIOS memory information or the OS memory report — it should show 16GB for this DIMM and indicate ECC enabled for the memory subsystem.
