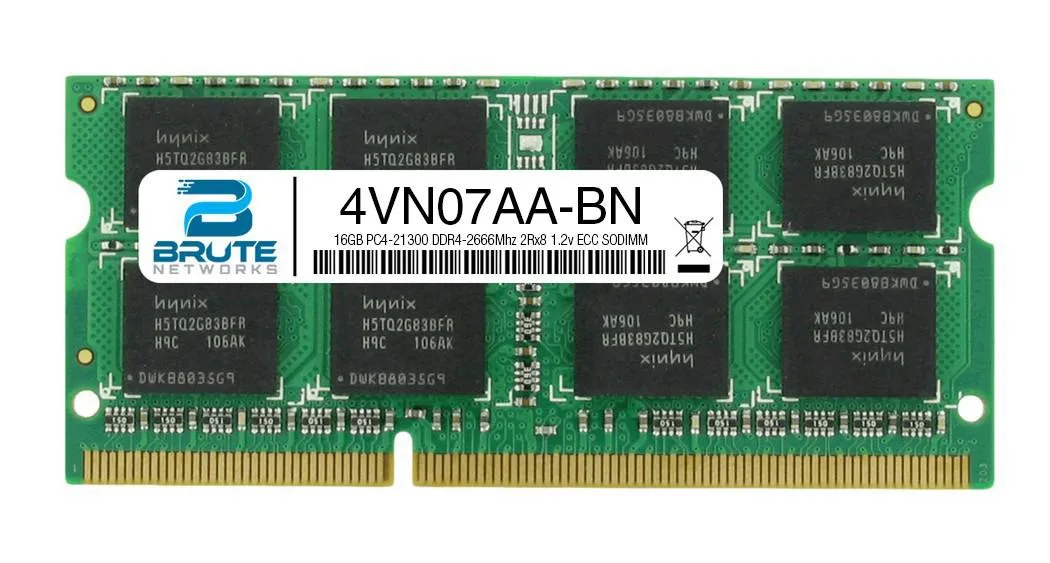

Green circuit board SODIMM module with black memory chips and gold edge connectors

Brute Networks

Brute Networks 16GB DDR4-2666 ECC SODIMM 2Rx8 1.2v

SKU CH-JVRJ-P1ZZT

16GB DDR4-2666 ECC SODIMM module with 2Rx8 organisation and 1.2V operation for compatible HPE servers

  • Capacity16GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2666 (PC4 21300)
  • Voltage1.20V
  • ECCYes
  • Rank2Rx8
  • 16 GB capacity supports demanding server workloads
  • DDR4-2666 speed delivers 21300 MT/s data rate
  • ECC protection detects and corrects memory errors
  • 20 V operation reduces power consumption
  • 2Rx8 organisation optimises density per module

16GB DDR4-2666 ECC SODIMM

This 16GB DDR4-2666 ECC SODIMM adds 16GB of registered capacity to compatible servers and workstations. It runs at 1.20V with a 2Rx8 organisation and includes error-correcting code for data integrity. The module targets administrators who need to expand memory in HPE platforms without replacing existing DIMMs.

Replaces lower-capacity DDR4 SODIMMs

The jump is worth it when the current configuration leaves free SODIMM slots but the workload demands more addressable memory. Moving from 8GB or 4GB modules to this 16GB stick doubles or quadruples per-slot capacity while keeping the same DDR4-2666 speed and voltage. Systems already limited to a lower memory speed will not benefit from the 2666 MT/s rating.

Fits 288-pin DDR4 SODIMM slots

The module requires a motherboard that accepts 288-pin DDR4 SODIMMs with ECC support and 1.20V operation. It frees up additional slots for future expansion because each stick delivers 16GB in a single rank pair. Buyers who need non-ECC memory or a different pin count should look elsewhere.

Highlights

  • 16 GB capacity supports demanding server workloads
  • DDR4-2666 speed delivers 21300 MT/s data rate
  • ECC protection detects and corrects memory errors
  • 20 V operation reduces power consumption
  • 2Rx8 organisation optimises density per module

Specifications

BrandHPE
Capacity16GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2666 (PC4 21300)
Voltage1.20V
ECCYes
Rank2Rx8
ChipsetMajor Brand Chipset

Questions about this item

What slot type and pin count does this 16GB DDR4-2666 module require?

The module is a 288-Pin DDR4 SDRAM SODIMM operating at 1.20V, so the server must provide a matching DDR4 SODIMM socket.

What is the correct installation step to seat this 2Rx8 ECC SODIMM properly?

Align the notch on the module with the key in the 288-Pin DDR4 SODIMM slot, insert at a slight angle, then press down firmly until the side clips click into place.

What ongoing care does this 16GB PC4-21300 ECC memory need after installation?

No periodic maintenance is required; the module carries a lifetime warranty and will only need replacement if a memory error is reported by the server's ECC monitoring.
