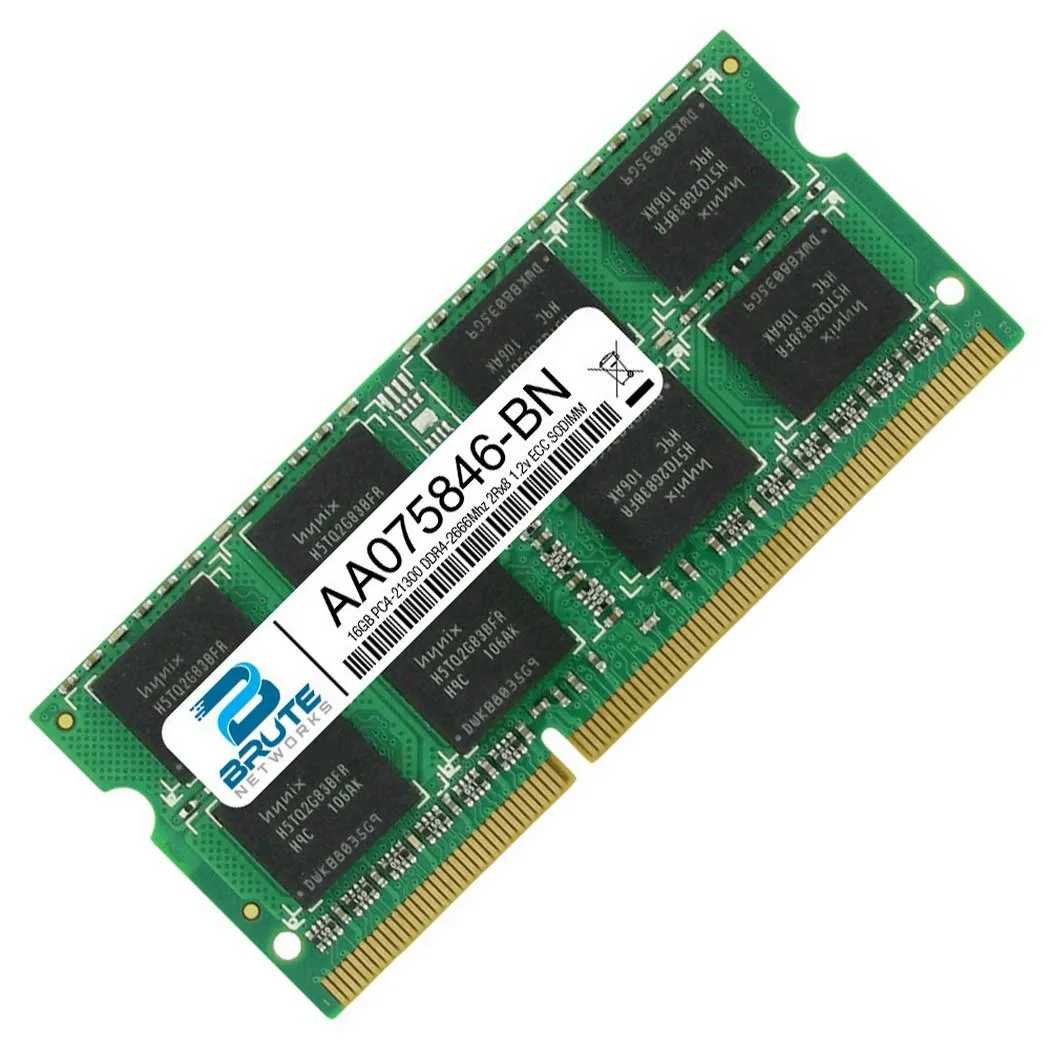

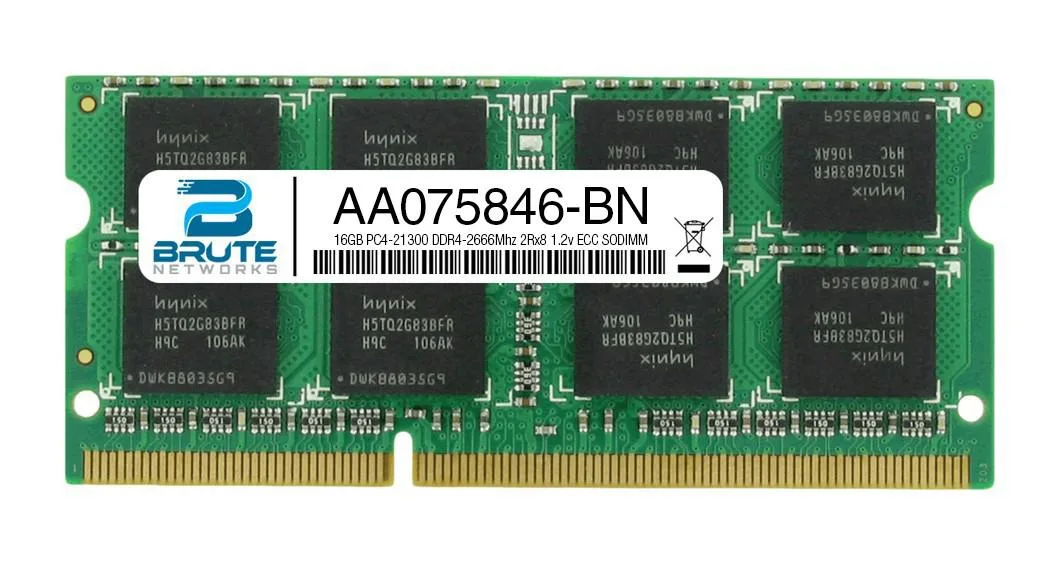

Green 16GB DDR4 ECC SODIMM module with black chips and gold contacts

Brute Networks

Brute Networks 16GB DDR4-2666 ECC SODIMM 2Rx8 1.2V Dell AA075846

SKU CH-NCNY-ZHXEQ

16 GB DDR4-2666 ECC SODIMM module with 2Rx8 organisation and 1.2 V operation for Dell-compatible servers

  • Capacity16GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2666 (PC4 21300)
  • Voltage1.20V
  • ECCYes
  • Rank2Rx8
  • Dell-compatible upgrade with AA075846 equivalence
  • 16 GB capacity expands server memory headroom
  • 2666 MHz DDR4 speed matches system bus
  • ECC protection corrects single-bit data errors
  • 20 V operation reduces power draw

Dell-Compatible Server Memory

Brute Networks 16GB DDR4-2666 ECC SODIMM matches Dell part AA075846 for direct replacement in supported systems. The module delivers 16GB capacity at 2666 MT/s with 2Rx8 organisation and built-in error correction.

Thermals and Power

Operating at 1.20V, the DDR4 module maintains standard server memory power draw without additional cooling requirements. ECC functionality adds data integrity overhead while keeping thermal output within normal DIMM limits.

Build Integration

288-pin form factor fits compatible Dell server slots and frees a memory channel for other population rules. Major-brand DRAM ensures identical modules ship together, simplifying matched-pair or quad-channel configurations.

Highlights

  • Dell-compatible upgrade with AA075846 equivalence
  • 16 GB capacity expands server memory headroom
  • 2666 MHz DDR4 speed matches system bus
  • ECC protection corrects single-bit data errors
  • 20 V operation reduces power draw

Specifications

BrandDell
Capacity16GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2666 (PC4 21300)
Voltage1.20V
ECCYes
Rank2Rx8
ChipsetMajor Brand Chipset

Questions about this item

How do I install this 288-pin DDR4 SODIMM in my Dell server and what is the common mistake?

Align the notch on the module with the slot key, insert at a slight angle, then press down firmly until both side clips click; the frequent error is stopping before the clips fully engage, leaving the module loose.

What maintenance or replacement will this 16GB ECC module need over its lifetime?

No routine maintenance is required; if a correctable error count rises or the server logs uncorrectable ECC events, replace the module — otherwise it runs for the life of the system.

What limit appears first when this 1.2V 2Rx8 memory runs under sustained load?

The thermal ceiling of the DDR4 chips is reached before any electrical limit, so adequate airflow through the server chassis is the factor that determines sustained stability.
