Brute Networks 32GB DDR4-2133 2Rx4 Registered RDIMM server RAM

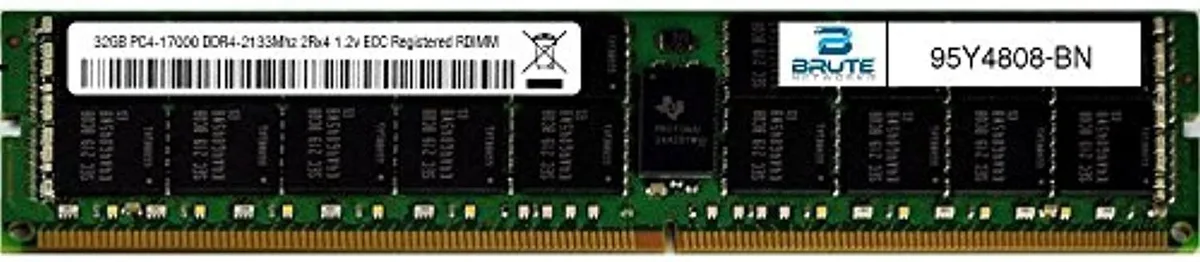

Brute Networks 32 GB DDR4-2133 RDIMM

This 32 GB registered DIMM uses 288-pin DDR4 SDRAM rated at 2133 MT/s with CL15 latency and 1.20 V operation. It is built for IBM-compatible servers that require ECC-protected, registered memory. The 2Rx4 dual-rank organisation suits high-density configurations. Modules are sourced from major-brand DRAM suppliers.

DDR4-2133 bandwidth and density limits

The PC4-17000 interface caps peak throughput at 17 GB/s per module, so total system bandwidth scales with the number of populated channels. Registered buffering adds one cycle of command delay but allows larger memory populations than unbuffered DIMMs. Dual-rank 2Rx4 layout can restrict maximum rank-per-channel limits on some platforms. Verify the server’s qualified-vendor list for population rules.

32 GB capacity per module

Each stick delivers 32 GB, so the decision rests on whether the target server needs this density per slot or can use smaller modules to reach the same total. The 2Rx4 organisation and registered design are fixed attributes that must match the platform’s memory-subsystem requirements. Mixing ranks or registered types is not supported.
