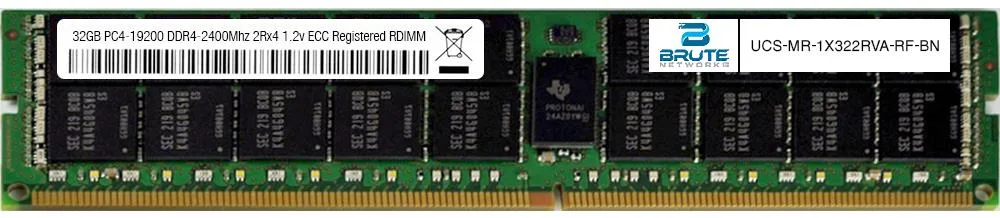

Green 288-pin DDR4 RDIMM with black chips and gold contacts

Brute Networks

Brute Networks 32GB DDR4 2400 2Rx4 1.2v ECC Registered RDIMM

SKU CH-V4EQ-A07BQ

32 GB DDR4 registered ECC module running at 2400 MHz with 1.2 V operation for compatible Cisco servers

  • Capacity32GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2400 (PC4 19200)
  • Voltage1.20V
  • ECCYes
  • Buffered/RegisteredRegistered
  • 32 GB capacity lets you run more virtual machines
  • 2400 MHz DDR4 speed accelerates server applications
  • ECC registered design protects data integrity
  • 2 V operation reduces power draw
  • 100 % Cisco compatible for guaranteed integration

32GB Registered DDR4 Module

This 32GB DDR4 2400 RDIMM brings ECC registered operation to compatible server platforms. The 2Rx4 organisation and 1.20V voltage match the PC4-19200 specification for stable enterprise workloads. It is built for administrators who need to expand memory capacity in qualified systems. Builders without ECC registered memory support cannot use this module.

288-Pin RDIMM for Server Slots

The 288-pin registered DIMM plugs directly into DDR4 RDIMM slots that accept 2Rx4 modules at 1.20V. Registered buffering reduces electrical load on the memory controller, freeing the CPU to address larger total capacities across multiple slots. Systems that require unbuffered UDIMMs or a different rank configuration will not accept this part.

32GB Capacity for Dense Configurations

A single 32GB module lets a supported platform reach higher installed memory without consuming extra slots, helping to eliminate swapping and paging in virtualised environments. The PC4-19200 speed rating delivers 2400 MT/s bandwidth for typical server applications. Workloads that demand faster DDR4 speeds or higher per-module densities will exceed this module's limits.

Highlights

  • 32 GB capacity lets you run more virtual machines
  • 2400 MHz DDR4 speed accelerates server applications
  • ECC registered design protects data integrity
  • 2 V operation reduces power draw
  • 100 % Cisco compatible for guaranteed integration

Specifications

BrandCisco
Capacity32GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2400 (PC4 19200)
Voltage1.20V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset

Questions about this item

Will the 2Rx4 organisation limit how many 32GB modules I can populate per channel?

Each module is a 2Rx4 dual-rank design; most server platforms allow two dual-rank RDIMMs per channel at DDR4-2400, but the exact per-channel limit depends on the specific motherboard and CPU memory controller.

How much heat and power does a 1.20 V 2400 MT/s registered DIMM add when the server runs 24/7?

At 1.20 V the module draws only a few watts under load; registered buffering shifts electrical load off the CPU memory controller, so total system heat rise stays modest even with all slots filled.

What must my motherboard already support for this 288-pin DDR4 RDIMM to work?

The board needs DDR4 RDIMM slots, registered ECC support in the BIOS, and a memory controller qualified for PC4-19200 speeds.
