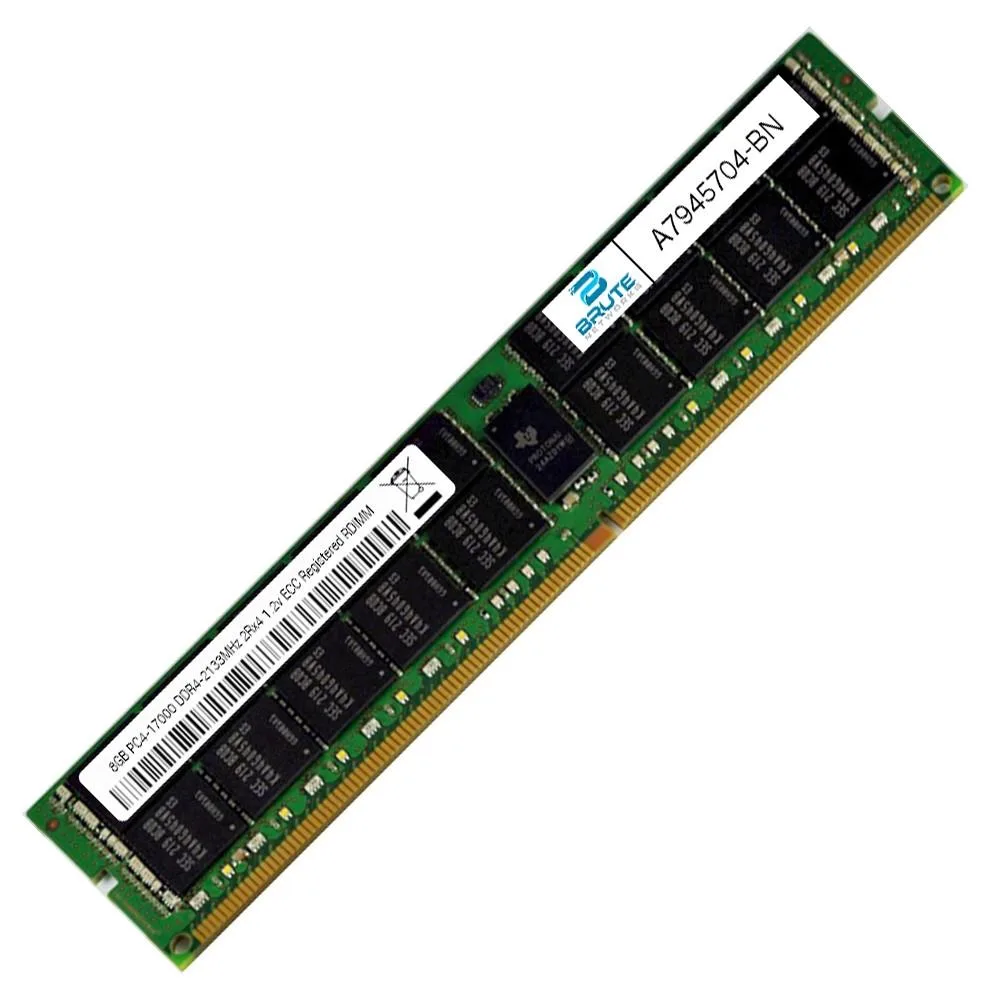

Green 288-pin DDR4 RDIMM module with black chips and gold contacts

Brute Networks

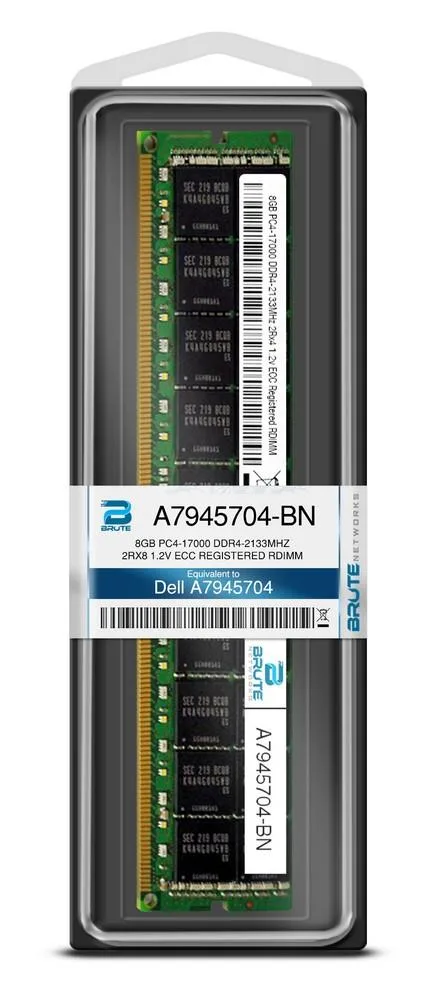

Brute Networks Dell Compatible 8GB DDR4-2133 Registered RDIMM 2Rx8 CL15 1.2V

SKU CH-BEWX-EHYFZ

8GB registered DDR4-2133 ECC module with CL15 latency for Dell servers

  • Capacity8GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2133 (PC4 17000)
  • CAS LatencyCL15
  • Voltage1.20V
  • ECCYes
  • Dell-compatible upgrade validated for OEM servers
  • 8 GB registered DDR4-2133 with ECC protection
  • 2 V operation reduces server power draw
  • 2Rx8 dual-rank layout maximises memory bandwidth
  • Lifetime warranty backed by 100 % tested modules

Dell-compatible 8GB DDR4 RDIMM

This 8GB registered DDR4 module runs at 2133 MT/s with CL15 latency and 1.20V operation. It uses a 288-pin 2Rx8 layout and includes ECC for error correction. The part is validated for Dell servers and replaces Dell part number A7945704. It is built with major-brand DRAM from Samsung, SK Hynix or Micron.

Upgrade from lower-capacity or non-ECC DIMMs

The jump is worthwhile when a server needs registered memory with ECC for data integrity and the current slots are populated with smaller modules. Adding this 8GB stick increases total capacity while maintaining the required registered signal buffering. It also helps when matching existing 2133 MT/s speeds across all channels for stable operation.

Straightforward slot installation

Align the notch on the 288-pin edge connector with the motherboard key and press until the latches click. Ensure the server supports registered DDR4 and that all populated slots use identical speed and rank configurations. Mismatched ranks or mixing registered with unbuffered DIMMs will prevent boot or cause instability.

Highlights

  • Dell-compatible upgrade validated for OEM servers
  • 8 GB registered DDR4-2133 with ECC protection
  • 2 V operation reduces server power draw
  • 2Rx8 dual-rank layout maximises memory bandwidth
  • Lifetime warranty backed by 100 % tested modules

Specifications

BrandDell
Capacity8GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2133 (PC4 17000)
CAS LatencyCL15
Voltage1.20V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx8
ChipsetMajor Brand Chipset

Questions about this item

Does this 288-Pin DDR4 RDIMM fit a standard server DIMM slot?

Yes, the 288-pin DDR4 registered form factor matches standard server DIMM sockets.

What is the correct orientation when seating this registered module?

Align the off-centre notch on the gold edge with the slot key, press straight down until both side clips click.

Will the major-brand chips (Samsung, SK Hynix or Micron) need replacement under normal server use?

These chips are rated for continuous operation; replacement is only needed if a module fails or capacity must be increased.
