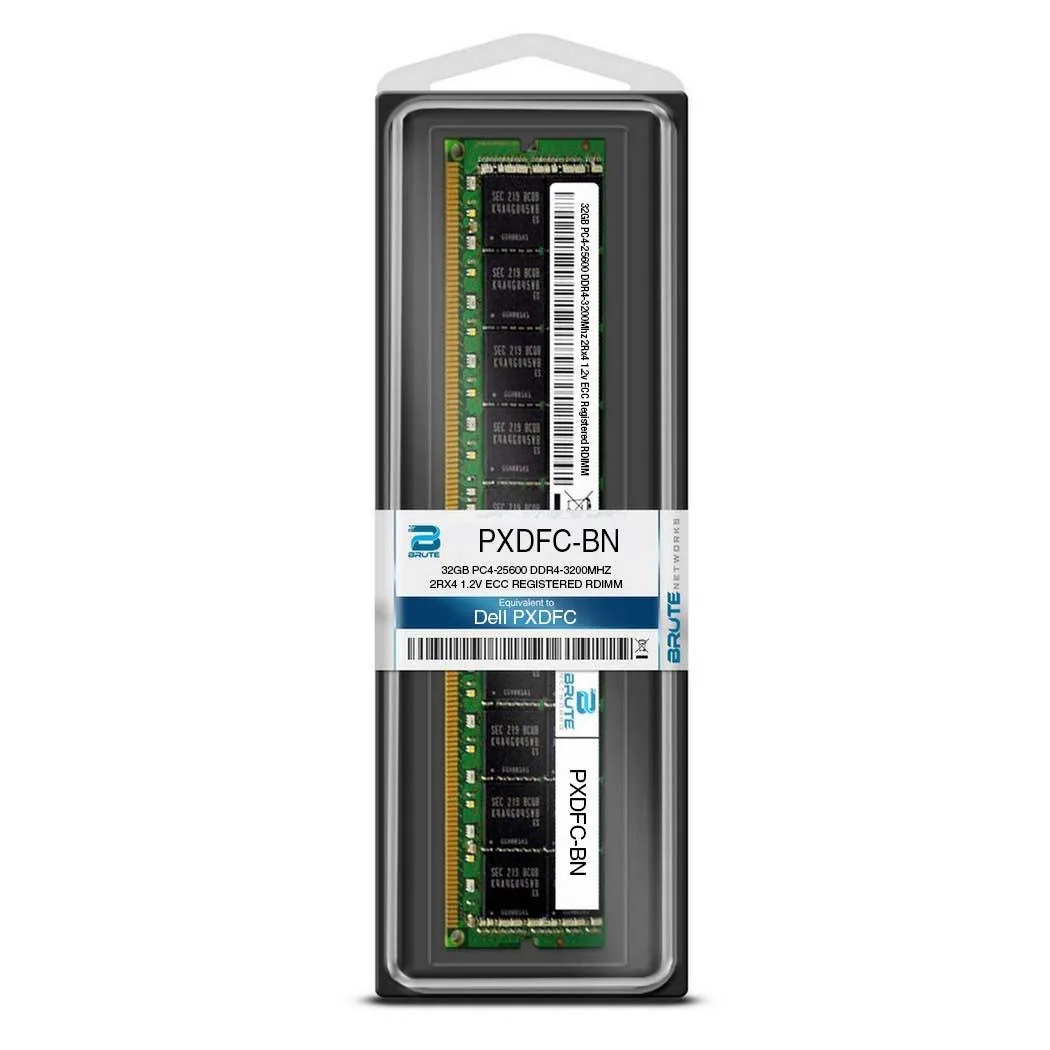

Green 288-pin DDR4 RDIMM module with black chips

Brute Networks

Brute Networks PXDFC Dell Compatible 32GB DDR4-3200 2Rx4 ECC Registered RDIMM

SKU CH-J406-Q0664

32 GB DDR4-3200 ECC registered server RDIMM with 2Rx4 organisation and 1.2 V operation

  • Capacity32GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 3200 (PC4 25600)
  • Voltage1.20V
  • ECCYes
  • Buffered/RegisteredRegistered
  • 32 GB capacity scales server workloads
  • DDR4-3200 speed delivers 25 600 MT/s bandwidth
  • ECC registered design protects data integrity
  • 20 V operation lowers power draw
  • 288-pin RDIMM fits Dell PXDFC slot

Dell Compatible 32 GB DDR4-3200 RDIMM

This 288-pin registered DIMM delivers 32 GB of ECC-protected DDR4 memory at 3200 MT/s. It is built for Dell servers that require PC4-25600 modules with 2Rx4 organisation and 1.2 V operation.

Practical limits of DDR4-3200 registered ECC

The DDR4-3200 standard tops out at 3200 MT/s and 1.2 V, so this module cannot run faster or at a lower voltage than specified. Registered buffering adds one clock cycle of latency, which is mandatory for the platforms that accept this form factor.

2Rx4 rank configuration decides fit

The dual-rank 2Rx4 layout determines whether the memory controller can address the full 32 GB per slot; systems limited to single-rank modules will not support this DIMM.

Highlights

  • 32 GB capacity scales server workloads
  • DDR4-3200 speed delivers 25 600 MT/s bandwidth
  • ECC registered design protects data integrity
  • 20 V operation lowers power draw
  • 288-pin RDIMM fits Dell PXDFC slot

Specifications

BrandDell
Capacity32GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 3200 (PC4 25600)
Voltage1.20V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset

Questions about this item

Which capacity should I choose for my Dell server?

This module provides 32GB in a single 288-Pin DDR4 SDRAM RDIMM running at DDR4 3200 (PC4 25600) with 1.20V ECC registered operation.

What does the DDR4 3200 rating mean once installed?

The module operates at 3200 MT/s delivering PC4 25600 bandwidth at 1.20V, with 2Rx4 organisation and ECC registered signalling for server stability.

How does the 288-pin DDR4 interface limit performance?

The 288-Pin DDR4 SDRAM interface caps the module at the stated DDR4 3200 (PC4 25600) speed and 1.20V voltage, ensuring compatibility with Dell systems requiring PXDFC-equivalent registered ECC RDIMMs.
