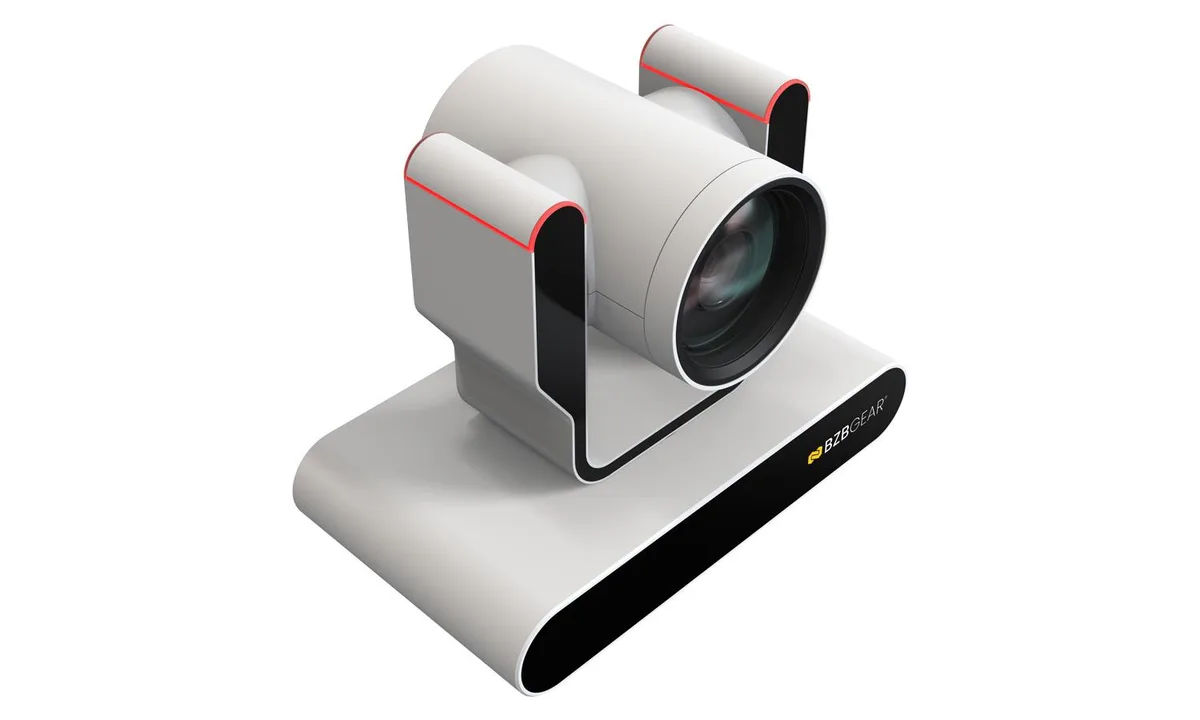

White PTZ camera body with 12x zoom lens and integrated tally lights

BZBGEAR

BZBGEAR BG-ADAMO-JR12X-W 12x 1080p PTZ network camera White

SKU CH-E3JD-5A7SX

White PTZ network camera with 12x optical zoom, 1080p60 output, PoE, and HDMI, SDI, USB 2.0 and USB 3.0 connections

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ Camera
  • Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro
  • ColorWhite
  • 12x optical zoom lets you frame distant subjects with 70.3° wide-angle coverage
  • 1080p60 output delivers smooth full HD video over HDMI, SDI, USB 3.0 and IP streaming
  • PoE support provides power, data and control over a single network cable
  • Integrated red/green tally lights give clear on-air status for live productions
  • MicroSD slot records up to 1 TB locally for backup or standalone capture

12x Optical Zoom PTZ Network Camera

The BZBGEAR BG-ADAMO-JR12X-W is a 2-megapixel PTZ network camera delivering 1080p60 video over HDMI, 3G-SDI, USB 3.0, USB 2.0 and IP streams. It features a 1/2.8-inch Sony CMOS sensor, 12x optical zoom with a 70.28° wide horizontal field of view, dual tally lights and Power over Ethernet for single-cable deployment.

Suited for live streaming and broadcast.

This camera suits producers who need simultaneous HDMI, SDI and USB outputs with auto-tracking and VISCA-over-IP control. It is not for workflows requiring 4K resolution, HDR capture or frame rates above 60 fps at 1080p.

12x optical zoom with 70.28° wide field of view

The 12x zoom lens covers a horizontal angle from 70.28° wide to 6.57° telephoto and a vertical range of 42.06° to 3.76°. This specification determines whether the camera can frame the required scene at the intended mounting distance.

Highlights

  • 12x optical zoom lets you frame distant subjects with 70.3° wide-angle coverage
  • 1080p60 output delivers smooth full HD video over HDMI, SDI, USB 3.0 and IP streaming
  • PoE support provides power, data and control over a single network cable
  • Integrated red/green tally lights give clear on-air status for live productions
  • MicroSD slot records up to 1 TB locally for backup or standalone capture

Specifications

BrandBZBGEAR
ModelBG-ADAMO-JR12X-W
Part NumberBG-ADAMO-JR12X-W
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ Camera

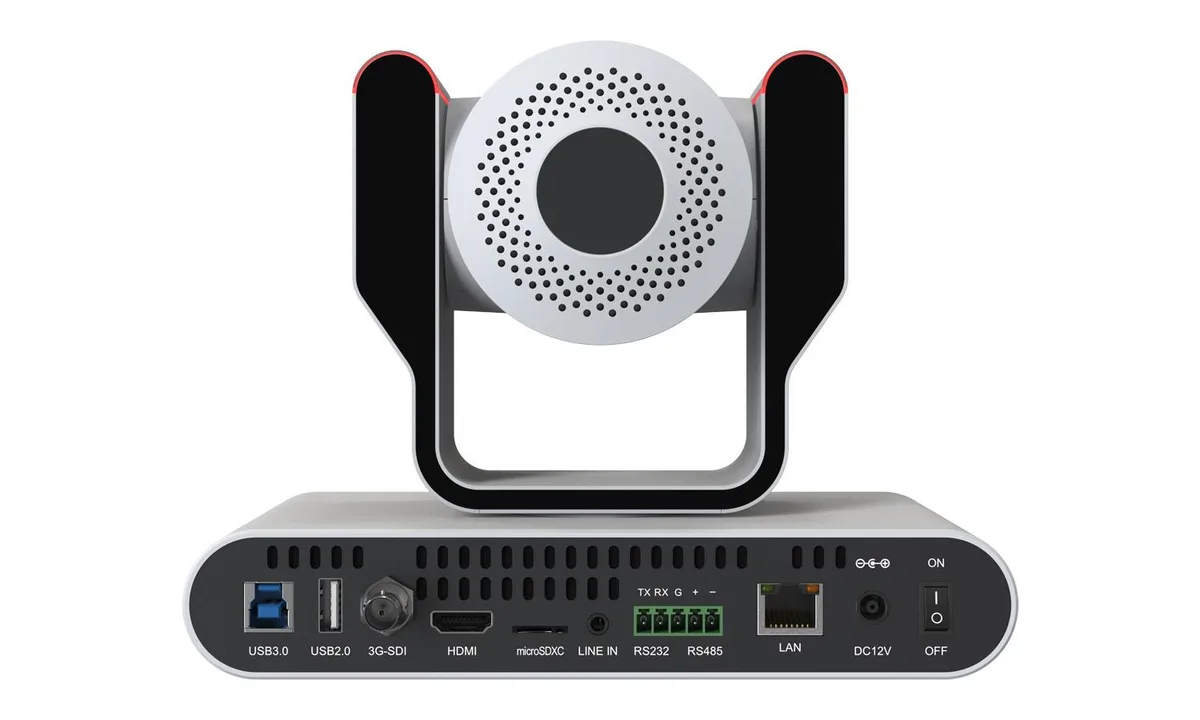

Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
ColorWhite
Networking ProtocolRTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol
Pan/TiltHorizontal (H): 6.57°(tele) - 70.28°(wide)
Vertical (V): 3.76°(tele) - 42.06°(wide)
Sensor & Detector1/2.8 inch SONY CMOS sensor
Pixels2 MP
HD Resolution1080P
MAX Resolution1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
Video Capture ResolutionHDMI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94;
SDI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
USB2.0:
MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
YUY2: 800*448 /720*480P25; 640*360 /432*240P30
NV12: 800*448P25; 640*480 /640*360 /432*240P30
USB3.0:
YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*48
Optical Zoom12x Optical Zoom
AudioDual channel 3.5mm line input
Power over EthernetYes
PowerInput: AC110V-AC220V; Output: DC12V/1.5A
DimensionL" x W" x D" - 14" x 11" x 11"
Weight8 lbs

Questions about this item

Does the BG-ADAMO-JR12X-W need a separate 12 V 1.5 A power supply if I do not have a PoE switch?

Yes, the camera ships with an AC 110 V–220 V to DC 12 V 1.5 A adapter for non-PoE installations.

Can I keep my existing RS-422 joystick controller and use it with this camera?

The camera provides an RS-422 port that is compatible with RS-485, so most VISCA-over-RS-422/485 joysticks will control pan, tilt and zoom directly.

How can I confirm the tally lights are functioning after I power the camera?

The integrated red and green tally LEDs illuminate on the front panel when the camera receives a tally signal over IP or serial, giving immediate visual confirmation.
