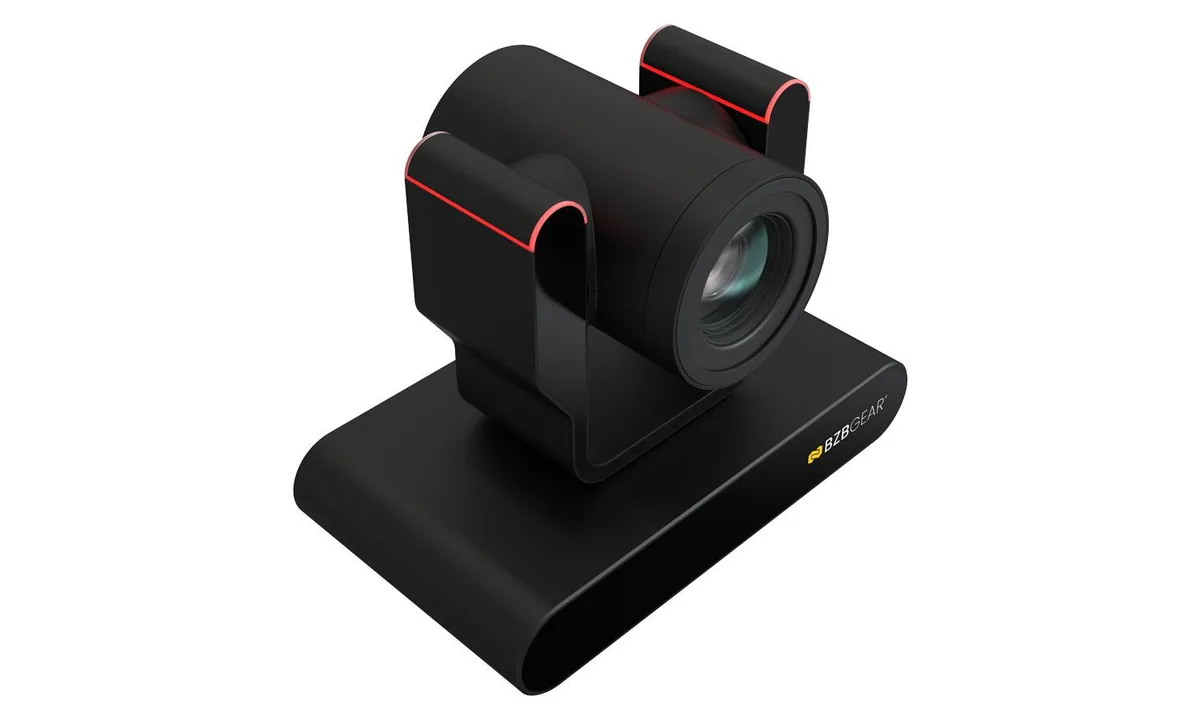

Black PTZ camera with 20x optical zoom lens and tally lights

BZBGEAR

BZBGEAR BG-ADAMO-JR20X-B 20x 1080p PTZ network camera (Black)

SKU CH-SQR0-C7M7E

20x optical zoom PTZ camera streams 1080p60 over HDMI, SDI, USB and IP with PoE power and tally lights

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ Camera
  • Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro
  • ColorBlack
  • 20x optical zoom captures distant detail with 60.04° wide view
  • 1080p60 output over HDMI, SDI, USB 3.0, USB 2.0 and IP streaming
  • PoE delivers power, data and control through one cable
  • Integrated red and green tally lights signal live status on air
  • MicroSD slot records up to 1 TB locally

Product Identity

The BZBGEAR BG-ADAMO-JR20X-B is a 2-megapixel PTZ network camera delivering 1080p60 video through HDMI, 3G-SDI, USB 3.0, USB 2.0 and IP streaming. It integrates a 20x optical zoom lens on a 1/2.8 inch Sony CMOS sensor and includes dual tally lights plus a microSD slot supporting up to 1 TB of local recording. Power over Ethernet allows data, control and power over a single category cable.

Who It Suits

Broadcasters, houses of worship and AV installers needing simultaneous SDI, HDMI and USB outputs with remote VISCA or ONVIF control will fit this camera into existing production workflows. The 20x zoom covers medium to large rooms while the wide 60.04° horizontal field of view handles tighter spaces. Buyers who require 4K resolution, built-in Wi-Fi or battery operation should look at other models.

Deciding Specification

The single specification that determines fit is the 20x optical zoom paired with a 60.04° wide horizontal field of view narrowing to 3.45° at telephoto; this defines the shooting distance and framing flexibility for every installation.

Highlights

  • 20x optical zoom captures distant detail with 60.04° wide view
  • 1080p60 output over HDMI, SDI, USB 3.0, USB 2.0 and IP streaming
  • PoE delivers power, data and control through one cable
  • Integrated red and green tally lights signal live status on air
  • MicroSD slot records up to 1 TB locally

Specifications

BrandBZBGEAR
ModelBG-ADAMO-JR20X-B
Part NumberBG-ADAMO-JR20X-B
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ Camera

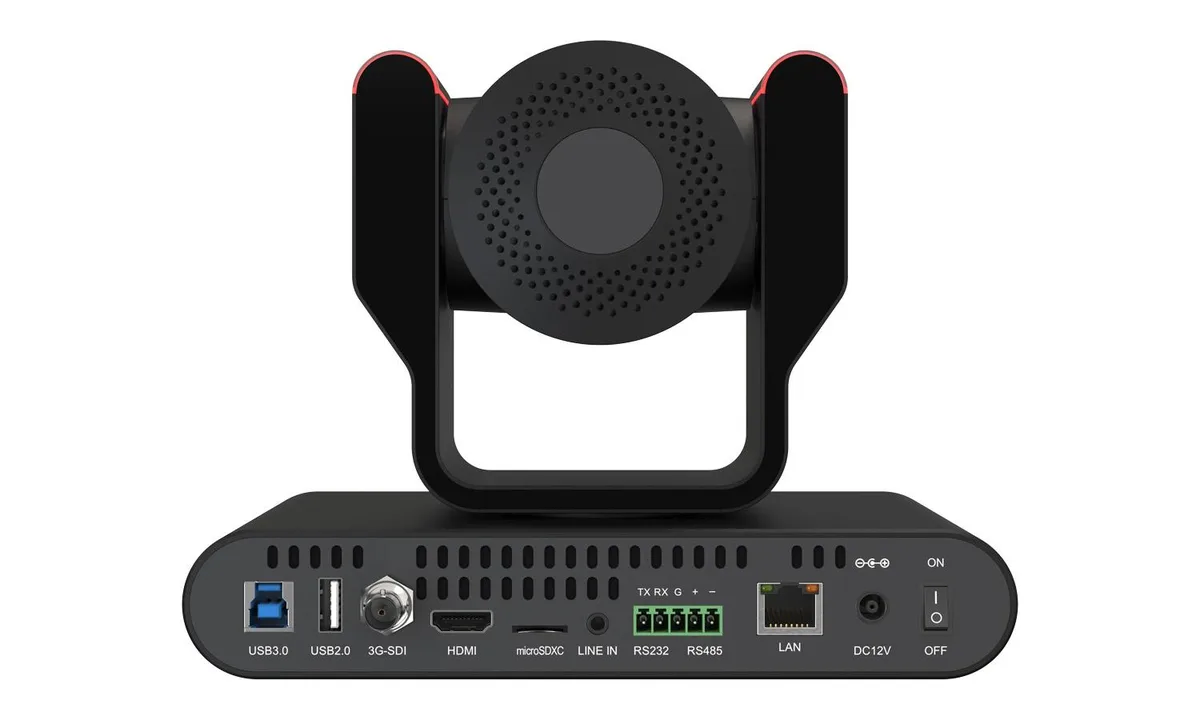

Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
ColorBlack
Networking ProtocolRTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol
Pan/TiltHorizontal (H): 3.45°(tele) - 60.04°(wide)
Vertical (V): 1.97°(tele) - 35.31°(wide)
Sensor & Detector1/2.8 inch SONY CMOS sensor
Pixels2 MP
HD Resolution1080P
MAX Resolution1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
Video Capture ResolutionHDMI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94;
SDI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
USB2.0:
MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
YUY2: 800*448 /720*480P25; 640*360 /432*240P30
NV12: 800*448P25; 640*480 /640*360 /432*240P30
USB3.0:
YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*48
Optical Zoom20x Optical Zoom
AudioDual channel 3.5mm line input
Power over EthernetYes
PowerInput: AC110V-AC220V; Output: DC12V/1.5A
DimensionL" x W" x D" - 14" x 11" x 11"
Weight8 lbs

Questions about this item

How do I mount the BG-ADAMO-JR20X-B and what is the step people get wrong?

Mount the camera on a stable surface or ceiling bracket, then connect a single Cat5e or Cat6 cable to the LAN port for PoE power, video and control; the common mistake is forgetting to enable PoE on the switch or injector so the unit receives no power.

What maintenance or replacement will the BG-ADAMO-JR20X-B need later?

The microSD card used for local recording up to 1 TB should be checked periodically and replaced if write errors appear; the 1/2.8 inch SONY CMOS sensor and 20x optical zoom mechanism have no user-serviceable parts.

What limit shows up first on the BG-ADAMO-JR20X-B during sustained streaming?

Continuous 1080p60 output over IP, HDMI, 3G-SDI and USB 3.0 simultaneously can saturate the onboard encoder and cause dropped frames or increased latency before thermal throttling occurs.
