White PTZ network camera with 20x optical zoom lens, tally lights, and multiple video outputs

BZBGEAR

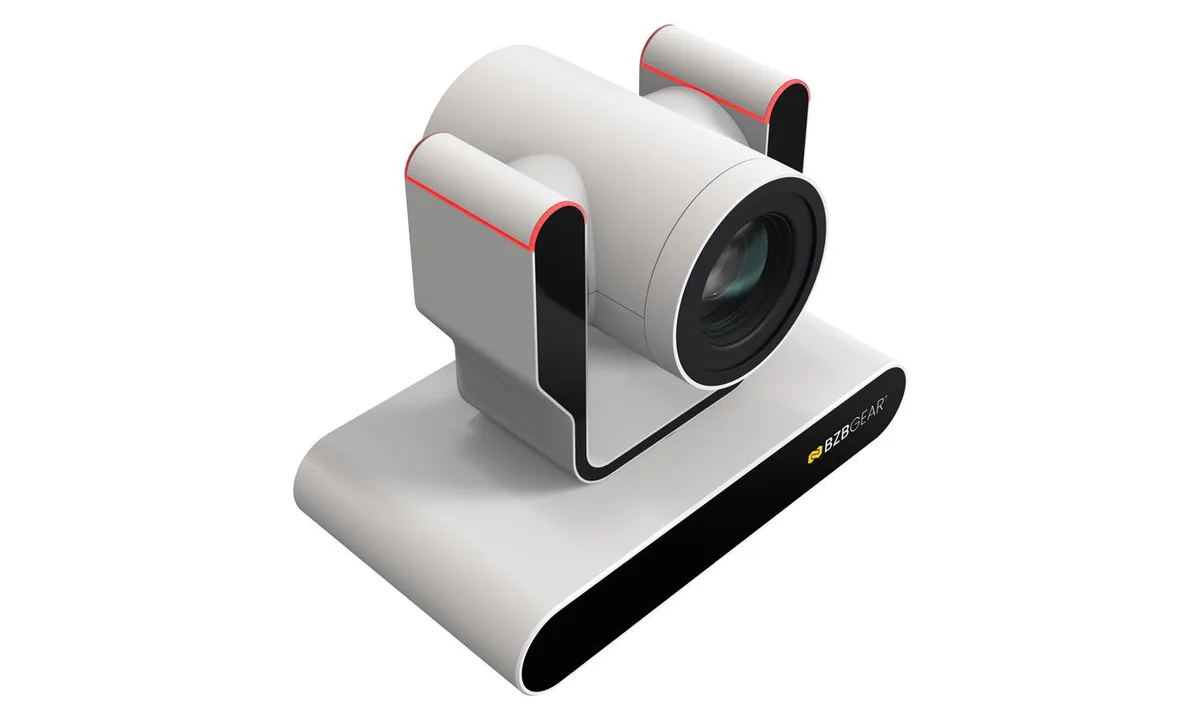

BZBGEAR BG-ADAMO-JR20X-W 20X 1080P PTZ network camera (White)

SKU CH-ZETY-JP7RC

20× optical zoom PTZ camera streams 1080p60 over HDMI, SDI, USB and IP with PoE power and tally lights

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ Camera
  • Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro
  • ColorWhite
  • 20× optical zoom brings distant subjects close
  • 1080p at 60 fps delivers smooth broadcast-quality video
  • PoE powers the camera over a single Ethernet cable
  • SDI, HDMI, USB 3.0, USB 2.0 and IP streaming outputs fit any workflow
  • Red and green tally lights show live status at a glance

20× PTZ Camera for Live Production

The BZBGEAR BG-ADAMO-JR20X-W is a 1080p PTZ network camera built for live streaming, broadcast and conferencing. It uses a 1/2.8 inch Sony CMOS sensor with 2 megapixels and a 20× optical zoom lens covering a 60.04° wide horizontal field of view. Pan and tilt ranges reach 3.45° to 60.04° horizontally and 1.97° to 35.31° vertically. Integrated red and green tally lights provide on-air status at a glance.

Multi-Interface Connectivity and PoE Power

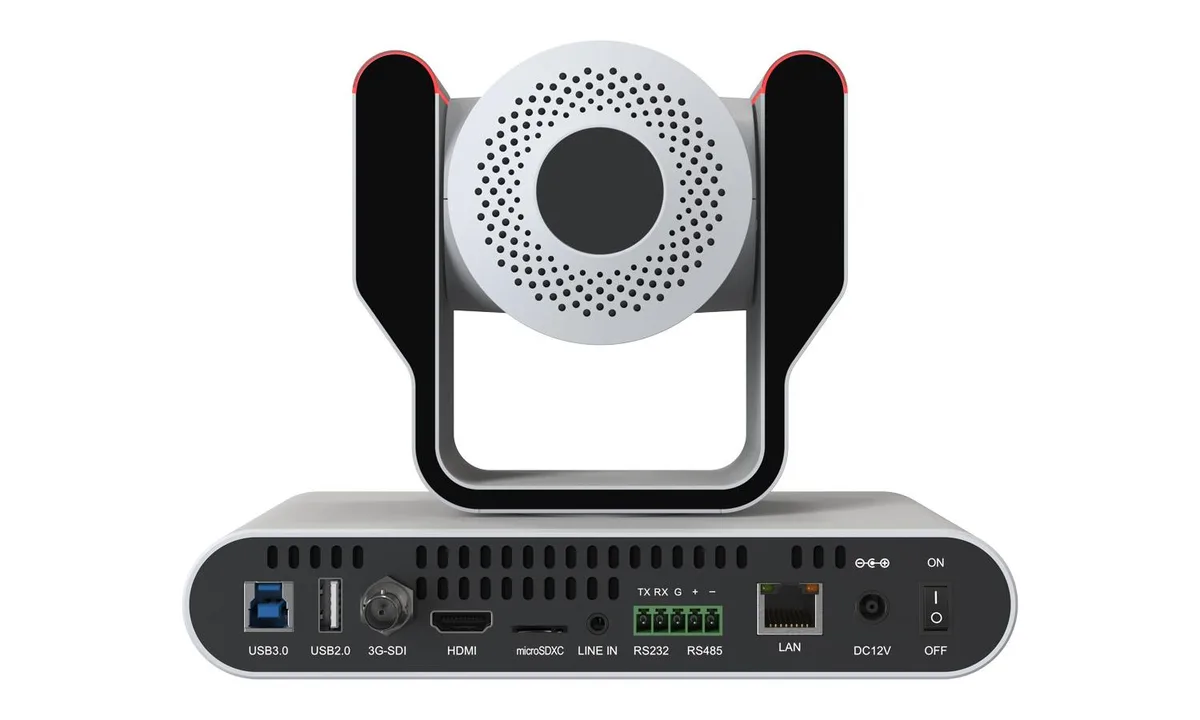

Video outputs include HDMI, 3G-SDI, USB 3.0, USB 2.0 and IP streaming over LAN with Power over Ethernet. Control protocols cover ONVIF, RTSP, RTMP, RTMPS, GB/T28181 and network VISCA, plus RS232 in and out and RS422 compatible with RS485. Dual 3.5 mm line inputs handle stereo audio. A microSD slot supports recording up to 1 TB locally. The DC12 V power supply accepts 110 V to 220 V AC input.

Upgrade from Fixed Webcams or Lower-Zoom PTZ Units

This model replaces static webcams or PTZ cameras with less optical reach when productions need 20× zoom and multi-format output flexibility. The jump is worth it for operators who require simultaneous SDI, HDMI and USB feeds plus IP streaming with tally indication. Buyers needing 4K resolution, higher zoom ranges or built-in wireless connectivity will need a different product class.

Highlights

  • 20× optical zoom brings distant subjects close
  • 1080p at 60 fps delivers smooth broadcast-quality video
  • PoE powers the camera over a single Ethernet cable
  • SDI, HDMI, USB 3.0, USB 2.0 and IP streaming outputs fit any workflow
  • Red and green tally lights show live status at a glance

Specifications

BrandBZBGEAR
ModelBG-ADAMO-JR20X-W
Part NumberBG-ADAMO-JR20X-W
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ Camera
Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
ColorWhite
Networking ProtocolRTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol
Pan/TiltHorizontal (H): 3.45°(tele) - 60.04°(wide)
Vertical (V): 1.97°(tele) - 35.31°(wide)
Sensor & Detector1/2.8 inch SONY CMOS sensor
Pixels2 MP
HD Resolution1080P
MAX Resolution1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
Video Capture ResolutionHDMI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94;
SDI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
USB2.0:
MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
YUY2: 800*448 /720*480P25; 640*360 /432*240P30
NV12: 800*448P25; 640*480 /640*360 /432*240P30
USB3.0:
YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*48
Optical Zoom20x Optical Zoom
AudioDual channel 3.5mm line input
Power over EthernetYes
PowerInput: AC110V-AC220V; Output: DC12V/1.5A
DimensionL" x W" x D" - 14" x 11" x 11"
Weight8 lbs

Questions about this item

Which streaming protocols does the LAN port support for live production?

The LAN port handles RTSP, RTMP, RTMPS, ONVIF and GB/T28181 streams, plus network VISCA control, all over a single category cable with PoE.

What mounting pattern does the base use for tripod or ceiling brackets?

The camera body includes a standard 1/4‑20 tripod thread on the bottom for direct mounting to tripods, ceiling plates or wall arms.

What is the correct order to power the camera via PoE so the tally lights initialise properly?

Connect the category cable to a PoE+ switch first, then power the switch; the camera negotiates Class 3 power before booting, which activates the red/green tally LEDs on start-up.
