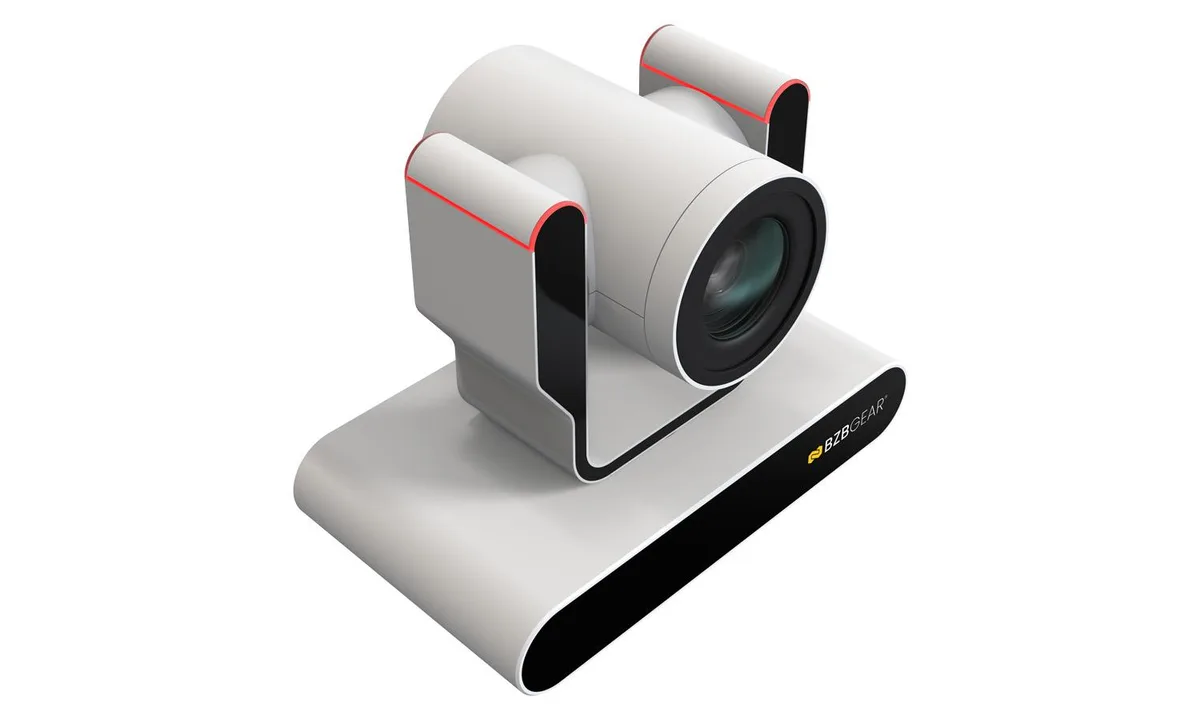

White PTZ network camera with integrated tally lights

BZBGEAR

BZBGEAR BG-ADAMO-JR30X-W 30X 1080P PTZ Network Camera White

SKU CH-KM6B-A1BAD

A 30× optical-zoom PTZ network camera streaming 1080p60 over HDMI, SDI, USB and IP with PoE and tally lights

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ Camera
  • Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro
  • ColorWhite
  • 30x optical zoom captures distant detail clearly
  • 1080p at 60 fps delivers smooth live streaming
  • PoE supplies power and data over one cable
  • HDMI, SDI, USB 2.0, USB 3.0 and IP outputs fit any workflow
  • Integrated red and green tally lights simplify on-air coordination

30x optical zoom PTZ camera for live production

The BG-ADAMO-JR30X-W is a Full HD network camera with a 1/2.8 inch SONY CMOS sensor and 30x optical zoom. It captures 1080p video at up to 60 frames per second and supports horizontal pan from 2.14 to 58.1 degrees and vertical tilt from 1.2 to 33.8 degrees. The unit is intended for live streaming, broadcast and conferencing installations that require remote pan, tilt and zoom control.

Multiple video outputs and PoE simplify cabling

HDMI, 3G-SDI, USB 2.0, USB 3.0 and IP streaming are available simultaneously, while Power over Ethernet delivers data, power and control over a single category cable. Integrated red and green tally lights provide on-air status for talent and operators. A microSD slot accepts cards up to 1 TB for local recording, and dual 3.5 mm line inputs handle stereo audio embedding.

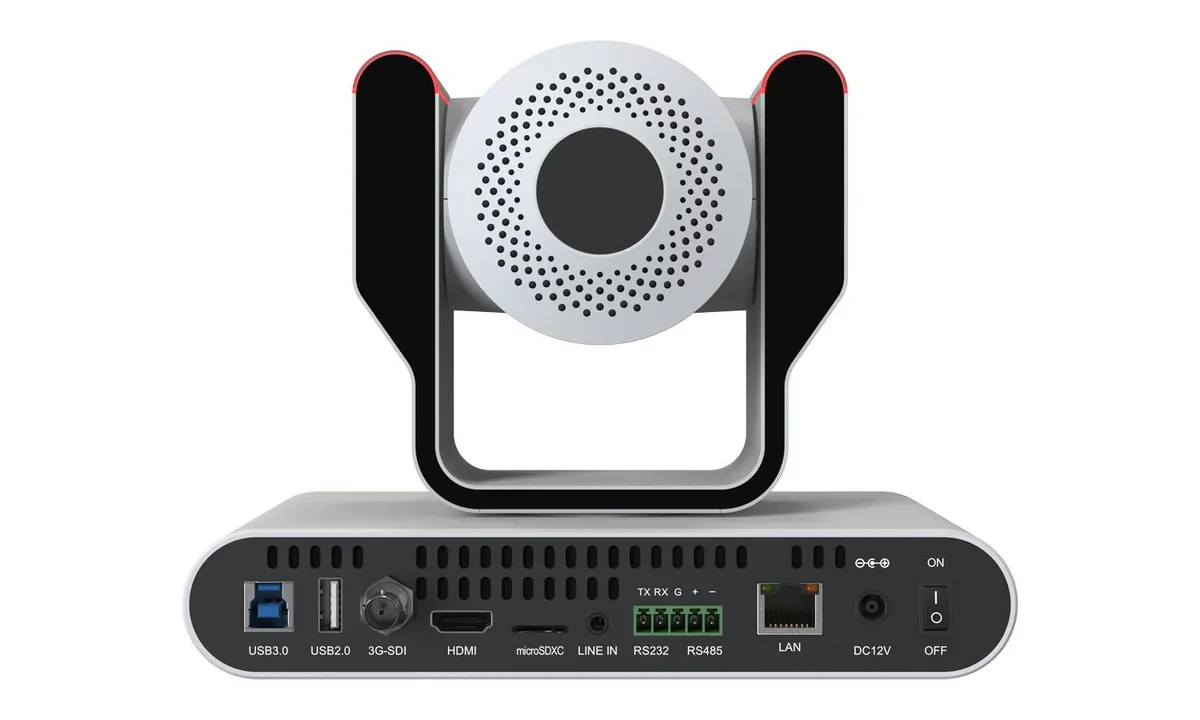

White metal chassis with RS-232.

The camera body includes RS-232 in and out, RS-422 compatible with RS-485, and a 12 V DC power input alongside the PoE port. ONVIF, RTSP, RTMP, RTMPS and GB/T28181 protocols plus network VISCA enable integration with third-party controllers and management software. The white finish suits studio and house-of-worship environments where visible hardware must blend with light-coloured interiors.

Highlights

  • 30x optical zoom captures distant detail clearly
  • 1080p at 60 fps delivers smooth live streaming
  • PoE supplies power and data over one cable
  • HDMI, SDI, USB 2.0, USB 3.0 and IP outputs fit any workflow
  • Integrated red and green tally lights simplify on-air coordination

Specifications

BrandBZBGEAR
ModelBG-ADAMO-JR30X-W
Part NumberBG-ADAMO-JR30X-W
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ Camera
Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
ColorWhite
Networking ProtocolRTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol
Pan/TiltHorizontal (H): 2.14°(tele) - 58.1°(wide)
Vertical (V): 1.2°(tele) - 33.8°(wide)
Sensor & Detector1/2.8 inch SONY CMOS sensor
Pixels2 MP
HD Resolution1080P
MAX Resolution1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
Video Capture ResolutionHDMI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94;
SDI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
USB2.0:
MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
YUY2: 800*448 /720*480P25; 640*360 /432*240P30
NV12: 800*448P25; 640*480 /640*360 /432*240P30
USB3.0:
YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*48
Optical Zoom30x Optical Zoom
AudioDual channel 3.5mm line input
Power over EthernetYes
PowerInput: AC110V-AC220V; Output: DC12V/1.5A
DimensionL" x W" x D" - 14" x 11" x 11"
Weight8 lbs

Questions about this item

How long does the 30x optical zoom mechanism last before it needs servicing?

The 30x optical zoom uses a 1/2.8 inch SONY CMOS sensor with no user-serviceable moving parts, so routine maintenance is limited to cleaning the lens glass.

What limits continuous 1080p60 streaming over IP for hours at a time?

Sustained 1080p60 output is constrained by the PoE power budget of 12 V / 1.5 A and the camera’s internal thermal design, not by the SDI or HDMI interfaces.

How much heat and fan noise does the camera produce when running all day on PoE?

The unit draws DC 12 V at 1.5 A via PoE with no fan specified, so heat dissipation is passive and audible noise is negligible in a typical install.
