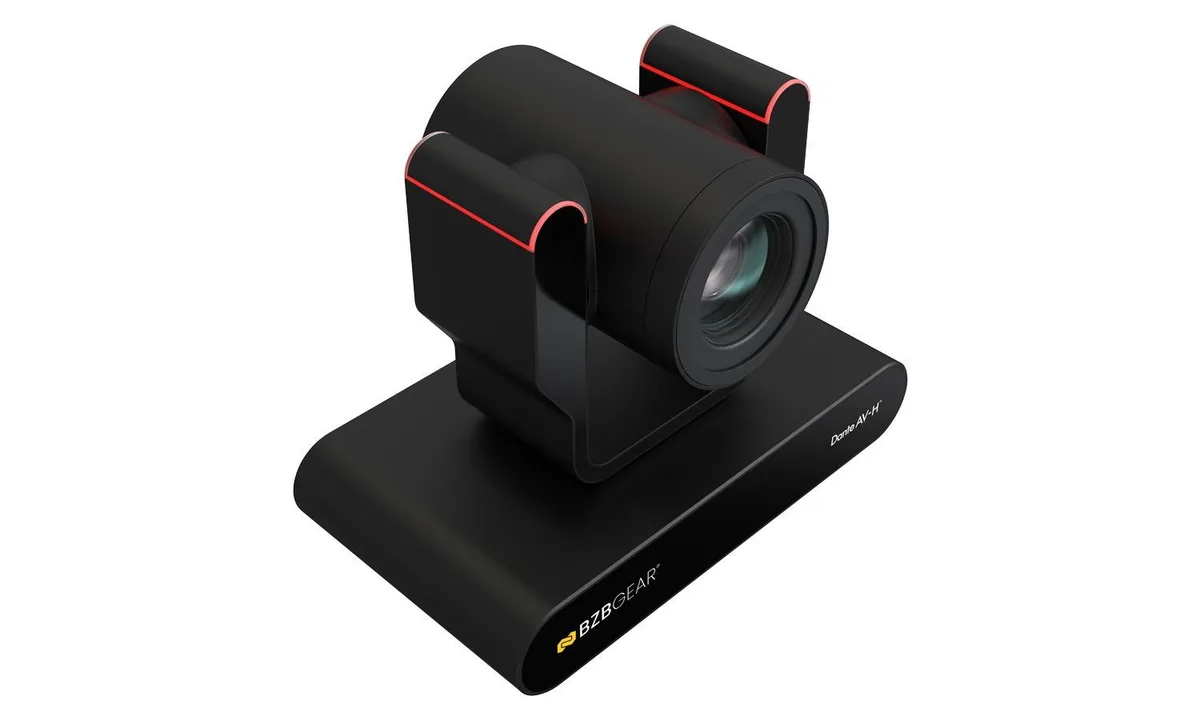

Black PTZ network camera with 20x optical zoom lens and integrated tally lights

BZBGEAR

BZBGEAR BG-ADAMO-JRDA20X-B 20x 1080p PTZ network camera Black

SKU CH-0Q22-129F3

A 20× optical-zoom PTZ network camera delivering 1080p60 video over HDMI, SDI, USB and IP streaming with PoE power and tally lights

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ Camera
  • Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro
  • ColorBlack
  • 20x optical zoom captures distant detail with a 60.04° wide view
  • 1080p60 output delivers smooth Full HD video over HDMI, SDI, USB 2.0, USB 3.0 or IP
  • PoE supplies power, data and control through a single category cable
  • Integrated red and green tally lights show live status at a glance
  • MicroSD slot records up to 1 TB of footage locally

20× optical zoom PTZ camera

The BZBGEAR BG-ADAMO-JRDA20X-B is a 1080p PTZ network camera with a 1/2.8 inch SONY CMOS sensor and 20× optical zoom. It serves live-streaming, broadcast and conferencing setups that need remote pan, tilt and zoom control over IP or serial links. Integrated red and green tally lights give on-air status at a glance.

Check power, network and control cabling

The unit accepts DC 12 V from the supplied adapter or Power over Ethernet on the LAN port. Verify your switch or injector delivers enough PoE budget. Control uses VISCA over IP, ONVIF or RS-232/RS-422, so confirm your controller or software speaks one of those protocols. A micro SD slot supports local recording up to 1 TB.

Black metal chassis with multi-interface rear

The black housing provides HDMI, 3G-SDI, USB 3.0, USB 2.0, 3.5 mm line-in, micro SD, RS-232 in and out, RS-422 and a dedicated DC power jack. This density lets you feed a switcher, a recorder and a streaming encoder simultaneously without adapters. PoE reduces cable count when a single category run is preferred.

Highlights

  • 20x optical zoom captures distant detail with a 60.04° wide view
  • 1080p60 output delivers smooth Full HD video over HDMI, SDI, USB 2.0, USB 3.0 or IP
  • PoE supplies power, data and control through a single category cable
  • Integrated red and green tally lights show live status at a glance
  • MicroSD slot records up to 1 TB of footage locally

Specifications

BrandBZBGEAR
ModelBG-ADAMO-JRDA20X-B
Part NumberBG-ADAMO-JRDA20X-B
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ Camera
Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
ColorBlack
Networking ProtocolRTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol
Pan/TiltHorizontal (H): 3.45°(tele) - 60.04°(wide)
Vertical (V): 1.97°(tele) - 35.31°(wide)
Sensor & Detector1/2.8 inch SONY CMOS sensor
Pixels2 MP
HD Resolution1080P
MAX Resolution1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
Video Capture ResolutionHDMI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94;
SDI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
USB2.0:
MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
YUY2: 800*448 /720*480P25; 640*360 /432*240P30
NV12: 800*448P25; 640*480 /640*360 /432*240P30
USB3.0:
YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*48
Optical Zoom20x Optical Zoom
AudioDual channel 3.5mm line input
Power over EthernetYes
PowerInput: AC110V-AC220V; Output: DC12V/1.5A
DimensionL" x W" x D" - 14" x 11" x 11"
Weight8 lbs

Questions about this item

What cables and accessories are included with the BG-ADAMO-JRDA20X-B, and what must be purchased separately?

The box contains one camera and a DC12V/1.5A power supply. Cables for HDMI, 3G-SDI, USB 2.0, USB 3.0, RS232, RS422 and MicroSD cards are not included and must be sourced separately.

How do I choose between the 12x, 20x and 30x optical zoom versions of this camera?

This model is the 20x version with a 60.04° wide horizontal field of view. Choose 12x for a wider 70.3° view or 30x for narrower 58.1° reach; all three share the same 1080p60 sensor and output options.

What does the 1080p60 headline resolution mean when the camera is connected via USB 2.0?

Over USB 2.0 the camera delivers MJPG at 1920×1080, 1280×720, 1024×768 and lower resolutions; it does not output 1080p60 uncompressed on that port.
