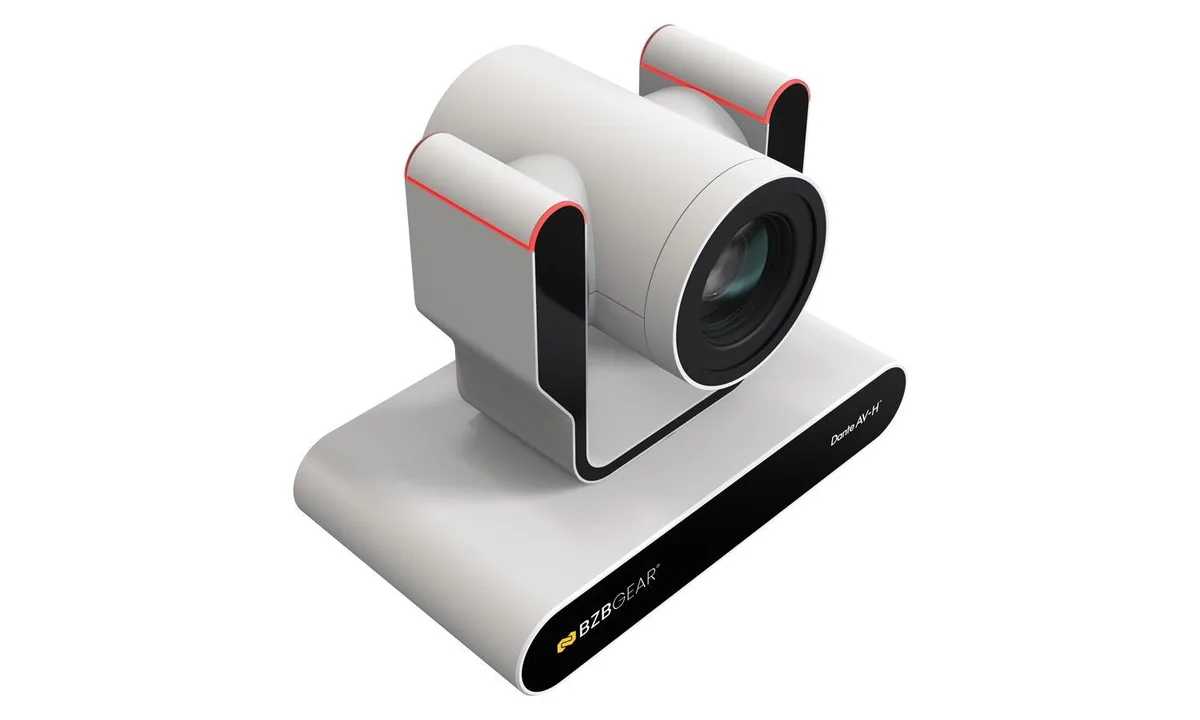

White PTZ network camera with 20x optical zoom lens and integrated tally lights

BZBGEAR

BZBGEAR BG-ADAMO-JRDA20X-W 20x 1080p PTZ network camera (White)

SKU CH-BJ3K-DAN9E

A 20x optical zoom PTZ network camera streaming 1080p60 over HDMI, SDI, USB and IP with PoE power and integrated tally lights

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ Camera
  • Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro
  • ColorWhite
  • 20x optical zoom brings distant subjects close with 60.04° wide view
  • 1080p at 60 fps delivers smooth Full HD video for live streams
  • PoE provides power data and control over one category cable
  • Five video outputs include SDI HDMI USB 3.0 USB 2.0 and IP streaming
  • Integrated tally lights show red and green status for on-air confidence

20× PTZ camera for live production

The BG-ADAMO-JRDA20X-W is a Full HD network camera built for broadcast, streaming and conferencing workflows. It combines a 1/2.8 inch SONY CMOS sensor with a 20× optical zoom lens and integrated tally lights. PoE support allows power, data and control over a single category cable. Operators who need 4K resolution or larger sensors should look elsewhere.

1080p60 capture with 20× optical reach

The camera outputs up to 1080p at 60, 50, 30, 25, 59.94 and 29.97 frames per second over HDMI, 3G-SDI and USB 3.0, while USB 2.0 delivers MJPEG at 1920×1080 and lower resolutions. A 60.04° wide horizontal field of view narrows to 3.45° at full telephoto, with vertical coverage from 35.31° down to 1.97°. MicroSD recording supports cards up to 1 TB. Users requiring 4K output or zoom beyond 20× will need a different model.

Multi-interface connectivity and tally feedback

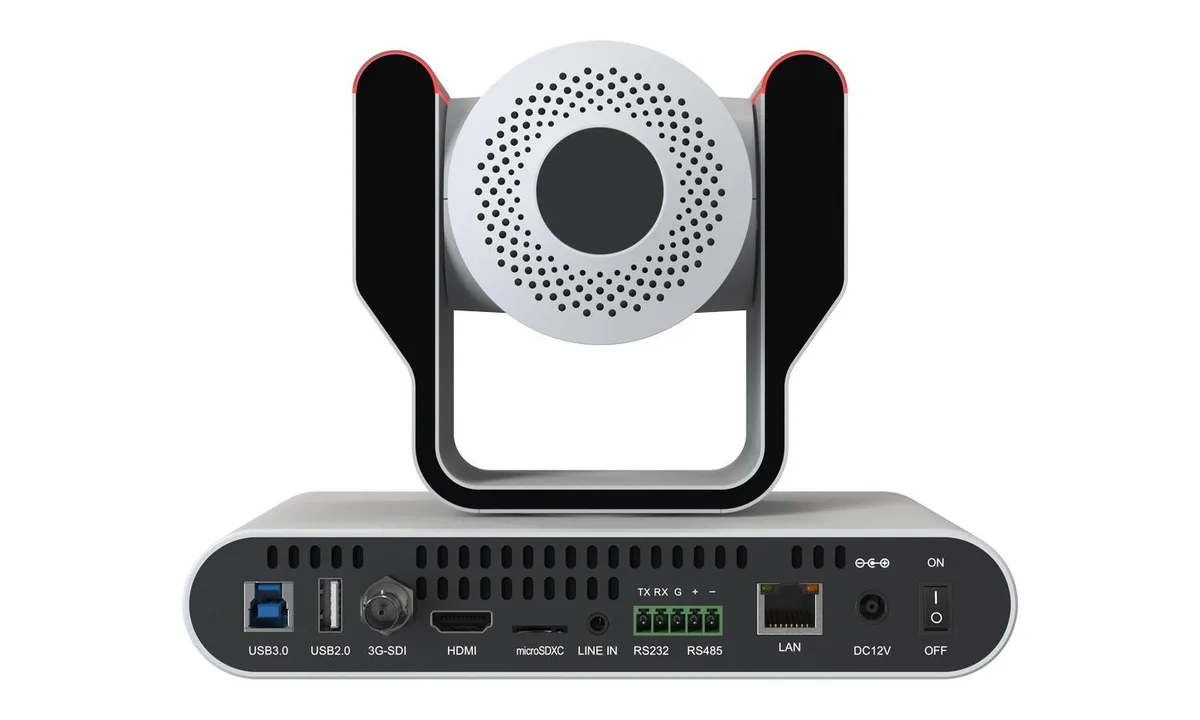

Video leaves the camera via HDMI, 3G-SDI, USB 3.0, USB 2.0 and IP streams using RTSP, RTMP, RTMPS, ONVIF and GB/T28181 protocols. Control is available over VISCA on the network or through RS-232, RS-422 (RS-485 compatible) serial ports. Dual 3.5 mm line inputs handle stereo audio. Red and green tally LEDs give on-air status at a glance. The DC 12 V power supply accepts 110–220 V AC input. Installers needing HDBaseT or fiber outputs are not served by this unit.

Highlights

  • 20x optical zoom brings distant subjects close with 60.04° wide view
  • 1080p at 60 fps delivers smooth Full HD video for live streams
  • PoE provides power data and control over one category cable
  • Five video outputs include SDI HDMI USB 3.0 USB 2.0 and IP streaming
  • Integrated tally lights show red and green status for on-air confidence

Specifications

BrandBZBGEAR
ModelBG-ADAMO-JRDA20X-W
Part NumberBG-ADAMO-JRDA20X-W
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ Camera
Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
ColorWhite
Networking ProtocolRTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol
Pan/TiltHorizontal (H): 3.45°(tele) - 60.04°(wide)
Vertical (V): 1.97°(tele) - 35.31°(wide)
Sensor & Detector1/2.8 inch SONY CMOS sensor
Pixels2 MP
HD Resolution1080P
MAX Resolution1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
Video Capture ResolutionHDMI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94;
SDI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
USB2.0:
MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
YUY2: 800*448 /720*480P25; 640*360 /432*240P30
NV12: 800*448P25; 640*480 /640*360 /432*240P30
USB3.0:
YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*48
Optical Zoom20x Optical Zoom
AudioDual channel 3.5mm line input
Power over EthernetYes
PowerInput: AC110V-AC220V; Output: DC12V/1.5A
DimensionL" x W" x D" - 14" x 11" x 11"
Weight8 lbs

Questions about this item

Will the 20x optical zoom and 60.04° wide field of view work with my existing HDMI switcher and 1080p60 recorder?

The camera outputs 1080p60 over HDMI and 3G-SDI, matching common switchers and recorders. The 20x zoom covers 3.45° tele to 60.04° wide, so framing stays consistent with your current 1080p workflow.

How do I confirm the camera is streaming correctly over IP after connecting PoE?

Connect the LAN port to a PoE switch; the camera powers up and obtains an IP address. Open a browser or VMS and pull the RTSP or RTMP stream — live 1080p video with tally-light status confirms the stream is active.

Does the box include a DC12V power supply and mounting hardware, or must I buy them separately?

The package contains the PTZ camera, an AC110-220V to DC12V/1.5A power supply, an RS-232 control cable, and mounting brackets. PoE can replace the power supply; MicroSD cards up to 1 TB are sold separately.
