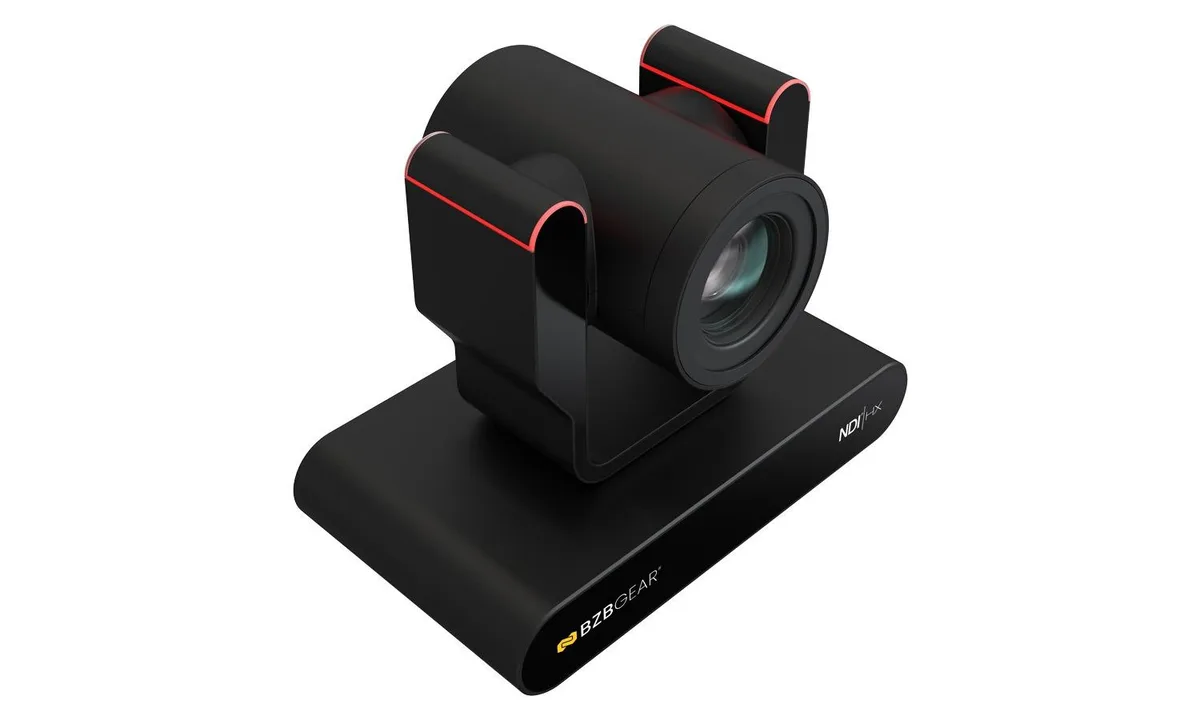

Black rectangular PTZ camera body with front lens and tally lights

BZBGEAR

BZBGEAR BG-ADAMO-JRND20X-B 20x 1080p PTZ network camera Black

SKU CH-ZDSQ-CF9Q5

A 20x optical zoom PTZ network camera streaming 1080p60 over HDMI, SDI, USB 2.0, USB 3.0 and IP with PoE, tally lights and microSD recording

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ Camera
  • Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro
  • ColorBlack
  • 20x optical zoom brings distant subjects into clear view
  • 1080p60 output delivers smooth full HD video for live production
  • HX3 compatibility enables low-latency IP workflows with NewTek 5.5
  • PoE support carries power data and control over a single cable
  • Integrated tally lights show on-air status at a glance

20× 1080p PTZ network camera for live streaming

This BZBGEAR PTZ camera delivers 1080p resolution at up to 60 frames per second with 20× optical zoom. It suits live production, streaming and broadcast workflows that need simultaneous HDMI, 3G-SDI, USB 3.0, USB 2.0 and IP output.

Check PoE, control protocol and storage needs

The camera draws power and data over a single Ethernet cable with PoE support. Verify your network switch provides PoE and that your controller or software speaks ONVIF, VISCA over IP, RS-232 or RS-422/485. A microSD card up to 1 TB is required for local recording.

Tally lights and multi-interface mounting

Integrated red and green tally lights give on-air status at a glance. The rear panel groups HDMI, 3G-SDI, USB 3.0, USB 2.0, 3.5 mm audio in, RS-232 in/out, RS-422 and a DC 12 V input alongside the LAN port. This layout lets you route video and control to switchers, recorders and streaming encoders without adapters.

Highlights

  • 20x optical zoom brings distant subjects into clear view
  • 1080p60 output delivers smooth full HD video for live production
  • HX3 compatibility enables low-latency IP workflows with NewTek 5.5
  • PoE support carries power data and control over a single cable
  • Integrated tally lights show on-air status at a glance

Specifications

BrandBZBGEAR
ModelBG-ADAMO-JRND20X-B
Part NumberBG-ADAMO-JRND20X-B
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ Camera
Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
ColorBlack
Networking ProtocolRTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol
ONVIFYes
Pan/TiltHorizontal (H): 3.45°(tele) - 60.04°(wide)
Vertical (V): 1.97°(tele) - 35.31°(wide)
Sensor & Detector1/2.8 inch SONY CMOS sensor
Pixels2 MP
HD Resolution1080P
MAX Resolution1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
Video Capture ResolutionHDMI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94;
SDI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
USB2.0:
MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
YUY2: 800*448 /720*480P25; 640*360 /432*240P30
NV12: 800*448P25; 640*480 /640*360 /432*240P30
USB3.0:
YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*48
Optical Zoom20x Optical Zoom
AudioDual channel 3.5mm line input
Power over EthernetYes
PowerInput: AC110V-AC220V; Output: DC12V/1.5A
DimensionL" x W" x D" - 14" x 11" x 11"
Weight8 lbs

Questions about this item

What cables and accessories are included with the BG-ADAMO-JRND20X-B and what must be purchased separately?

The camera ships as a single unit with tally lights and a MicroSD slot supporting up to 1 TB cards; power supply, PoE injector, SDI/HDMI/USB cables and MicroSD card are not included.

How do I choose between the 12x, 20x and 30x lens versions for my installation?

The 20x model provides a 60.04° wide horizontal field of view narrowing to 3.45° at telephoto; the 12x version offers a wider 70.3° view while the 30x version reaches a narrower 58.1° wide angle.

What does the 1080p60 headline figure mean when the camera is connected via HDMI, SDI, USB or IP?

HDMI and 3G-SDI outputs deliver 1080p at 60/59.94/50/30/29.97/25 fps; USB 3.0 matches those rates while USB 2.0 is limited to MJPEG at 1080p; IP streams use RTSP/RTMP/NDI
