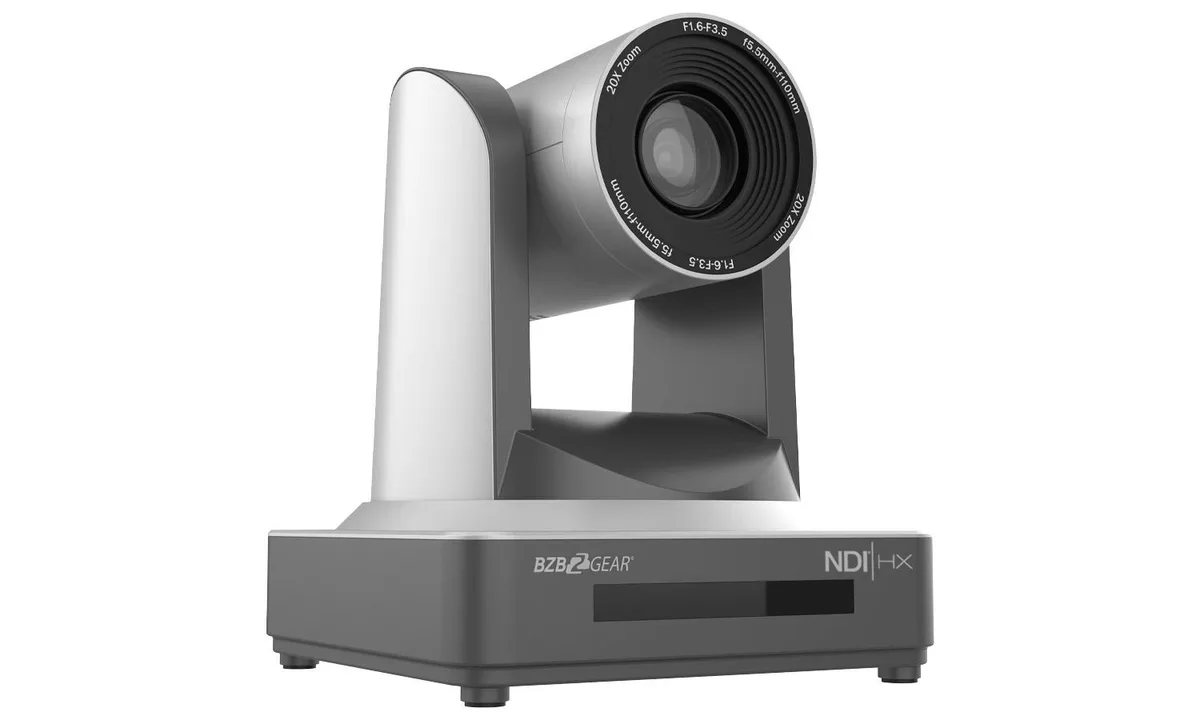

Gray PTZ network camera with 20x optical zoom lens

BZBGEAR

BZBGEAR BG-ND-20XHSRP 20X NDI|HX 4.0 PTZ network camera

SKU CH-6YXW-KWRG7

Delivers 1080p60 video over NDI|HX 4.0 with 20× optical zoom and simultaneous HDMI, 3G-SDI and IP outputs

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • Type1080P NDI HDMI 3G-SDI RS232 Live Streaming Camera
  • Connection TypeNDI | HX 4.0, SDI, HDMI, LAN(POE), RS232 (In & Out), RS485,
  • ColorGray
  • 20× optical zoom plus 10× digital for close-up detail
  • Simultaneous HDMI, 3G-SDI and NDI
  • HX 4.0 outputs for flexible workflows
  • H.264 and H.265 compression with RTSP, RTMP and ONVIF support
  • 255 preset positions via IP VISCA, IR, RS-232 and RS-485 control
  • 5 mm stereo audio input embeds sound on every output

Enterprise NDI PTZ camera

The BZBGEAR BG-ND-20XHSRP is a 2 megapixel PTZ network camera built for live streaming and video production workflows. It delivers 1080p resolution at up to 60fps through a 1/2.8 inch CMOS sensor with 20x optical zoom and 10x digital zoom. The unit supports NDI|HX 4.0 alongside simultaneous HDMI and 3G-SDI outputs. Power over Ethernet simplifies installation with a single cable run.

Production teams needing IP video integration

This camera suits operators who require NDI|HX 4.0 compatibility with existing IP infrastructure and software platforms. It fits workflows demanding simultaneous IP streaming, SDI, and HDMI outputs with embedded audio from the 3.5mm input. Buyers needing 4K resolution or higher frame rates than 60fps should look elsewhere. The fixed 20x zoom range also limits use cases requiring longer focal lengths.

NDI|HX 4.0 streaming protocol

The defining specification is NDI|HX 4.0 support, which enables low-latency video transport over standard IP networks without dedicated cabling. This protocol allows the camera to be discovered and controlled directly by compatible production software, switchers, and recording systems. ONVIF, RTSP, and RTMP support provides fallback streaming options. The 20x optical zoom lens covers 5.5 to 110mm focal length for flexible framing.

Highlights

  • 20× optical zoom plus 10× digital for close-up detail
  • Simultaneous HDMI, 3G-SDI and NDI
  • HX 4.0 outputs for flexible workflows
  • H.264 and H.265 compression with RTSP, RTMP and ONVIF support
  • 255 preset positions via IP VISCA, IR, RS-232 and RS-485 control
  • 5 mm stereo audio input embeds sound on every output

Specifications

BrandBZBGEAR
ModelBG-ND-20XHSRP
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
Type1080P NDI HDMI 3G-SDI RS232 Live Streaming Camera

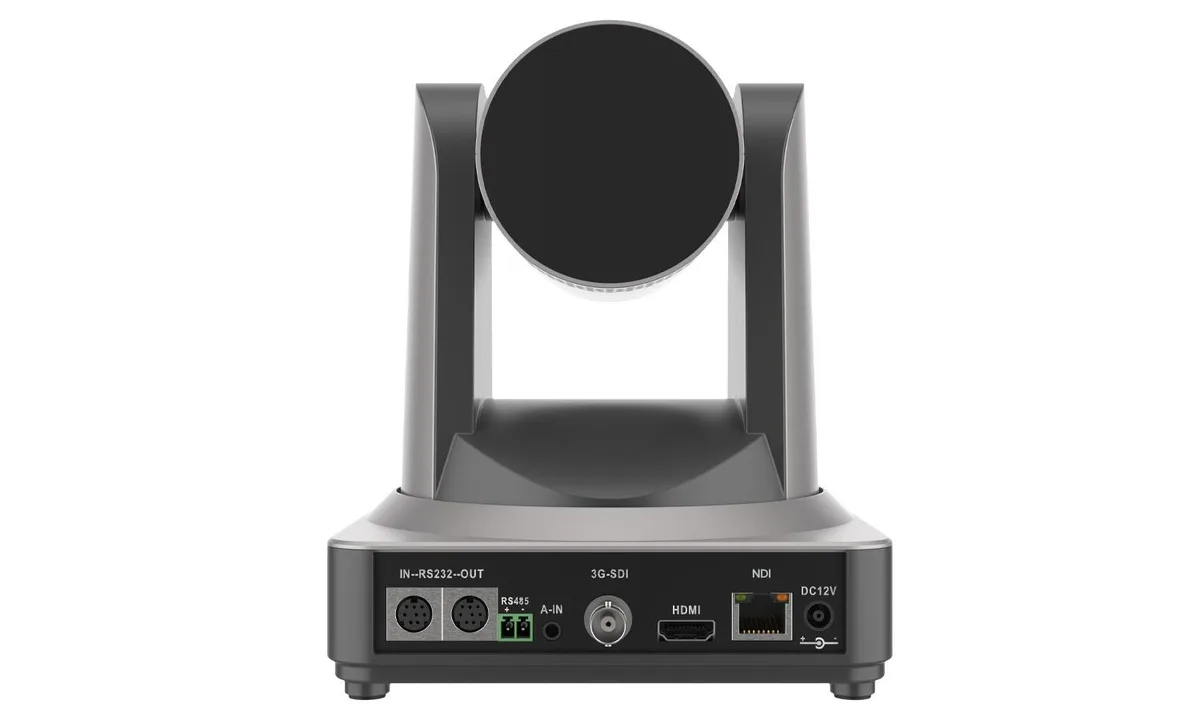

Connection TypeNDI | HX 4.0, SDI, HDMI, LAN(POE), RS232 (In & Out), RS485, A-IN
ColorGray
Networking ProtocolNDI, RTSP/RTMP,ONVIF
ONVIFYes
Pan/TiltPan: 60°/sec, Tilt: 30°/sec
Sensor & Detector1/2.8 inch high quality HD CMOS sensor
Pixels2 MP
HD ResolutionHDMI/SDI: 1080P60 / 50 / 30 / 25 / 59.94 /29.97; 1080I60 / 50 / 59.94; 720P60 / 50 / 30 / 25 / 59.94 / 29.97
Frame Rateup to 60fps
Lens Type20X f=5.5~110mm
Optical Zoom20X
Digital Zoom10X
AudioDouble track 3.5mm linear input
Power over EthernetYes
PowerAC110V-AC220V to DC12V/2A
Dimension150mm X 150mm X 167.5mm
Weight1.4KG

Questions about this item

How do I choose between the 20X and 30X optical zoom versions?

The 20X optical zoom uses a 5.5~110mm lens and adds 10X digital zoom for extra reach, while the 30X option extends the optical range further. Pick the 20X for typical conference rooms or small studios where 20X covers the needed distance.

What does the 1080p60 resolution actually deliver on my NDI network?

The 1/2.8 inch 2 MP CMOS sensor captures full HD at up to 60 fps, and NDI

Which control protocols does the RS232/RS485 interface support and how many presets can I store?

The cascadable RS232 and RS485 ports run VISCA, PELCO-D and PELCO-P protocols, and the camera holds 255 preset positions for instant recall via IP, IR or serial control.
