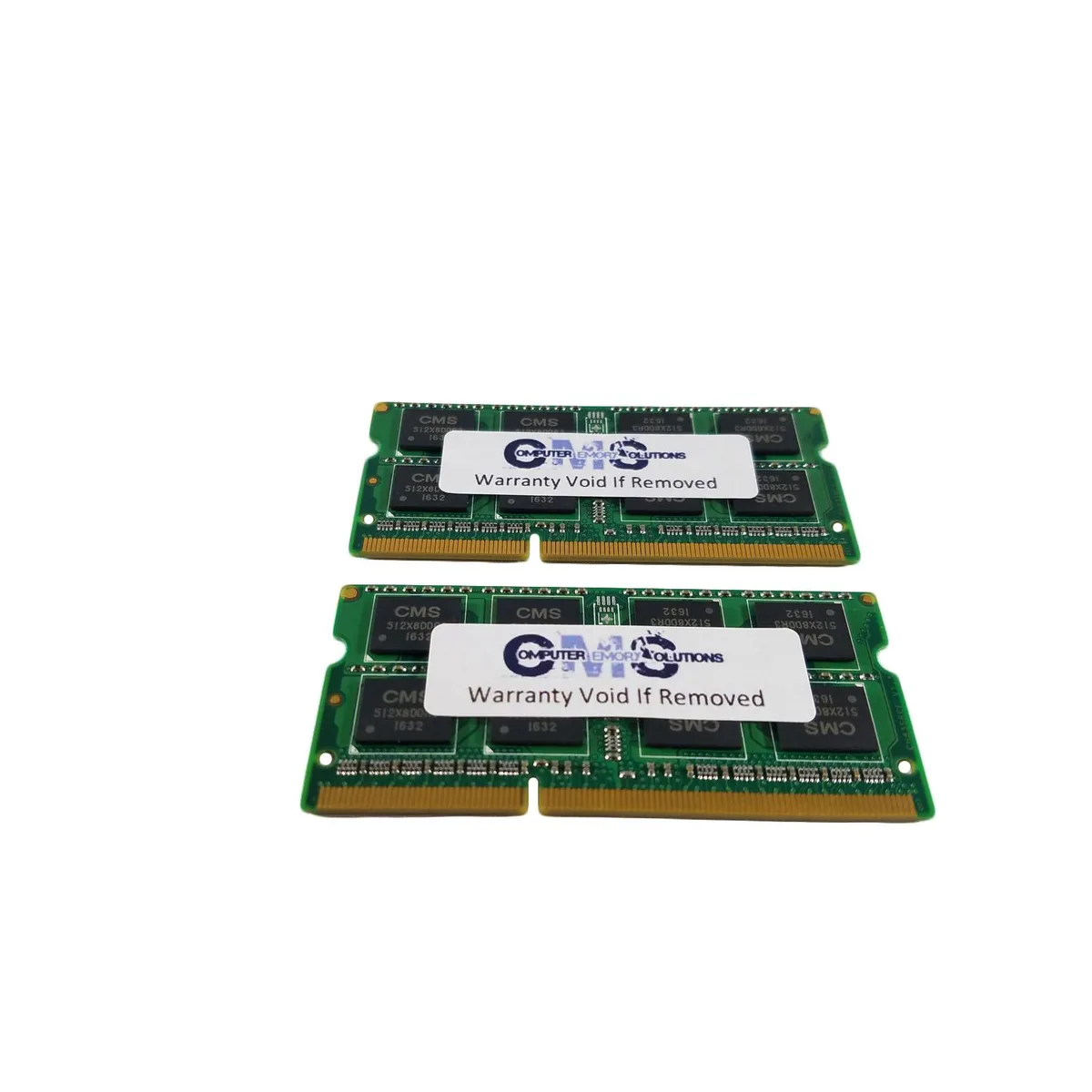

Two green circuit boards with gold edge connectors and black memory chips

Computer Memory Solutions

Computer Memory Solutions CM10246412800SODRL 16GB (2x8GB) DDR3L 1600MHz CL11 SODIMM 1.35V

SKU CH-7DXN-XAZGH

16 GB DDR3L 1600 MHz kit in two 204-pin SO-DIMM modules at CL11 1.35 V for Intel NUC5i5MYHE, NUC5i5RYH, NUC5i5RYK and NUC5i5RYB

  • Capacity16GB (2 x 8GB)
  • Type204-Pin DDR3 SO-DIMM
  • SpeedDDR3L 1600 (PC3L 12800)
  • CAS LatencyCL11
  • Timing11-11-11
  • Voltage1.35V
  • Dual-channel kit doubles capacity to 16 GB with two 8 GB modules
  • DDR3L 1600 MHz speed matches Intel NUC specifications for responsive performance
  • Low 1.35 V operation reduces power draw and heat in compact systems
  • CL11 11-11-11 timings deliver low latency for smooth multitasking
  • 204-pin SODIMM form factor fits directly into supported NUC memory slots

Targeted DDR3L upgrade kit

This 16 GB kit contains two 8 GB DDR3L SO-DIMM modules rated at 1600 MHz with CL11 timings. It is built specifically for Intel NUC models NUC5i5MYHE, NUC5i5RYH and NUC5i5RYK where the board accepts a maximum of 16 GB across two slots. Buyers whose NUC already runs at that limit will not gain capacity from this kit.

Thermals and power profile

The modules operate at 1.35 V and carry no heat spreader, relying on the NUC's internal airflow for cooling. At standard JEDEC voltage the power draw remains low and the unbuffered design adds no active noise; the system fan curve will dictate any audible change.

Upgrade context

This kit replaces the factory-installed memory in the listed NUC units, taking the platform to its documented 16 GB ceiling. The jump is worthwhile when the current configuration is below that limit and the workload benefits from additional capacity; systems already populated to 16 GB see no change.

Highlights

  • Dual-channel kit doubles capacity to 16 GB with two 8 GB modules
  • DDR3L 1600 MHz speed matches Intel NUC specifications for responsive performance
  • Low 1.35 V operation reduces power draw and heat in compact systems
  • CL11 11-11-11 timings deliver low latency for smooth multitasking
  • 204-pin SODIMM form factor fits directly into supported NUC memory slots

Specifications

BrandComputer Memory Solutions
ModelCM10246412800SODRL
Capacity16GB (2 x 8GB)
Type204-Pin DDR3 SO-DIMM
SpeedDDR3L 1600 (PC3L 12800)
CAS LatencyCL11
Timing11-11-11
Voltage1.35V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemIntel Nuc5I5Myhe, Nuc5I5Ryh, Nuc5I5Ryk (Nuc5I5Ryb)
Package Content2 Memory RAM Sticks

Questions about this item

How do I install the 204-Pin DDR3L SODIMM modules into the Intel NUC5i5MYHE, and what step is often missed?

Power off and unplug the NUC, remove the bottom cover, insert each module at a 30-degree angle until the gold contacts disappear, then press down firmly until both side clips click — the step most people miss is fully seating both clips so the module lies flat.

What maintenance or replacement will this 16GB (2x8GB) DDR3L 1600MHz kit need over time?

No routine maintenance is required; the modules have no heat spreader and no moving parts. Replacement is only needed if a stick fails, which is covered by the manufacturer's limited lifetime warranty when purchased directly from Computer Memory Solutions.

What limit appears first when the Intel NUC5i5RYH runs sustained workloads with this CL11 1.35V memory?

The platform's maximum supported memory is 16GB across two sockets, so capacity is the first hard limit — the kit already fills both slots at the top speed of 1600MHz (PC3L 12800) with CL11 timing.
