Green micro-ATX server motherboard with silver LGA 1700 socket, four black DDR5 slots, two full-length PCIe x16 slots

CONTEC

CONTEC 26316 GMB-MQ67010 server motherboard LGA 1700 DDR5 4400 128GB

SKU CH-C3FE-HG769 MPN 26316

Micro-ATX server board with LGA 1700 socket, four DDR5-4400 slots up to 128 GB, two PCIe 5.0 x16 and two PCIe 4.0 x4 slots, eight SATA 6.0 Gb/s ports with RAID.

  • CPU Socket TypeLGA 1700
  • CPU Type12th Gen Intel Core i3 / 12th Gen Intel Core i5 / 12th Gen I
  • CPU FeaturesMax. 125W TDP
  • North BridgeIntel Q670E
  • Memory Slots4 x DDR5 288-pin
  • Memory StandardDDR5 4400
  • Supports Intel 12th, 13th and 14th Gen Core CPUs up to 125W TDP via LGA 1700 socket
  • Four DDR5 288-pin slots run at 4400 MT/s for up to 128GB capacity
  • Two PCIe 5.0 x16 slots plus two PCIe 4.0 x4 slots for GPU and add-in cards
  • Eight SATA 6.0Gb/s ports with RAID 0, 1, 5 and 10 plus one M.2 M-key NVMe slot
  • Dual Intel Gigabit LAN (I210 and I219) plus six USB 3.2 ports and one serial port

LGA 1700 server motherboard

The CONTEC 26316 GMB-MQ67010 is a Micro-ATX server motherboard built on the Intel Q670E chipset for LGA 1700 processors. It accepts 12th, 13th and 14th generation Intel Core i3, i5, i7 and i9 CPUs with a maximum 125W TDP. Four DDR5 288-pin slots support DDR5 4400 memory up to 128GB total capacity.

Expansion slots and storage

Two PCIe 5.0 x16 slots operate in x16 or dual x8 mode, and two PCIe 4.0 x4 slots provide additional expansion. Storage includes eight SATA 6.0Gb/s ports with RAID 0, 1, 5 and 10 support, plus one M.2 M-key slot for 2242, 2260 or 2280 NVMe drives. Dual Intel I210 and I219 Gigabit LAN controllers deliver two 1Gbps network connections.

Compatibility checklist

Verify that your chassis accepts Micro-ATX dimensions and that the power supply provides sufficient 12V current for a 125W processor plus any add-in cards. Confirm DDR5 4400 U-DIMM modules are selected, as earlier DDR generations are not compatible. Ensure the CPU cooler mounting pattern matches LGA 1700 and that the M.2 key type matches your NVMe drive.

Highlights

  • Supports Intel 12th, 13th and 14th Gen Core CPUs up to 125W TDP via LGA 1700 socket
  • Four DDR5 288-pin slots run at 4400 MT/s for up to 128GB capacity
  • Two PCIe 5.0 x16 slots plus two PCIe 4.0 x4 slots for GPU and add-in cards
  • Eight SATA 6.0Gb/s ports with RAID 0, 1, 5 and 10 plus one M.2 M-key NVMe slot
  • Dual Intel Gigabit LAN (I210 and I219) plus six USB 3.2 ports and one serial port

Specifications

BrandCONTEC
ModelGMB-MQ67010
CPU Socket TypeLGA 1700
CPU Type12th Gen Intel Core i3 / 12th Gen Intel Core i5 / 12th Gen Intel Core i7 / 12th Gen Intel Core i9 / 13th Gen Intel Core i3 / 13th Gen Intel Core i5 / 13th Gen Intel Core i7 / 13th Gen Intel Core i9 / 14th Gen Intel Core i3 / 14th Gen Intel Core i5 / 14th Gen Intel Core i7 / 14th Gen Intel Core i9 / Intel Celeron / Intel Pentium
CPU FeaturesMax. 125W TDP
North BridgeIntel Q670E
Memory Slots4 x DDR5 288-pin
Memory StandardDDR5 4400
Maximum Memory Supported128GB
PCI Express 5.0 x161 x PCIe 5.0 x16 Slot (1 x16 mode/ 2 x8 mode)
1 x PCIe 5.0 x16 Slot (x8 mode)
PCI Express x42 x PCIe 4.0 x4 Slot (x4 mode)
SATA8 x SATA 6.0Gb/s
SATA RAID0/1/5/10
M.21 x M.2 M key, Type 2242/2260/2280 (PCIex4) supports NVMe
Audio ChipsetRealtek ALC897
LAN ChipsetIntel I210
LAN Speed10/100/1000Mbps
Second LAN ChipsetIntel I219
Second LAN Speed10/100/1000Mbps
Max LAN Speed2 x 1Gbps

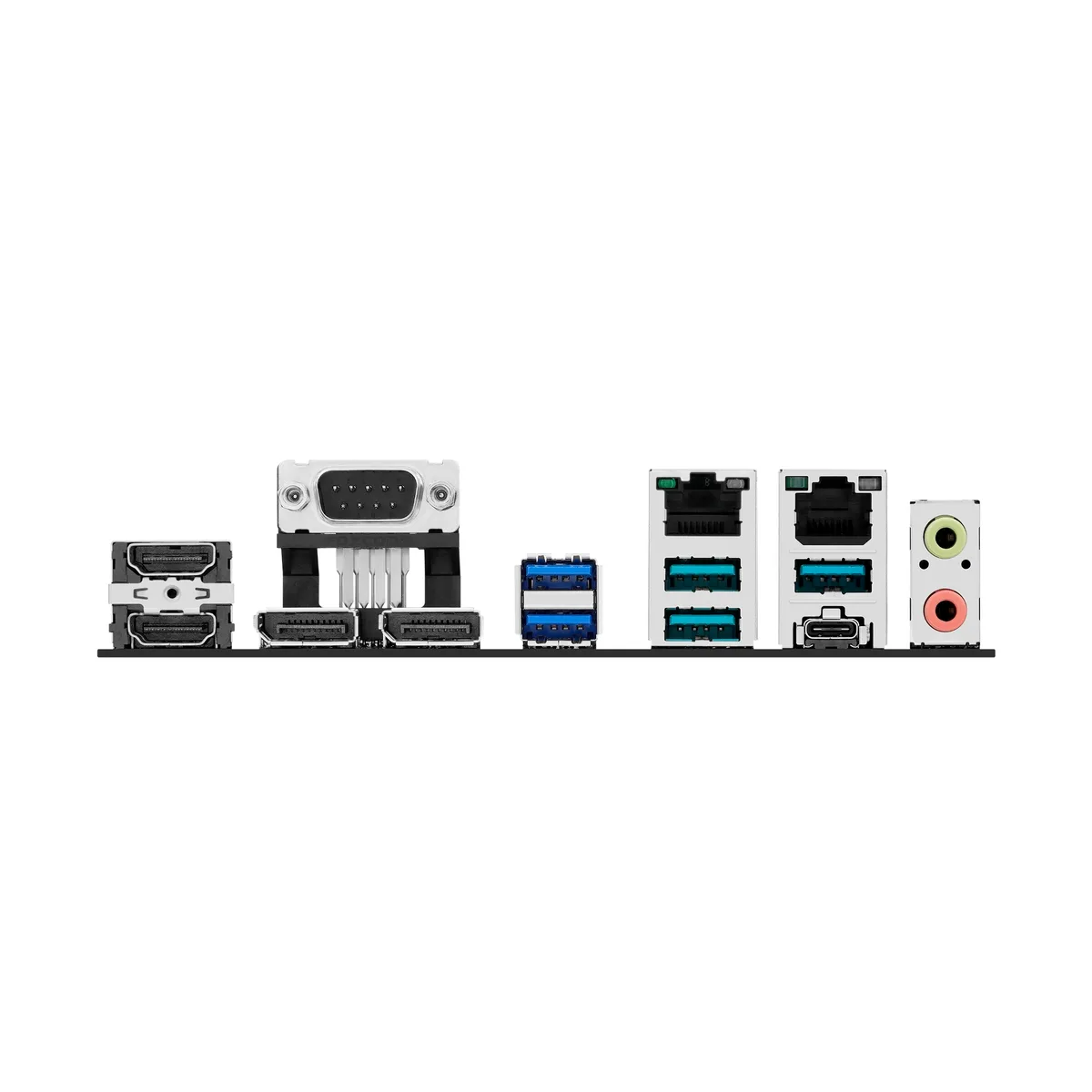

Back I/O Ports1 x COM (Serial Port) / 1 x USB 3.2 Gen 2 Type-C / 2 x DisplayPort / 2 x HDMI / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A / 3 x USB 3.2 Gen 2 Type-A
Other ConnectorsCOM Header: 5x COM Header (RS232)
SGPIO Header: 2x Header
USB3.2 Gen1: 1 x Header Support Additional, 2 x USB3.2 Gen1 Ports,: 1 x vertical connector
USB2.0: 2x Header Support Additional, 4 x USB2.0 Ports
CPU Fan/ Chassis Fan: 1 x Header (PWM Mode) / 3 x Header (PWM Mode)
Front Panel Audio (AAFP): 1 x Header
System Panel: 1 x Header
Chassis Intrusion: 1 x Header
Speaker connector: 1 x Header
I2C Header: 1 x Header
Clear CMOS: 1 x Header
COM Debug: 1 x Header
LPT port header: 1 x Header
Buzzer: 1
PS/2: 1 x Header
SPDIF: 1 x Header
GPIO: 1 x Header (8 Bit)
DIS ME jumper: 1 x Header
AT/A
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Package Contents1 x IO Shield
1 x SATA III CABLE
2 x M.2 SCREWPACK
Shipping weight0.82 kg
Package size273 × 267 × 53 mm

Questions about this item

Which DDR5 modules do I need for the four 288-pin slots?

Install DDR5-4400 U-DIMMs, up to 128 GB total across the four slots.

Can I keep my PCIe 3.0 add-in cards in the two x4 slots?

The two PCIe 4.0 x4 slots are backward compatible with PCIe 3.0 cards at x4 speed.

How do I verify the dual 1 GbE ports are active after build?

Check both Intel I210 and I219 controllers appear in Device Manager and show 1 Gbps link lights.
