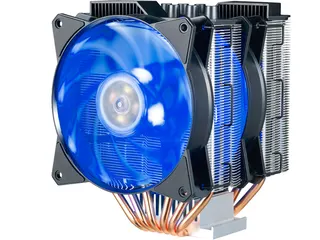

Black twin-tower CPU air cooler with two 120 mm RGB fans and six heatpipes

Cooler Master

Cooler Master MAP-D6PN-218PC-R1 CPU cooler

SKU CH-7HWH-X1V34 MPN MAP-D6PN-218PC-R1

Twin-tower air cooler with six heatpipes, dual 120 mm RGB fans and a wired controller for broad socket compatibility

  • ColorBlack
  • TypeFan & Heatsinks
  • Fan Size120mm
  • CPU Socket CompatibilityIntel LGA 2066 / 2011-v3 / 2011 / 1366 / 1156 / 1155 / 1151
  • RPM600 - 1,800 RPM (PWM) +/- 10%
  • Air Flow53.4 CFM (Max)
  • Twin-tower design doubles heat dissipation over single-tower coolers
  • Six heatpipes with CDC 2.0 increase contact surface by 45 percent
  • Dual 120 mm RGB fans deliver up to 53.4 CFM airflow
  • PWM control keeps noise as low as 31 dBA at 600 RPM
  • Wired RGB controller provides 16.7 million colours without motherboard software

Cooler Master MA620P Twin Tower CPU Cooler

The Cooler Master MA620P is a twin-tower air cooler built on the Hyper 212 design with double the heat dissipation. It uses six heatpipes with Continuous Direct Contact Technology 2.0 and two 120mm RGB MasterFans. The unit stands 158 mm tall and weighs 850 g. It fits a wide range of Intel and AMD sockets.

Builders wanting RGB air cooling

This cooler suits builders who want RGB lighting and strong air cooling for mainstream or enthusiast CPUs on supported Intel LGA and AMD platforms. The 158 mm height and twin-tower width require a case with sufficient clearance. Buyers needing a low-profile cooler for small-form-factor cases or liquid cooling for extreme overclocks should look elsewhere.

158 mm cooler height decides case fit

The maximum cooler height is 158 mm, which determines whether the MA620P fits inside your chassis. Measure the available CPU cooler clearance in your case before purchase. If the case allows less than 158 mm, this cooler cannot be installed.

Highlights

  • Twin-tower design doubles heat dissipation over single-tower coolers
  • Six heatpipes with CDC 2.0 increase contact surface by 45 percent
  • Dual 120 mm RGB fans deliver up to 53.4 CFM airflow
  • PWM control keeps noise as low as 31 dBA at 600 RPM
  • Wired RGB controller provides 16.7 million colours without motherboard software

Specifications

BrandCOOLER MASTER
SeriesMasterAir MA620P
ModelMAP-D6PN-218PC-R1
ColorBlack
TypeFan & Heatsinks
Fan Size120mm
CPU Socket CompatibilityIntel LGA 2066 / 2011-v3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775
AMD Socket AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
RPM600 - 1,800 RPM (PWM) +/- 10%
Air Flow53.4 CFM (Max)
Noise Level31 dBA (Max)
Power Connector4-Pin (PWM)
LEDRGB
Heatsink Material6 Heatpipes / CDC 2.0 / Aluminum Fins
Fan Mounting Types to HeatsinkVertical
Max CPU Cooler Height158 mm
Fan Dimensions120.00 x 120.00 x 25.00 mm (4.7" x 4.7" x 1")
Heatsink Dimensions116.00 x 110.10 x 158.40 mm (4.6" x 4.3" x 6.2")
Weight850g (1.87lb.)
FeaturesTwin-Tower Design - Based on the highly regarded Hyper 212 heatsink design with double the heat dissipation power.
Exceptional Performance - With 6 heatpipes and Continuous Direct Contact Technology 2.0 (CDC 2.0), the contact surface area of heatpipes to cooler base is increased by 45%. This further enhances the heat transfer mechanism and significantly improves conductance and cooling capability.
Custom Colors - With two MasterFan MF120R RGB fans, the MasterAir MA620P is ready for more than 16.7 million color options and tons of fun effects.
Wired RGB Controller C10L - Even without
Shipping weight1.56 kg
Package size231 × 178 × 161 mm

Questions about this item

What CPU socket must my motherboard have for this 158 mm tall twin‑tower cooler to mount?

It supports Intel LGA 2066, 2011‑v3, 2011, 1366, 1156, 1155, 1151, 1150, 775 and AMD AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1.

Will the dual 120 mm RGB fans run on an older 4‑pin PWM header limited to lower speeds?

Yes, the fans accept 4‑pin PWM control from 600 to 1,800 RPM and will scale down to the header's minimum.

How can I confirm the two MF120R fans and the C10L controller are functioning after installation?

The fans should spin up to 1,800 RPM under load, stay below 31 dBA at idle, and the C10L lets you cycle 7 colours, 5 brightness levels and 6 preset effects without motherboard software.
