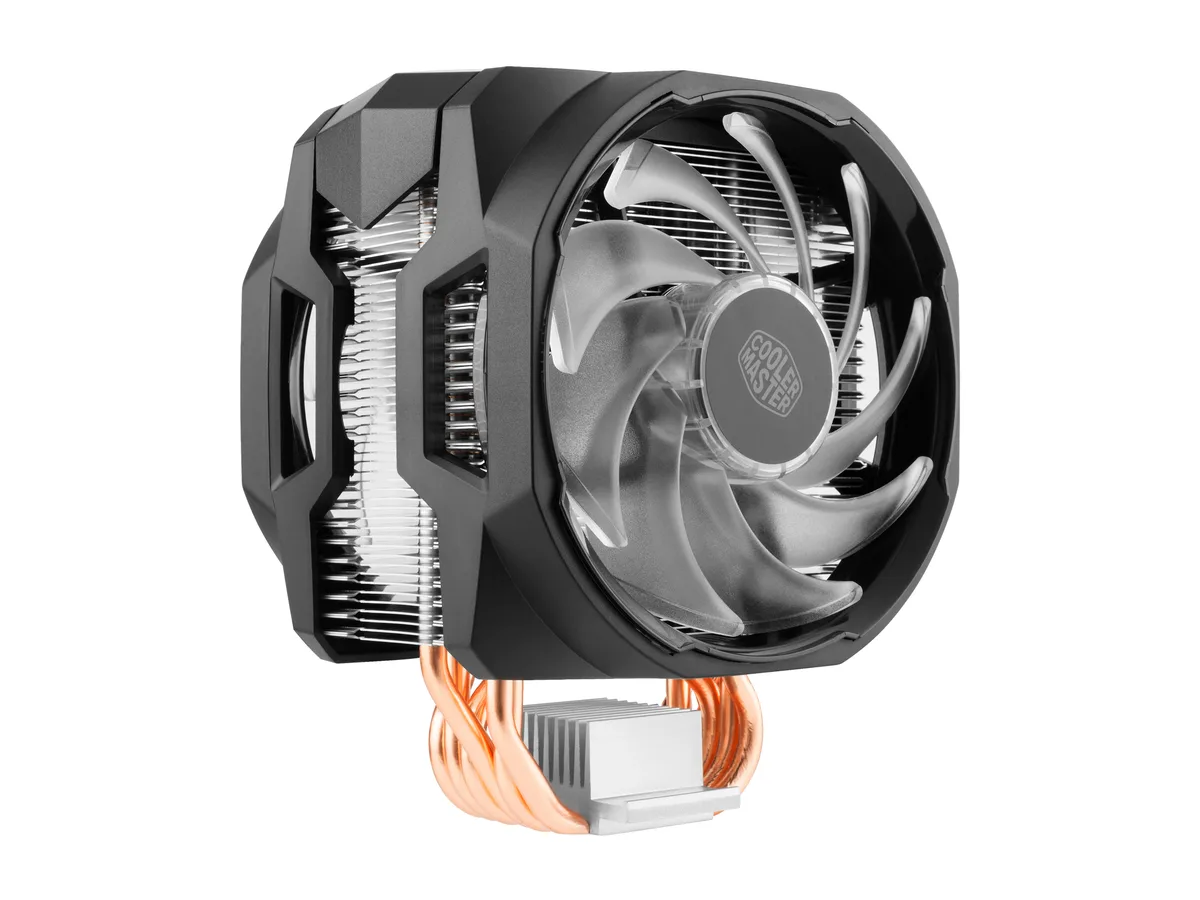

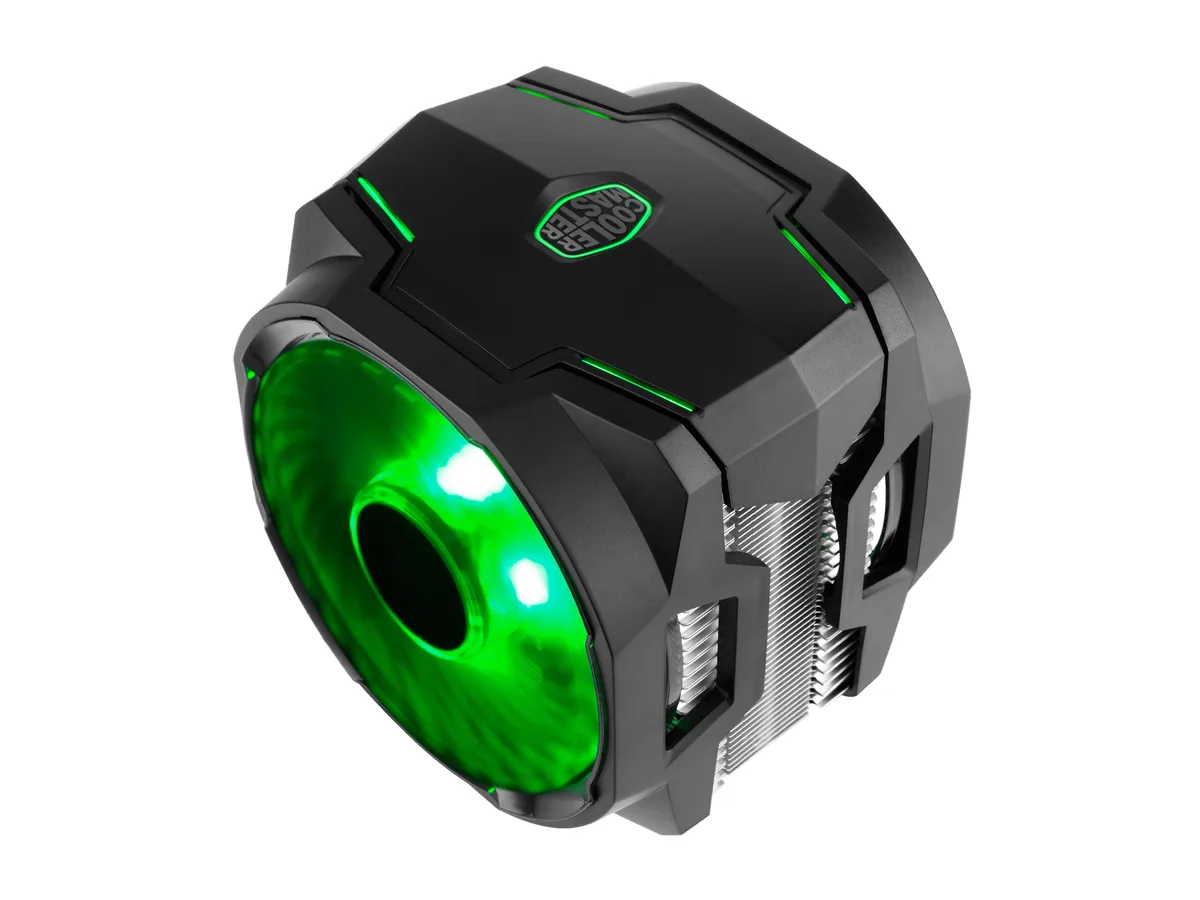

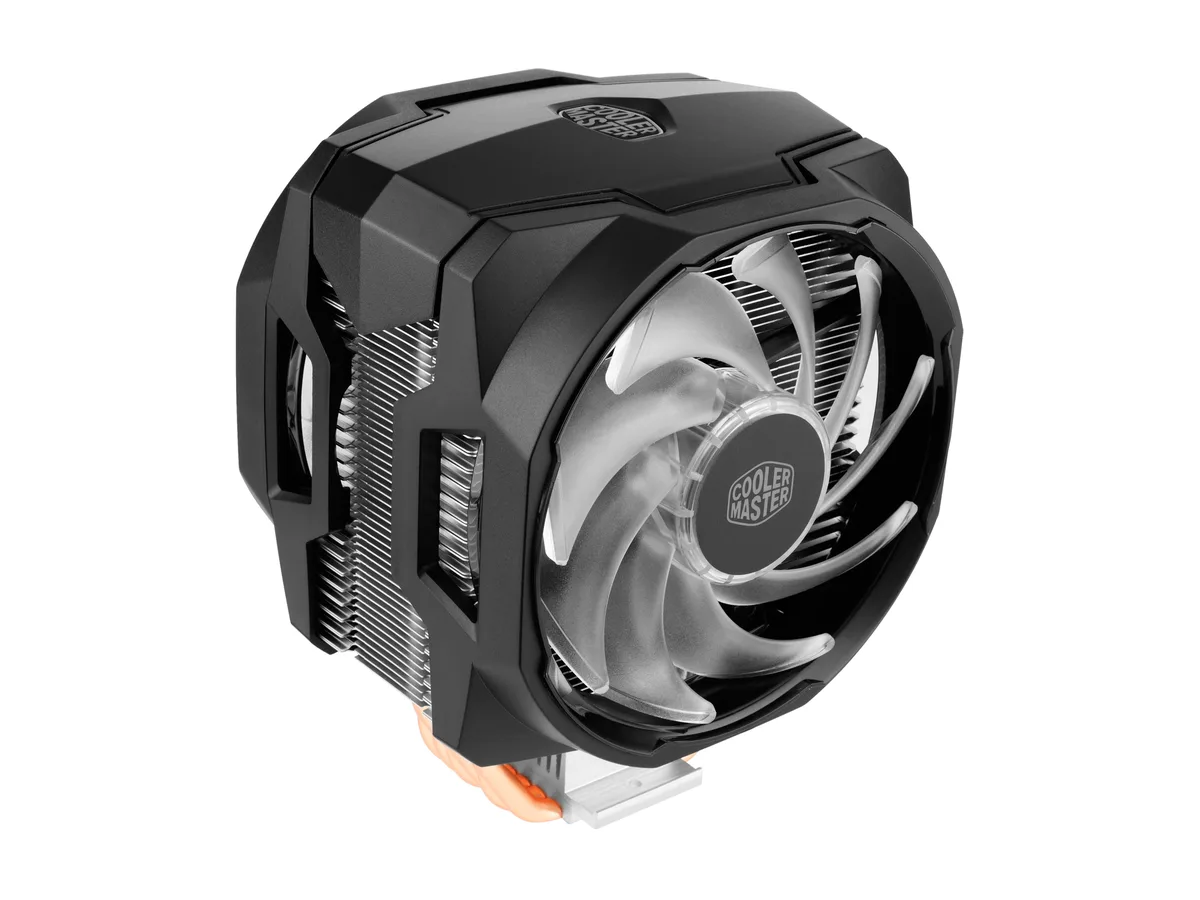

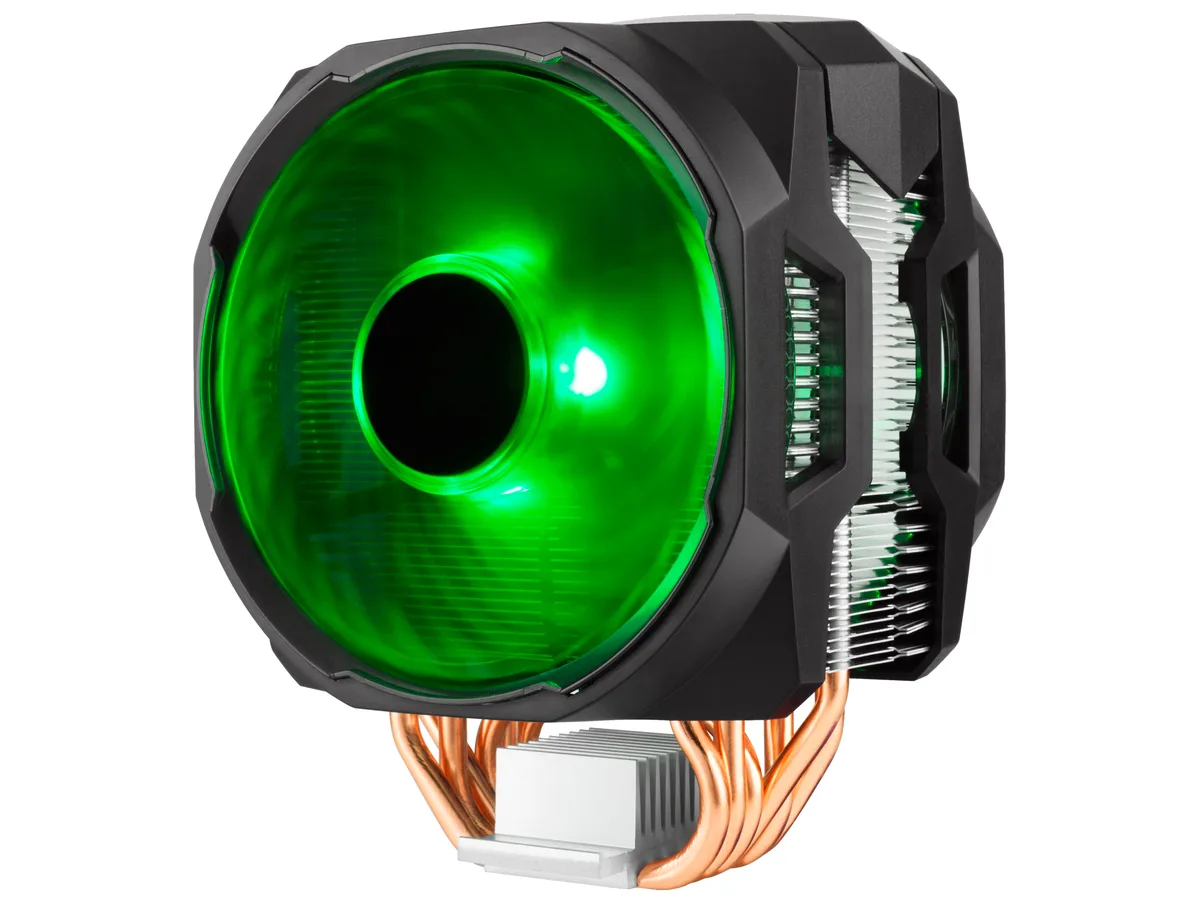

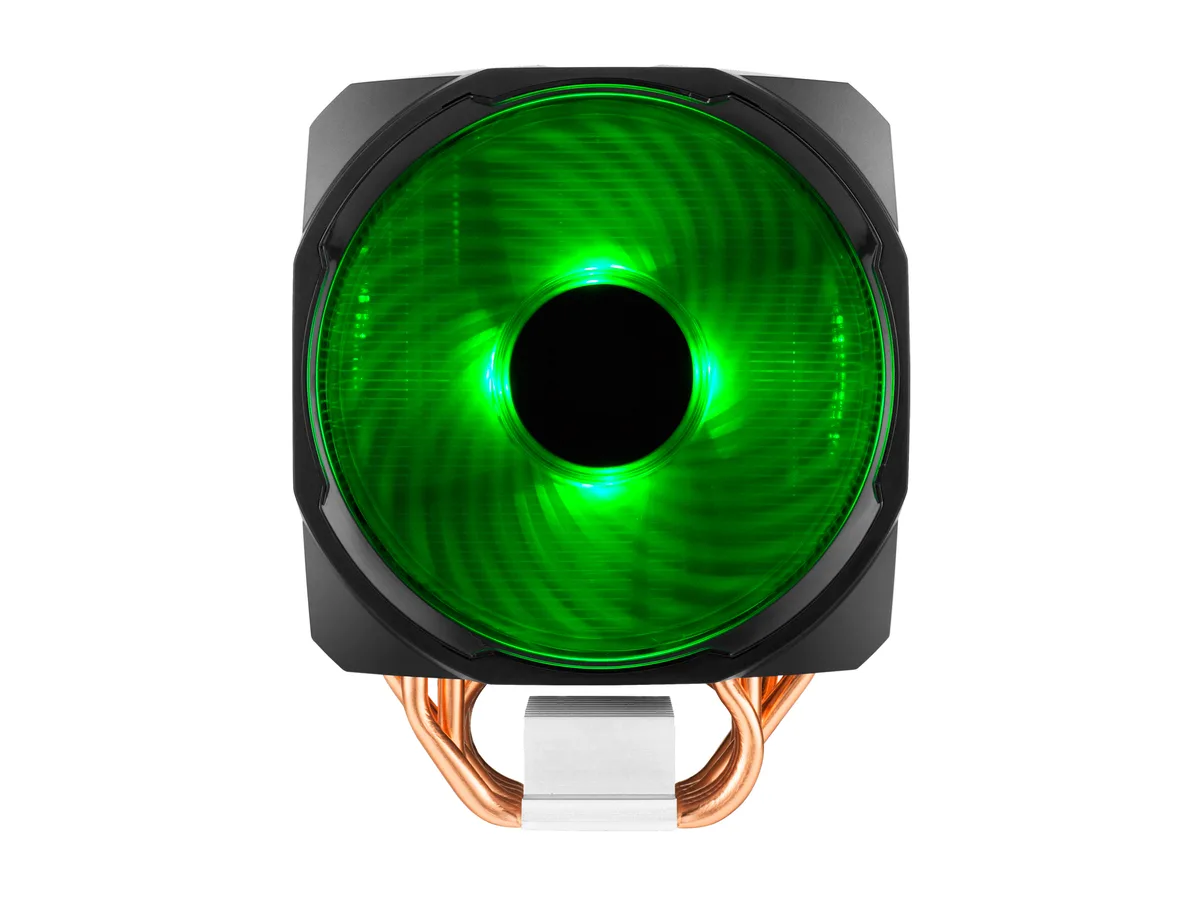

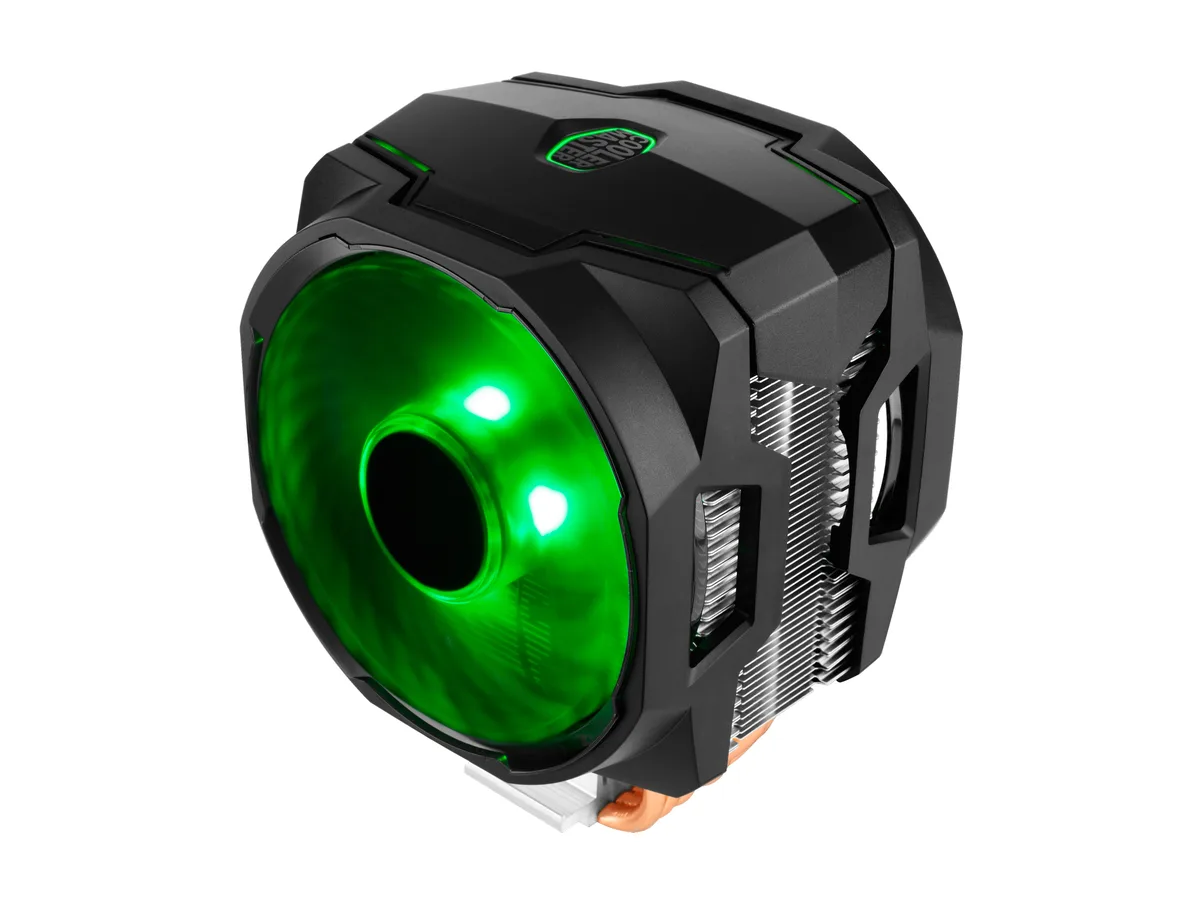

Black tower CPU cooler with dual 120mm RGB fans and six heat pipes

Cooler Master

Cooler Master MAP-T6PN-218PC-R1 CPU cooler

SKU CH-HJS5-KX0AC MPN MAP-T6PN-218PC-R1

Dual 120 mm RGB fans and six heat pipes with CDC 2.0 technology cool compatible Intel and AMD sockets at up to 53.38 CFM and 35 dBA

  • ColorBlack
  • TypeFan & Heatsinks
  • Fan Size120mm
  • CPU Socket CompatibilityIntel LGA 2066 / 2011-v3 / 2011 / 1366 / 1156 / 1155 / 1151
  • RPM650 - 1,800 RPM (PWM) +/- 10%
  • Air Flow53.38 CFM +/- 10%
  • 6 heat pipes with CDC 2.0 technology conduct heat directly from the CPU
  • Dual 120 mm MasterFan MF120R RGB fans push and pull air at up to 1800 RPM
  • 38 CFM airflow at a maximum of 35 dBA keeps temperatures low and noise quiet
  • Wired RGB controller provides 6 lighting modes and 5 brightness levels without motherboard software
  • 5 mm height and universal brackets fit Intel LGA 2066, 2011-v3, 2011, 1366, 1156, 1155, 1151, 1150, 775 and AMD AM4, AM3+, AM3, AM2+, AM2.

MA610P RGB Air Cooler for Gamers and Overclockers

The Cooler Master MA610P RGB CPU air cooler targets gamers and overclockers who want low temperatures and vivid lighting. Six heat pipes with Continuous Direct Contact 2.0 technology expand the copper base area by 45 percent for efficient heat transfer. Dual 120mm MasterFan MF120R RGB fans run in push-pull configuration to move 53.38 CFM of airflow. A wired RGB controller adds 16.7 million colour options for systems without motherboard RGB headers.

Sustained Load Behaviour with Dual Push-Pull Fans

Under continuous load the dual fans operate between 650 and 1,800 RPM via PWM control. The push-pull arrangement maintains high static pressure across the aluminium fin stack while peak noise stays at 35 dBA. Six heat pipes with CDC 2.0 technology conduct heat away from the CPU consistently, keeping temperatures stable during extended gaming or rendering sessions.

166.5 mm Height Clearance Decides Case Fit

The cooler stands 166.5 mm tall, so the chassis must provide at least that much CPU cooler clearance. Builders with compact cases should verify internal height before purchase. Compatibility covers Intel LGA 2066, 2011-v3, 2011, 1366, 1156, 1155, 1151, 1150, 775 and AMD AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 sockets.

Highlights

  • 6 heat pipes with CDC 2.0 technology conduct heat directly from the CPU
  • Dual 120 mm MasterFan MF120R RGB fans push and pull air at up to 1800 RPM
  • 38 CFM airflow at a maximum of 35 dBA keeps temperatures low and noise quiet
  • Wired RGB controller provides 6 lighting modes and 5 brightness levels without motherboard software
  • 5 mm height and universal brackets fit Intel LGA 2066, 2011-v3, 2011, 1366, 1156, 1155, 1151, 1150, 775 and AMD AM4, AM3+, AM3, AM2+, AM2.

Specifications

BrandCOOLER MASTER
SeriesMasterAir
ModelMAP-T6PN-218PC-R1
ColorBlack
TypeFan & Heatsinks
Fan Size120mm
CPU Socket CompatibilityIntel LGA 2066 / 2011-v3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775
AMD Socket AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
RPM650 - 1,800 RPM (PWM) +/- 10%
Air Flow53.38 CFM +/- 10%
Noise Level35 dBA (Max)
Power Connector4 Pin
LEDRGB
Heatsink Material6 Heat pipes / Direct Contact / Aluminum Fins
Max CPU Cooler Height166.5 mm
Fan Dimensions120.00 x 120.00 x 25.00 mm
Heatsink Dimensions116.00 x 60.00 x 158.00 mm
Weight2.47 lbs.
FeaturesCDC 2.0 – Excellent heat dissipation with 6 heatpipes and Continuous Direct Contact 2.0 technology.
Dual MasterFan RGB – Push and pull dual MasterFan MF120R RGB fans to maximize CPU cooling with plenty of color while doing it.
Unique Top Cover Design - Creative RGB LED logo design with additional light strips on the top cover for aesthetic customization.
Wired RGB LED Controller – The Controller allows customizable colors and effects for the fans and top cover with just the touch of a button.
Package ContentsUniversal brackets
Thermal Paste
User Guide
Shipping weight1.29 kg
Package size234 × 163 × 138 mm

Questions about this item

How loud is the dual MasterFan MF120R RGB setup when the cooler runs at full speed all day?

The noise level peaks at 35 dBA at the maximum 1,800 RPM fan speed, so sustained load stays within that acoustic ceiling.

Which motherboard header or controller is needed to run the RGB lighting on the MA610P?

A standard 4-pin PWM header powers the fans, while RGB can be driven either by a 5 V addressable motherboard header or the included wired RGB LED controller for non-RGB boards.

Will the 166.5 mm tall heatsink clear the RAM slots and side panel on my older LGA 1151 or AM4 build?

At 166.5 mm height the cooler fits most mid-tower cases, and the universal brackets support both LGA 1151 and AM4 sockets, though tall RAM modules should be checked against the 116 mm heatsink width.
