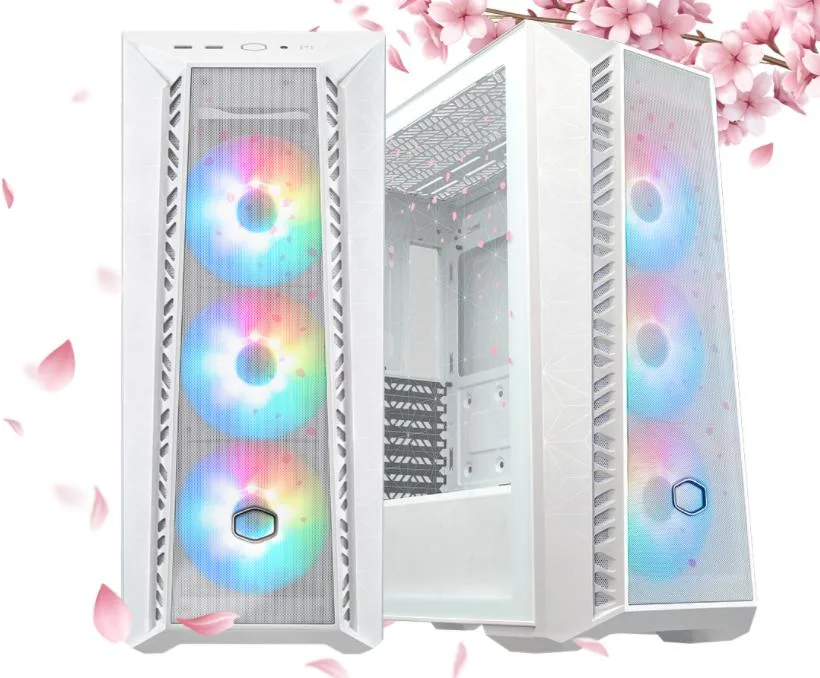

White mid tower PC case with mesh front panel, tempered glass side window and Sakura limited edition branding

Cooler Master

Cooler Master MasterBox 520 Mesh Sakura Limited Edition PC Case

SKU CH-EH0B-SQHXD

Mid-tower case with mesh front and tempered-glass side panel supports Mini-ITX to E-ATX boards, dual 360 mm radiators, seven 120 mm fans and 410 mm graphics cards

  • TypeMid Tower
  • ColorWhite
  • Case MaterialMesh, Steel, Plastic, Tempered Glass
  • Power Supply MountedBottom
  • Motherboard CompatibilityMini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 14.
  • Side Panel WindowYes
  • Unrestricted airflow from full mesh intakes keeps thermals low
  • Removable top panel simplifies radiator and fan installation
  • Supports dual 360mm radiators on front and top
  • Included ARGB hub adds four fan headers for lighting control
  • Removable HDD cage clears space for long graphics cards

Sakura Limited Edition chassis

The Cooler Master MasterBox 520 Mesh Sakura Limited Edition is a mid-tower case finished in white with mesh, steel, plastic and tempered-glass panels. It accommodates Mini ITX, Micro ATX, ATX, SSI CEB and E-ATX motherboards up to 12 by 14.1 inches. Seven expansion slots and drive bays for two 3.5-inch and three 2.5-inch devices provide internal flexibility.

Sustained-load thermal behaviour

Large mesh intakes on the front, top and bottom feed up to seven 120-millimetre or 140-millimetre fans and dual 360-millimetre radiators. The removable top panel simplifies radiator installation, while the included ARGB fan hub controls three pre-installed front fans and adds four extra headers. A ventilated PSU cover supports active or passive units in multiple orientations.

Pre-order compatibility checks

Verify that your CPU cooler does not exceed 165 millimetres in height and that your graphics card fits within 410 millimetres. The power supply should be no longer than 200 millimetres, with 170 millimetres recommended for cable routing. Ensure the 443 by 210 by 498-millimetre body dimensions suit your workspace and that the E-ATX board size does not interfere with cable-management features.

Highlights

  • Unrestricted airflow from full mesh intakes keeps thermals low
  • Removable top panel simplifies radiator and fan installation
  • Supports dual 360mm radiators on front and top
  • Included ARGB hub adds four fan headers for lighting control
  • Removable HDD cage clears space for long graphics cards

Specifications

BrandCooler Master
SeriesMASTERBOX 520
ModelMASTERBOX 520 MESH SAKURA
Part NumberMB520-WGNN-S02
TypeMid Tower
ColorWhite
Case MaterialMesh, Steel, Plastic, Tempered Glass
Power Supply MountedBottom
Motherboard CompatibilityMini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 14.1", may impact cable management features)
Side Panel WindowYes
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays3
Expansion Slots7
Front Ports1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button
Fan OptionsFan Support - Top 3x 120mm / 2x 140mm
Fan Support - Front 3x 120mm / 2x 140mm
Fan Support - Rear 1x 120mm
Radiator Options120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
Max GPU Length410mm / 16.14"
Max CPU Cooler Height165mm / 6.49"
Max PSU Length200mm / 7.87", (Recommended up to 170mm)
Dimensions (H x W x D)443 x 210 x 498mm

Questions about this item

Will a 360 mm radiator fit in the top panel without blocking the motherboard area?

The top panel supports a 360 mm radiator up to 55 mm thick and is fully removable for easy installation.

What motherboard sizes can I install and are there any caveats?

Mini ITX, Micro ATX, ATX, SSI CEB and E-ATX up to 12" x 14.1" are supported; the largest E-ATX boards may limit cable-management space.

How many drives can I mount and what brackets are included?

Two 3.5" bays and three 2.5" bays are provided; the 3.5" cage is completely removable for extra clearance.
