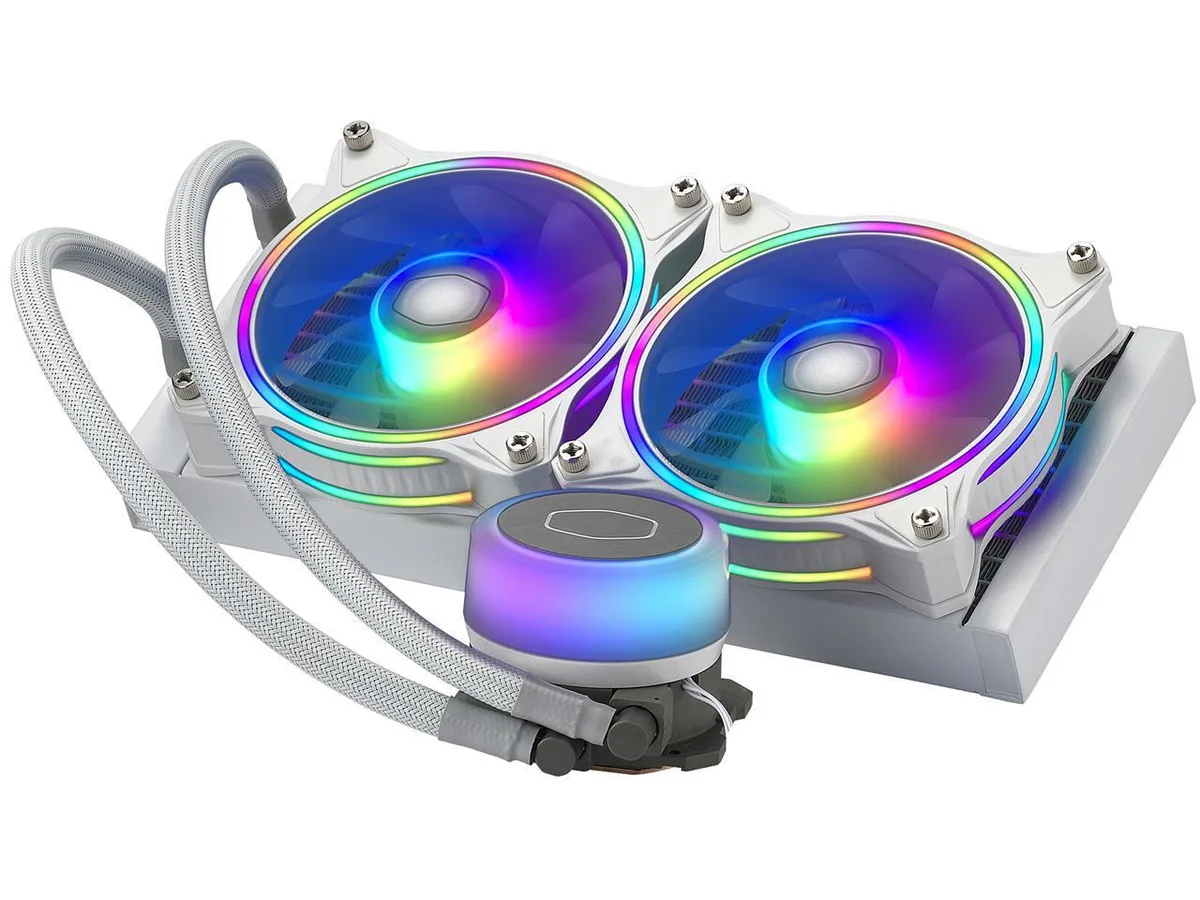

White all-in-one liquid cooler with translucent pump dome, dual 120mm ARGB halo fans and 240mm aluminium radiator

Cooler Master

Cooler Master MasterLiquid ML240 Illusion White Edition liquid cooler

SKU CH-ZM4X-XHXCC

A 240 mm all-in-one liquid CPU cooler with a translucent pump dome, dual 120 mm ARGB Halo fans and a third-generation dual-chamber pump rated below 10 dBA

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011-v3 / 2011 / 1700 / 1200 / 1156 / 1155
  • Pump Dim.81.40 x 76.00 x 57.80 mm
  • Pump Noise<10 dBA
  • Radiator Size277.00 x 119.60 x 27.20 mm
  • Radiator MaterialAluminum
  • Translucent dome and rotatable logo create vivid ARGB visuals customised via MasterPlus+ software
  • Third-generation dual-chamber pump runs below 10 dBA for near-silent operation
  • Widened radiator channels increase the 240 mm dissipation surface for better heat removal

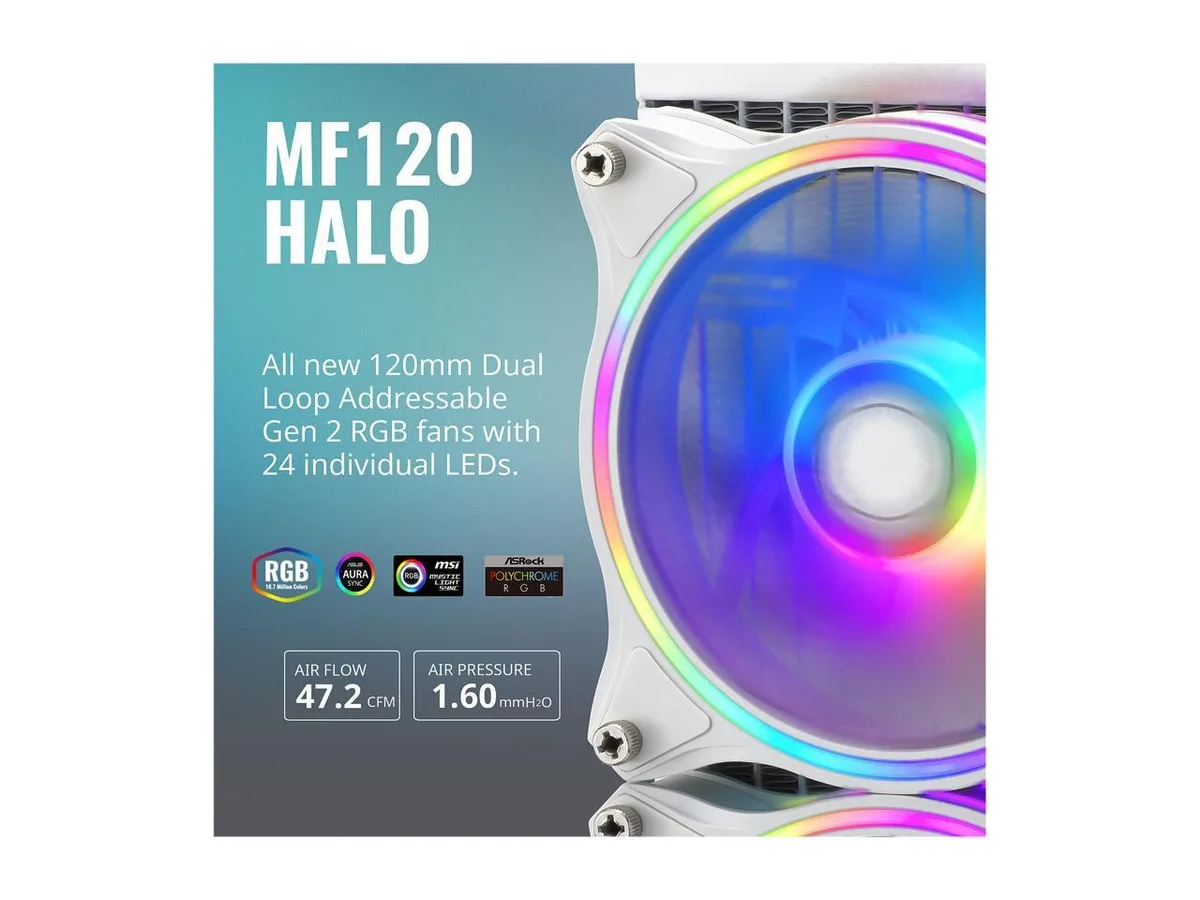

  • Dual MF120 Halo fans each carry 24 ARGB LEDs and spin 650 to 1800 RPM for up to 47.2 airflow
  • Industrial-grade EPDM seal reinforces the loop for long-term leak prevention

White Illusion AIO for mainstream CPUs

The MasterLiquid ML240 Illusion White Edition is an all-in-one liquid cooler with a 240 mm aluminium radiator and two 120 mm ARGB Halo fans. It targets builders who want quiet CPU cooling and extensive addressable lighting in a white-themed build. The third-generation dual-chamber pump runs below 10 dBA while the fans span 650 to 1800 RPM for scalable airflow.

Check socket clearance and ARGB header count

Verify that your motherboard offers a 4-pin fan header for pump power and a 5 V addressable RGB header or the included mini controller for lighting. Confirm the CPU socket matches the supported Intel LGA 1150, 1151, 1155, 1156, 1200, 1700, 2011, 2011-v3 or 2066 and AMD AM2, AM2+, AM3, AM3+, AM4, FM1, FM2 or FM2+ list. Ensure the 277 mm radiator fits your case mounting points.

Fits standard 240 mm mounts

The 277 x 119.6 x 27.2 mm radiator occupies two 120 mm fan slots in top, front or rear positions. Two 120 x 120 x 25 mm fans deliver up to 47.2 airflow at 30 dBA maximum. The compact 81.4 x 76 x 57.8 mm pump block clears most RAM heatsinks and leaves the motherboard power zone accessible. ARGB control is handled by MasterPlus+ software or the supplied splitter and mini controller.

Highlights

  • Translucent dome and rotatable logo create vivid ARGB visuals customised via MasterPlus+ software
  • Third-generation dual-chamber pump runs below 10 dBA for near-silent operation
  • Widened radiator channels increase the 240 mm dissipation surface for better heat removal
  • Dual MF120 Halo fans each carry 24 ARGB LEDs and spin 650 to 1800 RPM for up to 47.2 airflow
  • Industrial-grade EPDM seal reinforces the loop for long-term leak prevention

Specifications

BrandCOOLER MASTER
ModelMLX-D24M-A18PW-R1
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011-v3 / 2011 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150 AMD AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
Pump Dim.81.40 x 76.00 x 57.80 mm
Pump Noise<10 dBA
Radiator Size277.00 x 119.60 x 27.20 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120.00 x 120.00 x 25.00 mm
Fan RPM650 ~ 1800 RPM (+/- 10%)
Fan Air Flow47.2 (Max)
Fan Noise6~30 dBA
Fan Connector4 Pin
ColorWhite
LED ColorARGB

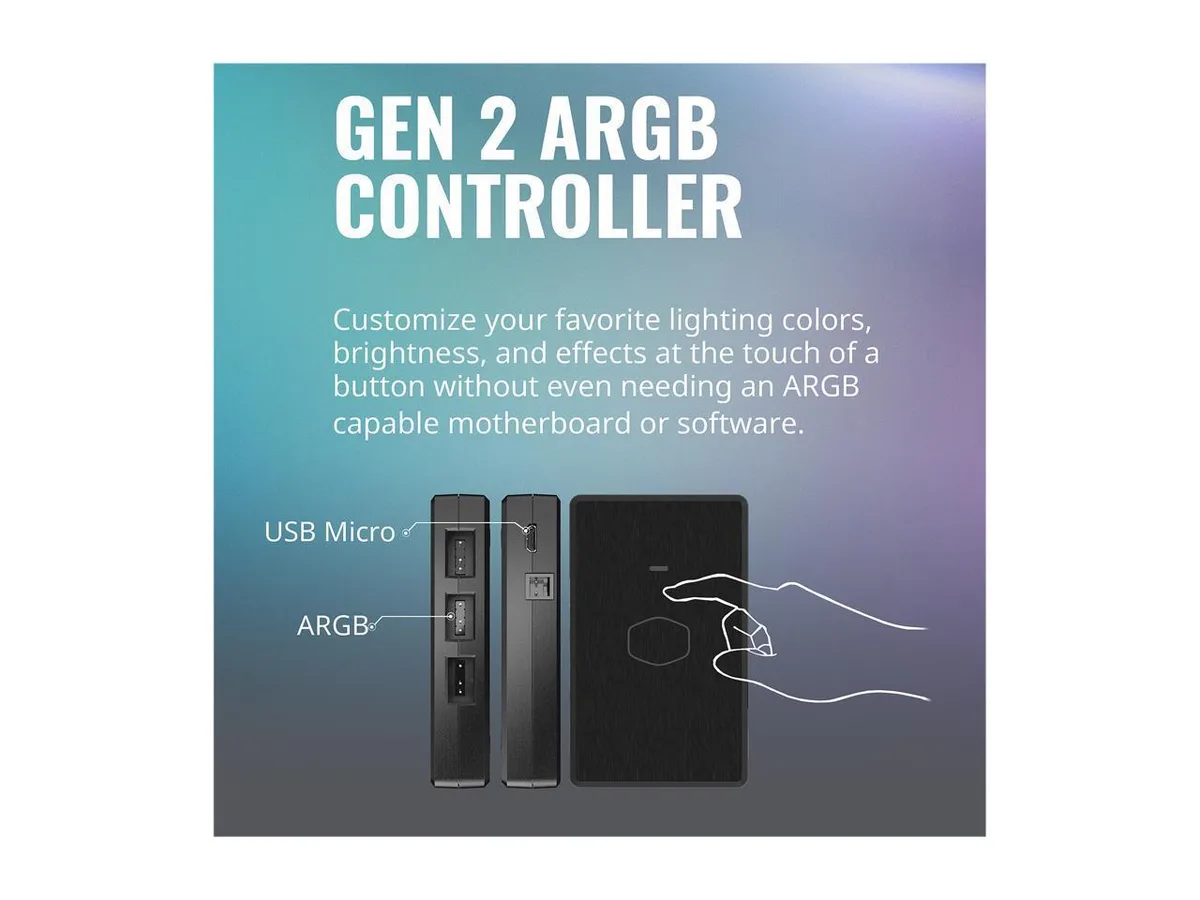

Package ContentsML240 Illusion White Edition Dual MF120 Halo White Edition 3-to-1 ARGB Splitter Cable Mini ARGB LED Controller Install Tool Kits for AMD/Intel Manual

Questions about this item

What comes in the box with the ML240 Illusion White Edition and what must I buy separately?

The package includes the 240 mm radiator, two 120 mm MF120 Halo White Edition fans, a 3-to-1 ARGB splitter cable, a mini ARGB LED controller, install tool kits for AMD and Intel, and a manual. Extra LGA 1700 mounting brackets are not included and must be purchased from the manufacturer.

How do I choose between the fan-speed and noise profiles of this cooler?

The two included 120 mm fans run from 650 to 1800 RPM and produce 6 to 30 dBA. Use motherboard PWM control to select a quiet curve at lower RPM or a performance curve at higher RPM depending on your thermal and acoustic targets.

What does the pump noise rating of under 10 dBA mean once the cooler is installed in a system?

The 3rd Gen Dual Chamber Pump operates below 10 dBA, so pump noise is typically inaudible inside a closed case. Overall system noise will be dominated by the fans, which range from 6 to 30 dBA depending on the speed curve you set.
