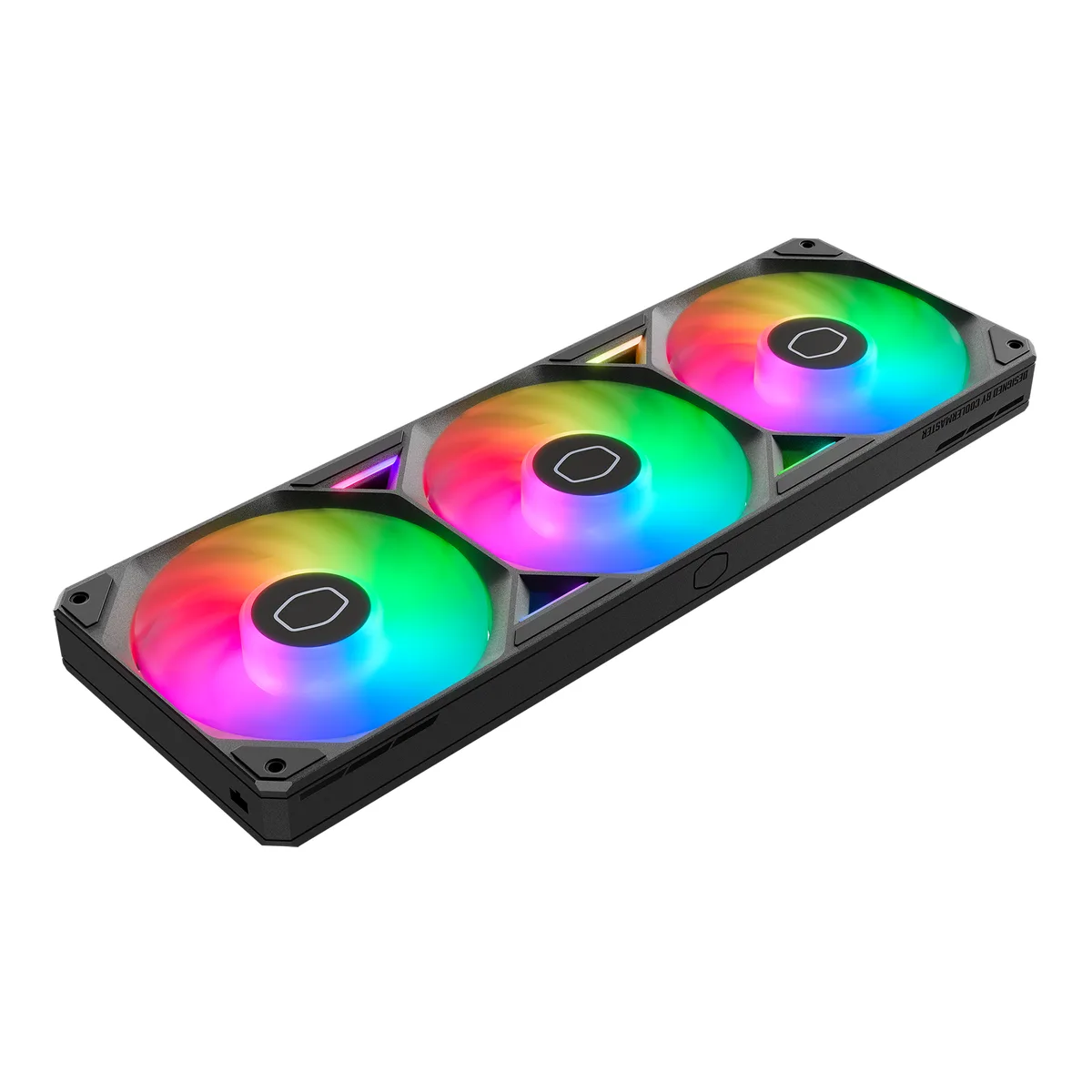

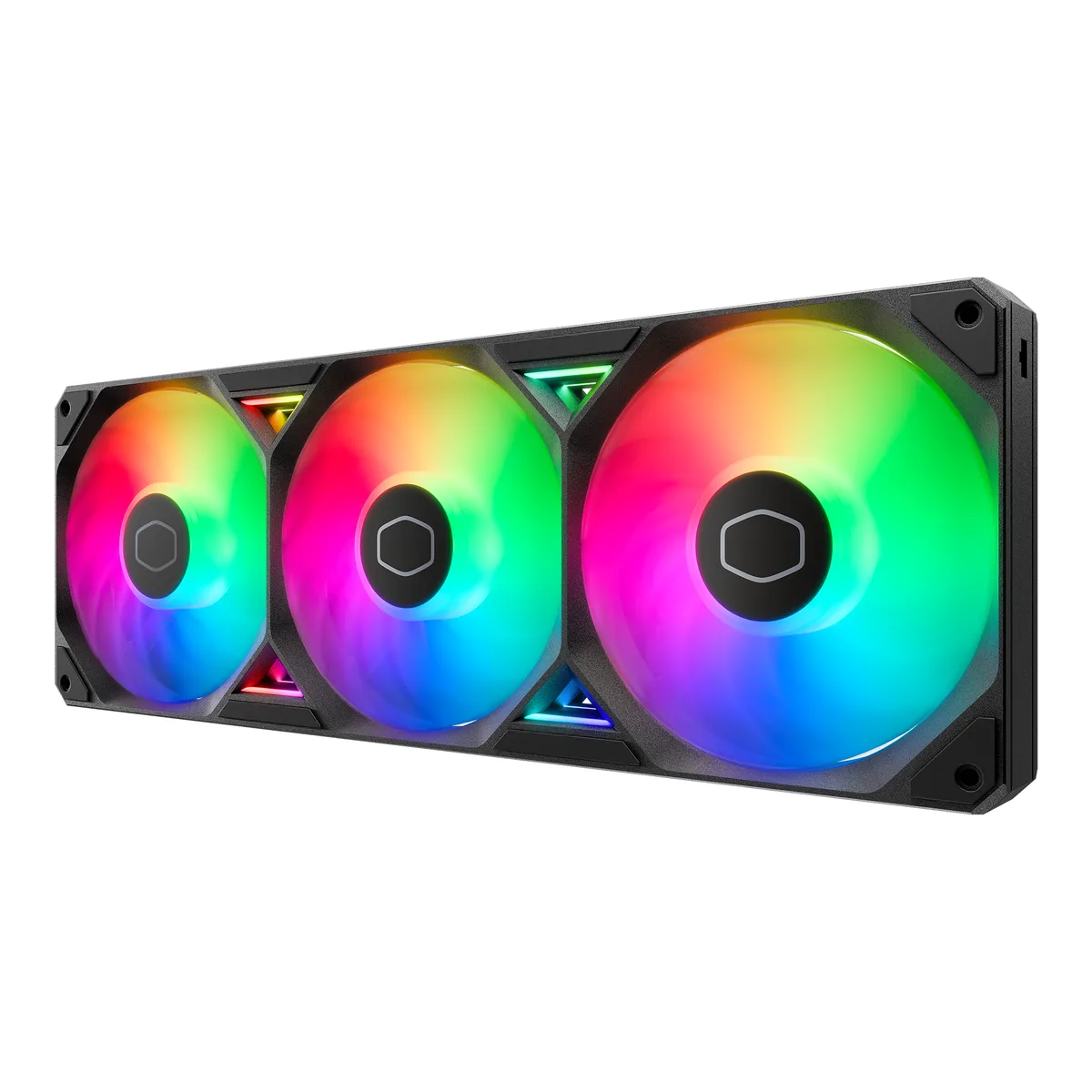

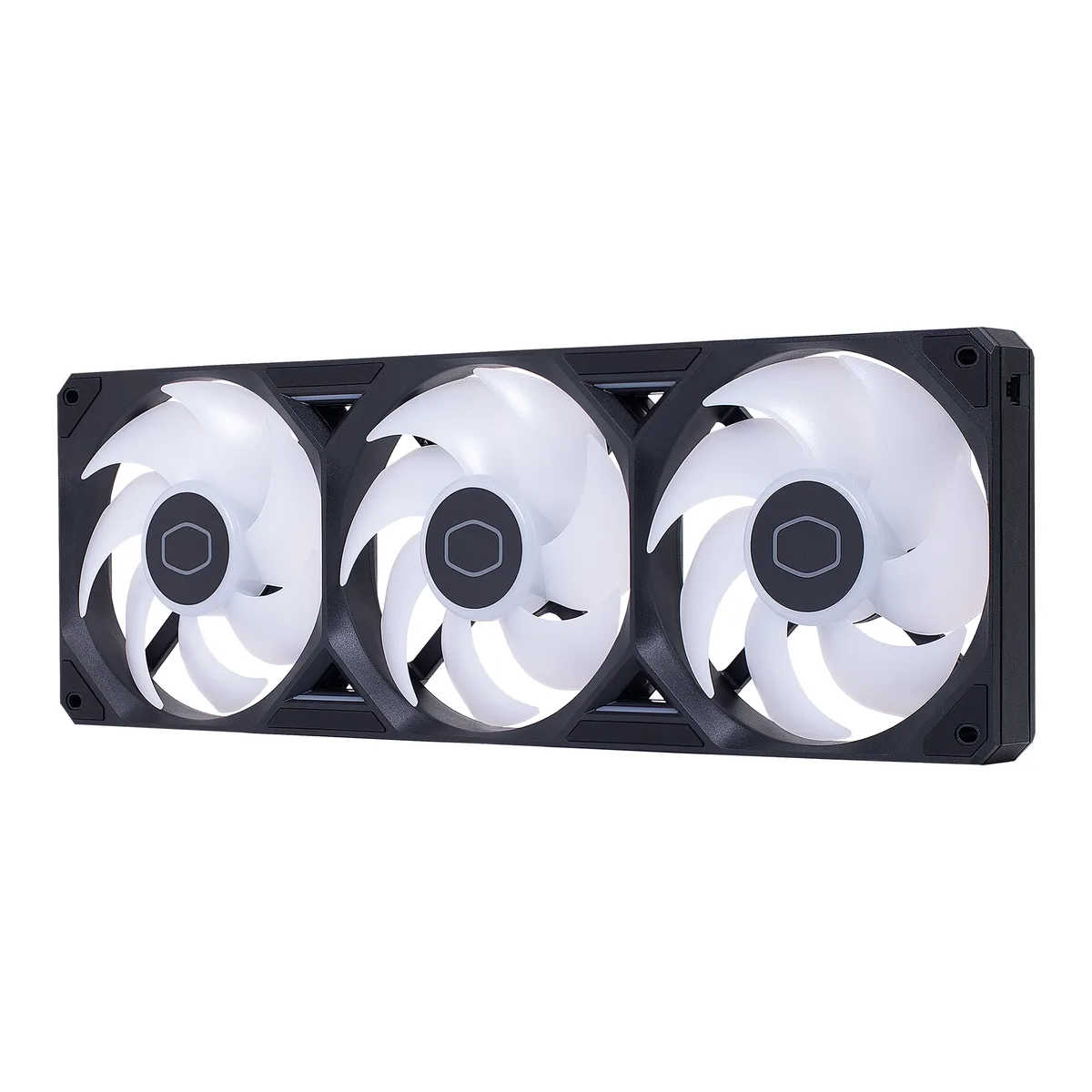

Single black 360mm frame fan with frosted ARGB blades and modular cable

Cooler Master

Cooler Master MFX-B2DN-25TP2-R1 360mm case fan

SKU CH-THX0-J4NRD MPN MFX-B2DN-25TP2-R1

A 360 mm case fan delivering up to 190 CFM airflow at 38.5 dBA with addressable RGB lighting and a single modular cable for power and control

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size360mm
  • Fan Thickness26.5mm
  • Single-frame design optimises internal airflow for efficient heat dissipation
  • Integrated lightweight module with triangular vents enhances airflow and durability

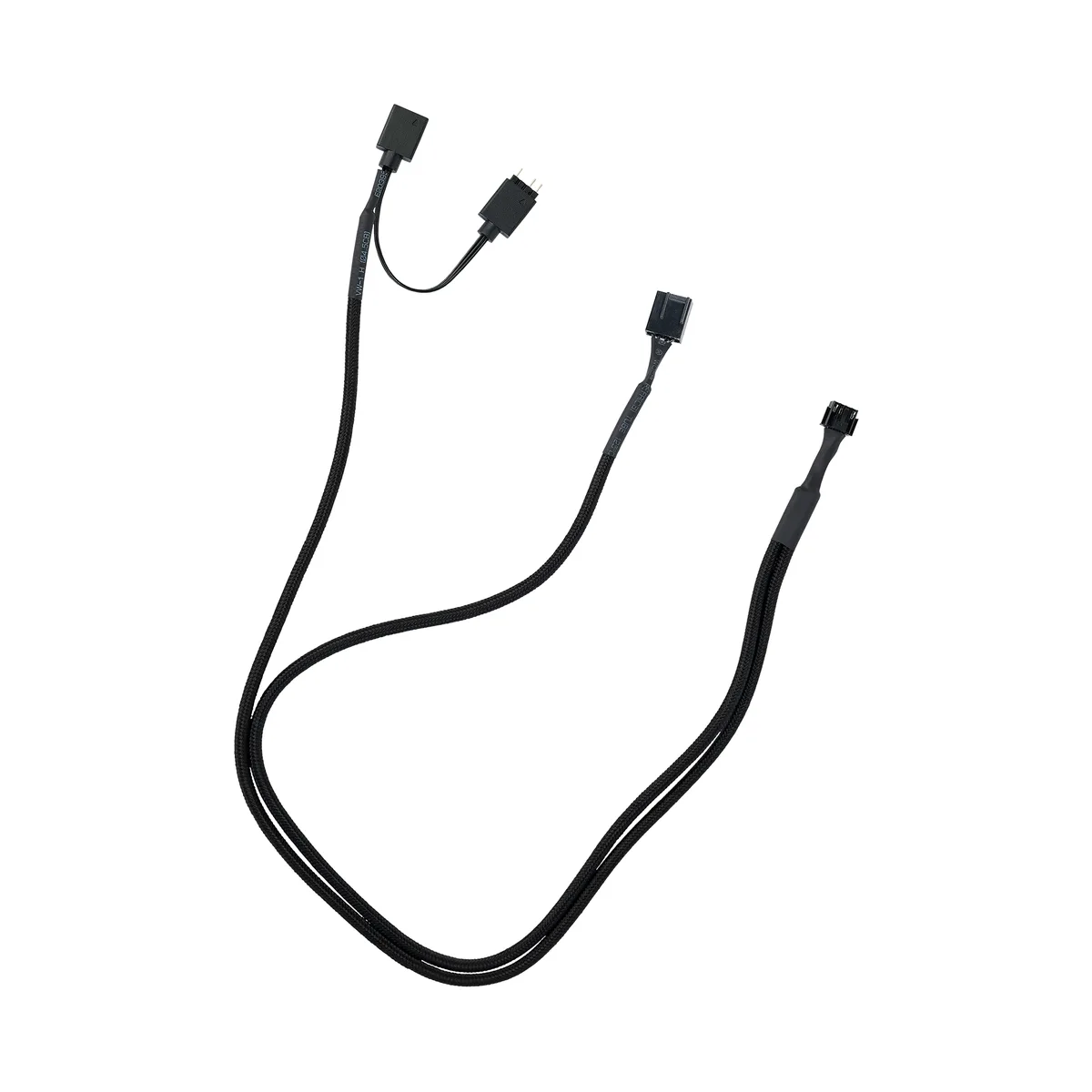

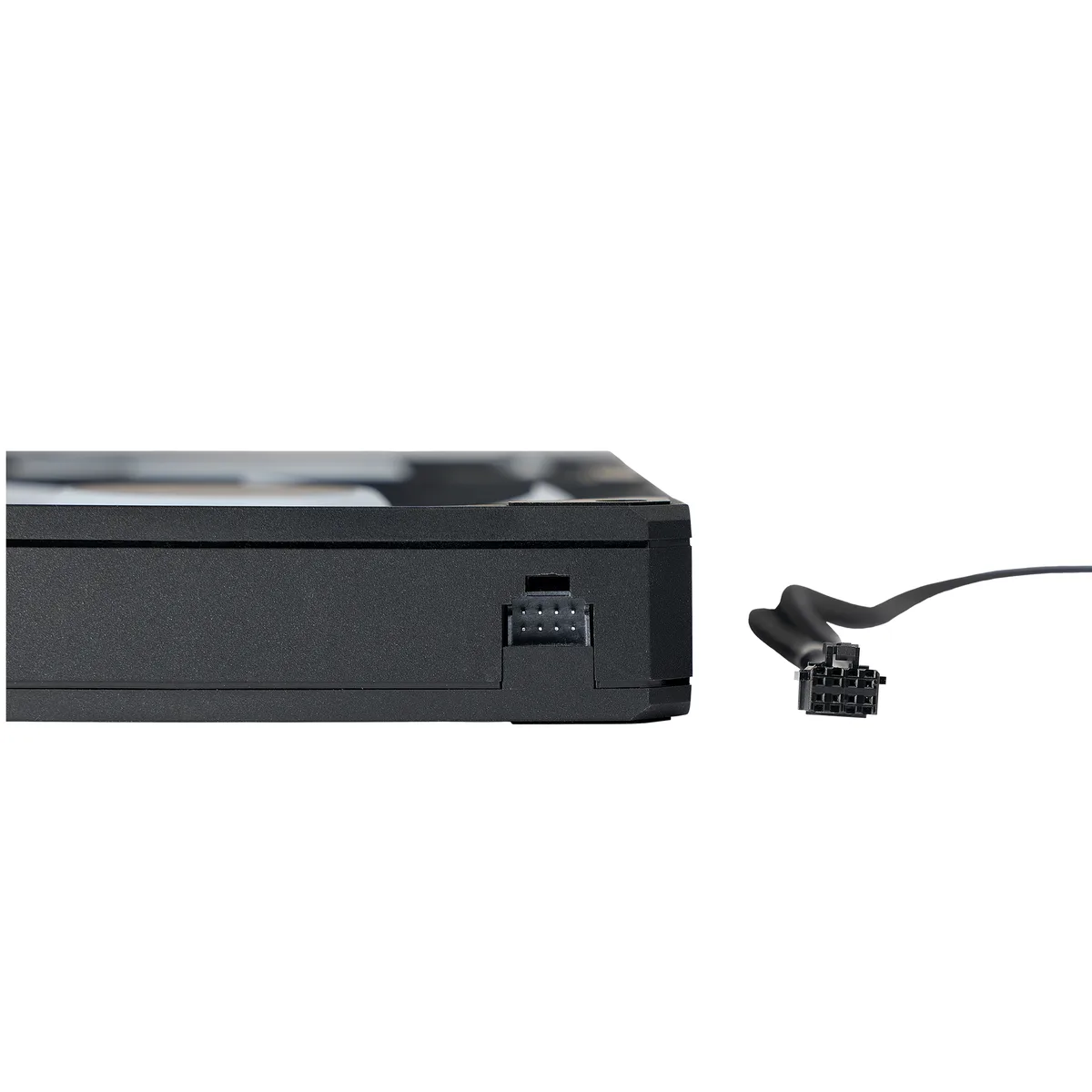

  • Single modular cable handles both power and aRGB lighting for cleaner cable management
  • PWM control from 690 to 2500 RPM balances quiet operation with 190 CFM airflow
  • Frosted blades diffuse vibrant aRGB lighting customisable via motherboard control

Single-Frame 360mm case fan

This single-frame 360mm case fan integrates three 122mm rotors into one lightweight module with triangular vents. A 4-pin PWM header controls speeds from 690 to 2500 RPM, delivering 190 CFM at a maximum of 38.5 dBA. Frosted blades diffuse addressable RGB lighting that synchronises through a standard motherboard header.

Compatibility check before ordering

Verify that your chassis can accommodate a 361mm long, 26.5mm thick fan assembly and that a 4-pin PWM header is available on the motherboard or fan hub. Ensure the single modular cable reaches the ARGB and PWM headers without strain. Confirm the case mounting pattern matches the 122mm hole spacing of the integrated frame.

Thermals noise and power in normal use

The Loop Dynamic Bearing and Air Balance blades maintain steady airflow across the 690 to 2050 RPM operating range. At typical speeds the unit runs near the lower end of the 38.5 dBA acoustic ceiling while moving up to 190 CFM. The single modular cable carries both power and lighting signals, reducing clutter without increasing electrical load beyond standard 4-pin limits.

Highlights

  • Single-frame design optimises internal airflow for efficient heat dissipation
  • Integrated lightweight module with triangular vents enhances airflow and durability
  • Single modular cable handles both power and aRGB lighting for cleaner cable management
  • PWM control from 690 to 2500 RPM balances quiet operation with 190 CFM airflow
  • Frosted blades diffuse vibrant aRGB lighting customisable via motherboard control

Specifications

BrandCOOLER MASTER
SeriesSickleFlow
ModelMFX-B2DN-25TP2-R1
Part NumberMFX-B2DN-25TP2-R1
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size360mm
Fan Thickness26.5mm
Bearing TypeLoop Dynamic Bearing
RPM690-2500 RPM
Air Flow190 CFM
Noise Level38.5 dBA
Power Connector4 Pin
ColorBlack
LEDARGB
Sports TeamNO
FeaturesFan, Extra Large, Plastic, 2050 rpm, 4-Pin
Dimensions361 x 122 x 26.5 mm (14.21 x 4.8 x 1.02 in)
Shipping weight0.91 kg
Package size406 × 152 × 51 mm

Questions about this item

Does the fan come with a controller or do I need to buy one separately?

No controller is included; the fan connects directly to a 4-pin PWM header for speed control and to a 5 V ARGB header for lighting.

I see only one 360 mm version listed — are there other sizes or packs to choose from?

This MPN is a single 360 mm fan with a 26.5 mm thickness; other sizes or multi-packs would carry different part numbers.

What does the 190 CFM airflow figure mean once the fan is installed in my case?

At full 2 500 RPM the fan moves up to 190 CFM, delivering strong radiator or case airflow while peaking at 38.5 dBA.
