Black 360 mm radiator with three 120 mm ARGB fans and a square pump block

Cooler Master

Cooler Master MLW-D36M-A18PZ-R1 MasterLiquid 360L Core ARGB liquid cooler

SKU CH-QSP2-9VY20 MPN MLW-D36M-A18PZ-R1

A 360 mm aluminium radiator with three 120 mm ARGB PWM fans and a Gen S dual-chamber pump fits AM5, AM4 and LGA 1851 sockets

  • TypeLiquid Cooling System
  • Block CompatibilityAMD Socket AM2 / AMD Socket AM2+ / AMD Socket AM3 / AMD Sock
  • Pump Dim.81 x 76 x 47 mm 3.2x 3 x 1.9”
  • Radiator Size394 mm
  • Radiator MaterialAluminum
  • Fan Size3 Fan Slots (120 mm)

Fan Size 3 Fan Slots (120mm)

Color Black

Option MasterLiquid 360L Core

  • Dual-chamber pump increases water flow and pressure for targeted heat removal

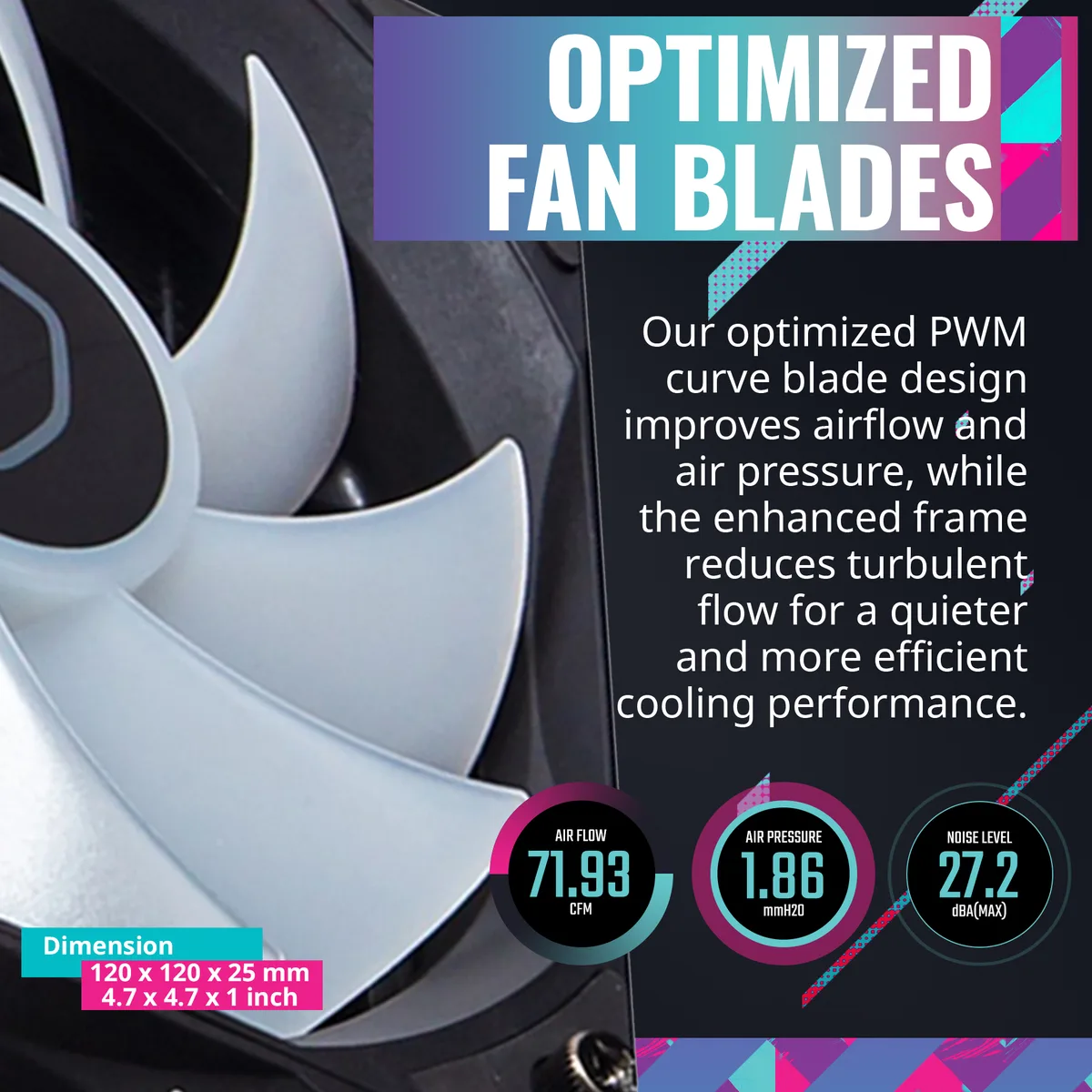

  • Three 120 mm ARGB PWM fans deliver 71.93 CFM airflow at 27.2 dBA
  • 394 mm aluminium radiator provides broad surface area for heat dissipation
  • Supports AMD AM5/AM4 and Intel LGA 1851/1700 sockets for current platforms

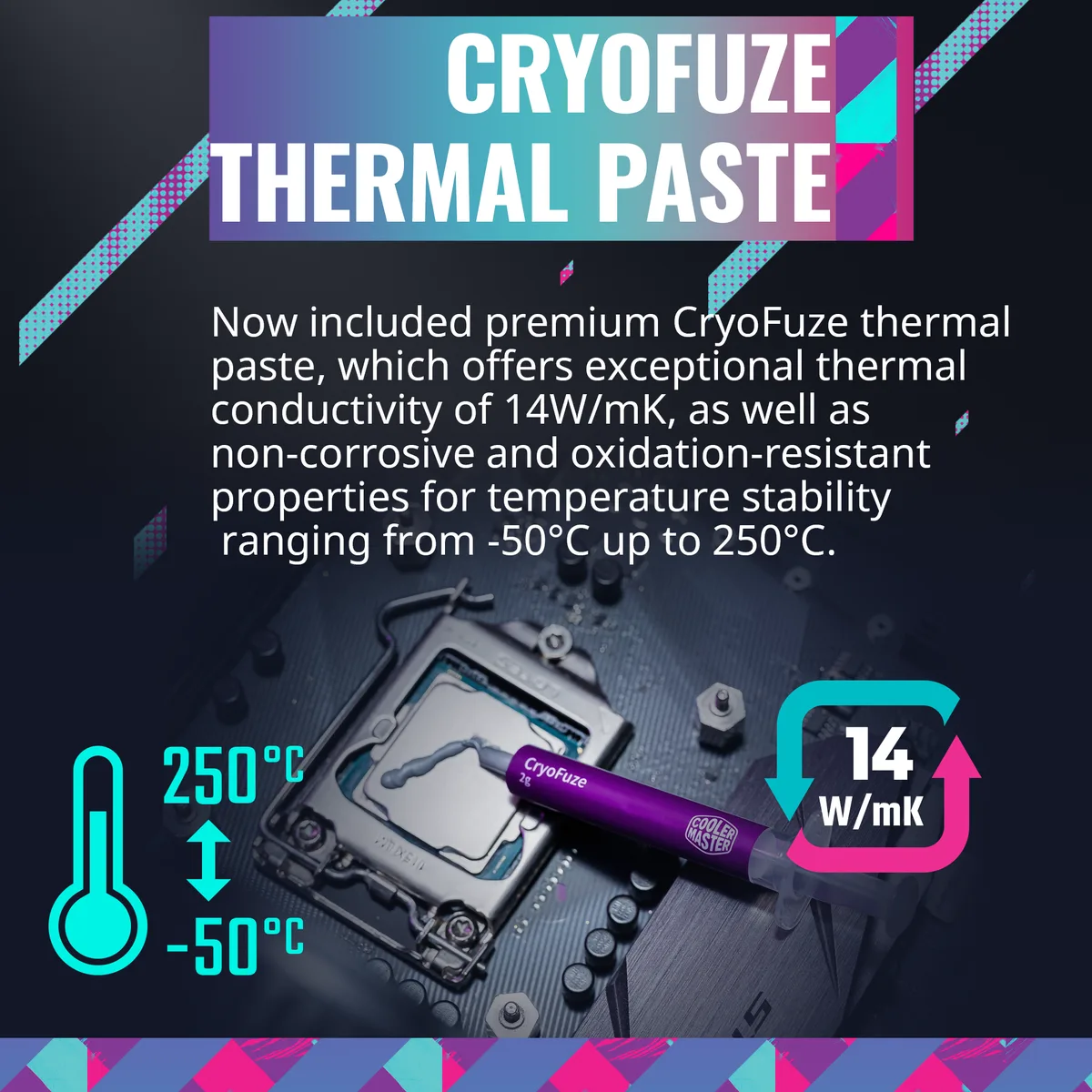

  • Included CryoFuze thermal paste rated at 14 W/mK conductivity for efficient transfer

360 mm ARGB liquid cooler

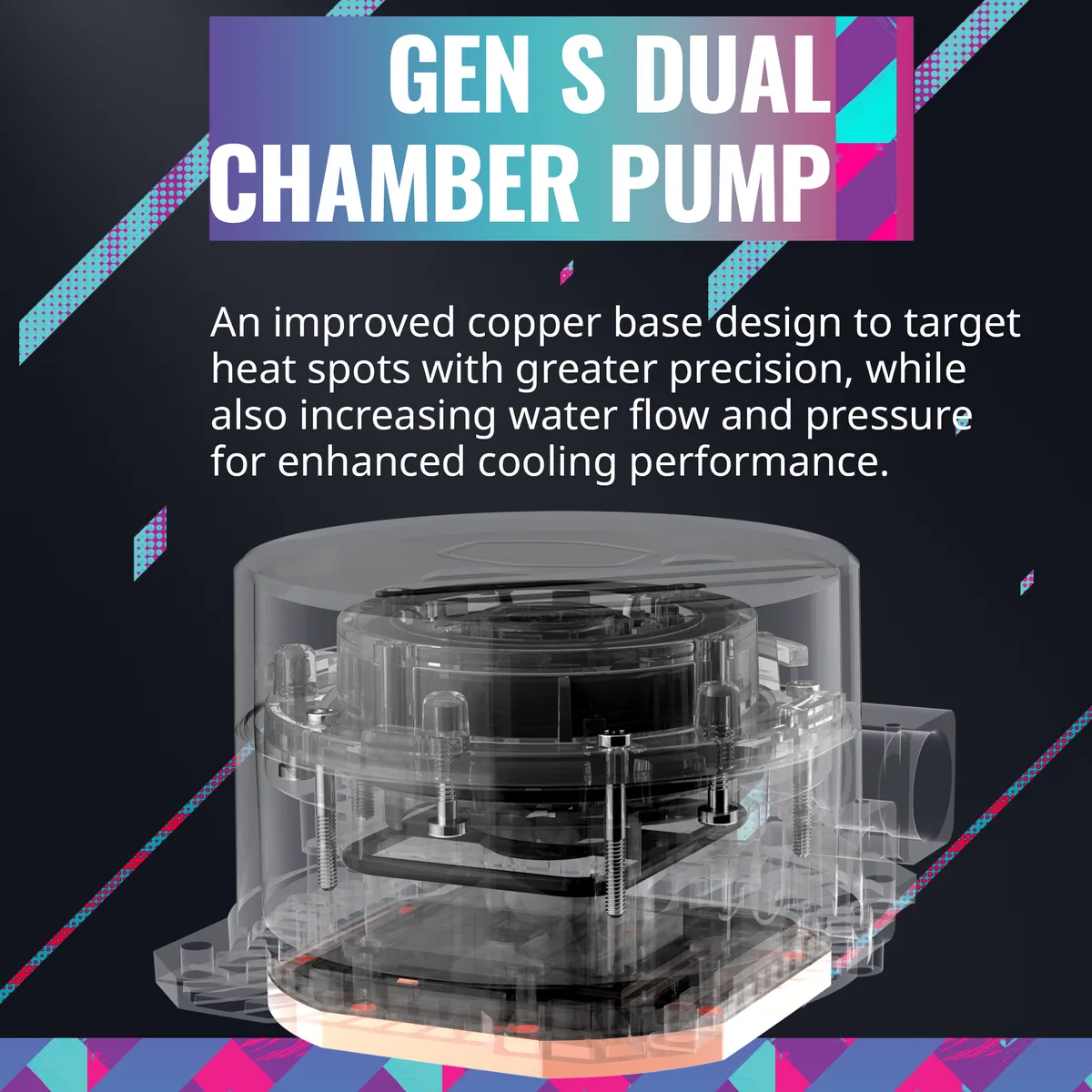

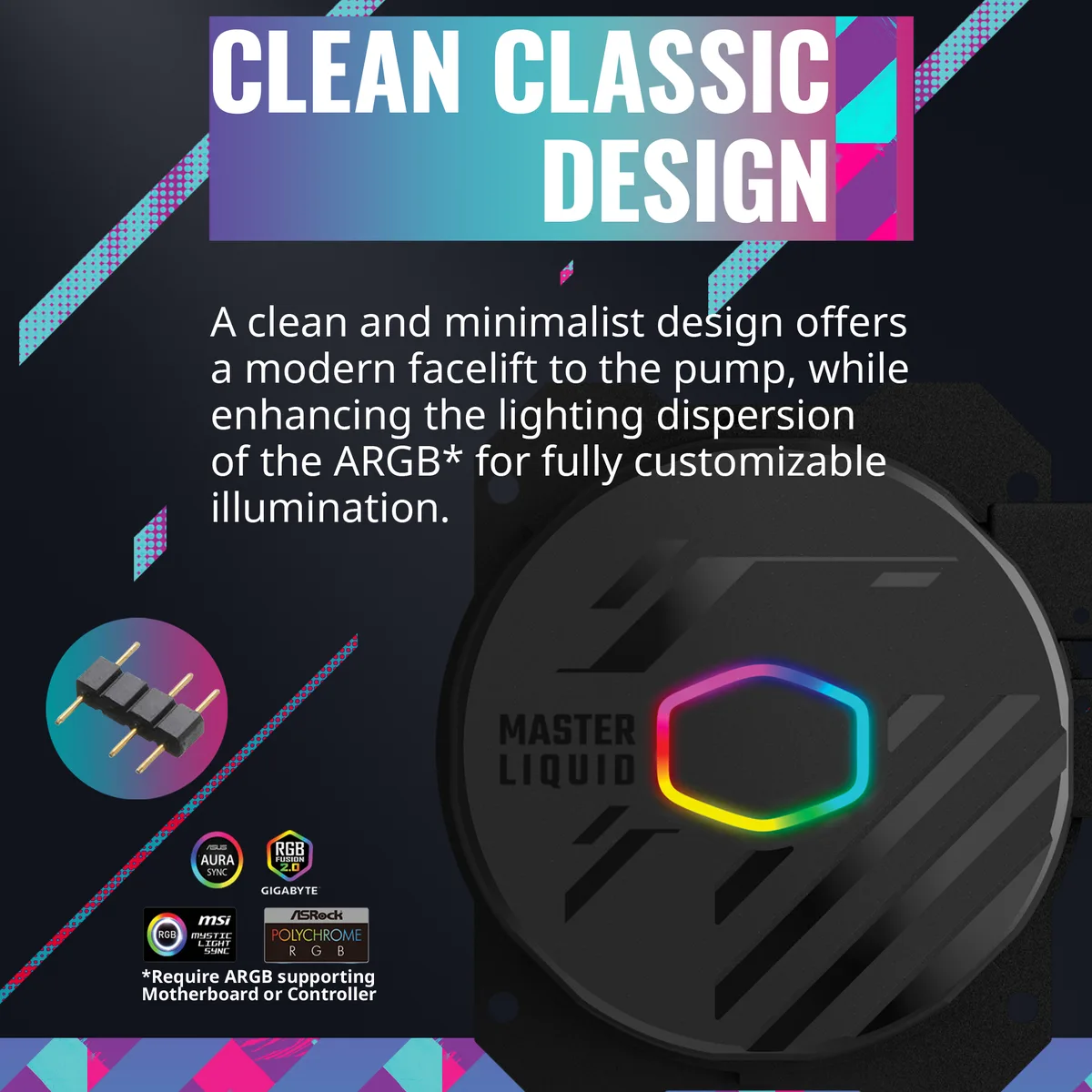

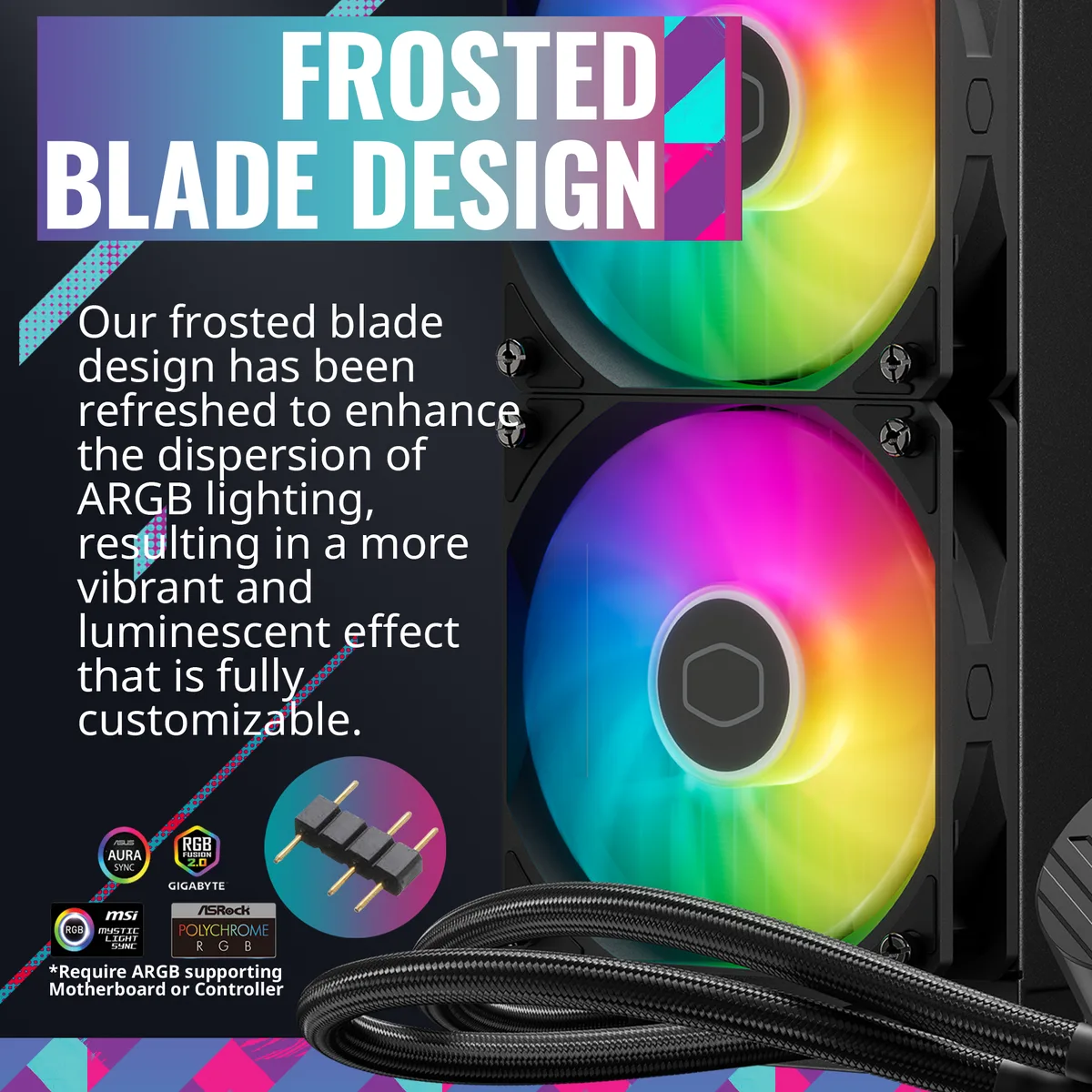

The Cooler Master MasterLiquid 360L Core ARGB is a closed-loop liquid cooler with a 394 mm aluminium radiator and three 120 mm PWM fans. A patented Gen S dual-chamber pump with an 81 x 76 x 47 mm copper base targets CPU heat spots while increasing flow and pressure. ARGB lighting on the pump and frosted fan blades provides addressable colour effects. The unit ships with CryoFuze thermal paste rated at 14 W/mK for immediate installation.

Suits builders wanting quiet high-capacity cooling

The cooler supports a wide range of AMD sockets including AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2 and FM2+. Intel compatibility covers LGA 1150, 1151, 1155, 1156, 1200, 1366, 1700 and 1851. Three rifle-bearing fans run from 650 to 1750 RPM, delivering 71.93 CFM at a maximum noise level of 27.2 dBA. Builders who need a smaller radiator for compact cases or who prefer air cooling should consider other form factors.

Check case clearance and fan headers

Verify that your chassis can accommodate a 394 mm radiator with three 120 x 120 x 25 mm fan slots and that the pump dimensions of 81 x 76 x 47 mm fit around the socket keep-out zone. Ensure the motherboard provides at least one 4-pin PWM header for the pump and additional headers or a splitter for the three fan connectors. Confirm the mounting hardware matches your specific socket from the supported list before ordering.

Highlights

  • Dual-chamber pump increases water flow and pressure for targeted heat removal
  • Three 120 mm ARGB PWM fans deliver 71.93 CFM airflow at 27.2 dBA
  • 394 mm aluminium radiator provides broad surface area for heat dissipation
  • Supports AMD AM5/AM4 and Intel LGA 1851/1700 sockets for current platforms
  • Included CryoFuze thermal paste rated at 14 W/mK conductivity for efficient transfer

Specifications

BrandCOOLER MASTER
SeriesMasterLiquid
ModelMasterLiquid 360L Core ARGB
Part NumberMLW-D36M-A18PZ-R1
TypeLiquid Cooling System
Block CompatibilityAMD Socket AM2 / AMD Socket AM2+ / AMD Socket AM3 / AMD Socket AM3+ / AMD Socket AM4 / AMD Socket AM5 / AMD Socket FM1 / AMD Socket FM2 / AMD Socket FM2+ / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851
Pump Dim.81 x 76 x 47 mm
3.2x 3 x 1.9”
Radiator Size394 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25mm
4.7 x 4.7 x 1”
Bearing TypeRifle
Fan RPM650~1750RPM±10%
Fan Air Flow71.93 CFM (122.2 m³/h)
Fan Noise27.2 dBA
Fan Connector4 Pin
ColorBlack
LED ColorARGB
Shipping weight2.50 kg
Package size440 × 232 × 139 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do I need a motherboard with a 4-pin PWM header to control the three included 120 mm fans?

Yes, each fan uses a standard 4-pin connector, so the board must provide at least one PWM header or a splitter to run all three fans with speed control.

Can the Gen S dual-chamber pump clear tall memory modules on an LGA 1700 board?

The pump housing measures 81 x 76 x 47 mm, giving a low profile that typically clears standard-height DIMMs on Intel LGA 1700 sockets.

How can I verify the ARGB lighting is working after installation?

Connect the pump and fan ARGB cables to a 5 V 3-pin header or compatible controller, then use motherboard software to confirm the addressable LEDs cycle through colours.
