Cooler Master
Cooler Master MPE-D0F1-AFP-C3B0CUS 1300W power supply
Fully modular ATX 3.1 unit delivers 1300 W with 80 PLUS Platinum efficiency and native 12V-2x6 cables for PCIe 5.1 graphics cards
- ColorBlack
- TypeATX 3.1 / ATX12V
- Maximum Power1300 W
- Fans1 x 135 mm
- PFCActive
- ModularFull Modular
- 80 PLUS Platinum efficiency cuts heat and energy loss at 92% typical load
- ATX 3.1 and PCIe 5.1 ready handles 200% power excursions for RTX GPUs
- Native 12V-2x6 cable with dual-color connector confirms secure installation
- Japanese capacitors and conformal coating boost long-term reliability
- Compact 160 mm depth fits a wide range of ATX cases

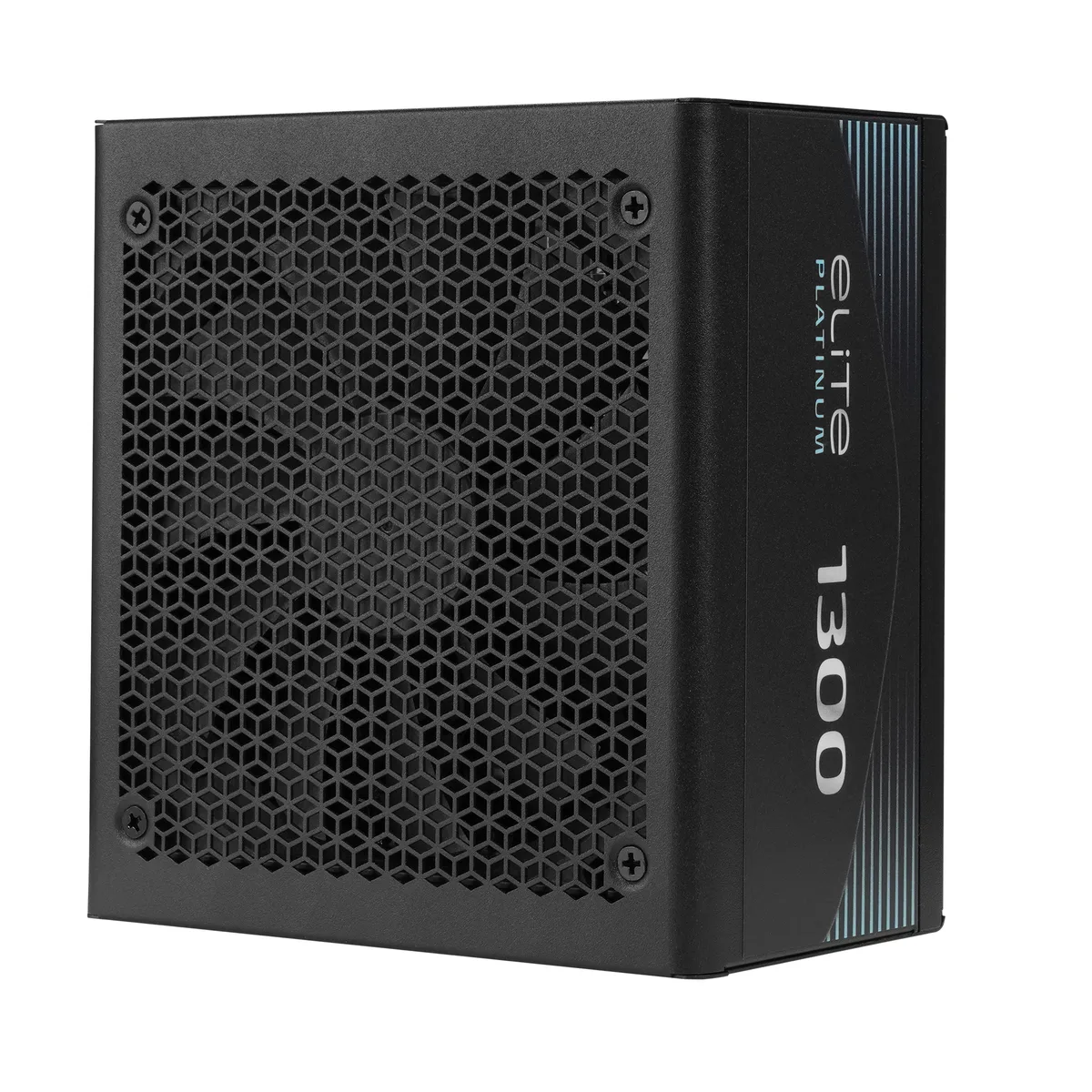

High-wattage ATX 3.1 supply for demanding builds
This Cooler Master unit delivers 1300 W of fully modular power in a compact 160 mm depth. It targets gaming PCs and AI workstations that require stable, high-current output. The 80 PLUS Platinum rating confirms up to 92% efficiency at typical load. Japanese capacitors and conformal coating support long-term reliability.

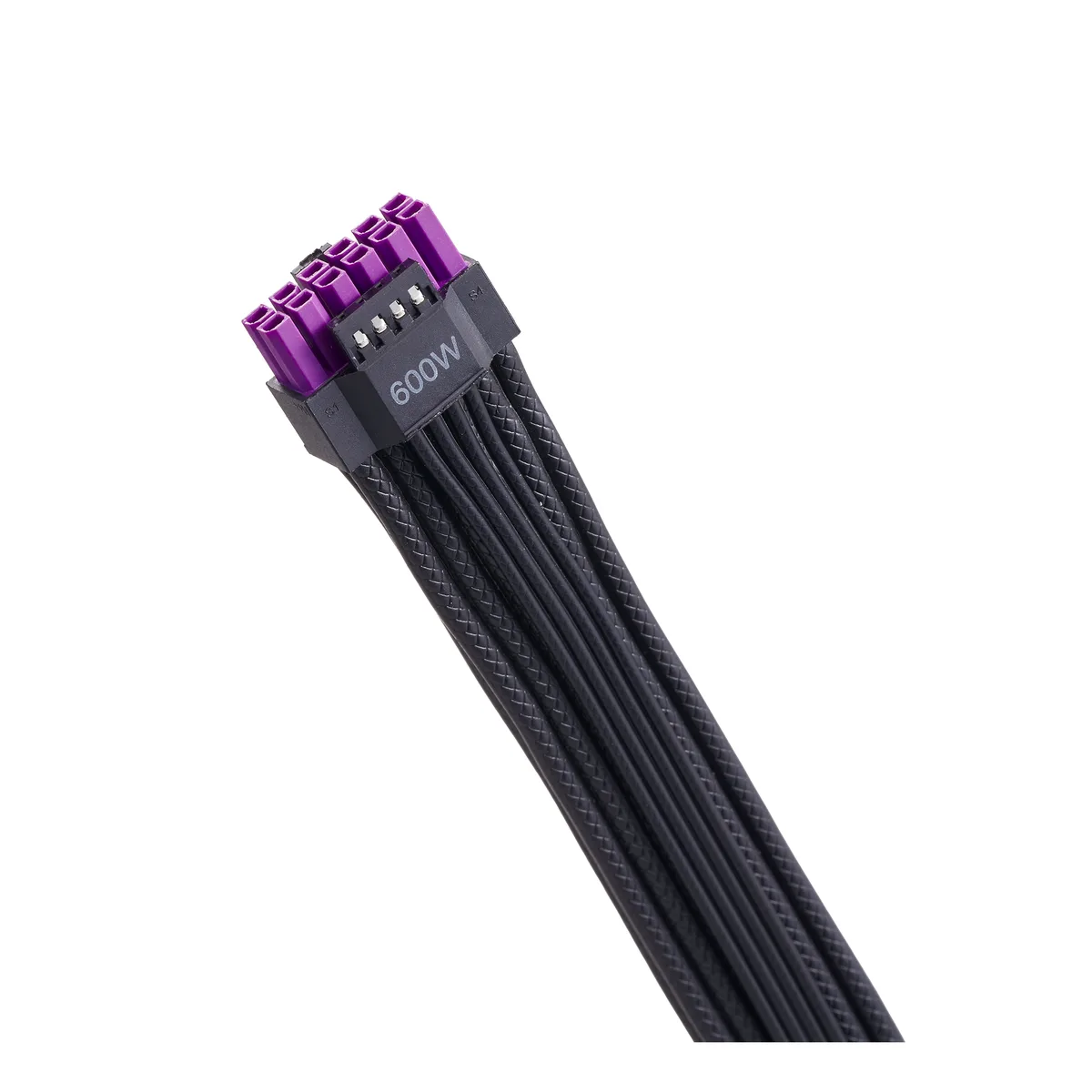

Dual native 12V-2x6 connectors for PCIe 5.1 graphics

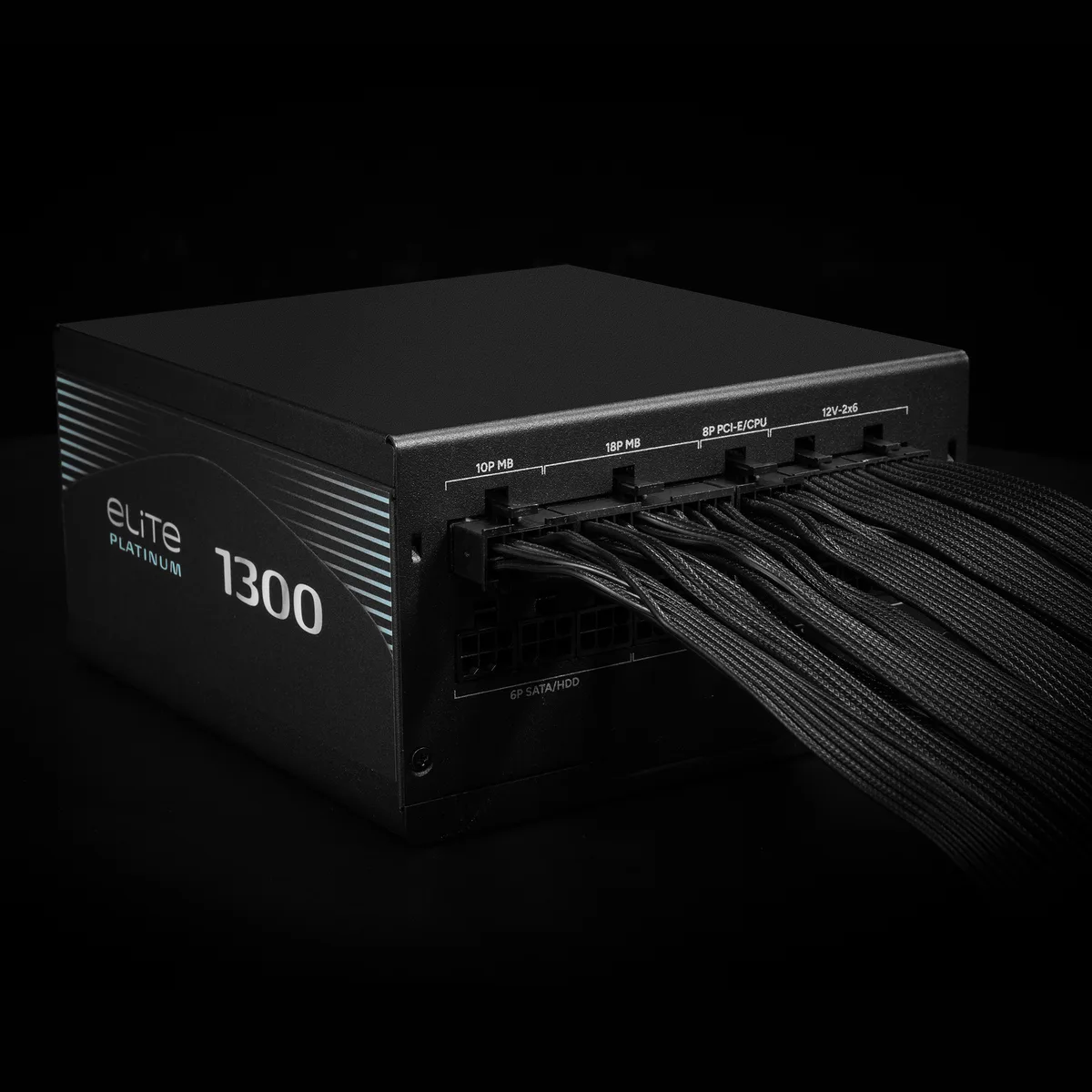

Two dedicated 12VHPWR cables provide direct, adapter-free power to modern GPUs. The design supports up to 200% power excursions as defined by the ATX 3.1 and PCIe 5.1 specifications. Three PCI-e 6+2 pin cables are also included for additional cards or peripherals. Full modularity keeps cable routing clean.

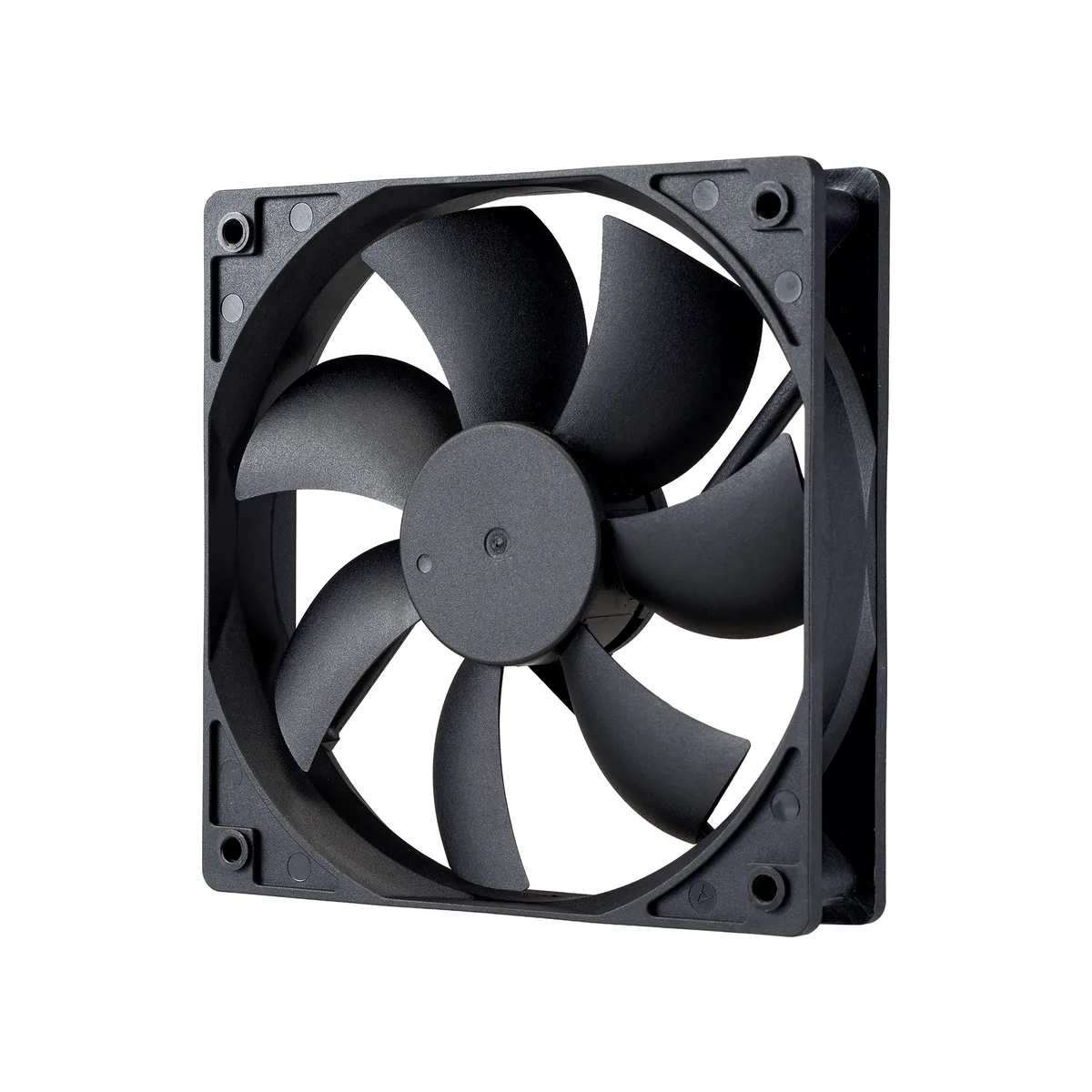

135 mm fan balances airflow and acoustics
A single 135 mm fan handles thermal management across the operating range. The platform achieves 92% efficiency at typical load, reducing waste heat that the fan must exhaust. Hold-up time is rated at 11 ms at full load, and MTBF exceeds 100,000 hours at 25? ambient. Protections include SCP, OVP, UVP, OCP, OPP and OTP.
Highlights
- 80 PLUS Platinum efficiency cuts heat and energy loss at 92% typical load
- ATX 3.1 and PCIe 5.1 ready handles 200% power excursions for RTX GPUs
- Native 12V-2x6 cable with dual-color connector confirms secure installation
- Japanese capacitors and conformal coating boost long-term reliability
- Compact 160 mm depth fits a wide range of ATX cases
Specifications
| Brand | Cooler Master |
|---|---|
| Model | MPE-D0F1-AFP-C3B0CUS |
| Color | Black |
| Type | ATX 3.1 / ATX12V |
| Maximum Power | 1300 W |
| Fans | 1 x 135 mm |
| PFC | Active |
| Modular | Full Modular |
| Power Good Signal | 100-150ms |
| Hold-up Time | = 11ms at 100% Load |
| Efficiency | = 92% @ Typical Load |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Protection | SCP / OVP / UVP / OCP / OPP / OTP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 15 ~ 8A |
| MTBF | >100,000 hours @ 25? ambient |
| Connectors | ATX 24 Pin x 1 (600mm) EPS 4+4 Pin x 1 (700mm) EPS 8 Pin x 1 (700mm) SATA + Peripheral 4 Pin x 8 =2 (400mm + 120mm + 120mm + 120mm) PCI-e 6+2 Pin x 3 = 3 (600mm) Peripheral 4 Pin x 4 =1 (400mm + 120mm + 120mm + 120mm) 12VHPWR x 2 = 2 (600mm) |
| Dimensions | 160 x 150 x 86 mm |
| Weight | 2.92kg |
| Package Content | Elite Platinum 1300W PSU Connectors Power Cord 4x screws Manuel |
| Shipping weight | 3.30 kg |
| Package size | 360 × 200 × 104 mm |
Questions about this item
What does the 1300W rating deliver in a real build?
It provides up to 1300 W of continuous power with 92% efficiency at typical load, so the system draws less from the wall and runs cooler under heavy gaming or workstation workloads.
What does ATX 3.1 and PCIe 5.1 ready mean for the 12V-2x6 cables?
The two native 12V-2x6 connectors are rated for 200% power excursions, giving stable delivery to RTX graphics cards that follow the PCIe 5.1 spec.
Will the 160mm depth fit my ATX case?
The unit measures 160 x 150 x 86 mm, so any case that accepts a standard 160 mm deep ATX power supply will accommodate it.
