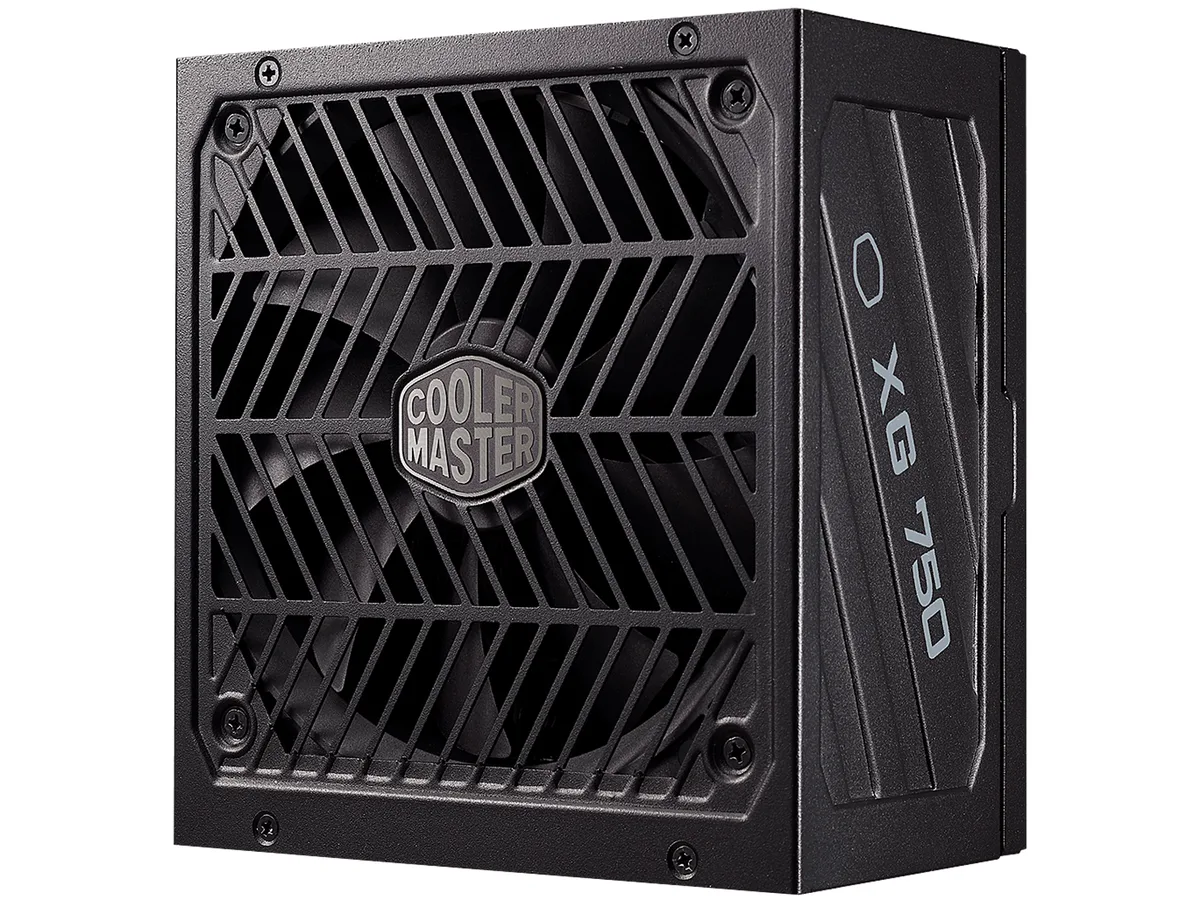

Black ATX power supply with 135 mm fan and modular cables

Cooler Master

Cooler Master MPG-7501-AFBAP-XUS power supply

SKU CH-D4QR-A6QBF MPN MPG-7501-AFBAP-XUS

Delivers 750 W through a fully modular ATX12V design with 80 PLUS PLATINUM efficiency and a 135 mm ARGB fan

  • ColorBlack
  • TypeATX12V
  • Maximum Power750 W
  • Fans1 x 135 mm
  • PFCActive
  • Main Connector24Pin
  • 750 W output powers demanding builds
  • 80 PLUS Platinum certification delivers 92 % typical-load efficiency
  • fully modular cables simplify routing and airflow
  • 135 mm fan runs quietly under load
  • 160 mm length fits most ATX cases

Cooler Master 750 W ATX12V Power Supply

This fully modular unit delivers 750 W of continuous power with 80 PLUS Platinum efficiency for desktop builders who want clean cable routing and low heat output. The in-house platform design targets high-end workloads while keeping internal temperatures down. It suits systems that need reliable energy conversion across a wide input range.

160 mm Chassis with 135 mm ARGB Fan

The compact length fits many mid-tower cases and the single 135 mm fan runs quietly under typical loads. Full modularity means you connect only the cables your build requires reducing clutter and improving airflow. The built-in information panel and ARGB lighting add visual feedback without extra controllers.

Check Clearance and Connector Count Before Ordering

Verify that your case accepts a 160 mm deep power supply and that the 24-pin ATX, EPS 4+4-pin and 8-pin CPU connectors match your motherboard layout. Ensure the four PCIe 6+2-pin leads and twelve SATA power plugs cover every drive and graphics card in the planned system. Buyers who need more than four PCIe cables or a shorter depth unit should look elsewhere.

Highlights

  • 750 W output powers demanding builds
  • 80 PLUS Platinum certification delivers 92 % typical-load efficiency
  • fully modular cables simplify routing and airflow
  • 135 mm fan runs quietly under load
  • 160 mm length fits most ATX cases

Specifications

BrandCooler Master
ModelMPG-7501-AFBAP-XUS
ColorBlack
TypeATX12V
Maximum Power750 W
Fans1 x 135 mm
PFCActive
Main Connector24Pin
PCI-Express Connector4 x 6+2-Pin, 4 x 4 pin
SATA Power Connector12
Max PSU Length160 mm
ModularFull Modular
Power Good Signal100 - 150 ms
Hold-up Time>= 16ms
Efficiency>=92% @ Typical Load
Energy-Efficient80 PLUS PLATINUM Certified
ProtectionOPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Output+3.3V@20A, +5V@20A, [email protected] , [email protected] , +5VSB@3A
MTBF>100,000 Hours
ApprovalsTUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA
Connectors1 x ATX 24 Pin Connectors
1 x EPS 4+4 Pin Connectors
1 x EPS 8 Pin Connecto
12 x SATA Connectors
4 x Peripheral 4 Pin Connectors
4 x PCI-e 6+2 Pin
FeaturesIn-House Platform Design: This is Cooler Master's first in-house designed PSU platform, built for high-end performance with reduced temperature requirements.
ARGB Fans with Digital Side Panel: The XG Plus Platinum ARGB fan with digital display panel can monitor real time performance data, showing fan speed, temperature, power load, and customized ARGB lighting.
80 PLUS Platinum Certified: This certification guarantees a minimum typical efficiency of 92% under normal operating conditions.
Quiet 135mm Fan: The fluid dynamic fan bearing creates less friction, making it great for low RPM
Dimensions3.39" x 5.91" x 6.30"
Weight5.61 lbs.
Package ContentXG750 Plus Platinum
Connectors
Power Cord
4x screws
Manuel
Shipping weight3.13 kg
Package size300 × 214 × 125 mm

Questions about this item

What ATX12V version does the Cooler Master MPG-7501-AFBAP-XUS support, and what does that cap in practice?

It supports Intel ATX 12V Ver 2.53, which defines the 24-pin main and EPS 4+4 pin connectors and sets the timing for power-good and hold-up signals.

What physical clearance does the 160 mm length and 135 mm fan require in my case?

The unit is 160 mm long with a single 135 mm fan, so the case must provide at least that depth and unobstructed airflow at the rear or bottom mount.

How do I install the fully modular cables, and what step do builders often miss?

Plug only the needed cables into the PSU side first, route them, then connect to components; the step often missed is seating each modular plug fully until it clicks.
