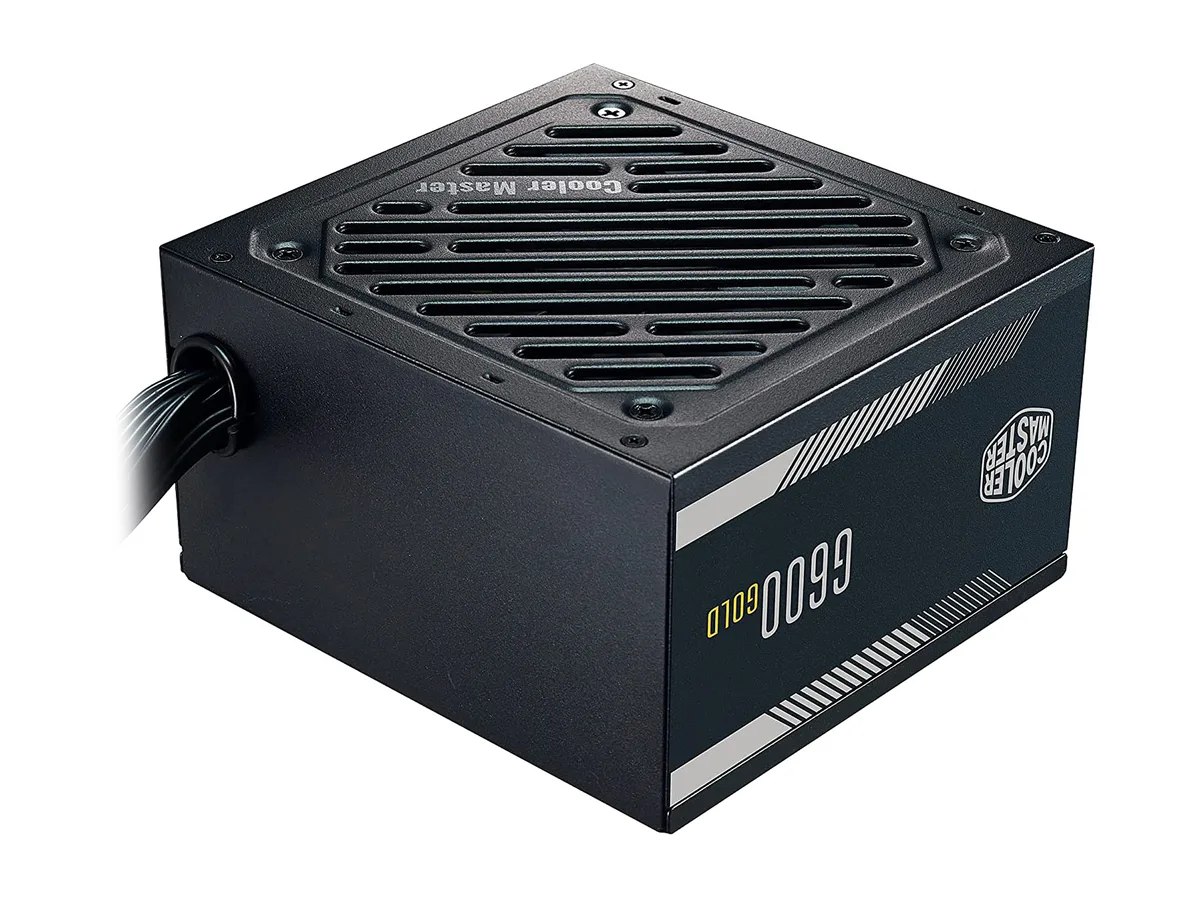

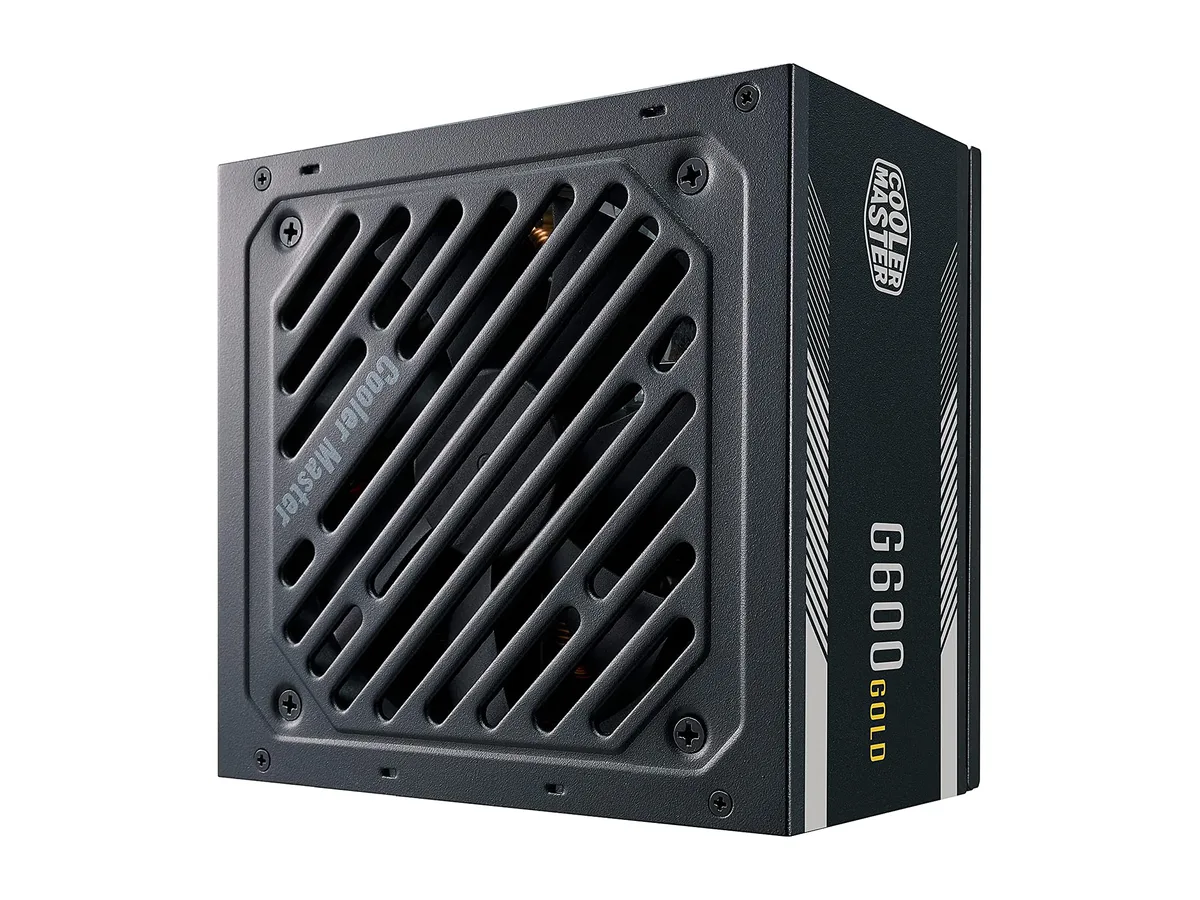

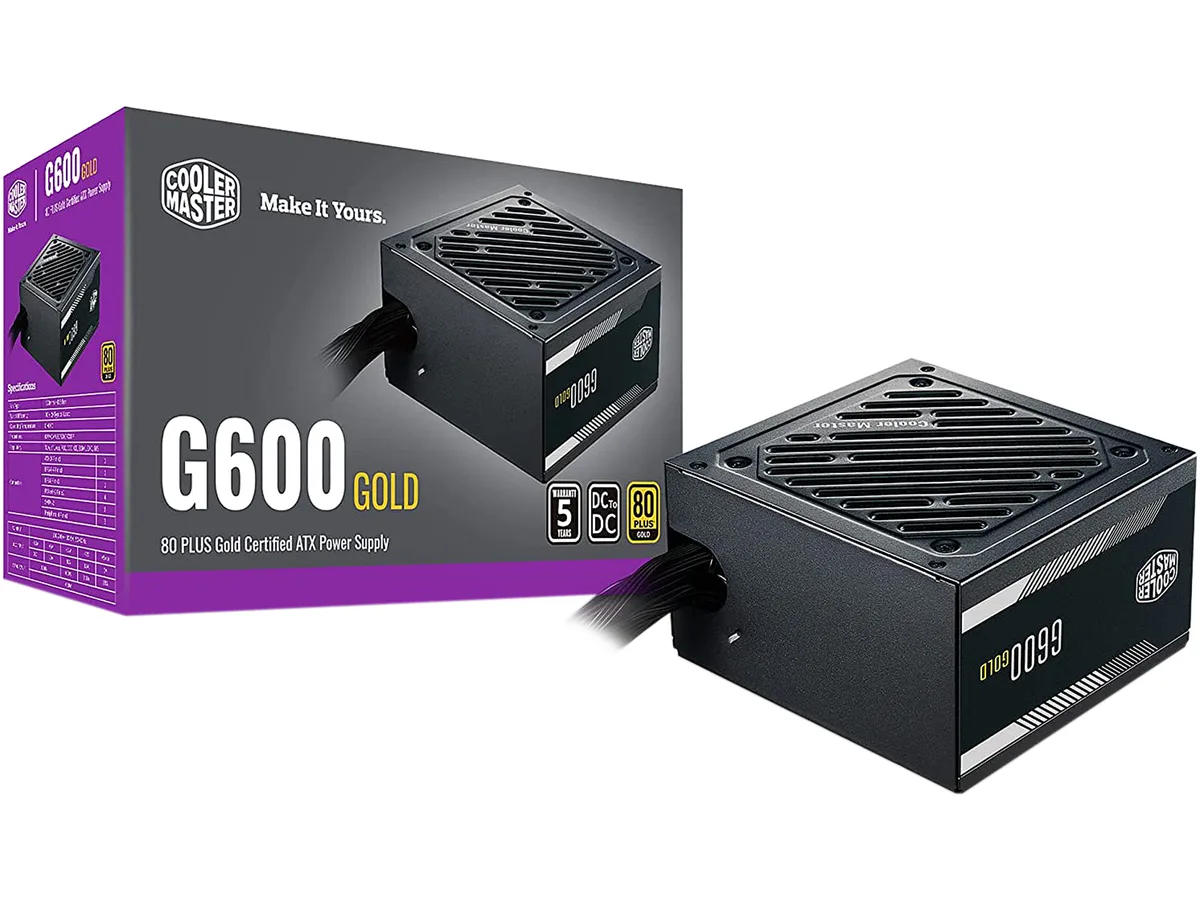

Black rectangular ATX power supply with fixed flat cables and a 120 mm fan grille

Cooler Master

Cooler Master MPW-6001-ACAAG-US 600 W power supply

SKU CH-6C54-7NFDG MPN MPW-6001-ACAAG-US

A 600 W ATX power supply with 80 PLUS Gold efficiency, a single 120 mm HDB fan, fixed flat black cables and full protection circuits

  • ColorBlack
  • TypeATX 12V V2.52
  • Maximum Power600 W
  • Fans1 x 120 mm HDB Fan
  • PFCActive
  • Main Connector24Pin
  • 80 PLUS Gold certified for 90% typical efficiency
  • 600 W continuous output on a single +12 V rail
  • 120 mm hydrodynamic bearing fan rated for quiet operation
  • Fixed flat black cables include four PCIe and six SATA connectors
  • Compact 140 mm depth fits most standard cases

Cooler Master G600 Gold 600 W ATX 2.52 PSU

This 600 watt power supply is built for standard desktop builds that need reliable 80 PLUS Gold efficiency. It uses a single plus twelve volt rail rated at fifty amps and ships with fixed flat black cables for a clean installation. The non-modular design keeps cost low while delivering all essential connectors.

ATX 12V version 2.52 interface limits

The unit complies with Intel ATX 12V version 2.52, so it supports the power-good signal window of one hundred to one hundred fifty milliseconds and a hold-up time of at least fifteen milliseconds at full load. Active PFC handles input voltages from one hundred to two hundred forty volts at fifty or sixty hertz. Protection circuits cover over-voltage, under-voltage, over-power, over-temperature, short-circuit and over-current events.

140 mm depth fits most mid-tower cases

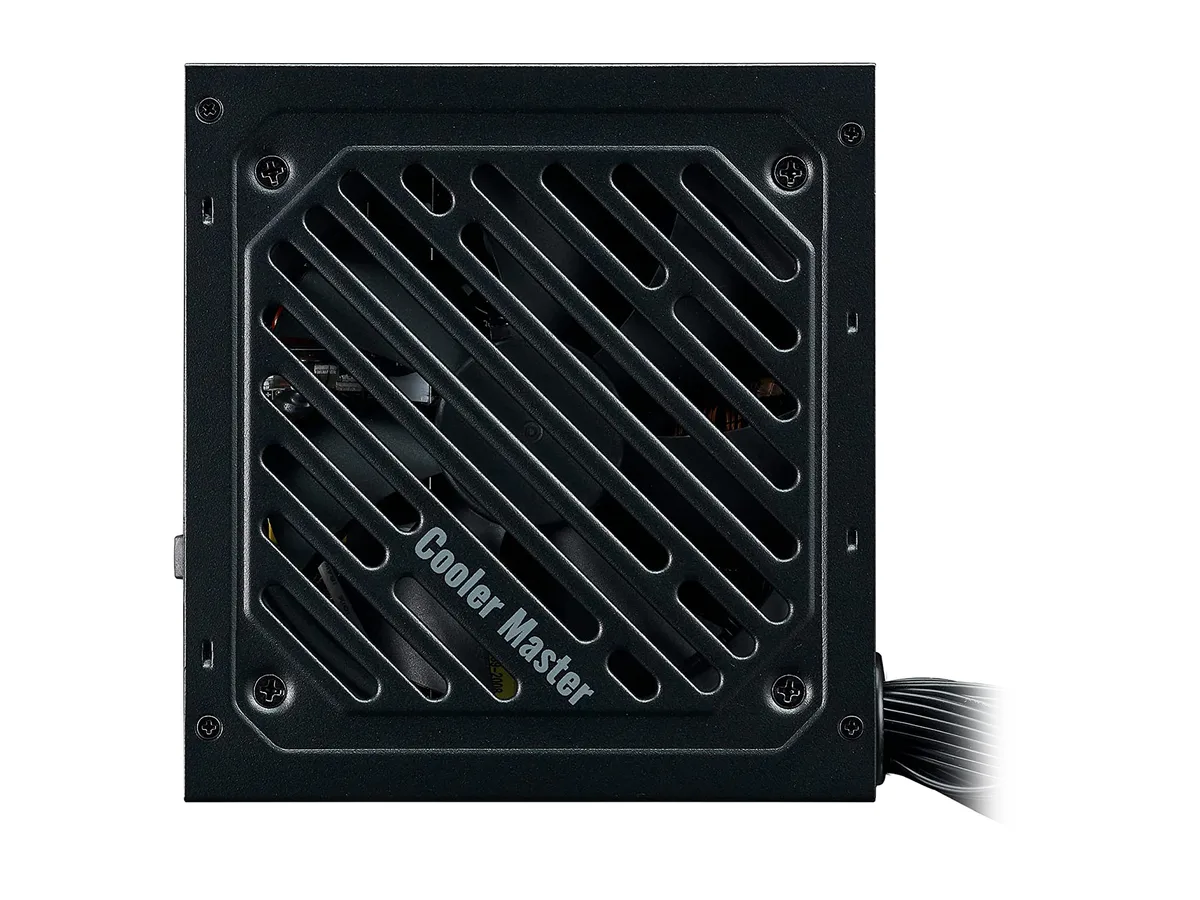

At one hundred forty millimetres long the power supply fits the majority of mid-tower chassis without blocking drive cages or long graphics cards. A single one hundred twenty millimetre hydrodynamic bearing fan runs quietly under load and carries a Cybenetics Standard plus noise rating. Mean time between failures exceeds one hundred thousand hours.

Highlights

  • 80 PLUS Gold certified for 90% typical efficiency
  • 600 W continuous output on a single +12 V rail
  • 120 mm hydrodynamic bearing fan rated for quiet operation
  • Fixed flat black cables include four PCIe and six SATA connectors
  • Compact 140 mm depth fits most standard cases

Specifications

BrandCooler Master
SeriesG600 Gold
ModelMPW-6001-ACAAG-US
ColorBlack
TypeATX 12V V2.52
Maximum Power600 W
Fans1 x 120 mm HDB Fan
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector6
Max PSU Length140 mm
ModularNon-Modular
Power Good Signal100 - 150 ms
Hold-up Time>= 15 ms at 100% load
Efficiency>=90% @ Typical Load
Energy-Efficient80 PLUS GOLD Certified
PSU Noise LevelCybenetics Standard +
ProtectionOVP, UVP, OPP, OTP, SCP, OCP

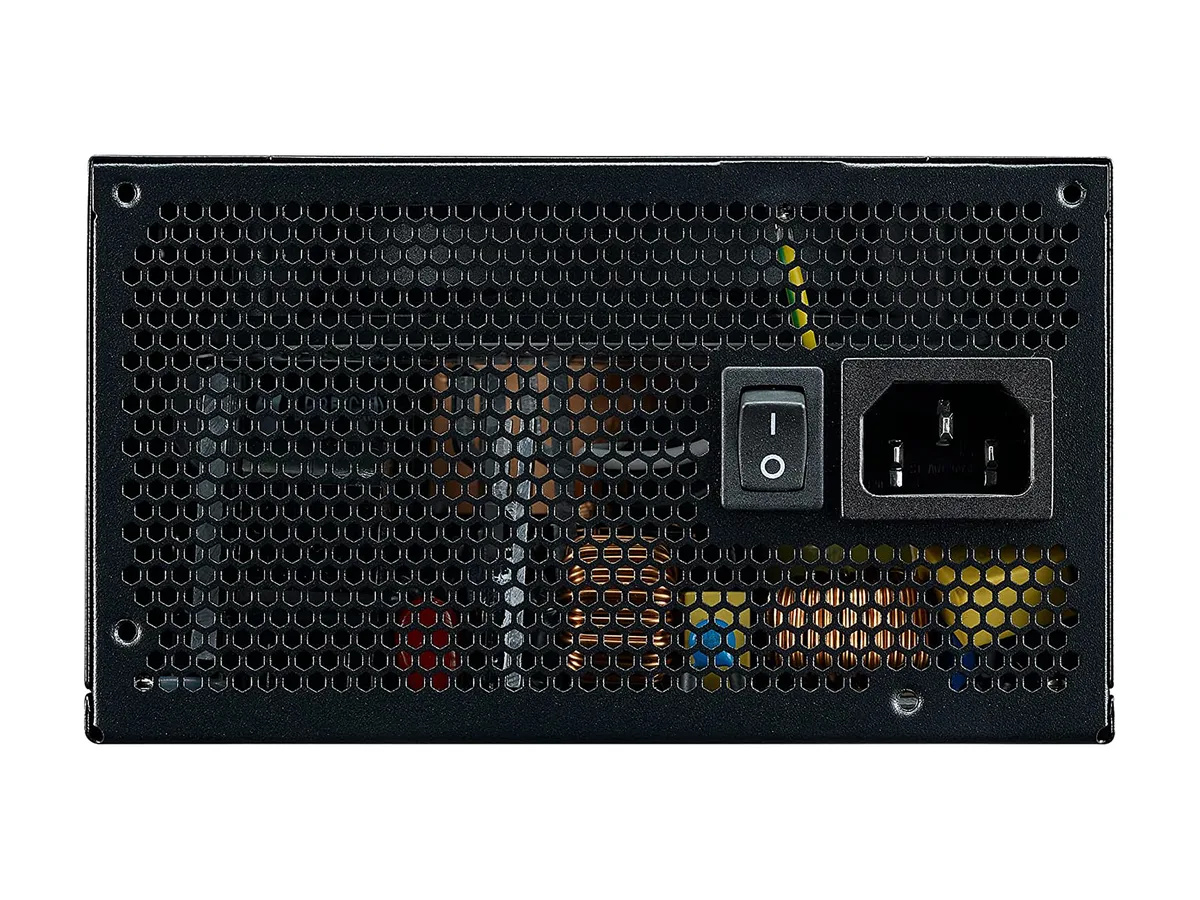

Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current10 - 5 A
Output+3.3V@20A, +5V@20A, +12V@50A, [email protected] , +5VSB@3A
MTBF>100,000 Hours
ApprovalsCB, cTUVus, TUV, CE, RoHS2.0, FCC, CCC, BSMI, KC+KCC, BIS, EAC
Connectors1 x 24 pin ATX
1 x 8 pin (4+4) EPS (CPU)
1 x 8 pin CPU
4 x 8 pin (6+2) PCIe
6 x SATA
3 x 4 pin Peripheral

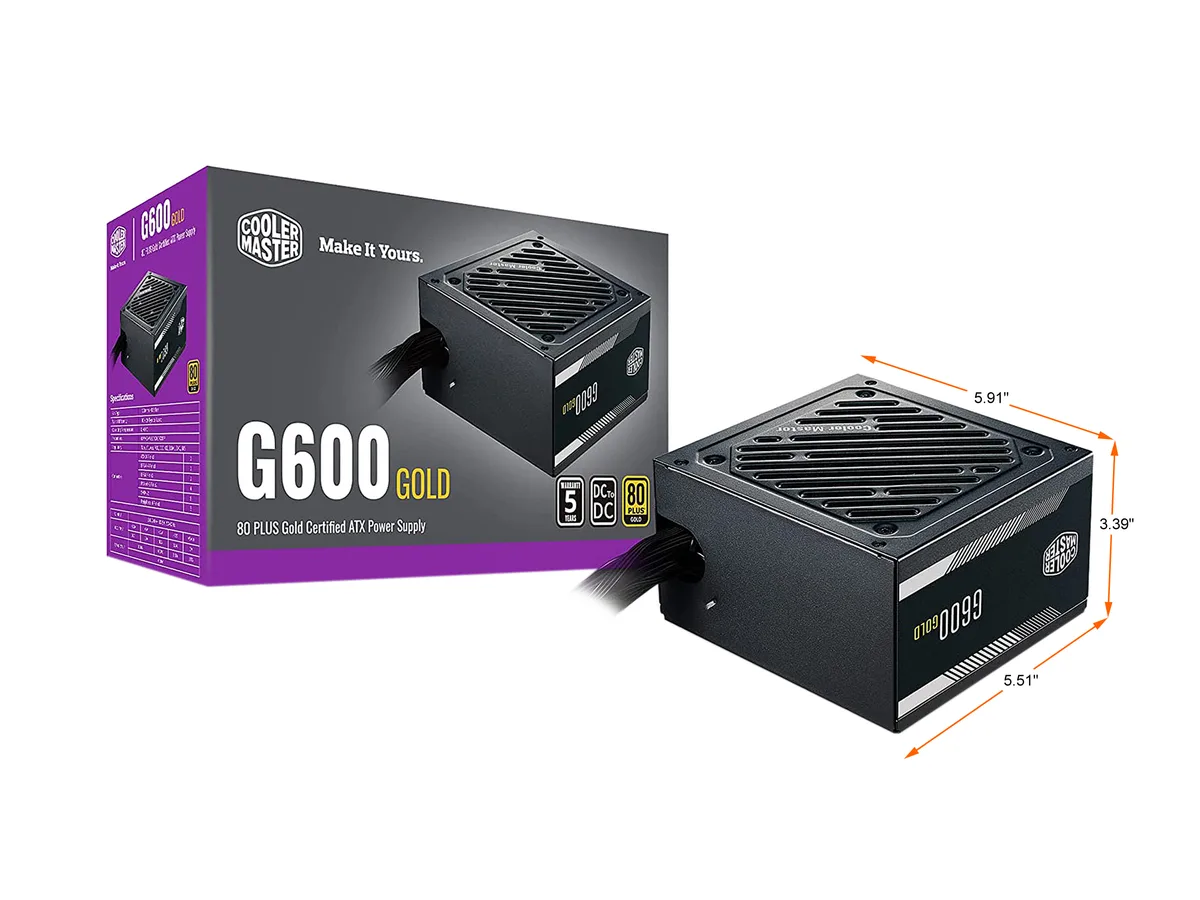

Dimensions3.39" x 5.91" x 5.51"
Weight3.68 lbs.
Package ContentG600 Gold
Power Cord
4 x screws
Manual
Shipping weight2.16 kg
Package size265 × 187 × 112 mm

Questions about this item

Should I pick the 600 W model or step up to a higher wattage unit?

Choose the 600 W unit if your total system draw stays below that figure; the single +12 V rail delivers up to 50 A, so a mid-range GPU and modern CPU will run within its limit.

What does the 80 PLUS Gold rating actually give me in daily use?

It guarantees at least 90 % efficiency at typical loads, meaning less waste heat and lower electricity cost compared with lower-rated units.

The spec lists ATX 12V v2.52 — what does that cap in practice?

Version 2.52 defines the connector layout and voltage tolerances used by current mainstream motherboards and GPUs, so the PSU will power any standard ATX build without adapters.
