Compact black SFX power supply with 92mm fan and modular cables

Cooler Master

Cooler Master MPY-7501-SFHAGV-3U1 V750 SFX Gold 750W power supply

SKU CH-WWGS-7BHE8 MPN MPY-7501-SFHAGV-3U1

SFX power supply delivering 750 W with 80 PLUS Gold efficiency, fully modular cabling, a 92 mm FDB fan and ATX 3.1 plus PCIe 5.1 readiness

  • TypeSFX 12V Ver. 3.42
  • Maximum Power750 W
  • Fans92mm FDB
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle

Option SFX 80+ Gold (750W) Black

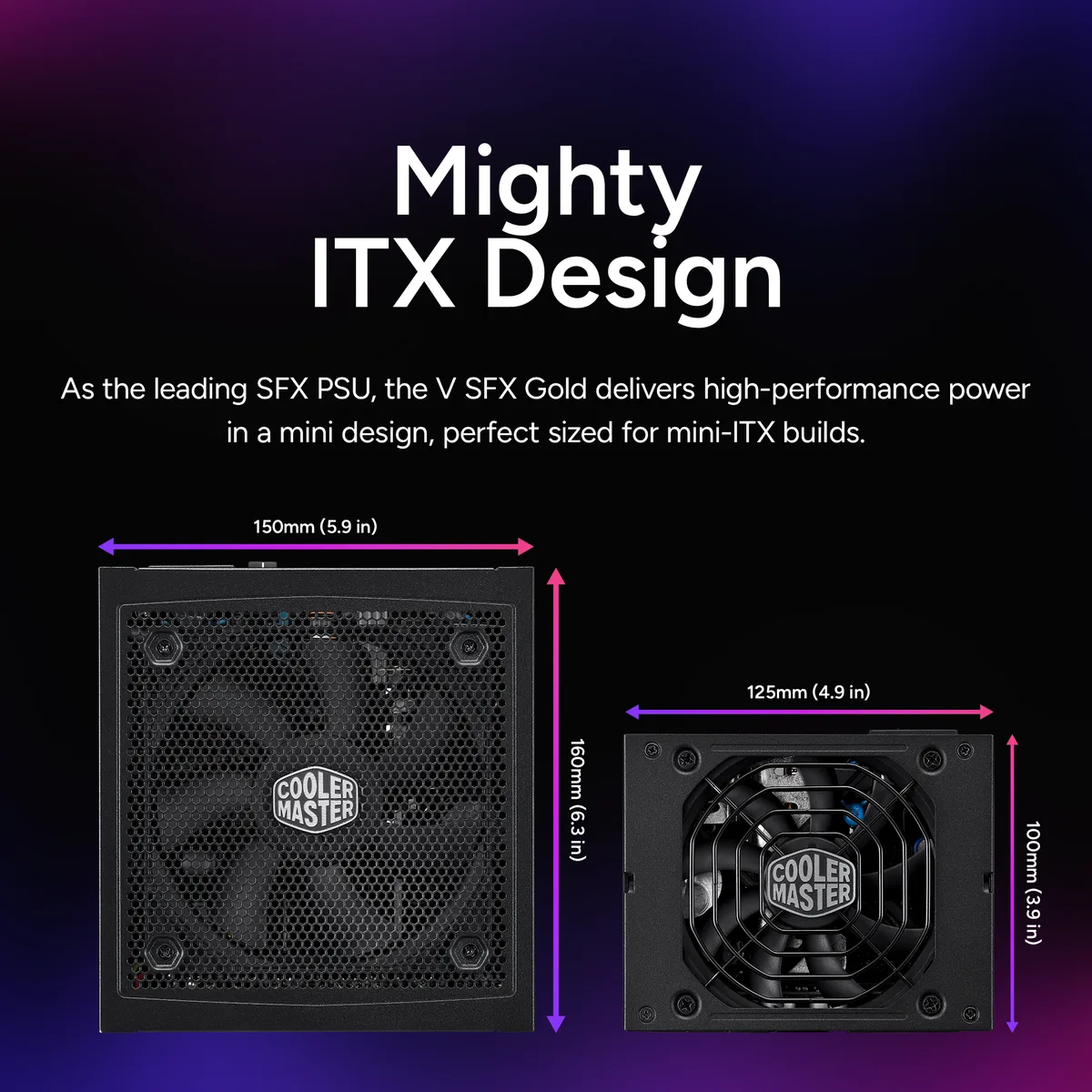

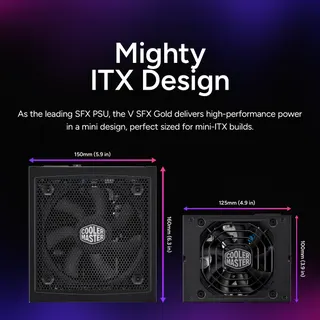

  • SFX form factor fits mini-ITX builds and includes ATX bracket

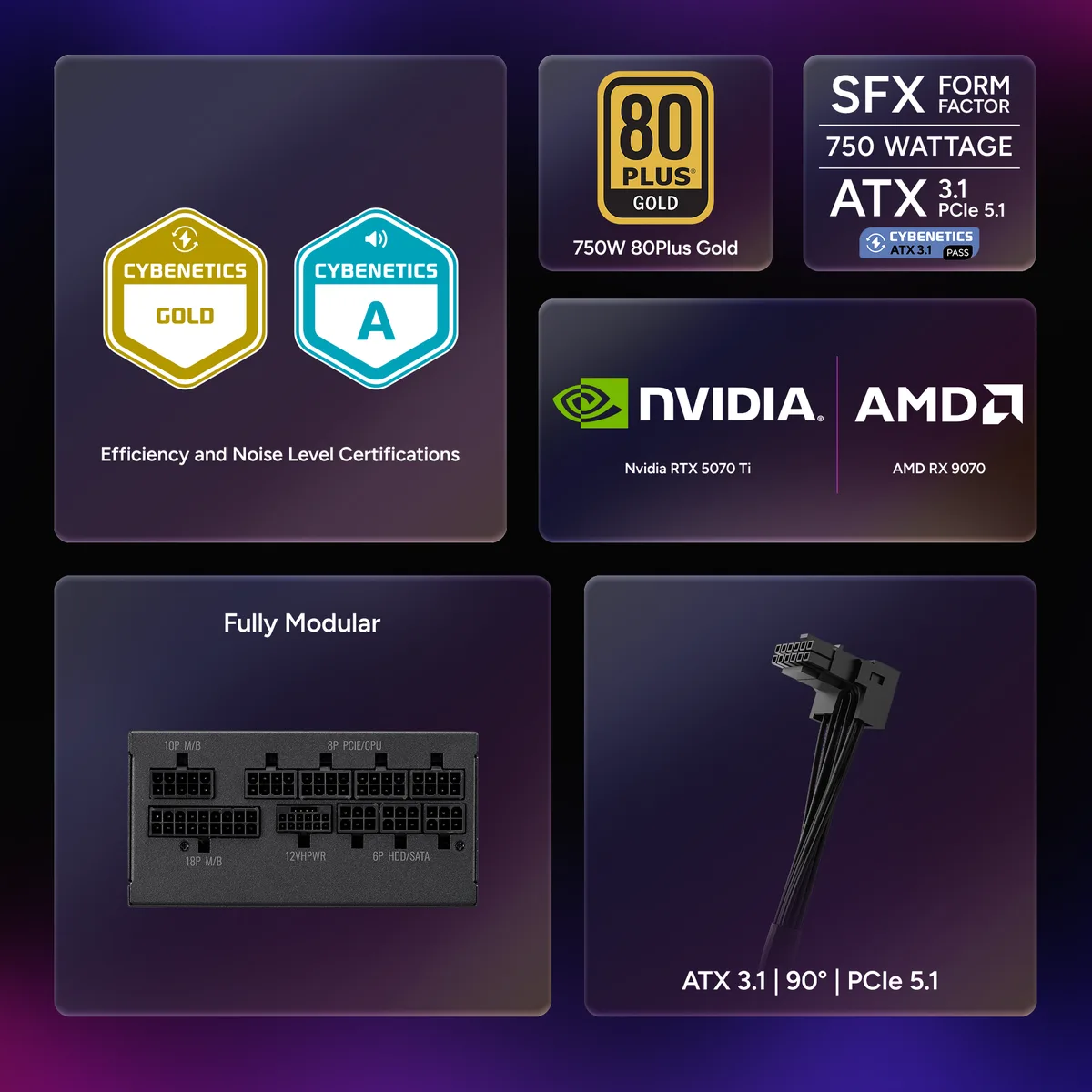

  • 80 PLUS Gold certification delivers 90% typical efficiency at 750W
  • Fully modular 16 AWG cables cut clutter and support high GPU current
  • 92mm FDB fan runs semi-fanless up to 15% load for quiet operation

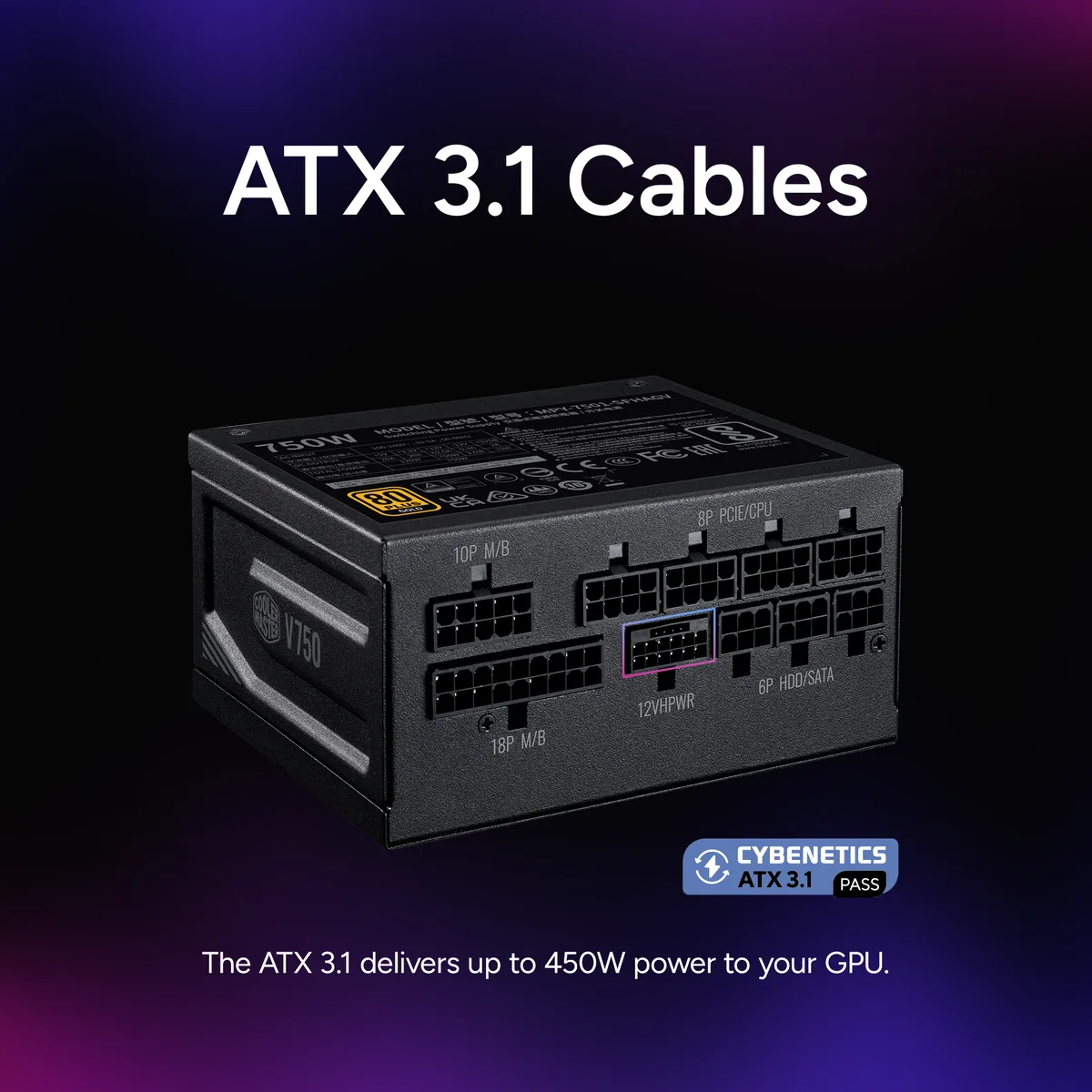

  • ATX 3.1 and PCIe 5.1 ready with four 6+2-pin connectors and eight SATA power connectors

SFX 750W Gold power supply

The Cooler Master V750 SFX Gold delivers 750 W of continuous power in the compact SFX form factor. It is built for small-form-factor and mini-ITX builds that demand full ATX 3.1 and PCIe 5.1 readiness. A bundled SFX-to-ATX bracket also lets it fit standard ATX cases. Fully modular cabling keeps the interior clean and airflow unrestricted.

Thermals noise and power draw

A 92 mm fluid-dynamic-bearing fan runs semi-fanless up to 15 percent load for silent idle operation. Under typical load the unit achieves 90 percent efficiency, matching its 80 PLUS Gold certification. Cybenetics Standard+ rating confirms low acoustic output in normal use. Protections include OVP, OPP, SCP, OCP, UVP, OTP, surge and inrush protection across a 100-240 V input range.

Build integration and cabling

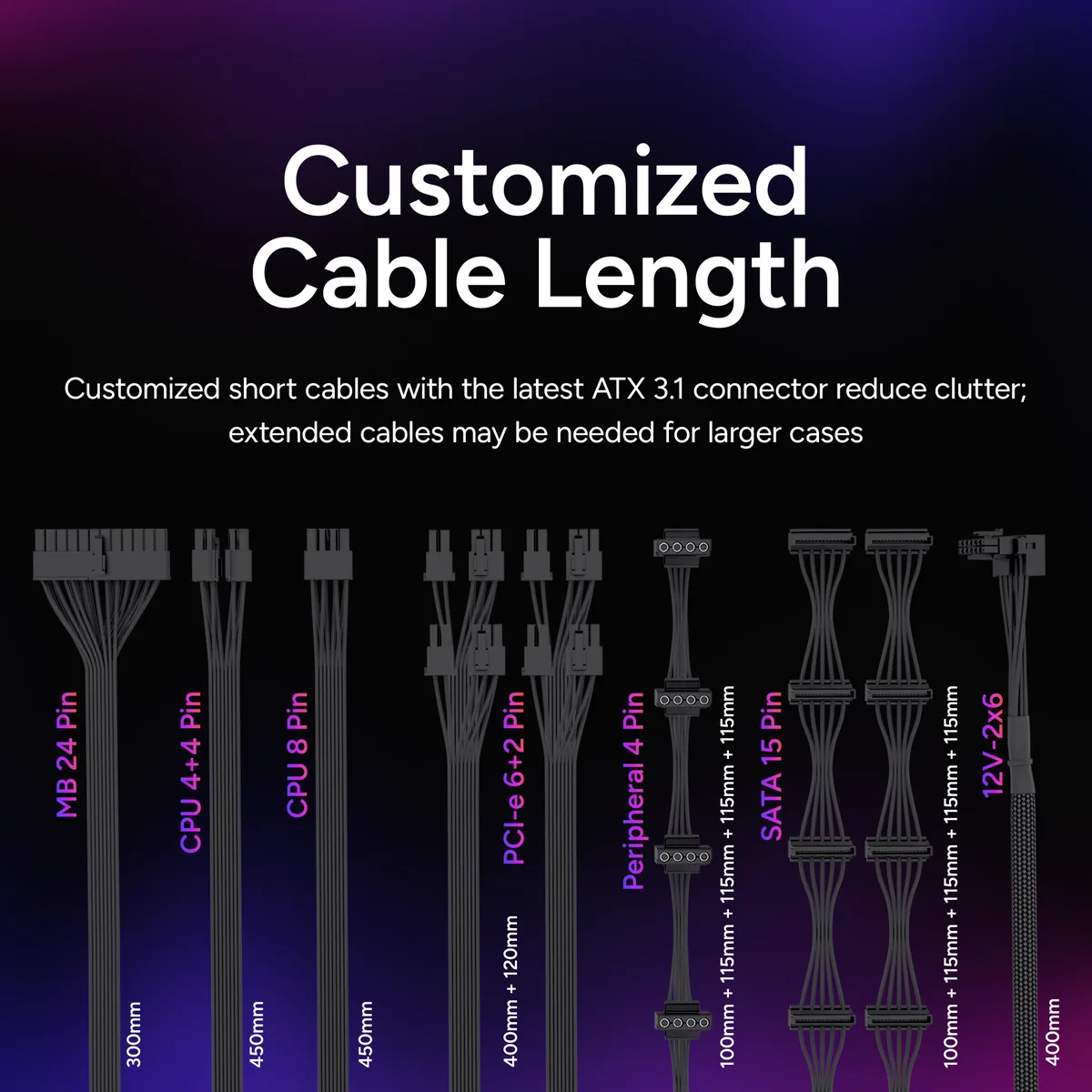

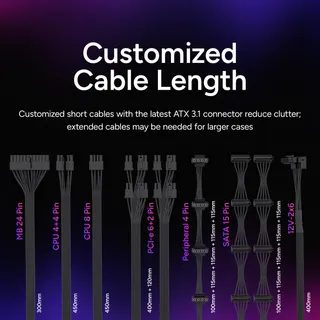

Full-modular design means only the cables you need stay in the case, freeing space in tight SFF layouts. The package includes four 6+2-pin PCIe connectors on 16 AWG wire and eight SATA power connectors for drives. A 90-degree angled main cable eases routing in compact chassis. Hold-up time is 16 ms minimum and power-good signal ranges from 100 to 500 ms.

Highlights

  • SFX form factor fits mini-ITX builds and includes ATX bracket
  • 80 PLUS Gold certification delivers 90% typical efficiency at 750W
  • Fully modular 16 AWG cables cut clutter and support high GPU current
  • 92mm FDB fan runs semi-fanless up to 15% load for quiet operation
  • ATX 3.1 and PCIe 5.1 ready with four 6+2-pin connectors and eight SATA power connectors

Specifications

BrandCooler Master
SeriesV750 SFX Gold
ModelMPY-7501-SFHAGV-US
TypeSFX 12V Ver. 3.42
Maximum Power750 W
Fans92mm FDB
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector8
Max PSU Length100 mm
ModularFull Modular
Power Good Signal100-500ms
Hold-up Time16ms min.
Efficiency90% @ Typical Load
Energy-Efficient80 PLUS GOLD Certified
PSU Noise LevelCybenetics Standard +
ProtectionOVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current10 - 5A
Output+3.3V@20V, +5V@20A, [email protected] , [email protected] , +5VSB@3A
MTBF>100,000 Hours
ApprovalsTUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB
Connectors1 x ATX 24 Pin
1 x EPS 4+4 Pin
1 x EPS 8 Pin
4 x PCI-e 6+2 Pin
8 x SATA
4 x Peripheral 4 Pin
FeaturesSFX Form Factor: High-quality PSU that's compatible with all SFX cases and suitable for mini-ITX system builds.
SFX-to-ATX Bracket: With the included bracket, users can install the V SFX Gold securely to an ATX case.
80 PLUS Gold Certified: This certification guarantees a typical efficiency of 90% under normal operating conditions.
16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety.
Full-Modular Cabling: Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
Qui
Dimensions2.50" x 4.92" x 3.93"
Weight3.88 lbs.
Package ContentV750 SFX Gold
SFX-to-ATX Bracket
Connectors
Power Cord
4x screws
Manuel
Shipping weight2.06 kg
Package size260 × 190 × 100 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the SFX unit in a standard ATX case and what step is often missed?

Use the included SFX-to-ATX bracket to mount the 100 mm long power supply securely in the larger chassis opening.

What maintenance or replacement will this unit need over its lifespan?

The 92mm FDB fan is the only moving part; it runs semi-fanless up to 15% load and may require cleaning or replacement after years of continuous operation.

What limit appears first when the PSU runs at sustained high load?

The 750 W maximum power rating is the primary ceiling; the single +12V rail and 16ms hold-up time define the electrical boundaries under continuous demand.
