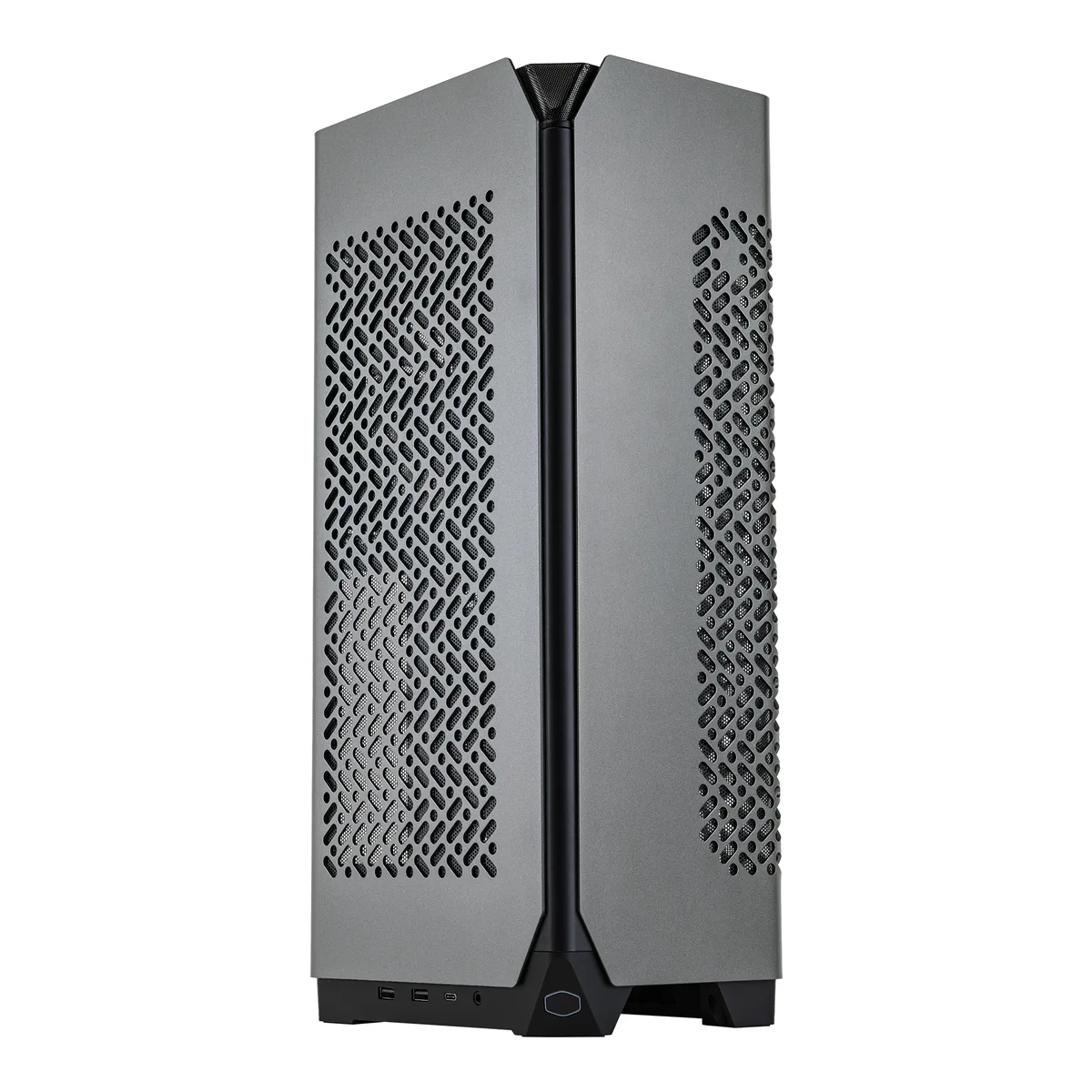

Dark grey Mini-ITX tower with aluminium side panel, pre-installed 120mm AIO and 850W SFX PSU

Cooler Master

Cooler Master NCORE 100 MAX ITX PC case NR100-MNNN85-SL0

SKU CH-XCKQ-PY36V MPN NR100-MNNN85-SL0

Mini-ITX case with integrated 850W SFX Gold ATX3.0 PSU, 120mm AIO cooler and PCIe 4.0 riser, expandable to 172mm width for 357mm GPUs

  • TypeMini-ITX
  • ColorDark Grey
  • Case MaterialExterior: Steel, Plastic, Aluminum Left Side Panel: Aluminum
  • With Power SupplyV SFX Gold 850W ATX3.0
  • Power Supply850W
  • Motherboard CompatibilityMini ITX
  • Pre-built 850 W SFX Gold ATX 3.0 PSU powers demanding builds
  • 7 L chassis fits 357 mm GPUs when expanded to 172 mm width
  • Pre-installed 120 mm AIO and 1800 RPM fan cool high-performance CPUs
  • Front USB 3.2 Gen 2x2 Type-C delivers 20 Gbps bandwidth
  • Aluminium side panel and steel frame keep weight at 13.89 lbs

Ready-to-build ITX chassis

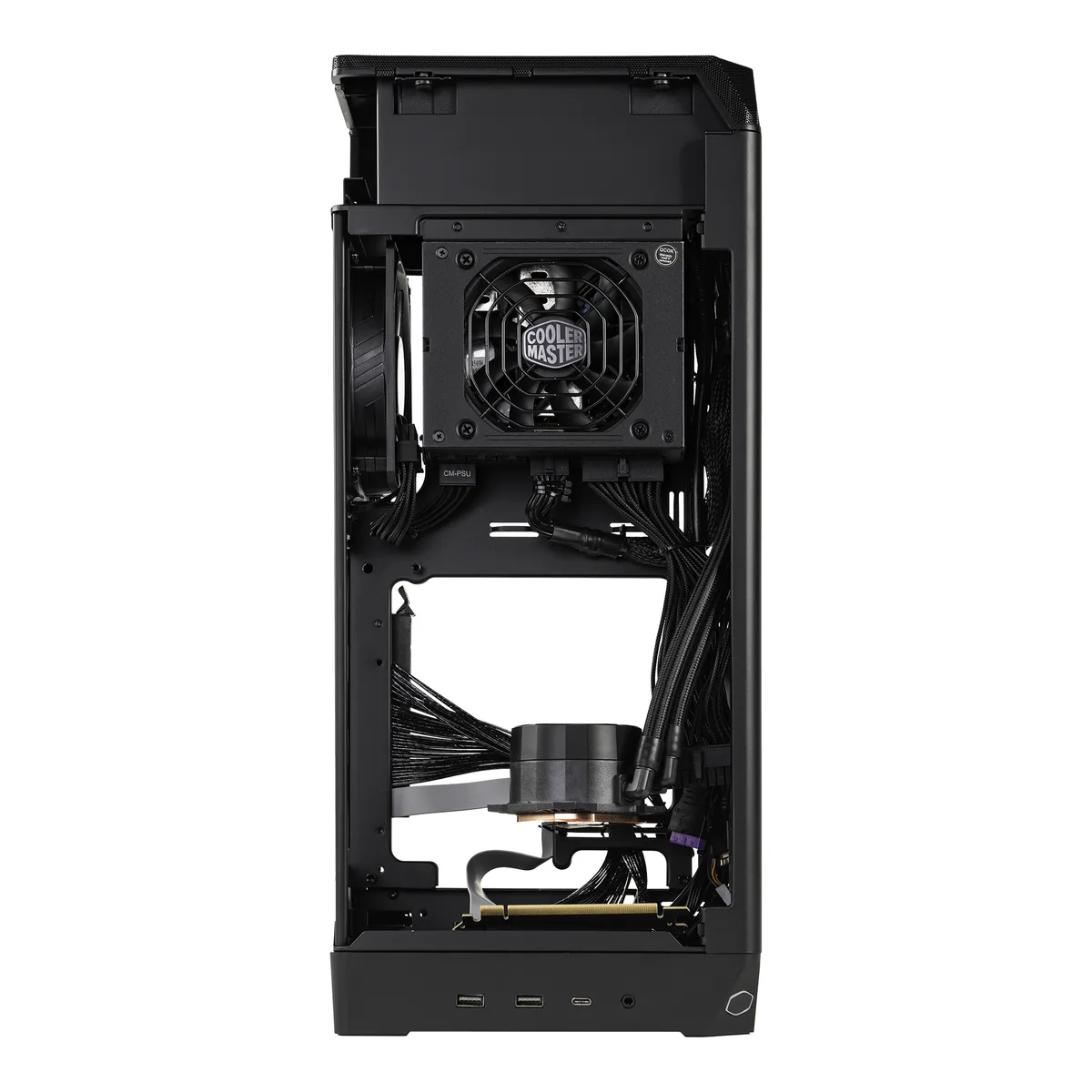

The NCORE 100 MAX is a 15.7-litre Mini-ITX tower that arrives with a custom 120 mm AIO liquid cooler and an 850 W SFX Gold ATX 3.0 power supply already installed. Pre-routed cables and an anodised aluminium side panel keep the internal layout clean for first-time builders and experienced enthusiasts alike. A single 120 mm SickleFlow PWM fan handles exhaust airflow at up to 1800 RPM.

Expandable width absorbs sustained GPU heat

Under continuous load the case can widen from 155 mm to 172 mm, creating extra clearance for graphics cards up to 357 mm long, 79 mm thick and 180 mm tall in the expanded configuration. The front-mounted 120 mm radiator dissipates CPU heat directly to fresh air, while dust filters on both side panels maintain airflow over long sessions. CPU cooler height remains limited to 48 mm, so the included AIO is the intended thermal solution.

Replaces a DIY SFF kit, PSU, riser and AIO purchase

Builders who would otherwise source a separate SFX power supply, PCIe 4.0 riser cable and 120 mm liquid cooler can consolidate those components into one validated package. The integrated 850 W unit uses custom-length cables that eliminate slack, and the riser is sized for the chassis to guarantee signal integrity. The jump is worth it when a compact 3.9-slot GPU and Mini-ITX motherboard must coexist without cable routing compromises.

Highlights

  • Pre-built 850 W SFX Gold ATX 3.0 PSU powers demanding builds
  • 7 L chassis fits 357 mm GPUs when expanded to 172 mm width
  • Pre-installed 120 mm AIO and 1800 RPM fan cool high-performance CPUs
  • Front USB 3.2 Gen 2x2 Type-C delivers 20 Gbps bandwidth
  • Aluminium side panel and steel frame keep weight at 13.89 lbs

Specifications

BrandCooler Master
ModelNR100-MNNN85-SL0
TypeMini-ITX
ColorDark Grey
Case MaterialExterior: Steel, Plastic, Aluminum
Left Side Panel: Aluminum
With Power SupplyV SFX Gold 850W ATX3.0
Power Supply850W
Motherboard CompatibilityMini ITX
Dust FiltersSide Panels
Internal 2.5" Drive Bays1
Expansion Slots3
Front Ports2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type-C, 1 x Audio
Fan Options1 x 120mm SickleFlow PWM Fan Pre-installed (Max. 1800RPM)
Radiator InstalledFront - 1 x 120mm
Radiator OptionsFront - Up to 120mm
120mm Fans1
Max GPU Length337mm x 62mm x 180mm (Normal, 3.0 Slot thick)
357mm x 79mm x 180mm (Expansion, 3.9 Slot thick)
(Maximum space including GPU power connector)
Max CPU Cooler Height48 mm
Max PSU Length100 mm
Dimensions6.1" x 8.35" x 18.93"
Weight13.89 lbs.
FeaturesCooler Master's NCORE 100 MAX offers the pinnacle solution for maximizing performance while minimizing form factor. Carrying forward the legacy of Cooler Master’s high-performance MAX series, the NCORE delivers superior cooling, power, and an array of new features. These include a minimal footprint, anodized aluminum paneling, expandable width, support for 4-slot thick GPUs, compatibility with the latest graphics cards, and more. The NCORE 100 MAX prioritizes versatility, compatibility, and performance without compromising its sleek, space-saving design. Elevate your build to its max
Shipping weight6.30 kg
Package size506 × 212 × 155 mm

Questions about this item

Will a 3.5-slot graphics card fit without removing the side panel?

The case expands from 155mm to 172mm wide, allowing cards up to 357mm long, 79mm thick and 180mm tall including the power connector.

Can I use a standard tower CPU cooler with this case?

Maximum CPU cooler height is 48mm, so only low-profile coolers or the included 120mm AIO will fit.

Does the included power supply support ATX 3.0 and PCIe 5.0 graphics cards?

The pre-installed 850W SFX Gold unit is ATX 3.0 compliant and ships with custom-length cables for the internal PCIe 4.0 riser.
