Cooler Master
Cooler Master V1100 SFX Platinum 1100W power supply MPZ-B001-SFAP-BUS
SFX form-factor unit delivers 1100 W with 80 PLUS Platinum efficiency and an ATX 3.0 12VHPWR connector for up to 600 W GPU power
- ColorBlack
- TypeSFX
- Maximum Power1100 W
- Fans1 x 92 mm Fan Bearing: FDB
- PFCActive
- Main Connector24Pin
- Compact SFX design fits mini-ITX builds
- included bracket enables ATX case compatibility
- single 12VHPWR cable delivers 600W to GPU
- 80 PLUS PLATINUM efficiency cuts waste heat
- fully modular cables reduce clutter and improve airflow
SFX power supply for compact builds

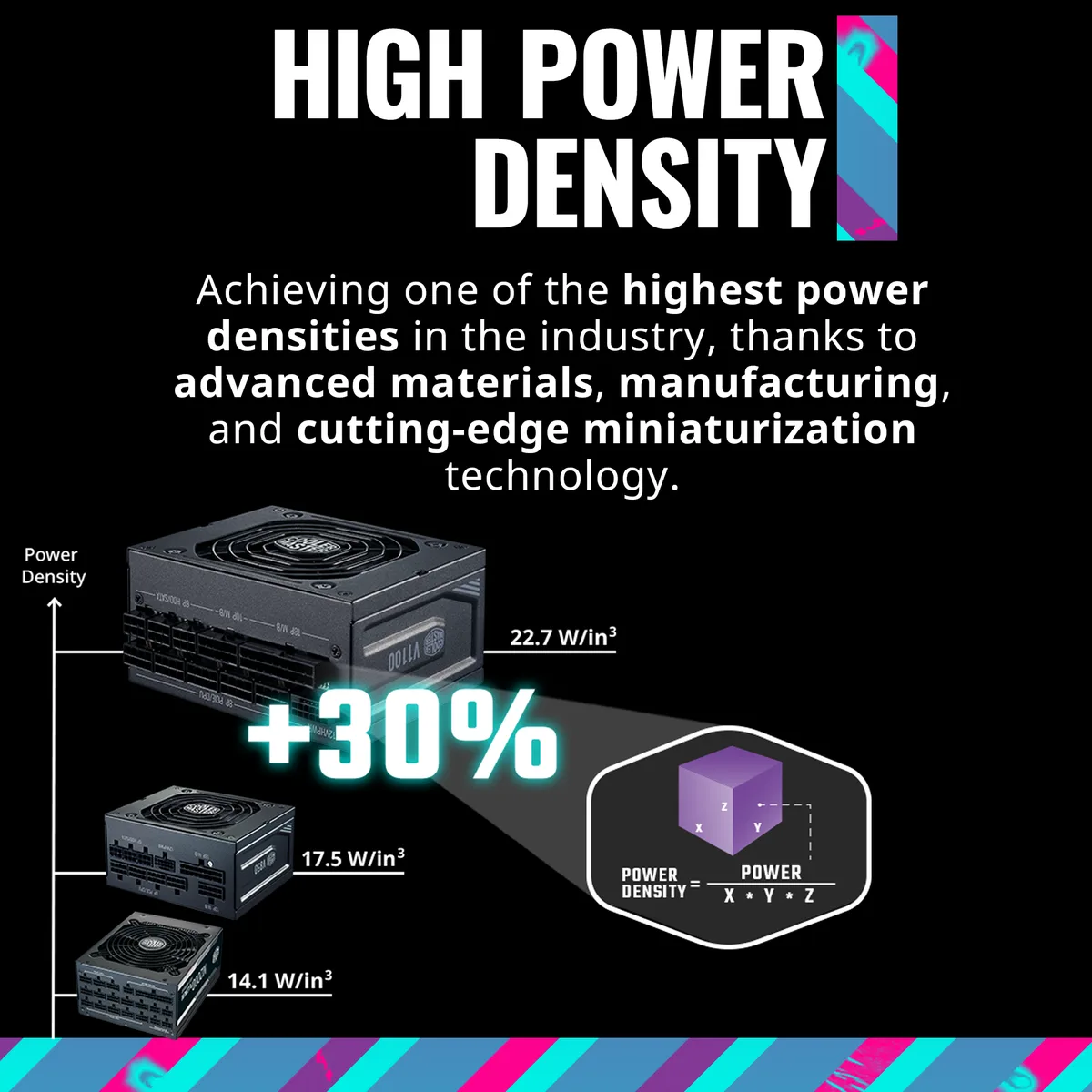

The Cooler Master V1100 SFX Platinum delivers 1100 W in an SFX form factor measuring 125 mm in length. An included ATX bracket allows installation in both SFX and standard ATX cases. Full modular cabling lets builders connect only the cables required for their specific configuration.
Platinum efficiency with low noise

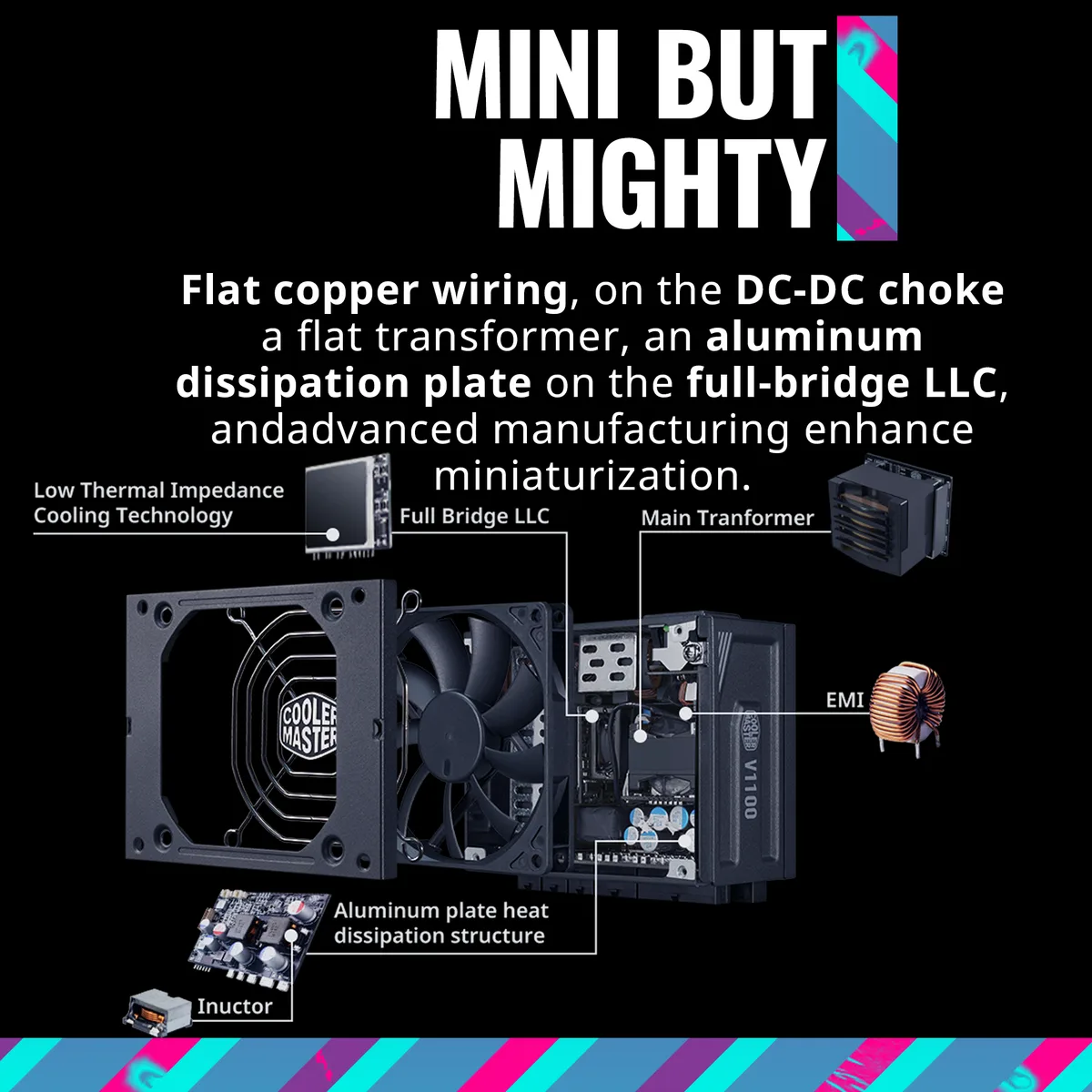

80 PLUS PLATINUM certification guarantees at least 92 % efficiency at typical load while a 92 mm FDB fan keeps noise at Cybenetics A- level. Active PFC, full-bridge LLC topology and DC-DC conversion reduce switching losses and improve thermal performance. Hold-up time reaches 16 ms at 70 % load with a power-good signal of 100 to 150 ms.

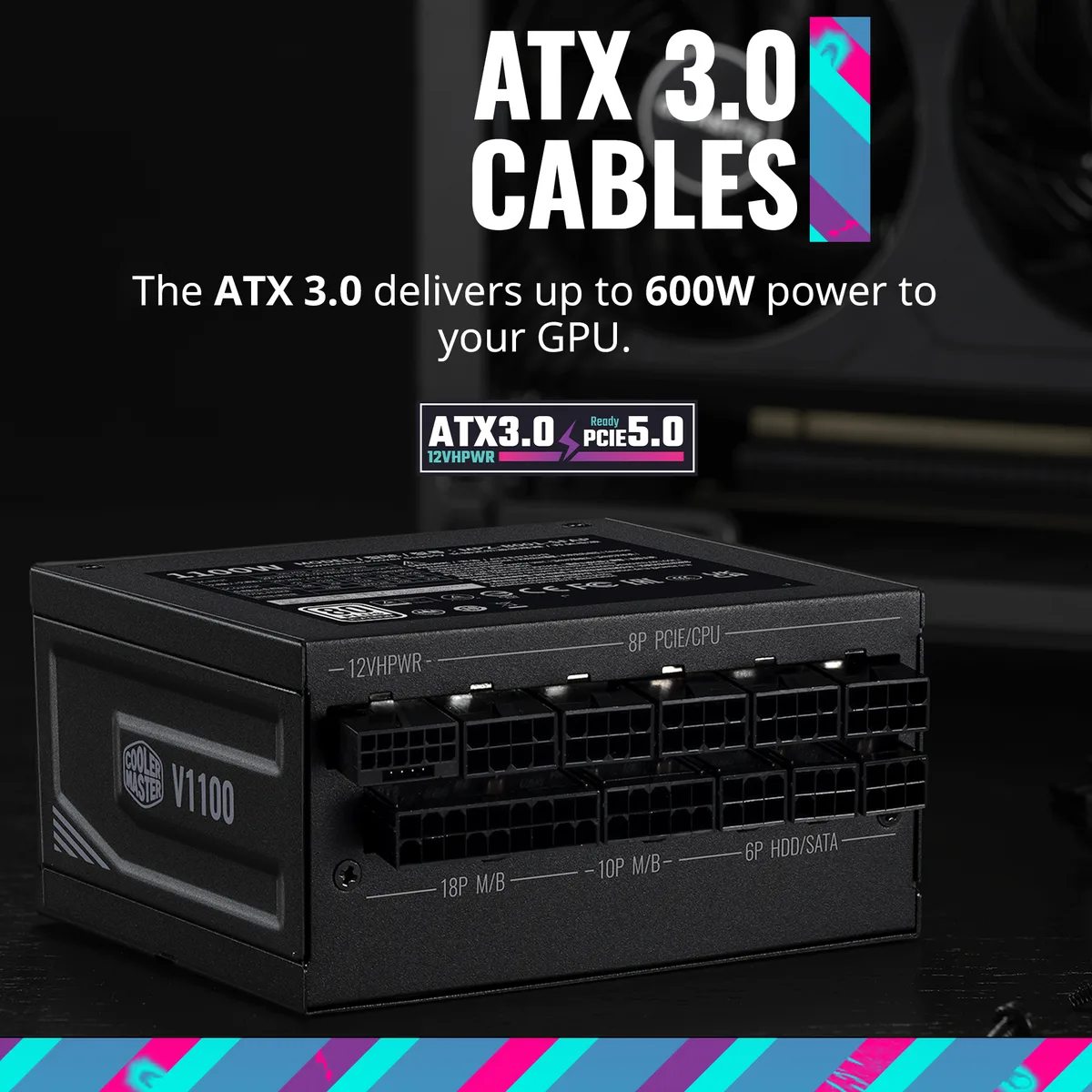

ATX 3.0 connectivity for modern GPUs

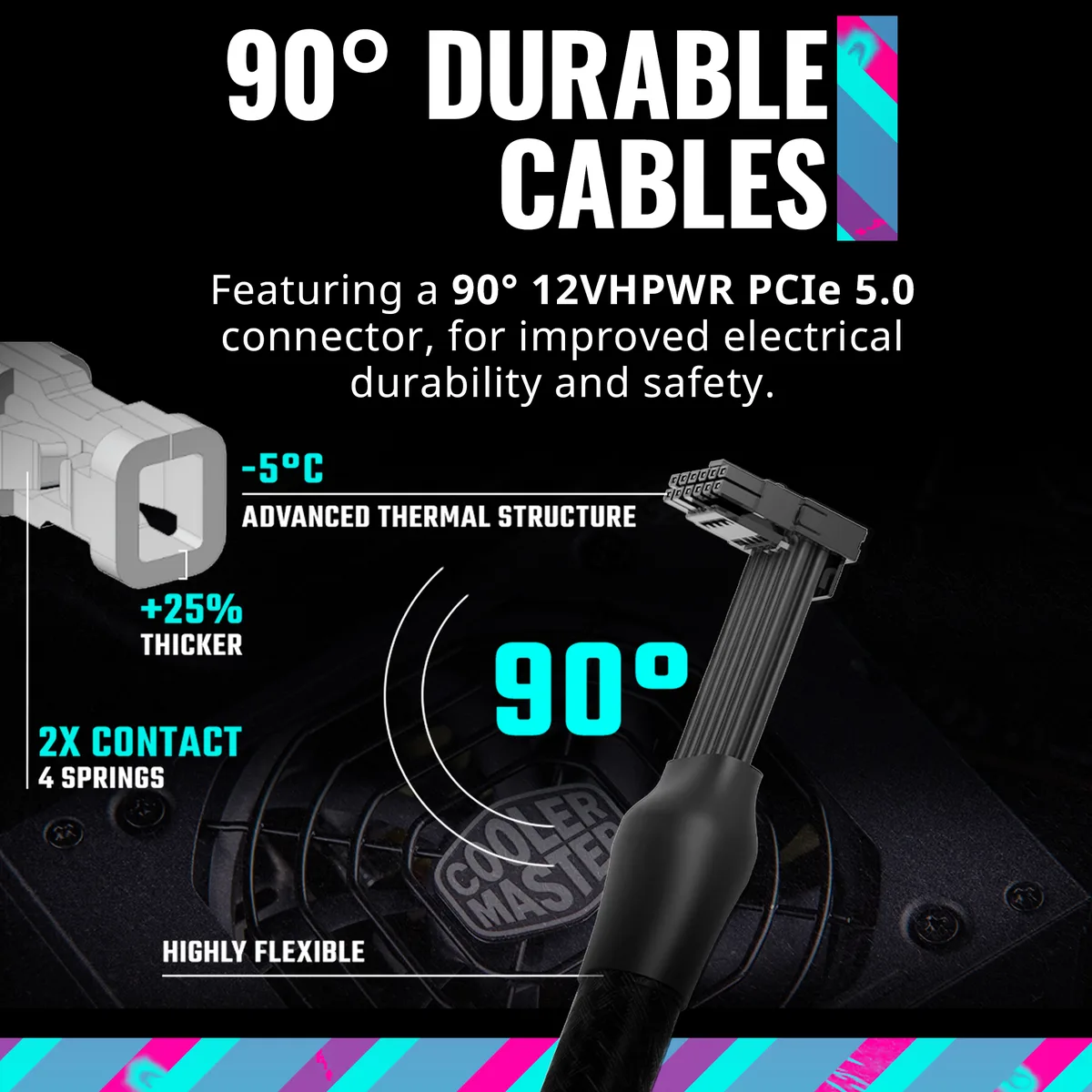

The unit provides a native 12VHPWR connector capable of supplying 600 W to a graphics card through a single cable. Three PCIe 6+2-pin connectors, one 24-pin ATX, two EPS connectors, four SATA and one peripheral connector cover the remaining components. All cables are fully modular to simplify routing in space-constrained chassis.
Highlights
- Compact SFX design fits mini-ITX builds
- included bracket enables ATX case compatibility
- single 12VHPWR cable delivers 600W to GPU
- 80 PLUS PLATINUM efficiency cuts waste heat
- fully modular cables reduce clutter and improve airflow
Specifications
| Brand | Cooler Master |
|---|---|
| Model | MPZ-B001-SFAP-BUS |
| Color | Black |
| Type | SFX |
| Maximum Power | 1100 W |
| Fans | 1 x 92 mm Fan Bearing: FDB |
| PFC | Active |
| Main Connector | 24Pin |
| PCI-Express Connector | 3 x 6+2-Pin |
| SATA Power Connector | 4 |
| Max PSU Length | 125 mm |
| Modular | Full Modular |
| Power Good Signal | 100-150ms |
| Hold-up Time | >=16ms at 70% Load |
| Efficiency | >=92% @ Typical Load |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| PSU Noise Level | Cybenetics A- |
| Protection | OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 14~6.5A |
| Output | +3.3V@20A, +5V@20A, [email protected] , [email protected] , +12V@3A |
| MTBF | >100,000 Hours |
| Approvals | TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA |
| Connectors | ATX 24 Pin x1 (300mm) EPS 4+4 Pin x 1 (450mm) EPS 8 Pin x1 (450mm) SATA x 4 (100+150+150+150mm) Peripheral 4 Pin x 1 (100+120+120+120mm) PCI-e 6+2 Pin X3 (400mm) |
| Features | Combined Power +12V:1099.2W ATX Version: ATX3.0 & SFX 12V Ver. 3.42 ErP 2014 Lot 3: Yes Operating Temperature: 0~50°C Noise: Noise @ 20%/Noise @ 50%/Noise @ 100% |
| Dimensions | 3.93" x 4.92" x 2.5" |
| Weight | 4.29 lbs |
| Package Content | V1100 SFX Platinum SFX-to-ATX Bracket Connectors Power Cord 4x screws Manuel |
| Shipping weight | 1.95 kg |
| Package size | 273 × 191 × 64 mm |
Questions about this item
Will this 1100 W SFX unit fit in a standard ATX case?
Yes, an ATX mounting bracket is included so the 125 mm long SFX chassis can be installed in either SFX or ATX cases.
Can the native 12VHPWR connector deliver 600 W to a modern graphics card?
The ATX 3.0 compliant 12VHPWR cable is rated for up to 600 W through a single connection.
How many SATA drives can be powered directly from the modular cables?
Four SATA power connectors are supplied on the modular cable set.
